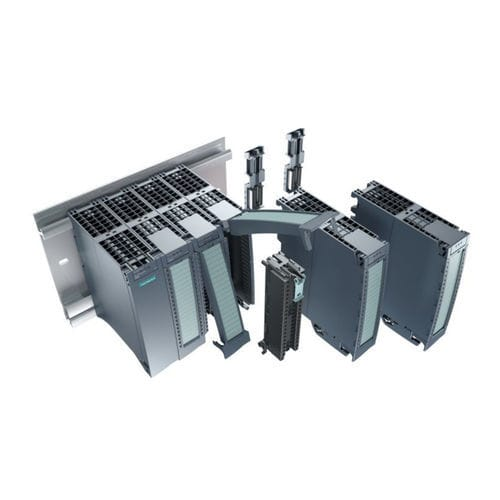

Siemens 6ES7 Series Analog Modules for PLC Systems

Siemens SM 1234 Analog I/O Module: Enhancing Industrial Automation Precision

The Siemens 6ES7 series represents excellence in industrial automation components. The SM 1234 analog I/O module particularly stands out for its remarkable signal processing capabilities. Many industry professionals consider this module essential for precise control system applications.

Real-World Applications in Industrial Settings

Chemical processing plants extensively use SM 1234 modules for reactor temperature control. The module accurately monitors multiple temperature sensors through its analog inputs. Meanwhile, the analog outputs precisely control heating element power levels. This ensures consistent product quality and operational safety. Many plants report significant efficiency improvements after implementation.

Water Treatment Plant Implementation

Municipal water facilities employ SM 1234 for pH monitoring and chemical dosing. The module's four inputs track pH levels from multiple sampling points. Its two outputs control chemical pump speeds for accurate dosage adjustment. This application demonstrates the module's reliability in continuous operation environments. Facilities achieve better compliance with environmental regulations using this system.

Manufacturing Production Line Solutions

Automotive manufacturers integrate SM 1234 modules in painting robot systems. The analog inputs monitor paint viscosity and pressure parameters. Simultaneously, outputs adjust paint flow rates and nozzle positions. This ensures uniform coating thickness across all vehicle bodies. Production managers report reduced material waste and improved finish quality.

Understanding Analog Signal Processing in Industrial Environments

Modern factories require accurate analog signal handling for process control. The SM 1234 module processes both voltage and current signals with exceptional precision. Its four input channels handle various signal ranges including ±10V and 4-20mA. Moreover, the module's two output channels provide reliable control signals to actuators. This flexibility makes it suitable for diverse industrial applications.

Technical Superiority of Siemens SM 1234 Module

Siemens designed the SM 1234 with advanced 14-bit resolution for outstanding accuracy. The module maintains ±0.1% basic error limit at 25°C operational temperature. Its differential measurement principle effectively reduces common-mode noise interference. Additionally, the module features configurable integration times and smoothing filters. These technical attributes ensure reliable performance in challenging industrial environments.

Food and Beverage Industry Case Study

Beverage companies use SM 1234 for liquid ingredient proportioning systems. Analog inputs monitor flow meters and concentration sensors. The outputs control proportional valves for precise ingredient mixing. This application highlights the module's accuracy in batch processing operations. Companies achieve consistent product taste and quality through this implementation.

Pharmaceutical Manufacturing Applications

Drug manufacturers utilize SM 1234 in tablet coating processes. The module monitors coating thickness using laser measurement sensors. It controls spray nozzles and drum rotation speeds through analog outputs. This ensures uniform medication dosage in each tablet. Pharmaceutical companies maintain strict quality standards using this automated system.

Critical Role in Complete Automation Systems

The SM 1234 seamlessly integrates with Siemens S7-1200 PLC systems. It expands analog capability while maintaining system compatibility and performance. The module supports PROFINET communication for efficient data exchange. Furthermore, it enables precise control of processes like temperature regulation and pressure management. Many system integrators prefer this module for its reliability and ease of integration.

Diagnostic Capabilities and Maintenance Advantages

Comprehensive diagnostic functions significantly reduce system downtime. The module detects wire-break conditions and short-circuit faults immediately. Status LEDs provide clear visual indication of operational states. Additionally, supply voltage monitoring ensures stable operation. These features enable predictive maintenance and quick fault resolution.

Renewable Energy Sector Applications

Solar power plants implement SM 1234 for solar tracking systems. The analog inputs monitor light intensity sensors and position feedback. The outputs control hydraulic actuators that adjust panel angles. This maximizes energy capture throughout daylight hours. Plant operators report increased energy generation efficiency using this solution.

Practical Implementation Considerations

Proper installation requires shielded twisted-pair cables for signal integrity. Engineers should maintain maximum cable lengths under 100 meters. Adequate separation from power cables prevents electromagnetic interference. Furthermore, correct grounding practices ensure optimal performance. These implementation guidelines guarantee reliable long-term operation.

Future Trends in Analog Signal Processing Technology

Industrial automation increasingly demands higher precision and smarter diagnostics. The SM 1234 platform positions users well for evolving industry requirements. Future enhancements will likely focus on integrated condition monitoring. Additionally, we anticipate improved cybersecurity features for network protection. Siemens continues leading innovation in industrial automation components.

Frequently Asked Questions

• What signal types does the SM 1234 module support? It handles voltage signals ±10V, ±5V, ±2.5V and current signals 0-20mA, 4-20mA.
• How many input and output channels are available? The module provides four analog inputs and two analog outputs.
• What resolution does the module offer? Inputs feature 13-bit resolution while outputs provide 14-bit resolution.
• What diagnostic features are included? The module offers wire-break detection, short-circuit monitoring, and supply voltage supervision.
• Can this module handle high-vibration industrial environments? Yes, it withstands vibrations up to 2g and operates from -20°C to 60°C.
• What industries commonly use this module? Chemical, water treatment, pharmaceutical, automotive, and renewable energy sectors.
• How does it communicate with the main PLC? Through seamless integration with Siemens S7-1200 series via PROFINET protocol.
