PowerFlex 525 AC Drive Overview Electrical Specifications Input Voltage: 480 V AC Rated Current: 6.0 A Power Rating: 2.2 kW / 3 Hp Frequency Range: 0.1 Hz – 500 Hz Efficiency: 96% Weight:1.28kg Control Features Motor Types Supported: AC Induction, Permanent Magnet Speed Control:...

PowerFlex 525 0.75kW / 1Hp AC Drive Technical Parameters Model: 25B-D2P3N314 Rated Power: 0.75 kW / 1 Hp Rated Voltage: 480 V AC, 3-Phase Rated Current: 2.3 A Frequency Range: 0.1 - 500 Hz Control Method: V/Hz and Sensorless Vector Control Acceleration Time: 0.1...

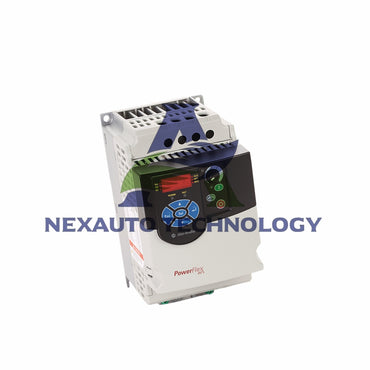

Product Name: Allen-Bradley PowerFlex 4M AC Drive – Model 22F-D6P0N103 Electrical and Performance Ratings Input Voltage: 380–480V AC (3-Phase, ±10%) Output Voltage: 0–460V AC Output Current: 6.0 A Output Power: 2.2 kW / 3 HP Control Method: Volts per Hertz (V/Hz), Sinusoidal PWM Frequency:...

Product Name: Allen-Bradley PowerFlex 4M AC Drive – Model 22F-D024N114 Electrical Ratings and Key Data Input Voltage: 380–480V AC (Three-Phase, ±10%) Input Range: 340–528V AC, 21.7 kVA, 26.1 A Output Voltage: 0–460V AC with internal EMC filter Output Current: 24 A Power Rating: 11...

Product Name: Allen-Bradley PowerFlex 4M AC Drive – Model 22F-D8P7N113 Key Features and Specifications Input Voltage: 380–480V AC (Three-Phase, ±10%) Output Voltage: 0–460V AC with EMC internal filter Rated Current: 8.7 Amps Output Power: 3.7 kW / 5 Horsepower Frame Size: Size B Weight:2.29kg...

Allen-Bradley 22C-D310A103 PowerFlex 400 Drive 250HP Heavy-Duty VFD for Industrial Fan & Pump Applications Power Specifications Input: 380-480V AC 3-Phase | 50-60Hz Output: 310A Continuous | 250HP (160kW) Frame: Size G | IP30/NEMA Type 11 Weight:20kg Key Features Built-in PID control for precise regulation...

Allen-Bradley 22C-D260A103 PowerFlex 400 VFD - 200HP Industrial Drive Core Specifications Input Power: 380-480V AC 3-Phase Output Capacity: 260A continuous current Power Rating: 200HP (132kW) Frequency Range: 0-320Hz adjustable Key Features Multi-Motor Control - Manage up to 4 motors (400% capacity) AutoSwap Technology -...

Allen-Bradley 22C-D208A103 PowerFlex 400 VFD - 150HP Heavy-Duty Drive Power Capacity 150 HP (110 kW) 208A Output Current Voltage Range 380-480V AC Input 0-480V AC Output Enclosure IP30 Rated NEMA Type 1 Technical Specifications Input Current 200A Frequency Range 0-320Hz programmable Control Methods V/Hz,...

PowerFlex 400 Drive 22C-D022N103 - Optimized for Industrial Fan & Pump Control Key Technical Specifications Input Power: 340-528V AC 3-Phase Output Range: 0-460V AC, 22A continuous Motor Control: 15HP (11kW) max capacity Response Time: Less than 10ms for speed changes Operating Temp: -10°C to...

Allen-Bradley 22C-B012H103 PowerFlex 400 Drive - 3HP 240V AC Key Specifications Output Power: 2.2kW (3HP) Input Voltage Range: 200-240V AC ±10% Output Current: 12A continuous Frequency Range: 0-400Hz adjustable Control Method: Sensorless vector control Efficiency: 97.5% at full load Ambient Temperature: -10°C to +45°C...

Product Overview – Allen-Bradley PowerFlex 525 25B-E027N104 Main Features Voltage Class: 525–600 VAC, Three-Phase Input Output Voltage: 0–575 VAC Rated Output Current: 27 A Normal Duty Output Power: 25 HP (18.5 kW) Heavy Duty Output Power: 20 HP (15 kW) Frame Size: E Enclosure:...

PowerFlex 525 25B-E019N104 Overview Control Modes: V/Hz, Sensorless Vector, Closed-Loop Velocity, Permanent Magnet Switching Freq: 16 kHz for minimal audible noise Frequency Range: 0–500 Hz Communication: Ethernet/IP, RS-485, USB (dual ports) Power Factor: 0.98 Weight:3.87kg Brake: IGBT dynamic braking built-in Safe-Torque Off: Integrated safety...

PowerFlex 525 25B-D6P0N114 Overview Key Features Control Modes: V/Hz, Sensorless Vector, Closed-Loop Velocity, Permanent Magnet (with/without encoder) Switching Frequency: 16 kHz for low audible noise Ambient Range: –20 °C to +60 °C operating, –40 °C to +85 °C storage Harmonic Distortion: THD < 5...

Product Introduction: 25B-D037N114 This Allen-Bradley PowerFlex 525 drive, model 25B-D037N114, delivers up to 25 HP (18.5 kW) in normal duty and 20 HP (15 kW) in heavy duty, with 37 A output current at 480 VAC, 3-phase. Detailed Specifications Voltage Tolerance: −15%/+10%Frequency Tolerance: 47–63...

Product Overview: 25B-D024N114 The Allen-Bradley PowerFlex 525 adjustable frequency drive, model 25B-D024N114, delivers 15 HP (11.0 kW) in both normal and heavy-duty modes. Input voltage range is 323–528 VAC (3-phase). Key Specifications Output Current: 24.0 AControl Methods: Volts/Hertz, Sensorless Vector, Closed-Loop Velocity Vector, Permanent...

Allen-Bradley 25B-D010N114 PowerFlex 525 Adjustable Frequency AC Drive Key Technical Specifications Input Voltage: 380-480 VAC, 3-Phase Output Voltage: 0-460 VAC, 3-Phase Output Current: 10.5 A Output Power: 4.0 kW (5.0 HP) Weight:1.6kg Frequency Range: 0-500 Hz (programmable) Installation: Panel Mount Enclosure Rating: IP20 /...

Quick Highlights The 25B-B8P0N104 PowerFlex 525 VFD delivers 8.0 A output and 1.5 kW (2 HP) motor control. Electrical & Performance Input: 200–240 VAC, 3-Phase @ –15 % to +10 % tolerance, 47–63 Hz Output: 0–230 VAC, 3-Phase @ 8.0 A, 0–500 Hz Power:...

PowerFlex 525 AC Drive – 25B-B2P5N104 Core Electrical Ratings Input Voltage: 240 VAC, 3 PhaseOutput Voltage: 0–230 VAC, 3 PhaseRated Current: 2.5 AOutput Power: 0.5 HP (0.4 kW) (Normal & Heavy Duty) Control & I/O Control Methods: V/Hz, Sensorless Vector, Closed-Loop Velocity Vector, Permanent...

PowerFlex 525 AC Drive - 25B-B011N104 Model Details Series: PowerFlex 52525B-B011N104,weight:1.1kg Electrical Specifications Input Voltage: 200–240 VAC, 3 PhaseOutput Voltage: 0–230 VAC, 3 PhaseRated Current: 11.0 AOutput Power: 3 HP (2.2 kW) for both Normal & Heavy Duty Control Features Methods: Volts/Hz, Sensorless Vector...

PowerFlex 525 AC Drive – 25B-A8P0N104 Core Electrical Data Input: 200–240 VAC, 1 PhaseOutput: 0–230 VAC, 3 PhaseContinuous Current: 8 APower Rating: 2 HP / 1.5 kW (Normal & Heavy Duty) Weight:1.74kg Mechanical & Environmental Enclosure: IP20 (Open Type)Frame Size: BOperating Temp: –10 °C...
