Technical Specifications: Model: 195N1123 VLT Series: 2800 Power Rating: 20 HP (15.0 kW) Phase: 3-phase Mains Voltage (U(in)): 380-480V +/- 10%, 50/60Hz Enclosure Type: Bookstyle Enclosure Class: IP20 (dust and water ingress protection for indoor use) Hardware Configuration: Standard (ST) RFI Filter: Cable length...

PowerFlex 525 Variable Frequency Drive Model Breakdown Series: PowerFlex 52525B-B032N104，weight：3.9kg Electrical Ratings Input: 170–264 VAC, 3 PhaseOutput: 0–240 VAC, 3 PhaseInput Current: 34.8 AOutput Current: 32.2 APower: 10 HP (7.5 kW) both Normal & Heavy Duty Control & I/O Control Methods: PWM, Volts/Hz, Sensorless...

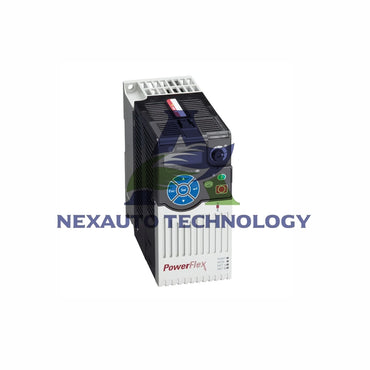

Overview The 25B-B5P0N104 PowerFlex 525 Variable Frequency Drive offers multi-mode motor control—V/Hz, Sensorless Vector, Velocity Vector, and Permanent Magnet. Electrical Ratings Input: 170–264 VAC, 3-Phase @ 5.8 A, 47–63 HzOutput: 5.0 A @ 0–240 VAC, 0–500 Hz, 0.75 kW (1 HP) Performance & Protection...

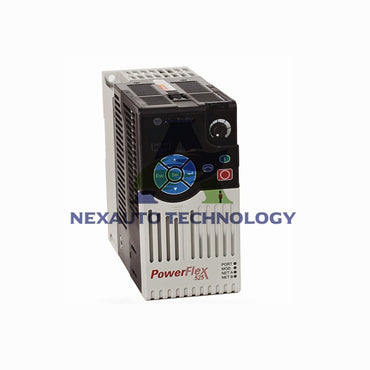

Allen-Bradley 25B-D013N104 PowerFlex 525 Variable Frequency Drive (VFD) Key Technical Specifications Input Voltage: 323-528 VAC, 3-Phase Output Voltage: 0-460 VAC Output Current: 17.0 A (Normal & Heavy Duty) Power Rating: 7.5 HP (5.5 kW) Weight:2.3kg Frequency Range: 0–500 Hz (fully adjustable) Frame Size: C...

Allen-Bradley 25B-D1P4N104 PowerFlex 525 Variable Frequency Drive Electrical & Performance Specifications Input Voltage: 323-528 VAC, 3-Phase Input Current: 1.9 Amps Output Voltage: 0–460 VAC Output Current: 1.4 Amps Output Power: 0.4 kW (0.5 HP) Frame Size: Frame A Enclosure Rating: IP20 / NEMA UL...

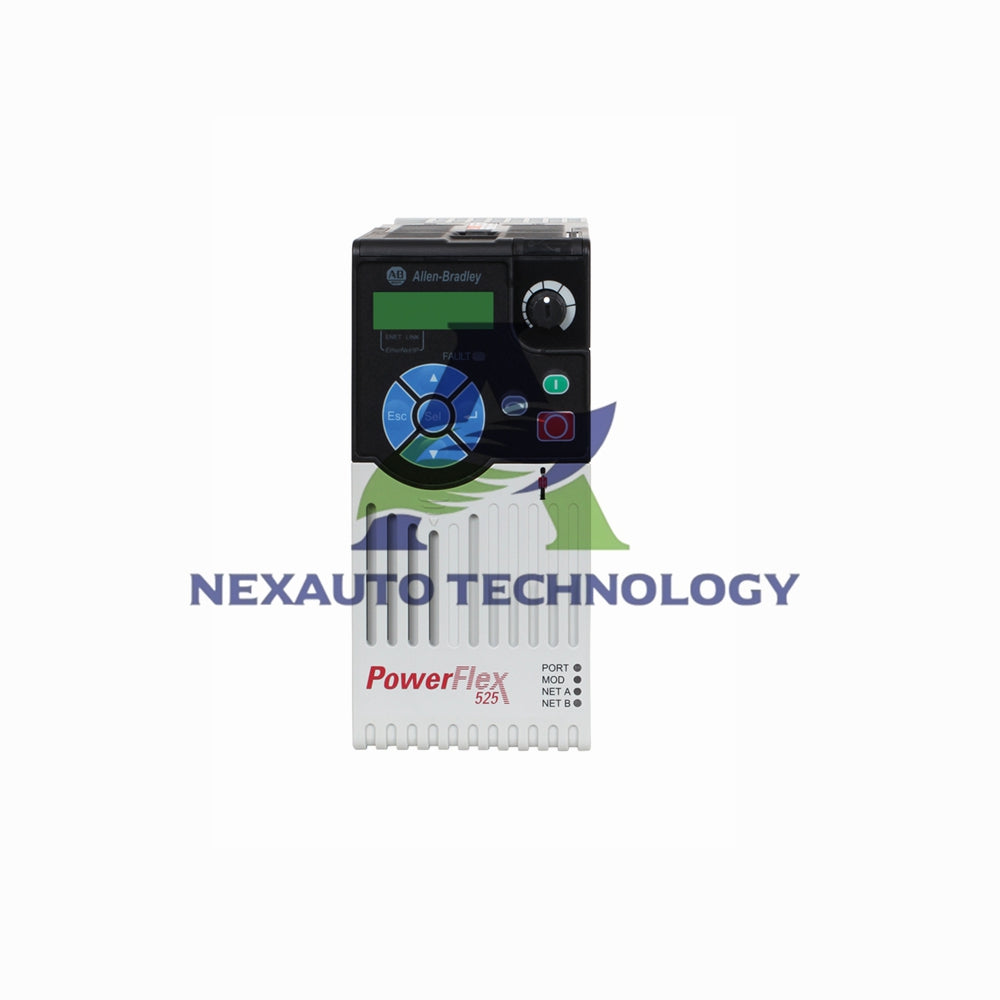

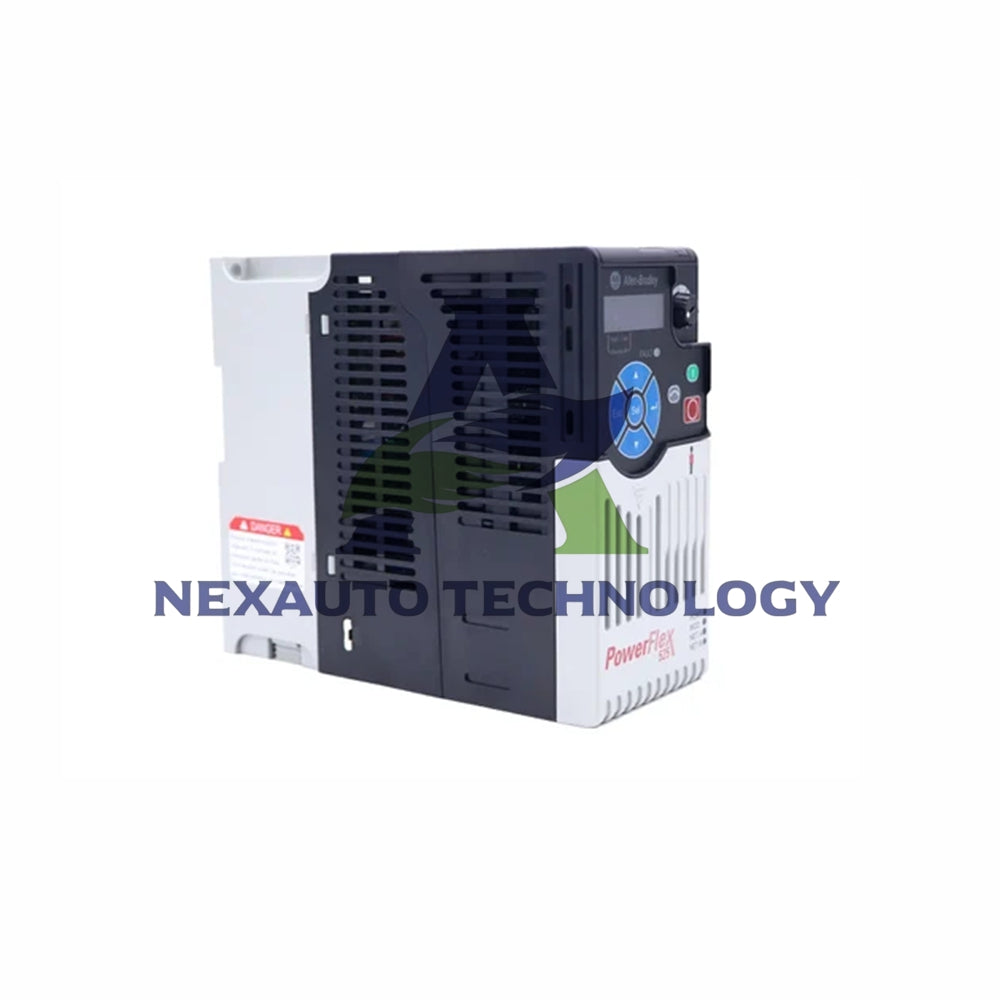

Allen-Bradley 25B-D2P3N104 PowerFlex 525 Variable Frequency Drive Key Specifications Input Voltage: 323–528 VAC, 3-Phase Input Current: 3.2 Amps Output Voltage: 0–460 VAC Output Current: 2.3 Amps Output Power: 0.75 kW (1.0 HP) Frame Size: Frame A Enclosure: IP20 / NEMA UL Open Type Power...

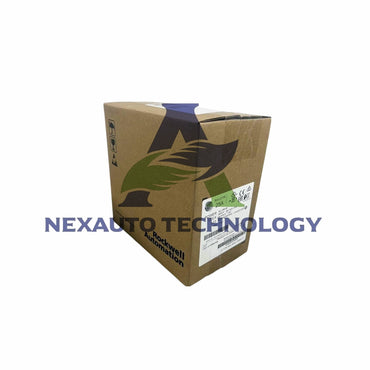

25B-D4P0N104 PowerFlex 525 Variable Frequency Drive 2.0 HP (1.5 kW) · 4.0 A · 323–528 VAC, 3-Phase I/O & Interfaces Discrete: 7 inputs, 1 N.O., 1 N.C., 2 opto outputs Analog: 2 inputs (0–10 V/0–20 mA), 1 output (0–10 V/0–20 mA) Ports: Ethernet IP,...

Allen-Bradley 25B-D6P0N104 PowerFlex 525 Variable Frequency Drive Technical Specifications Input Voltage: 323–528 VAC, 3-Phase Input Frequency: 50/60 Hz Input Current: 7.5 A Output Voltage: 0–460 VAC Output Current: 6.0 A Output Power: 2.2 kW / 3.0 HP Frame Size: A Enclosure Type: IP20 NEMA...

Allen-Bradley 25B-E012N104 PowerFlex 525 Variable Frequency Drive Key Technical Specifications Input Voltage Range: 446–660 VAC (Nominal: 525–600 VAC), 3-Phase Input Frequency: 47–63 Hz Weight:2.3kg Output Voltage: 0–575 VAC, 3-Phase Output Current: 12.0 Amperes Output Power: 7.5 kW / 10.0 HP Output Frequency: 0–500 Hz...

Allen-Bradley 25B-E022N104 PowerFlex 525 Variable Frequency Drive Technical Specifications Input Voltage Range: 525–600 VAC, 3-Phase Output Voltage Range: 0–575 VAC, 3-Phase Output Current: 22 Amperes Output Power: Up to 22 kW (adjustable) Frame Size: Frame D Enclosure Type: IP20 / NEMA Open Type EMC...

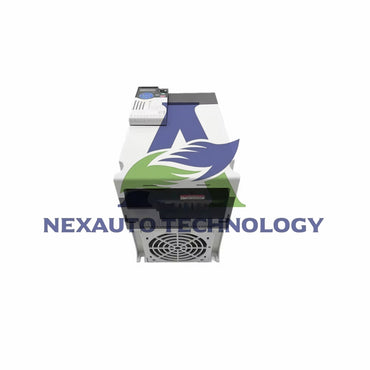

Allen-Bradley 25B-E3P0N104 – PowerFlex 525 Variable Frequency Drive Performance Highlights Input Voltage: 446–660 VAC, 3-Phase Output Voltage: 0–575 VAC Output Current: 3.0 A Input Current: 3.8 A Output Power: 1.5 kW (2.0 HP) – Normal & Heavy Duty Frame Size: A Weight:2.24kg Enclosure: IP20...

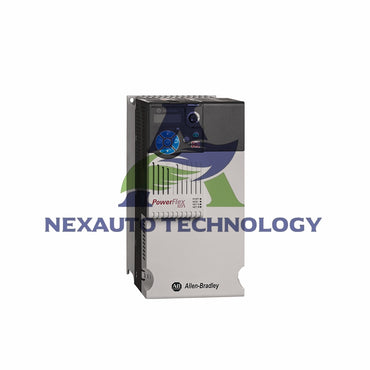

Allen-Bradley 25B-V2P5N104 – PowerFlex 525 Variable Frequency Drive Performance Specifications Input Voltage: 120 VAC, 1-Phase Output Voltage: 0–230 VAC, 3-Phase Output Current: 2.5 A Output Power: 0.4 kW / 0.5 HP (Normal & Heavy Duty) Frame Size: A Weight:1.327kg Enclosure: IP20 NEMA / UL...

Technical Specifications Parameter Details Model Identification Global Commercial Alias: ACS880-01-04A8-5 Product ID: 3AUA0000090430 ABB Type Designation: ACS880-01-04A8-5 Physical Dimensions Net Weight: 7.0 kg (15.432 lb) Net Depth / Length: 226 mm (8.898 in) Net Height: 409 mm (16.102 in) Net Width: 155 mm (6.102...
