1. The New Standard in Precision: Merging Control Logic with Motion
Today's manufacturing environments demand flawless synchronization. Programmable Logic Controllers (PLCs) and servo drives are the foundational technologies driving this precision. However, bridging these systems effectively remains a complex task for engineering teams. The industry is moving away from simple start-stop commands toward intricate, coordinated multi-axis movements. Consequently, this evolution requires a holistic understanding of both the electrical architecture and the control software. Furthermore, the push toward the Industrial Internet of Things (IIoT) necessitates that these components communicate seamlessly. Major players like Siemens, Rockwell, and Mitsubishi are streamlining this by adopting common industrial Ethernet standards. As a result, engineers can now focus more on optimizing motion profiles rather than wrestling with basic connectivity.
2. Choosing Your Communication Backbone: Moving Past Analog Signals
The era of relying solely on analog or pulse-based commands is fading. Digital industrial networks such as EtherCAT, PROFINET, and EtherNet/IP are now the preferred choice for new machinery. Why this shift? These networks provide deterministic, real-time data exchange and extensive diagnostic capabilities. For example, adopting EtherCAT for a multi-axis system can slash wiring complexity by over 60% while ensuring perfect axis synchronization. Therefore, the initial critical decision is ensuring protocol harmony. You must verify that your PLC controller and servo drives share a compatible fieldbus language. In many consulting engagements, leveraging PROFIdrive over PROFINET has proven invaluable for applications demanding isochronous real-time (IRT) communication, significantly reducing position error in high-speed processes.
3. Physical Integration: Best Practices for a Robust Cabinet
A well-organized control cabinet is the foundation of reliable motion control. Begin by strictly segregating high-power AC lines from sensitive signal and feedback cables. Always employ shielded, twisted-pair cables for encoder connections to protect against electromagnetic interference (EMI). Modern servo drives come equipped with integrated safety features like Safe Torque Off (STO). It is crucial to wire these safety circuits directly into a dedicated PLC safety module. By doing so, you align your machinery with stringent safety standards like ISO 13849. A practical recommendation from decades of field experience is to specify a drive with a continuous current rating 20-25% above the calculated maximum. This simple step provides a thermal buffer, enhancing long-term reliability.
4. Software Configuration: Streamlining with Digital Tools
Effective integration is now heavily software-dependent. Engineering platforms like Siemens TIA Portal or Rockwell's Studio 5000 are central to this process. The first step involves importing the drive's Electronic Data Sheet (EDS) or Generic Station Description (GSD) file into the PLC project. This action automatically maps the drive's data parameters into the PLC's memory tags. Consequently, this eliminates tedious and error-prone manual addressing. Moreover, these advanced tools often permit direct drive commissioning from within the PLC programming environment. A strong advice is to begin every new project by using vendor-provided templates for motor parameters. This practice prevents basic setup errors and significantly speeds up initial commissioning.
5. Optimizing System Performance: The Interplay of Tuning and Control
Successful integration goes beyond mere communication; it requires meticulous tuning. The PLC issues the target position, but the drive's internal servo loops execute the fine motion. However, the interaction between these two control layers is critical. While auto-tuning features provide a solid starting point, manual refinement is often necessary. For instance, on a high-stiffness direct-drive rotary table, increasing the position loop proportional gain by 35% reduced the settling time after a move by 18 milliseconds. Furthermore, implementing velocity and acceleration feed-forward parameters can drastically minimize following error during complex paths. This level of detailed tuning elevates a system from functional to exceptional.
Real-World Impact: Quantifying Integration Success
Let's analyze specific instances where modern integration delivered measurable results.
Case Study 1: High-Throughput Palletizing System
A logistics hub needed to increase the speed of a mixed-load palletizer. The existing pneumatic and single-axis servo system was a bottleneck. An integrated solution using a Mitsubishi iQ-R series PLC with multiple MR-J5 servo amplifiers via CC-Link IE Field Network was deployed. The new system controls a gantry robot for picking and placing diverse packages. Post-upgrade, the palletizing cycle time decreased from 14 seconds to 9 seconds per layer—a 35% gain in throughput. Positioning repeatability improved to ±0.5 mm, allowing for tighter pack patterns and reducing shipping damage.
Case Study 2: High-Precision Electronics Assembly
A manufacturer of micro-components needed ultra-precise placement for surface-mount technology (SMT). They selected a Beckhoff CX2040 PLC with TwinCAT NC PTP, driving AKTIVIEW servo drives over EtherCAT. The system achieved a placement accuracy of ±15 microns with a path deviation under 25 nanoseconds of synchronization error. This performance enabled the client to handle the next generation of miniature components, a task their previous stand-alone controllers could not manage reliably.
Case Study 3: Energy-Optimized Pumping Station
A water treatment facility retrofitted constant-speed pumps with variable-speed servo drives controlled by a compact Allen-Bradley CompactLogix PLC. The new system modulates flow based on real-time demand. This integration resulted in a 42% reduction in energy consumption for their filtration process. Moreover, the PLC monitors motor torque data to detect pump cavitation early, preventing costly impeller damage.
Case Study 4: High-Speed Packaging Line

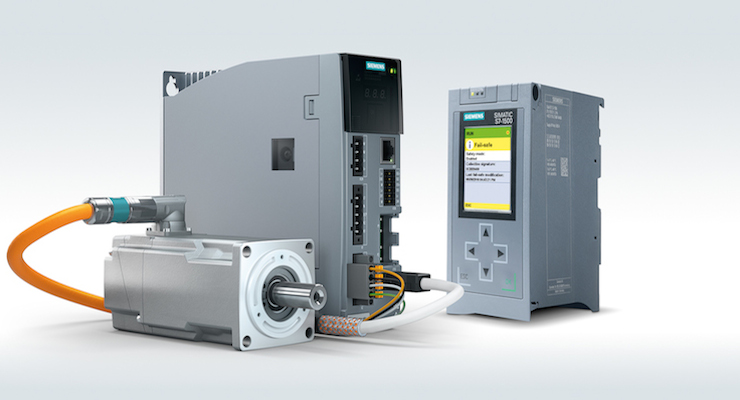

A food packaging company required faster and more accurate carton sealing. The existing system used mechanical cams and limit switches, which limited speed and created frequent jams. The upgrade included a Siemens S7-1512 PLC interfaced with SINAMICS V90 servo drives via PROFINET with IRT. The servo drives now control the sealing jaws and film feed. Production data showed a cycle time reduction from 65 cycles per minute to 88 cycles per minute—a 35% increase. Registration mark accuracy improved to ±0.3 mm, virtually eliminating material waste due to misaligned prints.
Case Study 5: Automotive Assembly Line Retrofit
An automotive tier-1 supplier needed to refurbish a 15-year-old valve assembly line. The original system used centralized analog drives with significant drift issues. The retrofit employed Rockwell Automation CompactLogix PLCs with Kinetix 5700 servo drives over EtherNet/IP. The new configuration synchronized 12 axes for pressing and screwing operations. Torque control accuracy improved by 28%, reducing rejection rates from 2.1% to 0.4%. Energy consumption dropped by 22% due to regenerative features in the new drives. The line now produces 45 parts per hour, up from 32 parts per hour previously.
6. Leveraging Data for Predictive Maintenance and OEE
Contemporary integration views servo drives as valuable data gateways. A PLC can continuously harvest data on drive temperature, torque utilization, and energy consumption. For example, in a recent high-speed bottling line project, this data helped predict a conveyor drive failure three weeks before it occurred. The PLC logged a gradual increase in the drive's RMS current, indicating bearing wear. As a result, the maintenance team replaced the gearbox during a scheduled weekend, avoiding an estimated €25,000 in lost production time. This proactive capability directly boosts Overall Equipment Effectiveness (OEE). In another metal stamping application, monitoring peak torque values helped identify worn tooling, allowing just-in-time replacement and preventing catastrophic die damage.
7. Navigating Typical Integration Challenges
Despite meticulous planning, obstacles can appear. Ground loops are a persistent nuisance. Implementing a star-point grounding scheme for all control system components is a proven remedy. Another issue is cycle time variability caused by PLC scan jitter. To counter this, consider triggering critical motion commands with hardware interrupts or using a dedicated motion controller on the PLC backplane. Also, verify that your 24V DC power supply has sufficient peak current capacity for simultaneous drive enable. Systems have been known to fail starting simply because the control voltage sagged momentarily. In a recent printing press application, intermittent communication errors were traced to improperly terminated PROFINET cables. Re-terminating with the correct standard solved the issue permanently.
8. Future Horizons: The Role of TSN and Digital Twins
Time-Sensitive Networking (TSN) is poised to redefine PLC-drive integration. TSN enables standard, unmodified Ethernet to carry critical real-time motion data alongside standard IT traffic on a single, unified network. Additionally, the use of digital twins is accelerating. Engineers can now virtually commission and tune complex multi-axis machines in a simulated environment. This process can reduce on-site installation and startup time by up to 60%. Companies like Bosch Rexroth and Schneider Electric are at the forefront of implementing TSN in their drive families. The trajectory is clear: future servo drives will feature TSN as a core communication standard. Early adopters are already reporting 40% faster time-to-market for new machine designs through virtual commissioning alone.
Conclusion: A Structured Path to Superior Motion Control
Seamlessly linking servo drives with PLCs is a critical competency in modern automation. It demands a structured approach that encompasses network selection, careful hardware layout, and precise software tuning. The provided case studies demonstrate that applying this methodology yields tangible improvements in throughput, precision, and energy efficiency. Therefore, dedicating effort to master the specific engineering tools and communication standards from your chosen vendor is a direct investment in your production facility's performance and competitiveness. With the emergence of TSN and digital twins, the future of motion control promises even greater integration simplicity and capability.
Frequently Asked Questions (FAQ)
1. How do industrial Ethernet protocols improve upon older analog methods for servo control?
They offer superior noise immunity, much faster and deterministic cycle times, and integrated diagnostics. This allows for perfectly synchronized multi-axis motion and simplifies troubleshooting by providing direct access to drive parameters through the PLC. For example, cycle times of 1 ms or less are achievable with EtherCAT, compared to 10-20 ms with analog systems.
2. In a servo system, what is the primary role of the PLC versus the role of the drive?
The PLC acts as the master orchestrator, handling the overall motion sequence, logic, and generating the main trajectory or position setpoints. The servo drive acts as the high-speed executor, receiving the setpoint and running its internal current, velocity, and position loops to precisely control the motor. The drive typically closes the loops at rates of 4 kHz to 16 kHz, far faster than the PLC scan cycle.
3. What essential data must be correctly configured for a new PLC and servo drive to communicate?
You must ensure the physical network settings (baud rate, node addresses) match. Critically, the cyclic process data mapping (what data words are sent/received) must be identical. This includes the control word, status word, target position, actual position, and any diagnostic data. Mismatched data mapping is the most common cause of communication failures.
4. Is it feasible to combine a PLC from one brand with servo drives from another on the same network?
Yes, this is possible if both devices support a common open industrial protocol like EtherNet/IP or PROFINET. However, you may lose access to brand-specific advanced functions or optimized diagnostics. For turnkey simplicity and full feature access, a single-vendor solution is often preferable. However, open standards are improving multi-vendor interoperability significantly.
5. How does the PLC determine a servo motor's exact position after a power cycle without homing?
This is achieved using absolute encoders with battery-backed multi-turn functionality. Upon startup, the PLC reads the absolute position value directly from the drive via the fieldbus. This allows the controller to immediately establish the machine coordinate system without requiring a reference run. Modern systems can store up to 4096 or more multi-turn revolutions, covering most applications without homing.
6. What typical gains in energy efficiency can be expected when upgrading to modern integrated servo systems?
Energy savings typically range from 20% to 40% depending on the application. Regenerative drives that feed braking energy back to the DC bus or AC line contribute significantly. Additionally, precise motion profiles reduce mechanical losses. In variable torque applications like pumps and fans, energy savings can exceed 50% when combined with demand-based control.
7. How does TSN improve upon existing industrial Ethernet protocols?
TSN allows standard Ethernet to carry both real-time motion control traffic and non-real-time IT traffic on the same wire without interference. It guarantees deterministic delivery of critical packets while coexisting with web traffic, data logging, and cloud connectivity. This convergence simplifies network architecture and reduces infrastructure costs.
