Yokogawa SDV541-S63 | 16-Channel 24V DC Control Card

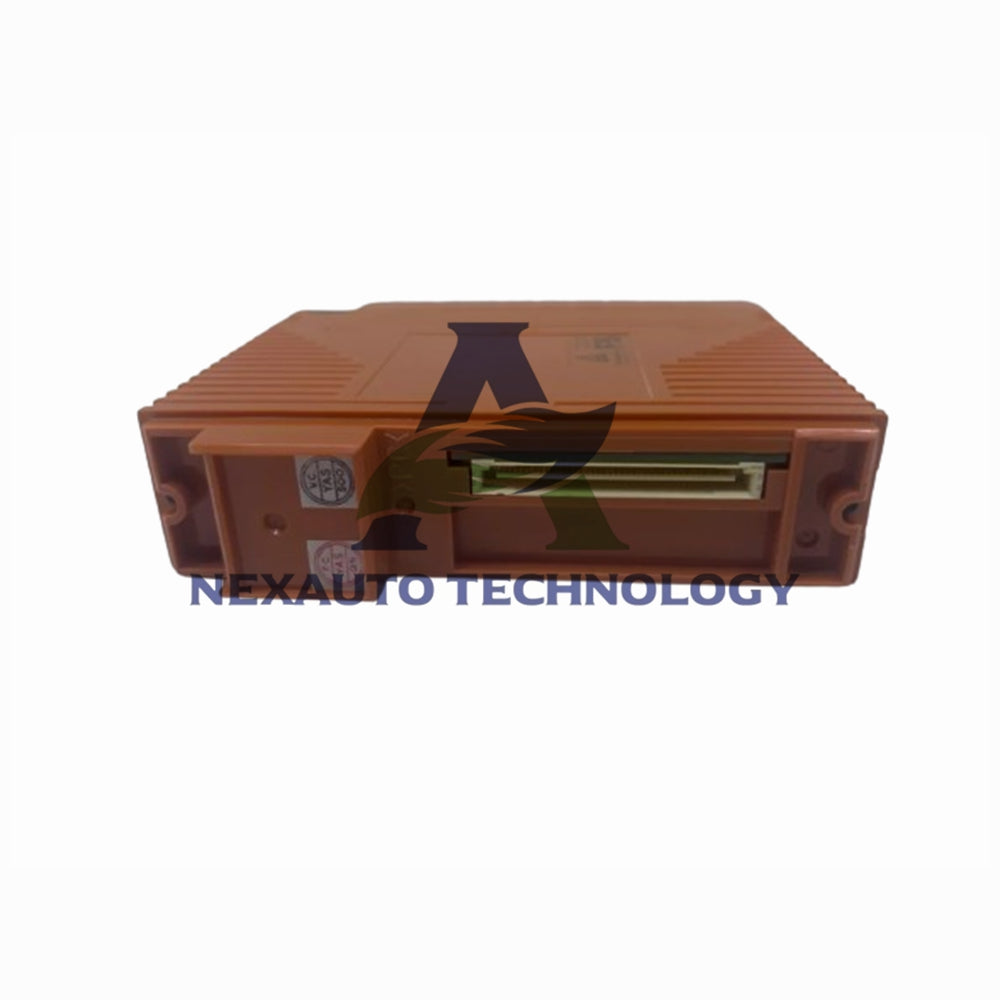

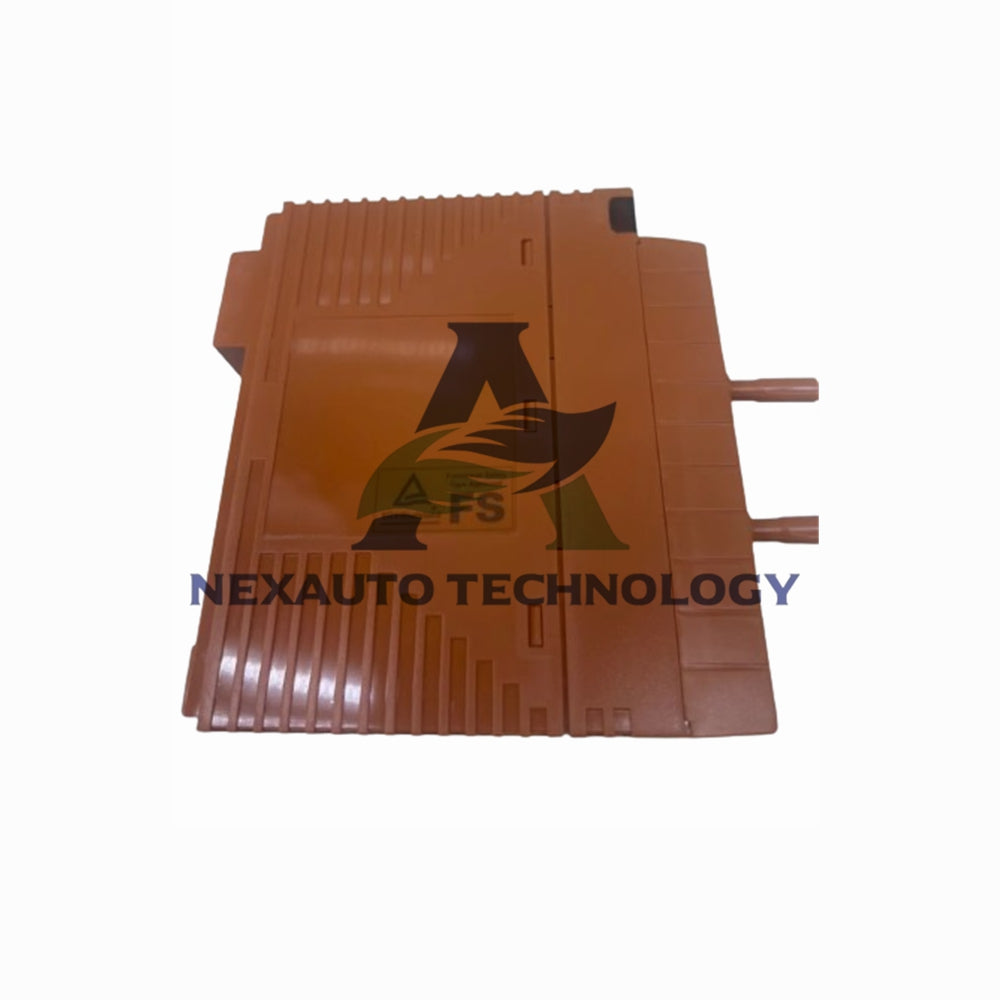

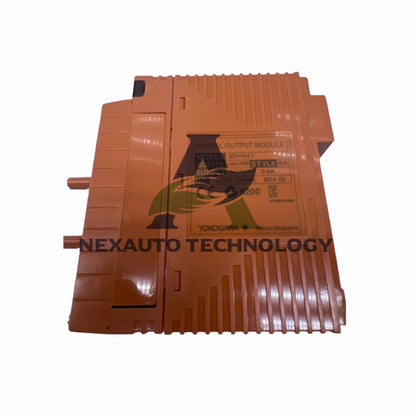

Yokogawa SDV541-S63 Digital Output Module: 16-Channel 24V DC Control

This standard-type digital output module from Yokogawa provides robust 24V DC control. It features 16 isolated channels for driving actuators, valves, and relays. Designed for industrial environments with a wide temperature range, it offers reliable performance and easy integration with various connection options.

Core Features & Benefits

16 Isolated Outputs: Control sixteen devices independently with 24V DC output per channel.

Robust & Reliable: Built for tough conditions with a wide operating temperature range of -20 to 70 °C.

High Current Drive: Supports up to 0.2A per output (3.2A total) for demanding loads.

Multiple Connection Options: Flexible wiring with pressure clamp terminals, MIL cable, or dedicated signal cable adapters.

Fast Response: Output response time of 30ms maximum for timely control actions.

Complete Technical Data

Brand: Yokogawa

Model & Suffix: SDV541-S63 (S: Standard, 6: With Cable Adapter/No Explosion Proof, 3: ISA G3 / -20 to 70°C)

Output Channels: 16, module isolated

Output Voltage: 24 V DC

Output Current: 0.2 A per channel maximum, 35 mA minimum

Total Output Current: 3.2 A maximum

Output Voltage Drop: 1 V maximum

Load Resistance Range: 120 to 685 Ω

Output Response Time: 30 ms maximum

External Power Supply: 24 V DC +20%/-10%, 3.4 A minimum

Leakage Current (Off): 1.6 mA maximum

Withstanding Voltage: 2 kV AC for 1 min (Output to System)

Current Consumption: 300 mA max @5V DC, 150 mA max @24V DC

Operating Temperature: -20 to 70 °C

Connection: Pressure clamp terminal, MIL cable, Dedicated cable (AKB331, AKB651)

Weight: Approx. 0.29 kg (Terminal/MIL), 0.31 kg (with Cable Adapter)

Installation Guide

Install the module in a compatible Yokogawa system rack. Choose your connection method: pressure clamp terminal, MIL cable, or dedicated signal cable (AKB331/AKB651). Ensure the external 24V DC power supply meets the minimum 3.4A rating. Connect loads within the specified resistance (120-685 Ω) and current (35mA-0.2A) range per channel. Always follow the system's full installation manual.

Compatibility Notes

This module is designed for use with corresponding Yokogawa PLC and control systems. It is compatible with standard 24V DC actuators, relays, and indicators. The dedicated interface adapter supports AKB331 and AKB651 signal cables. Verify system compatibility with your specific main unit before purchase.

Packaging List

1 x Yokogawa SDV541-S63 Digital Output Module.
1 x Set of documentation (may include datasheet).
Note: Mounting hardware, external power supply, and connection cables are typically sold separately.

Warranty & Shipping

This product is backed by a 12-month manufacturer's warranty from the date of purchase. We ship globally via reliable couriers: FedEx, UPS, and DHL.
