A Technical Roadmap: Connecting Bently Nevada Alarms for Predictive Machine Health Management
Linking vibration monitoring warnings straight into your operational control setup is vital for avoiding production stoppages. This manual offers direct procedures for setting up Bently Nevada warnings within DCS or PLC environments. Therefore, maintenance departments can enable earlier defect identification and safeguard essential equipment.

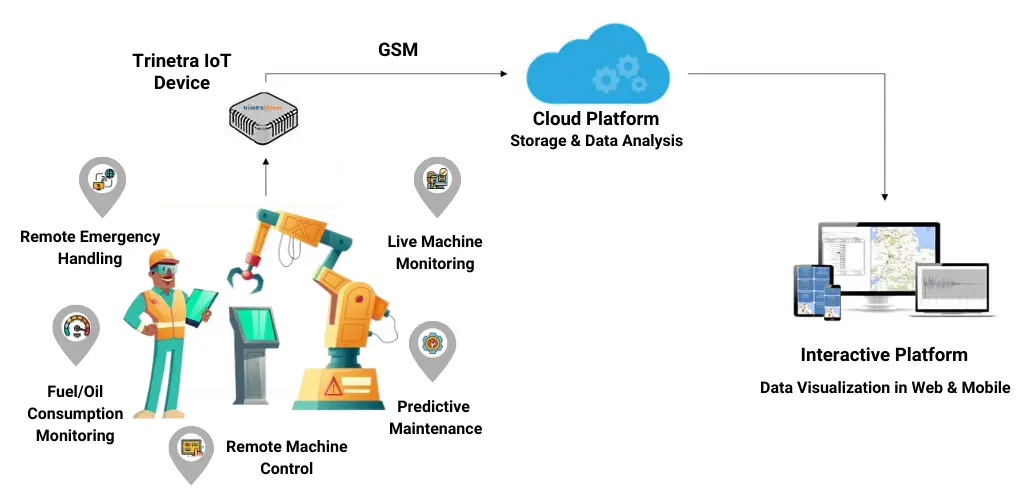

Comprehending the System Design
Proper setup begins with a firm understanding of the architecture. Bently Nevada vibration transmitters send machine condition information to distributed control systems (DCS) or programmable logic controllers (PLC). Furthermore, this arrangement establishes a unified dashboard for asset status. Hence, knowing the data transfer method, like Modbus TCP or OPC DA, is the critical initial phase.

Detailed Setup Procedure
Start by linking alarm signals from the monitor to data tags in your control software. Establish specific warning levels for vibration severity and frequency data. Additionally, program the control system to produce visual signals and history records. Consequently, operational staff get prompt, clear warnings about emerging machine problems.
Optimal Methods for Warning Systems
Efficient warning plans avoid unnecessary alerts and guarantee reaction to real issues. Rank warnings by machine importance and problem seriousness. Moreover, add timing functions to filter temporary fluctuations, decreasing incorrect alerts. Numerous facilities adopt ISA-18.2 guidelines to handle warning system design and efficiency. This strategy improves total system reliability and operator assurance.
Boosting Early Problem Identification
Current integration does more than basic level warnings. Sophisticated setups analyze vibration patterns and signal shapes historically. For instance, tracking shifts in particular frequency ranges can identify problems like unstable blowers or deteriorating motor bearings many weeks early. This forward-looking method, a signature of modern industry, changes maintenance from fix-after-failure to anticipate-and-prevent.
Industry Expert Commentary
The sector is progressing towards more intelligent, situation-aware warnings. Based on my professional assessment, merely transmitting alarm states is now inadequate. The evolving approach involves combining machine health metrics with process variables. For example, linking elevated vibration with compressor output pressure offers better diagnostic clarity. I advise facilities to build their warning plans not only for alerts, but for practical insights, a central part of operational evolution.

Practical Implementation: Gas Turbine Monitoring
A European power generation station linked their Bently Nevada 3500/42M series monitors to the primary plant DCS via OPC UA. They configured advisory warnings at 3.0 mm/s and critical shutdown alerts at 5.5 mm/s on a gas turbine. This system provided a nine-week advance notice on progressive blade fouling. The team scheduled cleaning during a planned outage, preventing an estimated €300,000 in forced downtime costs and potential blade damage. This example highlights the direct financial benefit of robust alert integration.
Advanced Application: Pump Fleet Analytics
A large water treatment facility implemented a broader strategy. They integrated vibration alerts for over 200 pumps into their PLC-controlled SCADA system. By applying statistical process control (SPC) principles to the alert data, they reduced false alarms by 40% and identified 12 pumps with developing bearing issues before any traditional monthly inspection would have caught them. The data integration allowed for a 15% reduction in unplanned pump repairs in the first year.
Frequently Asked Questions
Q1: Why is direct DCS integration for machinery alerts important?
A1: It creates a single operator workspace, merging process and machine health data for faster, better-informed decision-making during upsets.
Q2: What are reliable protocols for industrial data integration?
A2: Modbus TCP/IP remains a staple for simple data, while OPC UA is growing for secure, complex data exchange in modern architectures.
Q3: How can alarm systems be optimized during transient operations?
A3: Use state-based alarming in the DCS logic to dynamically adjust vibration thresholds based on the machine's operational mode (e.g., startup, normal run).
Q4: Is integrated vibration data useful for reliability reporting?
A4: Absolutely. Correlating alarm events with work order history in a CMMS can prove maintenance strategy effectiveness and calculate ROI on monitoring systems.
Q5: What's a key pitfall in vibration alarm strategy?
A5: Using only overall vibration levels. Effective monitoring requires tracking specific frequency components (1X, 2X, blade pass, etc.) for accurate fault diagnosis.
