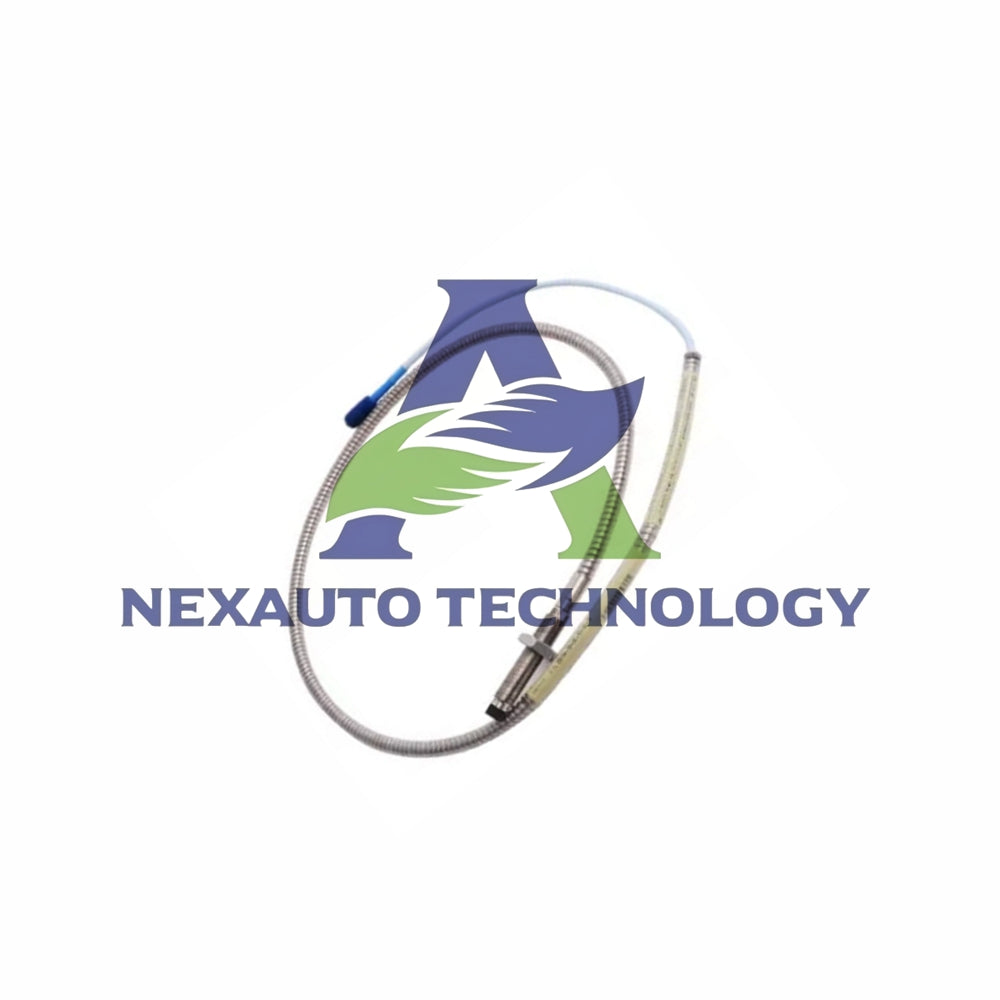

Bently Nevada 3300 NSv Proximity Probe: Extended Reach Configuration

Full Part Number: 330904-08-10-70-02-00

Manufacturer: Bently Nevada | Condition: New & Original | Warranty: 12 Months

Specialized Configuration

Thread Type: M8X1 with protective armor
Unthreaded Length: 80 mm (code -08)
Case Length: 100 mm (code -10)
Cable Length: 7.0 meters (23.0 feet, code 70)
Connector System: Miniature coaxial ClickLoc connector, standard cable (code 02)
Certifications: No agency approvals required (code 00)

Electrical Performance Specifications

Probe DC Resistance: 5.9Ω ±0.9Ω at 7m length
Cable Resistance: Center 0.220Ω/m | Shield 0.066Ω/m
Capacitance: 69.9 pF/m typical
Frequency Response: 0-10 kHz (±3dB) with 305m wiring
Signal Stability: ±0.25% voltage fluctuation at 150°C

Robust Mechanical Design

Case Material: AISI 304 Stainless Steel
Tip Material: Chemical-resistant PPS (Polyphenylene sulfide)
Temperature Range: -52°C to +177°C (-62°F to +351°F)
Pressure Seal: Viton O-ring rated for 35 bar differential
Bend Radius: Minimum 25.4 mm (1.0 in)
Thread Engagement: 12 mm maximum for M8x1 threads

Precision Measurement Capabilities

Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75mm
Optimal Gap Setting: 1.0 mm (40 mils)
Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5%
Deviation Tolerance: ±0.06 mm (±2.3 mils)
Target Requirements: Minimum 8.9mm | Recommended 13mm diameter
Response Time: <45μs signal stabilization at 10kHz

Installation Specifications

Recommended Torque: Finger tight
Maximum Torque: 0.56 N•m (5 in•lb)
Connector Torque: 5.1 N•m recommended | 7.3 N•m maximum
Field Wiring: Supports up to 305 meters (1,000 feet) with 0.2-1.5mm² shielded triad cable
Vibration Tolerance: 25g peak at 2.5kHz frequency
