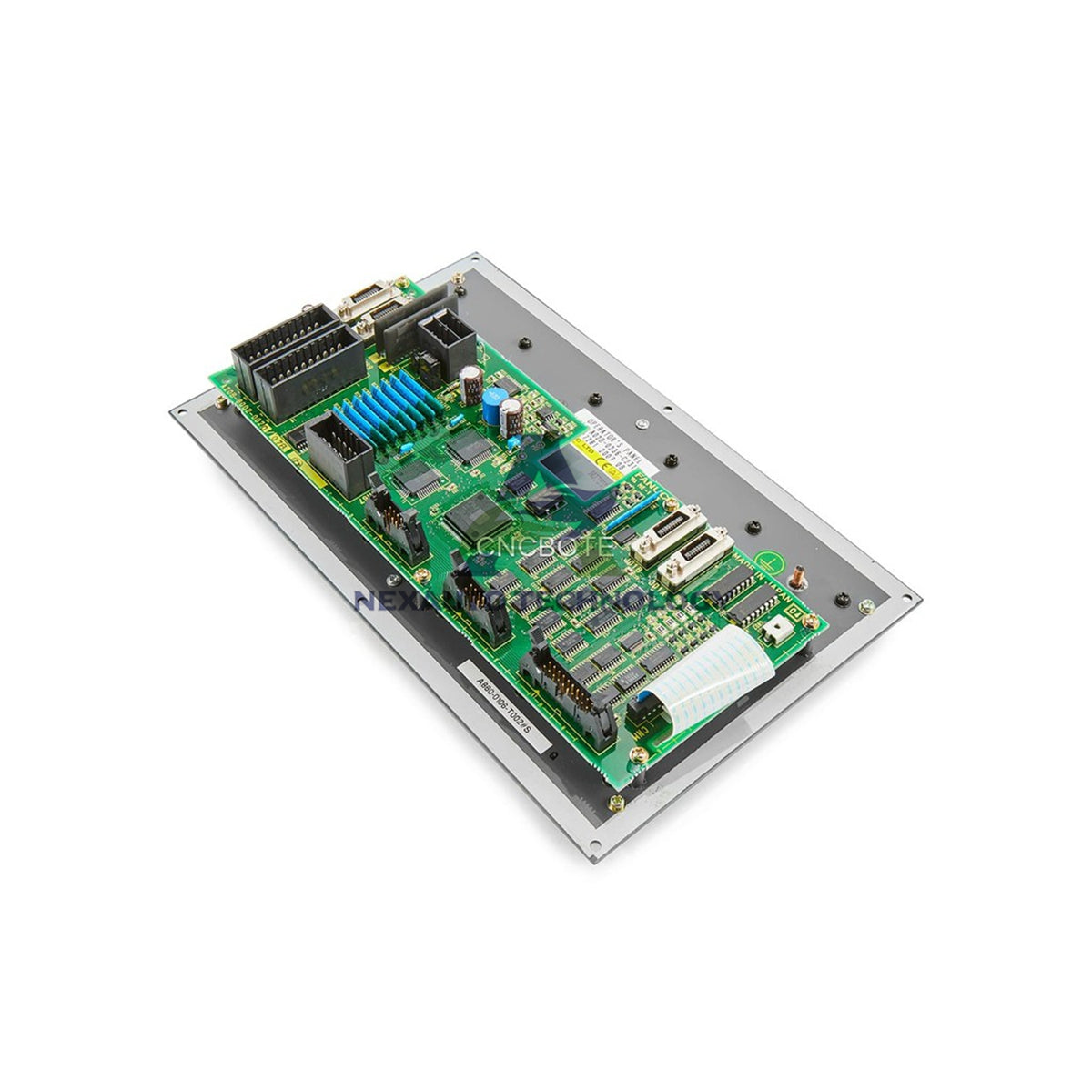

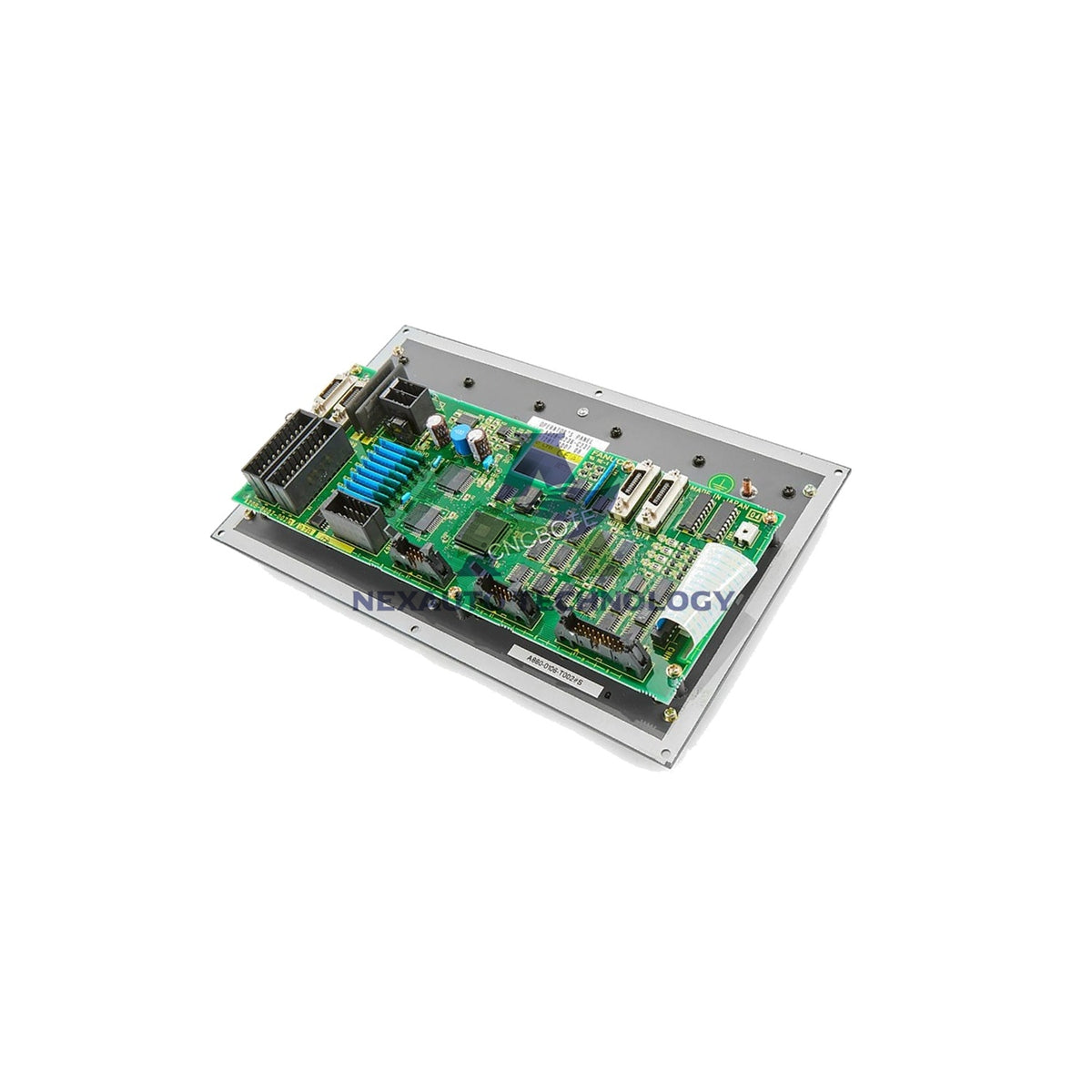

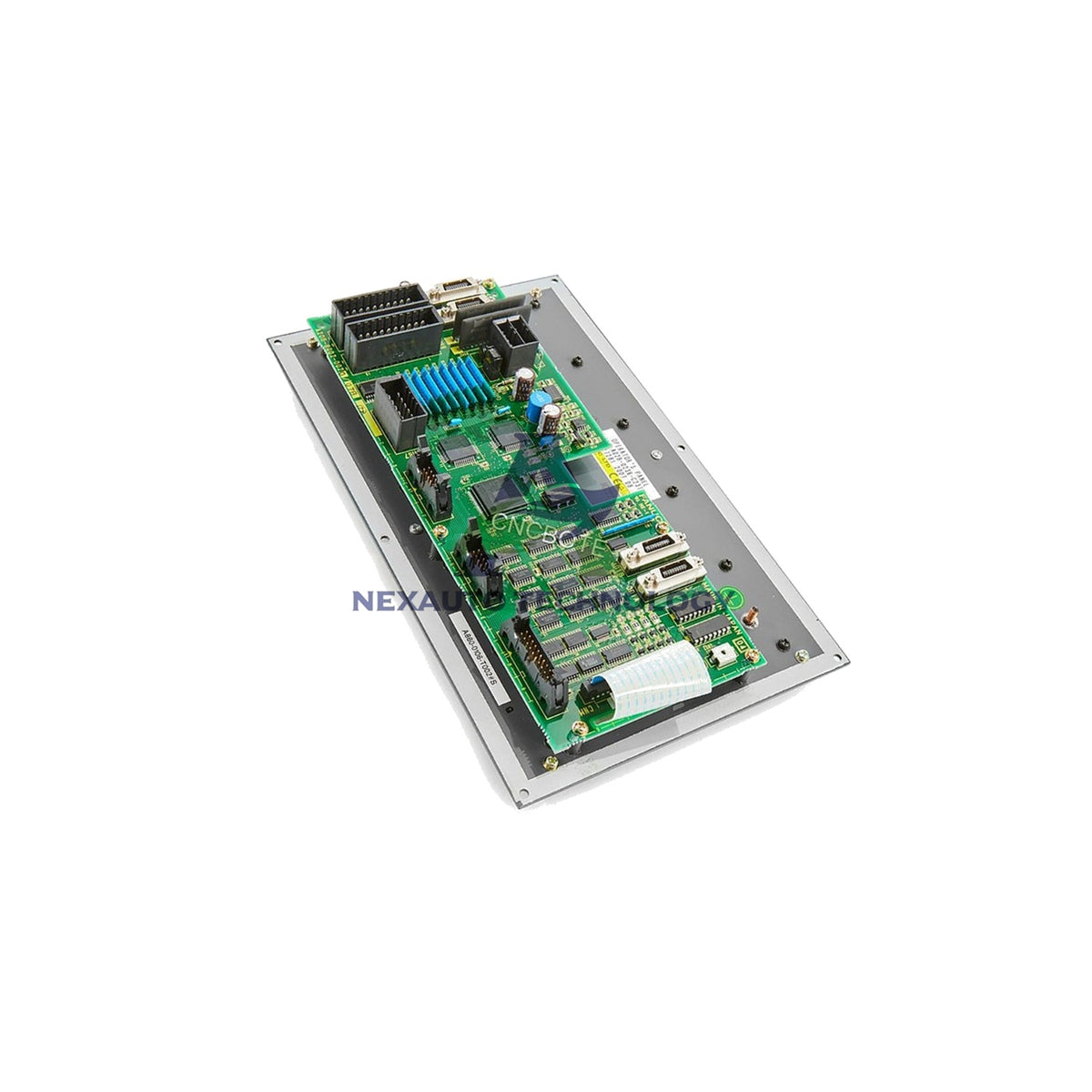

A02B-0048-C871 FANUC Option Terminal Unit Panel

A02B-0048-C871 FANUC Option Terminal Unit Panel for Early CNC Systems

Technical Specifications

• Brand: FANUC
• Model: A02B-0048-C871
• Category: Option Terminal Unit Panel
• Series: FANUC CNC accessory (order code family A02B-0048)
• Function: Option terminal unit panel for early FANUC CNC (supplier-reported)
• Mounting: Panel-mount configuration
• Electrical: Passive component; powered by the host system; no separate supply voltage
• Communication: Not published by manufacturer for this order code
• Operating Ambient Temperature: 0 to 55 °C (family-level reference, per B-61393E p.112 for Series 0/00/0-Mate)
• Storage/Transport Temperature: −20 to 60 °C (family-level reference, per B-61393E p.112)
• Relative Humidity: 75%RH or less, no condensation
• Dimensions (H×W×D): No numerical table published for this option terminal unit
• Weight: ~0.45 kg (supplier-reported single source)
• Lifecycle Status: Not Formally Announced; no official FANUC product page or EOS notice for this order code; listed in aftermarket channels

Key Features

• Panel-mount terminal unit designed for early FANUC CNC cabinets
• Operates as a passive component and takes power from the host CNC
• Supports option connectivity expansion on legacy CNC machines
• Handles ambient temperatures from 0 to 55 °C during operation
• Weighs approximately 0.45 kg for straightforward installation and handling
• Tolerates storage and transport temperatures from −20 to 60 °C

Installation Guide

• Power down the CNC system and disconnect the main electrical supply first
• Locate the designated option panel cutout on the CNC cabinet
• Seat the A02B-0048-C871 terminal unit into the panel opening
• Secure the unit with the mounting hardware provided by the cabinet design
• Connect the unit to the host CNC wiring harness per the machine documentation
• Confirm the ambient temperature stays within 0 to 55 °C before restart
• Restore power and verify option terminal operation on the CNC display

Package Contents

• 1 × Option terminal unit panel
• Protective packaging for safe transit

Shipping & Delivery

• We ship via FedEx, UPS, and DHL to worldwide destinations
• Orders leave our warehouse within 5 business days after payment clears
• Tracking numbers go to your email once the carrier picks up the parcel

Frequently Asked Questions

• Q: Does the A02B-0048-C871 panel need its own power supply?
  A: No. This passive component draws power directly from the host CNC system.
• Q: What operating temperature range does this option terminal unit support?
  A: The family reference lists 0 to 55 °C, but FANUC does not confirm this for every order code.
• Q: How much does the A02B-0048-C871 weigh?
  A: A single supplier reports approximately 0.45 kg for this option terminal unit panel.
• Q: Does FANUC publish communication specifications for this order code?
  A: No. Public FANUC sources do not publish per-order-code communication specifications for this unit.
• Q: What humidity level does this panel tolerate during operation?
  A: The unit operates at 75%RH or less, with no condensation permitted.
• Q: Do you keep this panel in stock and how fast do you ship?
  A: We stock new original units and ship within 5 days using DHL, FedEx, or UPS.
• Q: Can I return this terminal unit panel if it does not meet my needs?
  A: Yes. We accept returns within 30 days of delivery under our standard policy.
• Q: Does this unit carry a formal FANUC end-of-service announcement?
  A: No. FANUC has not formally announced end of service for this order code.
