ABB TU810/TU810V1 Compact MTU for S800 I/O Termination

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (21 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

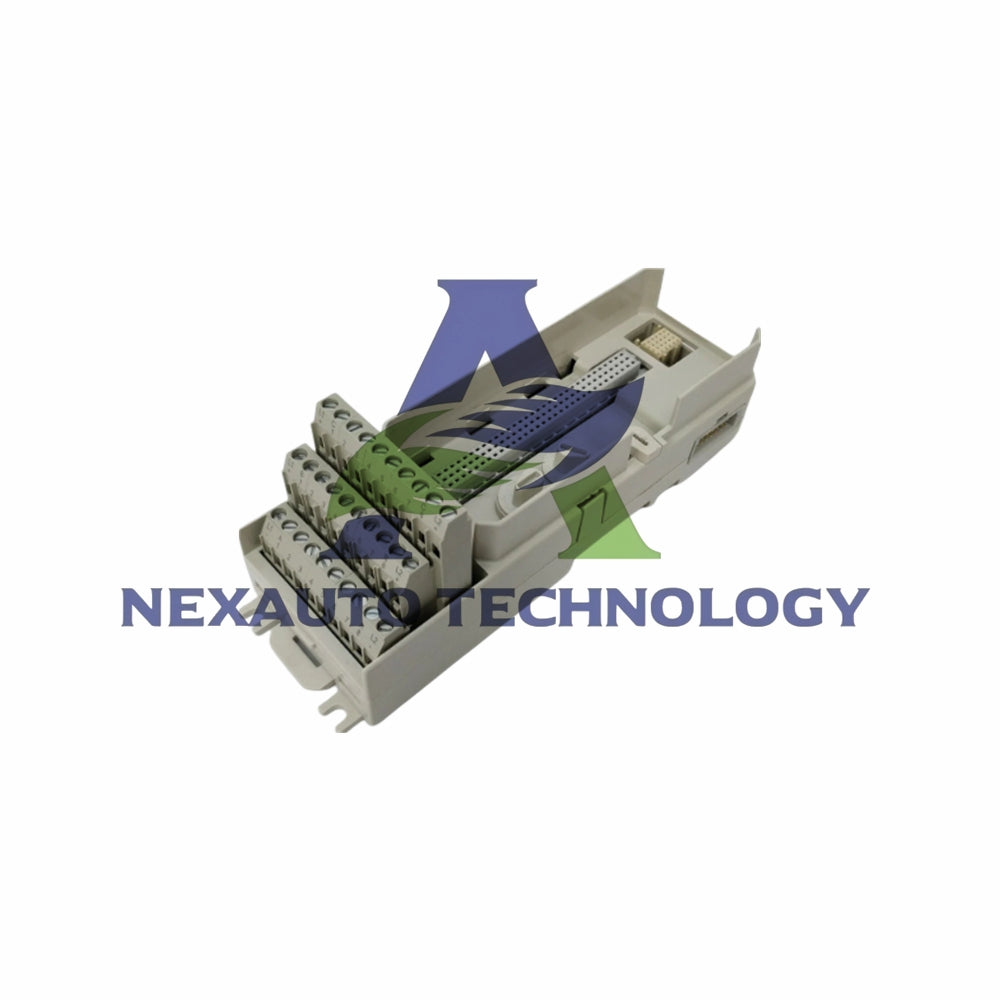

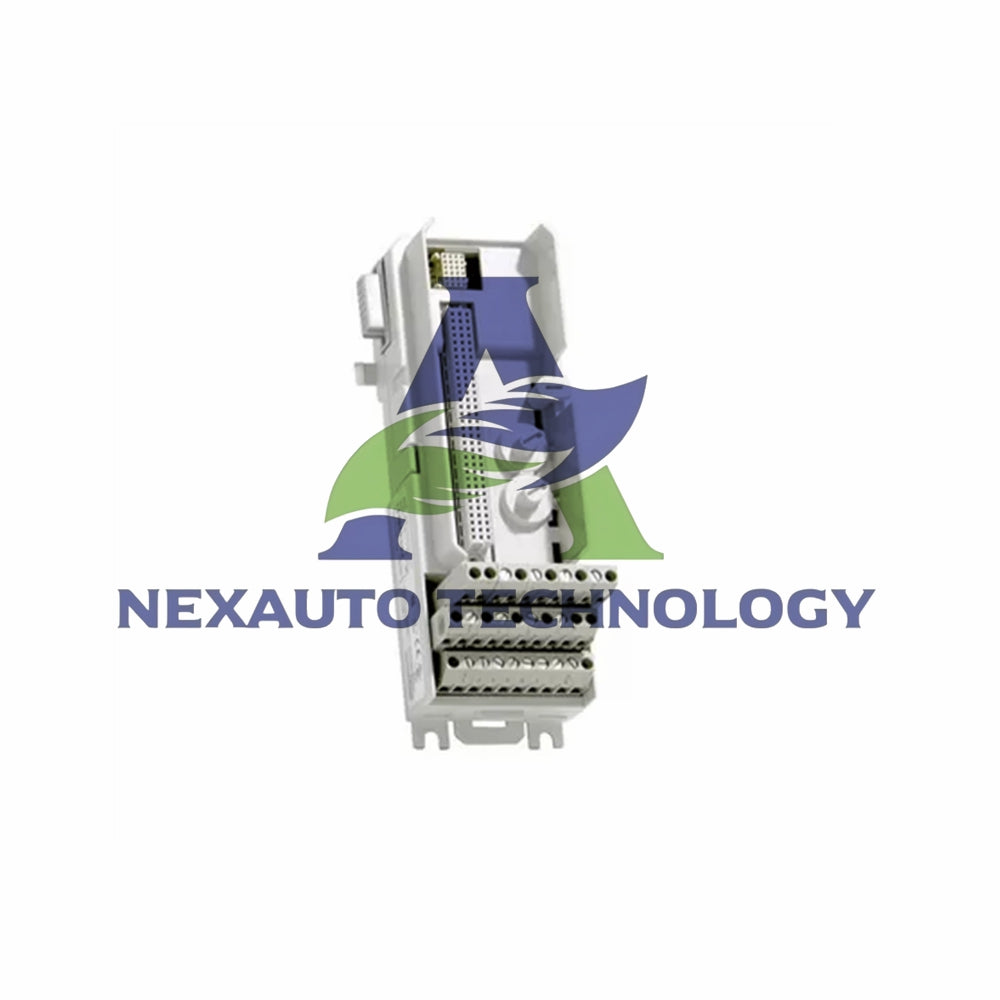

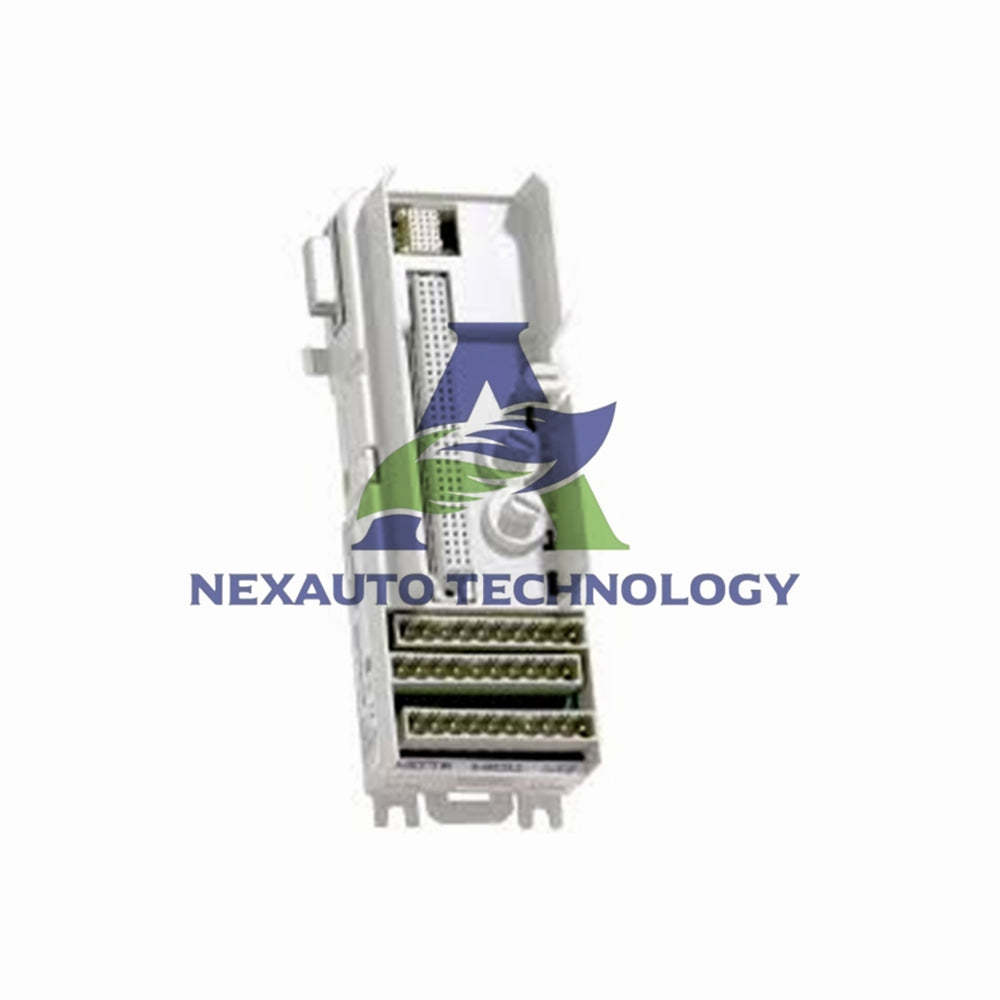

ABB TU810/TU810V1 Compact Module Termination Unit (MTU) for S800 I/O

The TU810/TU810V1 from ABB is a passive 16-channel compact module termination unit (MTU) for the S800 I/O system. It connects field wiring to I/O modules, distributes the ModuleBus, and generates I/O module addresses via mechanical keys.

Key Features & Benefits

  • Supports TU810/TU810V1 with 16 channels for field signals and process power connections.
  • Uses two mechanical keys (6 positions each) to prevent wrong I/O module insertion.
  • Features a latching device for DIN rail mounting and grounding.
  • Works with single I/O modules (not redundant) like AI810, DI810, DO810, and DP820.

Technical Specifications

  • Voltage: 50V; Max current per channel: 2A; Max process connection current: 5A.
  • Wire Sizes: Solid (0.2–4 mm²), Stranded (0.2–2.5 mm² / 24–12 AWG).
  • Dielectric Test: 500V AC; Protection Class: IP20 (IEC 60529).
  • Operating Temperature: 0–55°C (32–131°F); Storage Temperature: -40–70°C (-40–158°F).

Installation & Compatibility

  • Mounts on DIN rails (both directions) with a width of 64mm (2.52in) including connectors.
  • Compatible with over 30 I/O modules: AI815, AO810, DI811, DO814, DP840, etc.
  • Process connections: 2x2 (process power) and 5x2 (process power 0V).

Environmental & Safety Certifications

  • CE marked; Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201.
  • Hazardous Locations: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2.
  • Marine Certifications: ABS, BV, DNV-GL, LR; Corrosion Protection: ISA-S71.04 G3.

Dimensions & Weight

  • Width: 64mm (2.52in) with connector; 58.5mm (2.3in) edge-to-edge installed.
  • Depth: 64mm (2.52in) including terminals; Height: 170mm (6.7in) including latch.
  • Weight: 0.17kg (0.37lbs).

Packaging & Shipping

  • Package includes 1x TU810/TU810V1 MTU, mounting hardware, and user manual.
  • Ships via FedEx, UPS, or DHL for fast and reliable delivery.

FAQ

  • Q: What is the max ambient temperature for vertical mounting?
    A: 40°C (104°F) for vertical mounting (55°C for horizontal).
  • Q: Is the TU810/TU810V1 RoHS compliant?
    A: Yes, it complies with EN 50581:2012 (RoHS) and WEEE Directive 2012/19/EU.
  • Q: Can it be used in marine applications?
    A: Yes, it has marine certifications from ABS, BV, DNV-GL, and LR.
  • Quick Quotes: Receive pricing and availability fast from our dedicated customer service team.
  • Delivery: Expedited, freight, and international shipping available worldwide.
  • Warranty: NexAuto offers a 12-month warranty on all parts purchased from us, in addition to any manufacturer coverage.
  • Returns: 30-day return policy for defective or mismatched parts, ensuring peace of mind.
  • Payment: Flexible options including major credit cards, PayPal, and bank transfers.
  • Custom Calibration: Provide your specifications, and we’ll handle the rest with precision.
