Allen-Bradley | Controller Processor 1762-L40BXBR

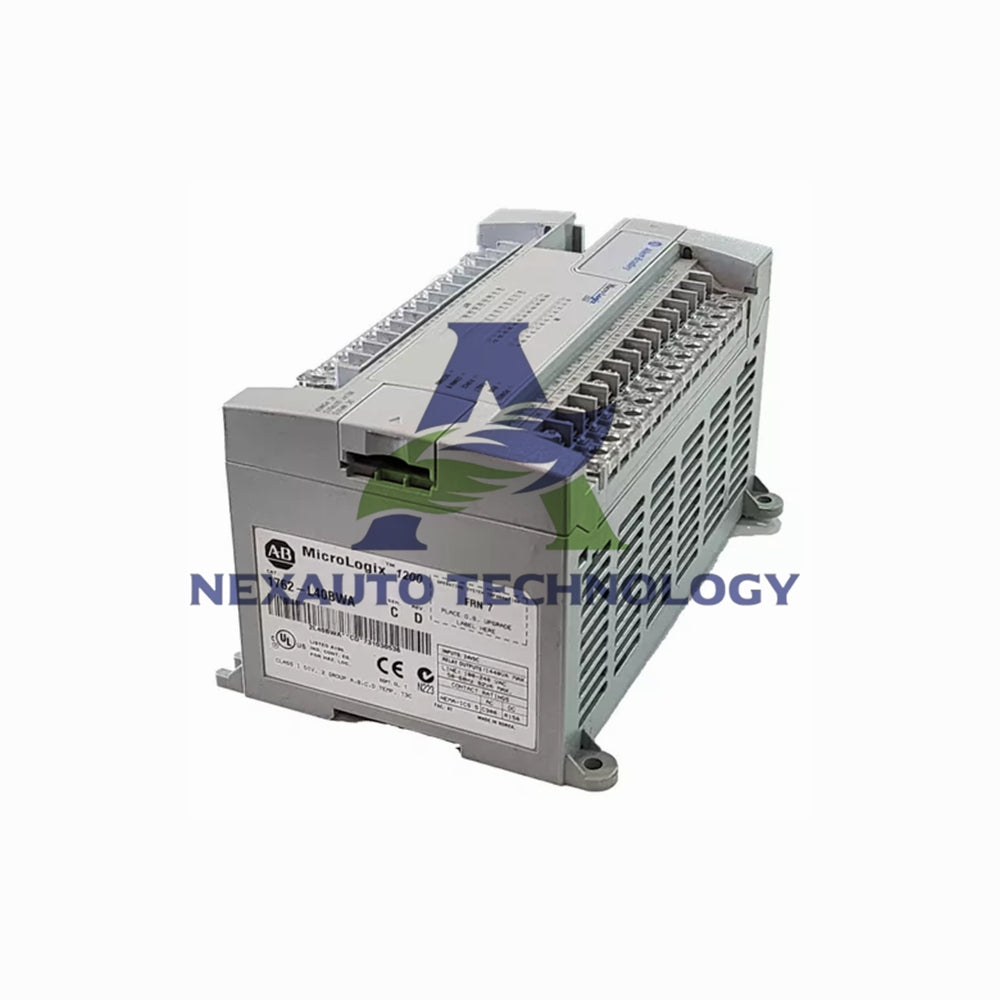

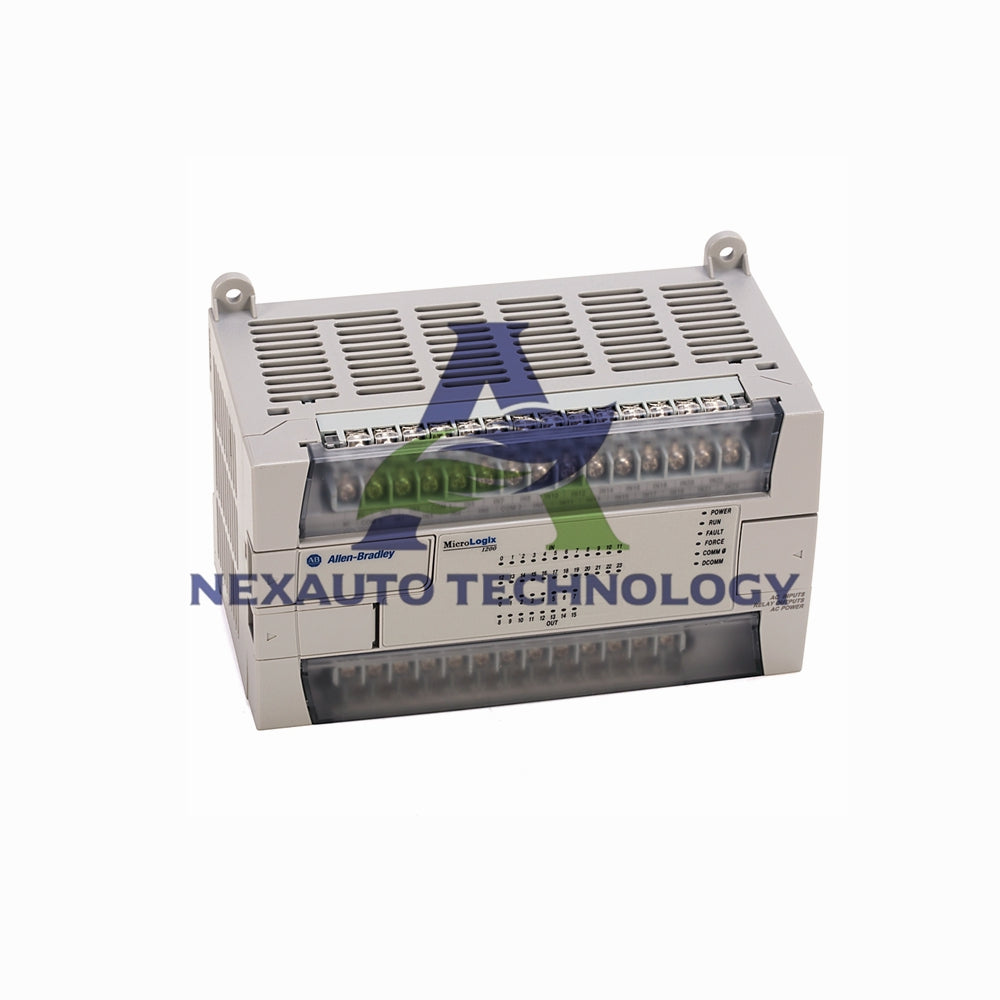

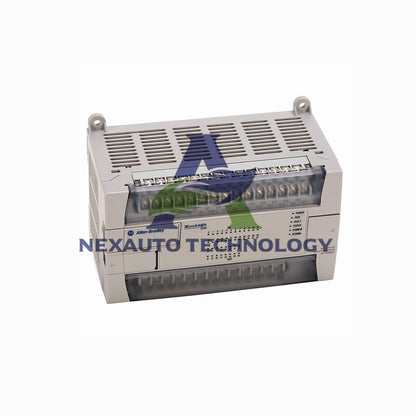

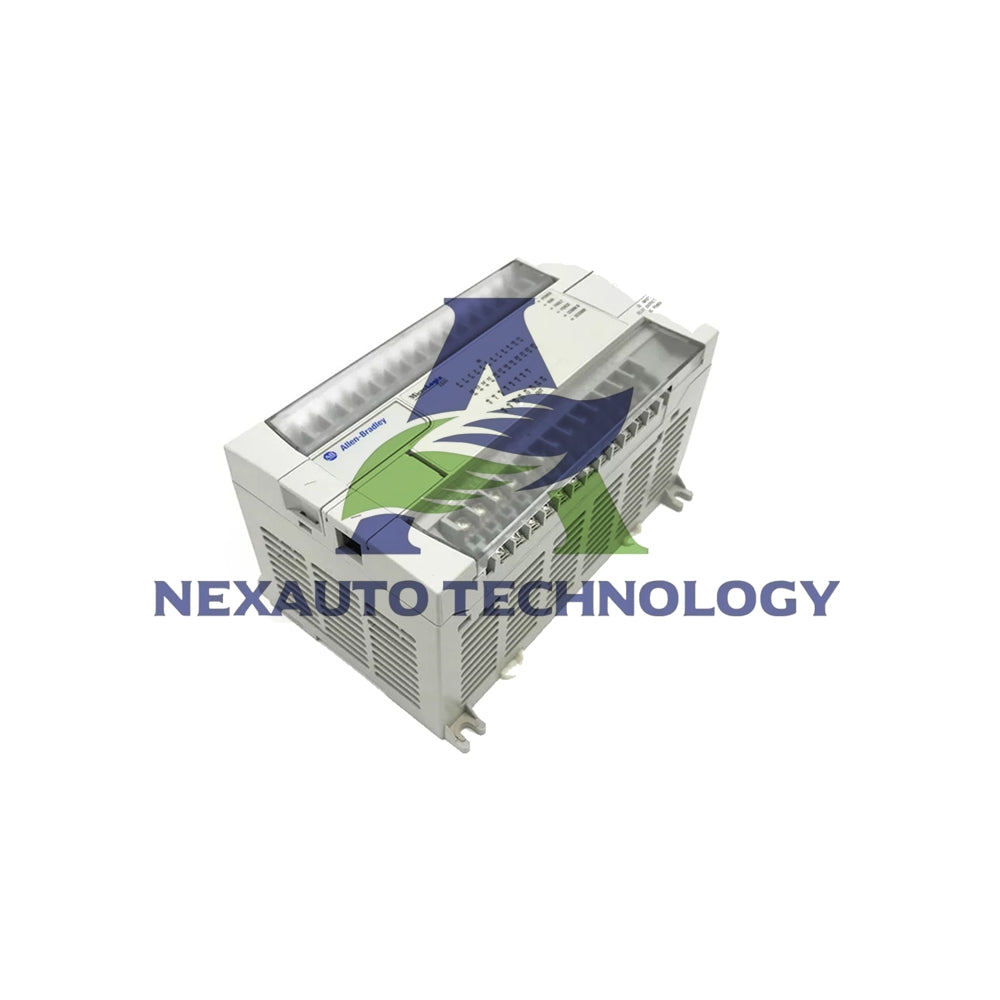

Allen-Bradley 1762-L40BXBR

Input & Output Configuration:

• 20 Standard Inputs – 24V DC sink/source type
• 4 Fast Inputs – 24V DC high-speed inputs
• Outputs – (8) Relay outputs, (7) 24V DC FET outputs, (1) High-speed 24V DC FET output

Relay Output Specifications:

• Contact Rating: 24–125V DC / 120–240V AC
• Maximum Load: 1440 VA
• Max Current per Group: 8 Amps
• Overall Load per Point: 30 Amps at 150V
• Minimum ON/OFF Time: 10 milliseconds
• Mechanical Life: 20,000,000 cycles
• Minimum Load per Point: 10mA

Isolation & Safety:

• Input group-to-backplane and FET output group-to-backplane isolation: 75V DC
• Dielectric Withstand Test: 1200V AC for 1 second
• IEC Class 2 reinforced insulation between relay and FET output groups: 1836V AC for 1 second

Communication Ports:

• One (1) 8-pin mini-DIN RS232 serial port
• One (1) Programming port
• Protocols supported: DF1, DH-485, ASCII, MODBUS

Physical & Environmental Details:

• Dimensions: Height 90 mm (104 mm with DIN latch open), Width 160 mm, Depth 87 mm
• Weight: 1.1 kilograms (2.4 pounds)
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Operating Shock: 30G
• Vibration: 5G at 10 to 500 Hz
