Bently Nevada 146055-05-02-00 Non-Hazardous Probe

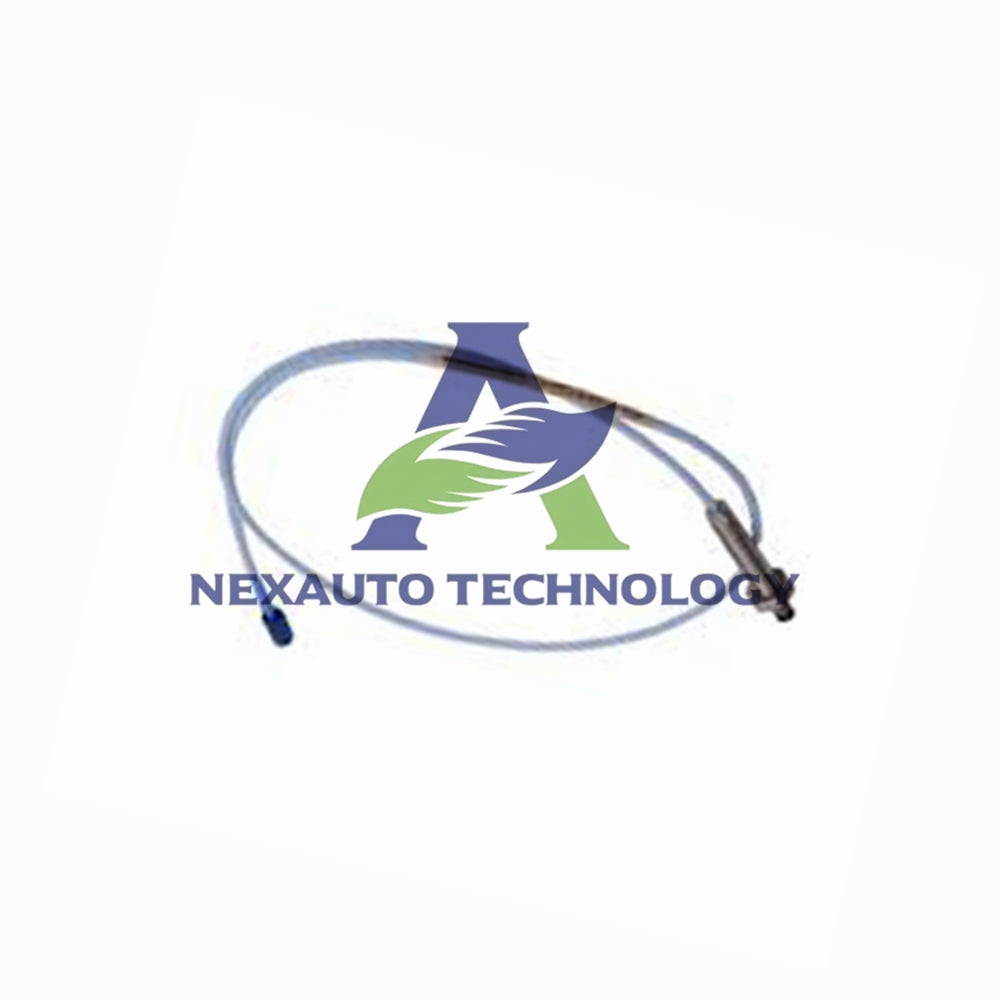

Bently Nevada 146055-05-02-00 | Short Cable Ceramic Reverse Mount Probe

Manufacturer: Bently Nevada | Part Number: 146055-05-02-00 | Type: 3300 Ceramic Capped Reverse Mount Probe | Thread: 3/8-24 UNF | Made in: U.S.A.

Model Number Breakdown

• 146055: 3300 Ceramic Capped Reverse Mount Probe, 3/8-24 UNF thread
• 05: Total cable length = 0.5 meter (1.6 feet)
• 02: Miniature ClickLoc coaxial connector, standard cable
• 00: Agency approval = Not required

Key Specifications

• Cable Length: 0.5 meter (1.6 feet)
• Thread Size: 3/8-24 UNF
• Maximum Thread Engagement: 0.563 inch
• RPROBE at 0.5m: 7.45 ± 0.50 Ohms
• Linear Range: 1.52 mm (60 mils) from 0.25mm to 1.78mm
• Voltage Range: -4 to -16 Vdc over linear range
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±6.5%

Shortest Cable Advantage

• 0.5 meter length: Shortest available for reverse mount probes
• Lowest RPROBE: 7.45 Ohms (minimum resistance)
• Best signal strength: Minimal attenuation over ultra-short distance
• Ideal for: Proximitor mounted immediately adjacent to probe
• Extension ready: Add extension cables to reach desired total length

Reverse Mount Design

• Reverse Mount: Probe mounts from inside the machine casing outward
• Typical Application: Thrust position measurement, limited access areas
• Case Length: Fixed design (threads run to tip)
• Tip Material: Alumina ceramic (Al2O3) for wear resistance
• Case Material: AISI 304 stainless steel
• Cable Type: 75 Ω coaxial, FEP insulated standard cable

Agency Approval - None (00)

• Approval option 00: No hazardous location certifications
• Safe area use only: Not certified for explosive atmospheres
• Application: Non-hazardous industrial environments
• Cost effective: Lower price without certification fees

Temperature Ratings

• Operating & Storage: -51°C to +177°C (-60°F to +351°F)
• Temperature Class T1: -55°C to +232°C (EPL Ga/Gc)
• Temperature Class T2: -55°C to +177°C
• Temperature Class T3: -55°C to +120°C
• Temperature Class T4: -55°C to +80°C
• Temperature Class T5: -55°C to +40°C

Pressure Rating

• Standard Pressure: 34 Bar (500 psi) nitrogen seal
• Higher Pressure: Modifications available
• Custom Testing: Contact design department for pressure seal testing

System Notes

• Specifications apply to 3300 XL systems with -24 Vdc supply and AISI 4140 steel target
• System accuracy and interchangeability do not apply with other target materials
• Performance measured at +18°C to +27°C (+64°F to +80°F)

Package Contents

• 146055-05-02-00 ceramic capped reverse mount probe with 0.5m cable
• ClickLoc connector (standard cable)
• Calibration certificate
• Installation instructions

Shipping Information

• Weight: Approximately 0.3 kg (0.66 lb)
• Packaging: Protective box
• Carriers: FedEx, UPS, DHL (2-5 business days)

Frequently Asked Questions

• Q: Why choose 0.5 meter cable length?
  A: Shortest cable provides lowest resistance (7.45 Ohms) and best signal strength. Use 0.5m when your proximitor mounts immediately adjacent to the probe. Add extension cables if longer reach needed.
• Q: Can I add extension cable to this 0.5m probe?
  A: Yes. Total system length (probe cable + extension) must match your proximitor calibration. Example: 0.5m probe + 4.5m extension = 5.0m system. Do not exceed the total length printed on your proximitor label.
• Q: What is a reverse mount probe?
  A: Reverse mount probes install from inside the machine casing outward. Use for thrust position measurement, limited access areas, or when standard outside mounting is not possible due to space constraints.
• Q: Can I use this probe in hazardous locations?
  A: No. Option 00 means no hazardous location certifications. For hazardous areas (Class I, Div 2 or Zone 2), choose option 05 (multiple approvals) instead.
• Q: What is the advantage of ceramic tip for short cable probes?
  A: Alumina ceramic tip provides exceptional wear resistance and stable dielectric properties. It maintains performance in abrasive environments where standard PPS tips may wear prematurely.
