CANopen Cable - TSXCANCB300 Schneider Electric

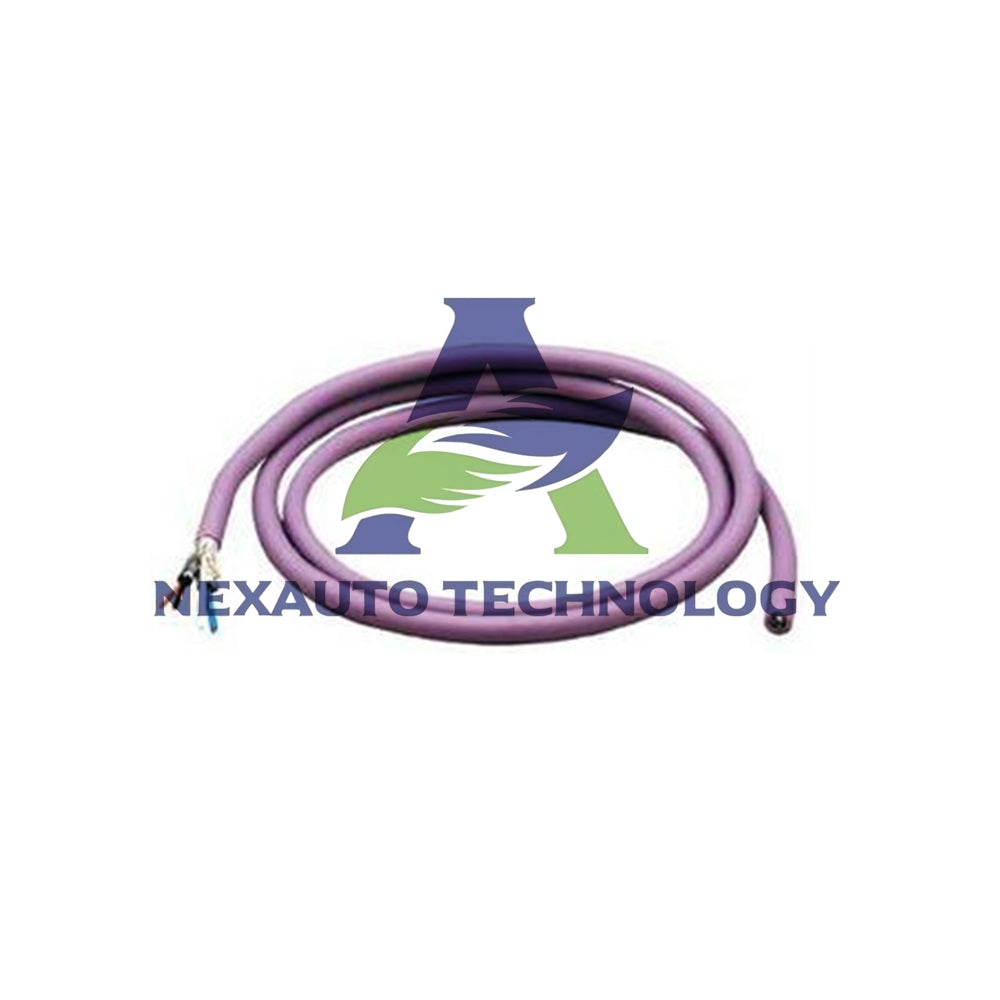

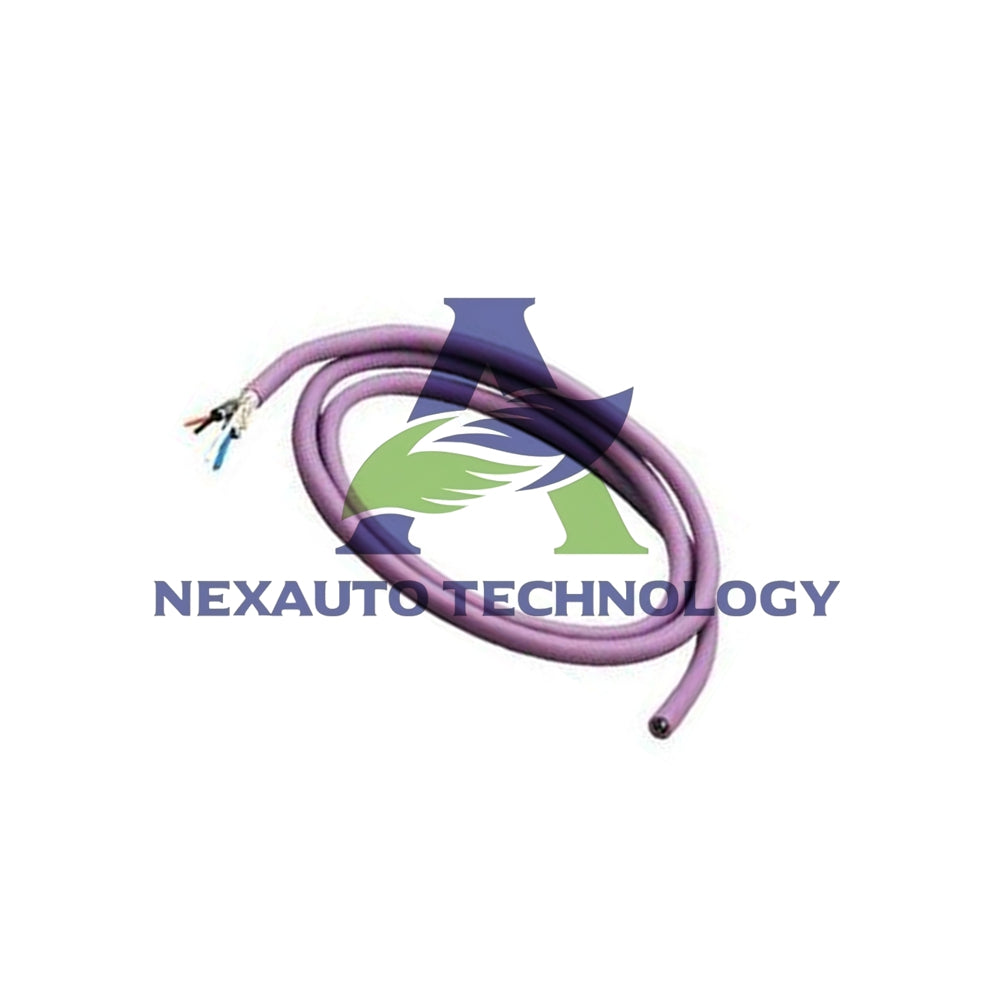

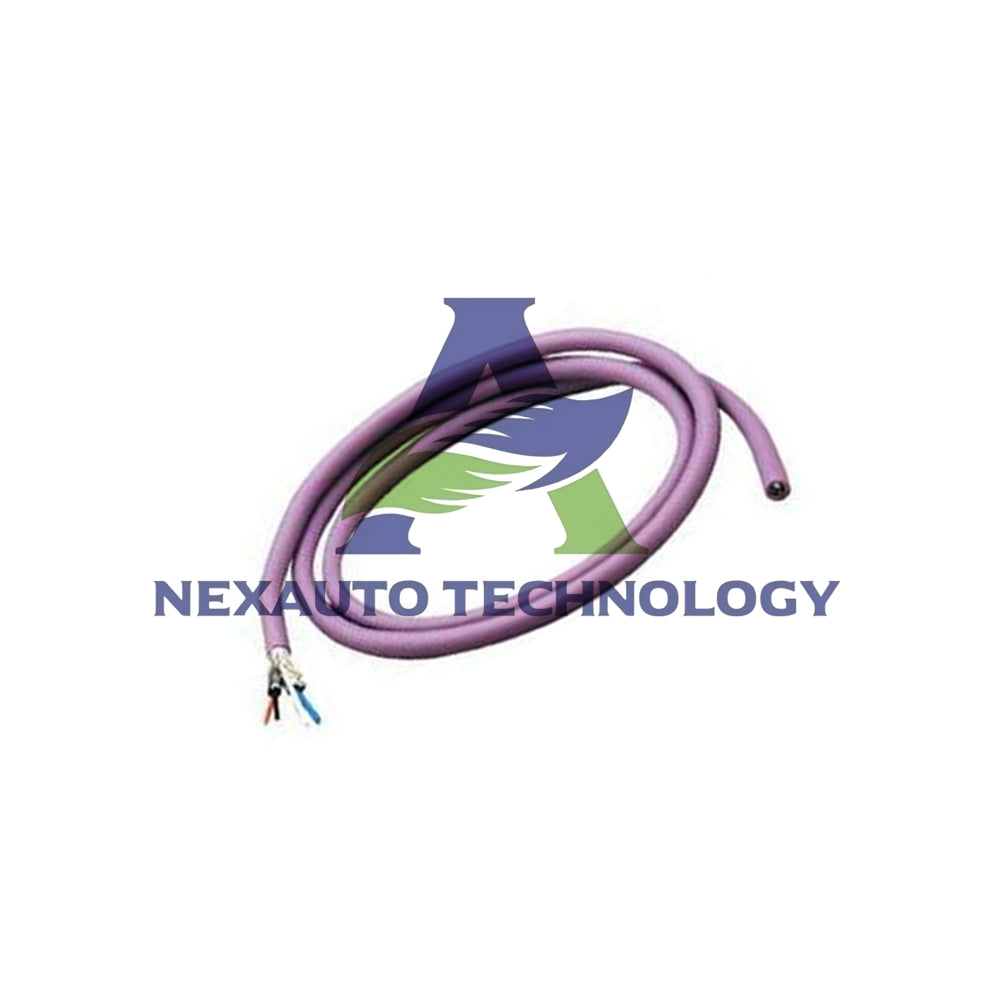

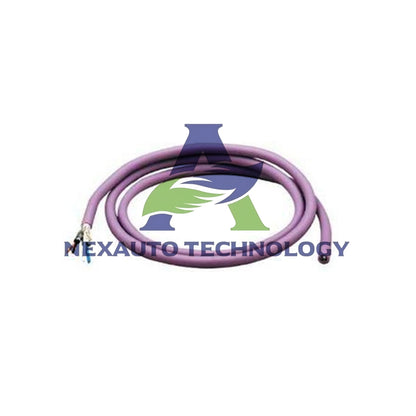

Schneider Twido TSXCANCB300 CANopen Standard Cable

The TSXCANCB300 is a 300-meter high-quality CANopen cable designed for extended distance data transmission in industrial automation networks.

Technical Specifications

• Manufacturer: Schneider Electric / Twido
• Model Number: TSXCANCB300
• Product Type: CANopen standard communication cable
• Bus Compatibility: CANopen industrial fieldbus networks
• Cable Length: 300 meters (984.25 feet)
• Certifications: CE marked, UL listed
• Flame Protection: IEC 60332-2 compliant (vertical flame test)
• Ingress Protection: IP20 rating for indoor industrial environments
• Product Weight: 21.87 kg (48.21 lb)
• Operating Temperature: -20°C to +80°C (-4°F to +176°F)
• Storage Temperature: -30°C to +85°C (-22°F to +185°F)
• Relative Humidity: 5% to 95% non-condensing

Electrical & Performance Characteristics

• Conductor Size: 0.75 mm² (18 AWG) per conductor
• Conductor Configuration: 4 conductors arranged as two twisted pairs
• Shielding: Overall aluminum foil plus tinned copper braid shield
• Shield Coverage: ≥ 85% coverage for effective EMI protection
• Characteristic Impedance: 120 Ω ±10% at 1 MHz frequency
• Signal Attenuation: ≤ 0.2 dB/m at 1 MHz (60 dB total for 300m)
• Propagation Delay: ≤ 5 ns/m maximum (1.5 μs total for 300m)
• Cable Capacitance: ≤ 60 pF/m conductor-to-shield
• DC Loop Resistance: ≤ 50 Ω/km per conductor pair at 20°C
• Voltage Rating: 300V RMS maximum working voltage
• Cable Diameter: Approximately 8.8 mm (0.346 inches)

Physical & Mechanical Properties

• Insulation Material: PVC (Polyvinyl Chloride) insulation
• Jacket Material: Gray PVC outer jacket for industrial identification
• Conductor Identification: Color-coded: White, Blue, Red, Black with printed legends
• Drain Wire: Tinned copper drain wire for shield termination
• Minimum Bend Radius: 65 mm (2.56 inches) during installation
• Maximum Pulling Tension: 80 N (18.0 lb) during installation
• Tensile Strength: Suitable for vertical installation with proper support
• Abrasion Resistance: Enhanced jacket for industrial installation conditions

Package Information

• Unit Package (1 PCE): Single 300-meter reel
• Package Dimensions: 33.5 × 40 × 40 cm (13.19 × 15.75 × 15.75 inches)
• Package Weight: 21.87 kg (48.21 lb) (net weight: approximately 20.5 kg)
• Master Carton (18 P12): 18 units per shipping carton
• Carton Dimensions: 113 × 80 × 120 cm (44.49 × 31.50 × 47.24 inches)
• Carton Weight: 405.66 kg (894.32 lb)
• Reel Construction: Industrial wooden or heavy-duty plastic reel with protective flanges

Network Design & Installation Guidelines

• Maximum Network Length: Suitable for CANopen networks up to 300 meters total
• Recommended Baud Rate: Maximum 125 kbit/s for full 300m operation
• Termination Requirements: 120 Ω termination resistors required at both bus ends
• Grounding Practice: Single-point shield grounding to prevent ground loops
• Cable Separation: Maintain minimum 300 mm (12 inches) from power cables
• Connector Compatibility: Standard 9-pin D-sub, terminal blocks, or CANopen-specific connectors
• Installation Note: Consider cable weight and required support for long vertical runs
• Environmental Limitation: Indoor installation only (IP20 rating)

Certifications & Standards Compliance

• Flame Test Standard: IEC 60332-2 (Test for vertical flame propagation)
• Safety Certification: UL listed for United States and Canadian markets
• EMC Performance: Shielded design meets industrial electromagnetic requirements
• Environmental Compliance: RoHS compliant (Restriction of Hazardous Substances)
• Quality Management: Manufactured under ISO 9001 quality system

Application Advantages

• Long-Distance Reliability: Ensures stable data communication across 300-meter networks
• Safety Compliance: Industrial-grade design meets UL and IEC flame safety standards
• Installation Efficiency: IP20 rating provides adequate protection for indoor installations
• Cost Reduction: 300-meter length minimizes joints and connection points in large systems
• Signal Integrity: Proper shielding maintains signal quality over extended distances
• System Scalability: Supports expansion of CANopen networks in large facilities

Shipping & Handling

• Shipping Methods: Available via freight carriers (FedEx Freight, UPS Freight, DHL)
• Handling Equipment: Recommended use of lifting equipment for 21.87 kg reels
• Lead Time: Typically ships within 5-10 business days
• Storage Conditions: Store in dry environment, avoid direct sunlight and extreme temperatures
• Packaging Protection: Reel protected with end caps and reinforced wrapping

Frequently Asked Questions

• What is the maximum baud rate for 300m operation? 125 kbit/s is maximum for reliable 300m operation.
• Can this cable be used outdoors? No, IP20 rating is for indoor installations only.
• Does it require special connectors? Standard CANopen connectors compatible with 0.75mm² conductors.

For network design consultation and technical support for the TSXCANCB300 CANopen cable, contact our engineering team.
