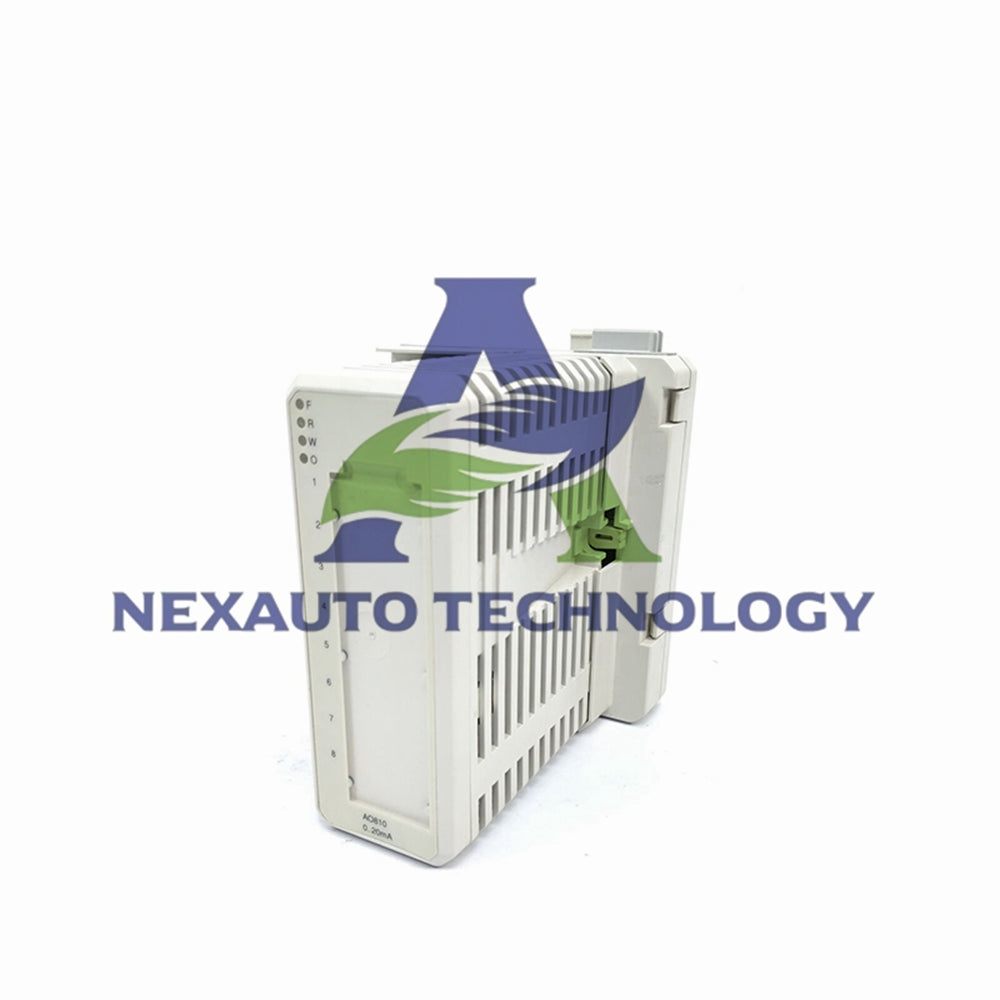

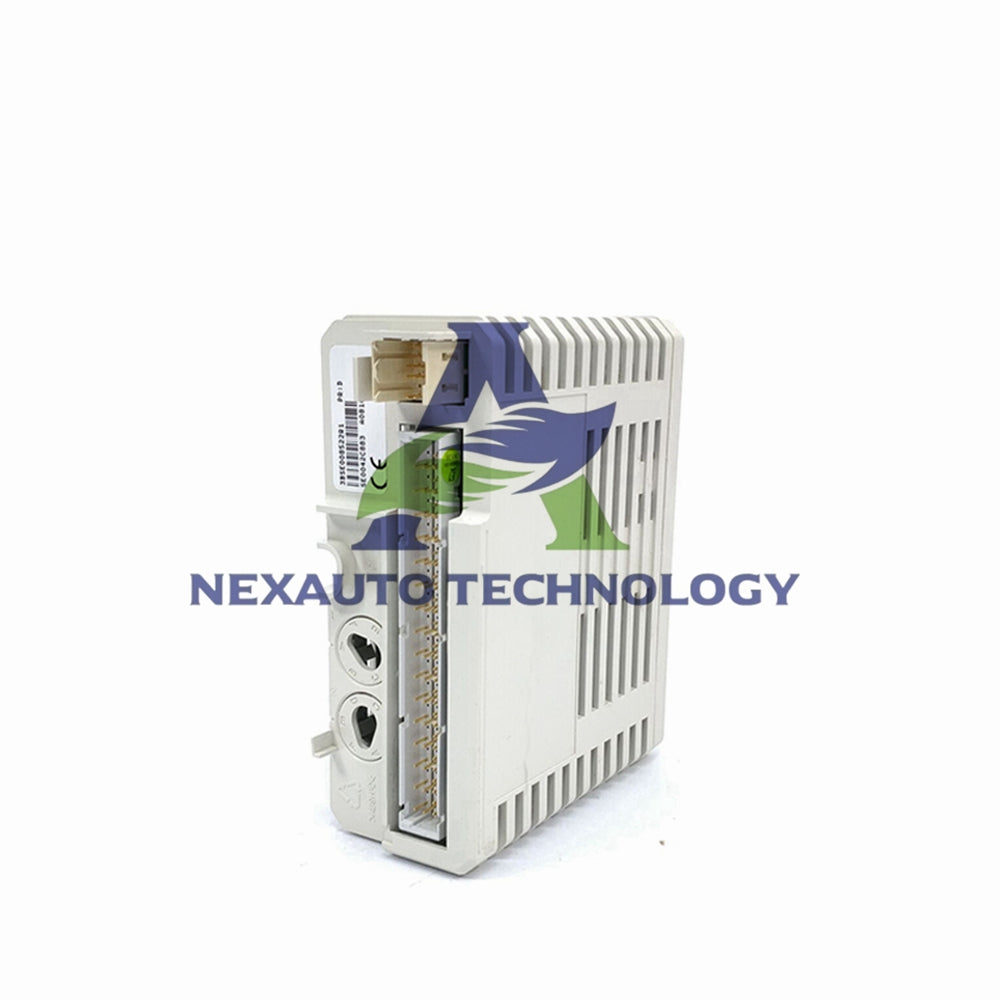

DI810 16-Channel Isolated Input Module ABB

ABB DI810 Digital Input Module

The ABB DI810 serves as a 16-channel digital input module for S800 I/O systems. This module handles 24V DC signals with dual isolated groups. The DI810 provides reliable input monitoring with voltage supervision capabilities.

Product Overview

• Article Number: 3BSE008508R1
• Module Type: 16-Channel Digital Input
• Signal Specification: 24V DC Current Sinking
• Mechanical Platform: S800 I/O System

Electrical Specifications

• Input Voltage Range: 18 to 30 V DC
• Input Current: 6 mA at 24V
• Input Impedance: 3.5 kΩ
• Logic "1" Signal: 15 to 30 V
• Logic "0" Signal: -30 to +5 V

Channel Configuration

• Total Channels: 16 Digital Inputs
• Isolation Groups: 2 groups of 8 channels
• Voltage Supervision: 1 per group with error signaling
• Filter Times: Selectable 2, 4, 8, 16 ms

Physical Dimensions

• Width: 45 mm (1.77")
• Depth: 102 mm (4.01")
• Height: 119 mm (4.7")
• Weight: 0.15 kg (0.33 lbs)

Wiring and Connections

• Maximum Cable Length: 600 meters
• Current Limiting: Available through MTU
• Keying Code: AA for proper installation
• Dielectric Test Voltage: 500 V AC

Compatible MTU Units

• Compatible with: TU810, TU812, TU814, TU818
• Also works with: TU830, TU833, TU838, TU850
• Specific Match: TU810V1 termination unit
• Keying ensures correct module placement

Environmental Specifications

• Operating Temperature: 0 to +55 °C
• Storage Temperature: -40 to +70 °C
• Relative Humidity: 5 to 95% non-condensing
• Protection Rating: IP20 according to IEC 60529

Diagnostics and Monitoring

• Status LEDs: Fault, Run, Warning indicators
• Channel LEDs: Individual input status (1-16)
• Voltage Supervision: Monitors process voltage per group
• Error Reporting: Module and channel error via ModuleBus

Certifications and Safety

• RoHS Compliance: DIRECTIVE/65/EU
• Safety Standards: EN 61010-1, UL 61010-1
• Hazardous Locations: C1 Div 2, ATEX Zone 2
• Marine Certifications: ABS, BV, DNV, LR

Shipping Information

• Includes DI810 digital input module
• Secure industrial packaging
• Worldwide shipping via FedEx, UPS, DHL
• Fast order processing available

Frequently Asked Questions

• How many isolation groups does it have? Two groups of 8 channels each.
• What is the input voltage range? 18 to 30 V DC.
• Does it support voltage supervision? Yes, one per isolation group.
• What MTU units are compatible? TU810, TU812, TU814, TU818 and others.
