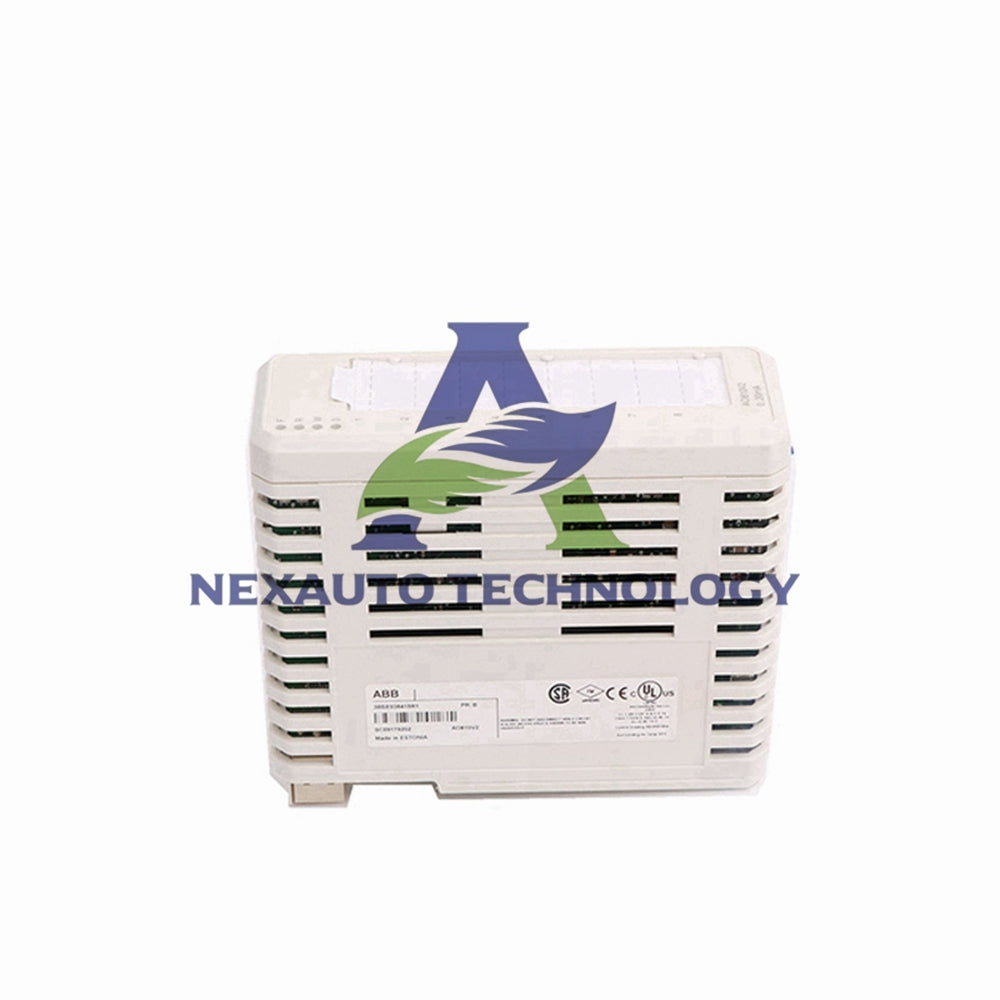

ABB DO810: High-Density Digital Output Module

The ABB DO810 delivers robust 16-channel digital output control for S800 I/O systems. Engineered for 24V DC applications, it provides reliable switching for industrial loads. The module features comprehensive protection and isolation, ensuring safe operation in demanding environments. With its advanced diagnostics and supervision capabilities, the DO810 maintains system integrity through continuous monitoring.

Module Identification & Ordering

• Manufacturer Part Number: 3BSE008510R1
• Module Designation: DO810 Digital Output
• System Platform: ABB S800 I/O Series
• Keying Configuration: AA

Output Performance Specifications

• Output Channels: 16 Independent Outputs
• Voltage Operating Range: 10 to 30 V DC
• Current Capacity: 0.5 A per Channel
• Output Load Resistance: < 0.4 Ω
• Output Type: Current Sourcing with Limiting

Protection & Safety Features

• Circuit Protection: Short-Circuit to Ground and 30V
• Thermal Management: Over-Temperature Protection
• Voltage Protection: Over-Voltage Safeguards
• Current Control: Automatic Output Current Limiting
• Fault Response: OSP Sets Safe Output State on Error

Isolation & Electrical Design

• Isolation Scheme: Two Groups of 8 Channels
• Insulation Rating: 50 V
• Dielectric Strength: 500 V AC Test Voltage
• EMC Protection: Comprehensive Component Shielding
• Load Support: Inductive Load Suppression Circuits

Supervision & Diagnostic Capabilities

• Voltage Monitoring: One Supervision Input per Group
• Visual Indicators: Fault, Run, Warning, OSP, Channel Status
• Error Reporting: ModuleBus Communication Interface
• Status Monitoring: Module Error, Warning, Channel Error
• Field Diagnostics: Continuous Process Voltage Checking

Physical Configuration

• Module Dimensions: 45 x 102 x 119 mm
• Product Weight: 0.18 kg
• Protection Class: IP20 Enclosure
• Connection Interface: Removable Terminal Connectors

Power & Thermal Characteristics

• ModuleBus Power: 80 mA at +5 V
• Heat Dissipation: Typically 2.1 W
• Operating Temperature: 0°C to +55°C
• Storage Conditions: -40°C to +70°C

Environmental Compliance

• Operating Humidity: 5% to 95% Non-Condensing
• Pollution Degree: 2 per IEC 60664-1
• Corrosion Resistance: ISA-S71.04 G3 Rating
• EMC Standards: EN 61000-6-4, EN 61000-6-2

Certifications & Approvals

• Safety Standards: EN/UL 61010-1, EN/UL 61010-2-201
• Hazardous Locations: C1 Div 2, C1 Zone 2, ATEX Zone 2
• Marine Certifications: ABS, BV, DNV, LR
• Environmental Directives: RoHS 2011/65/EU, WEEE 2012/19/EU

System Integration

• Compatible MTUs: TU810, TU812, TU814, TU830
• Termination Unit: TU810V1
• Field Wiring: Supports 600 Meter Cable Runs
• Mounting: Standard S800 Installation

Implementation Guide

• Shipping Contents: One DO810 Module Unit
• Global Distribution: FedEx, UPS, DHL Express Services
• Installation Support: Comprehensive Technical Documentation
• Application Engineering: Available for System Design

Technical Support & Service

• What protection features are included? Short-circuit, over-voltage, and thermal protection.
• How many isolation groups does it have? Two separate groups of eight channels each.
• What is the maximum output current? 0.5 Amperes per channel continuously.
• Which systems support this module? S800 I/O with specified MTU units.
