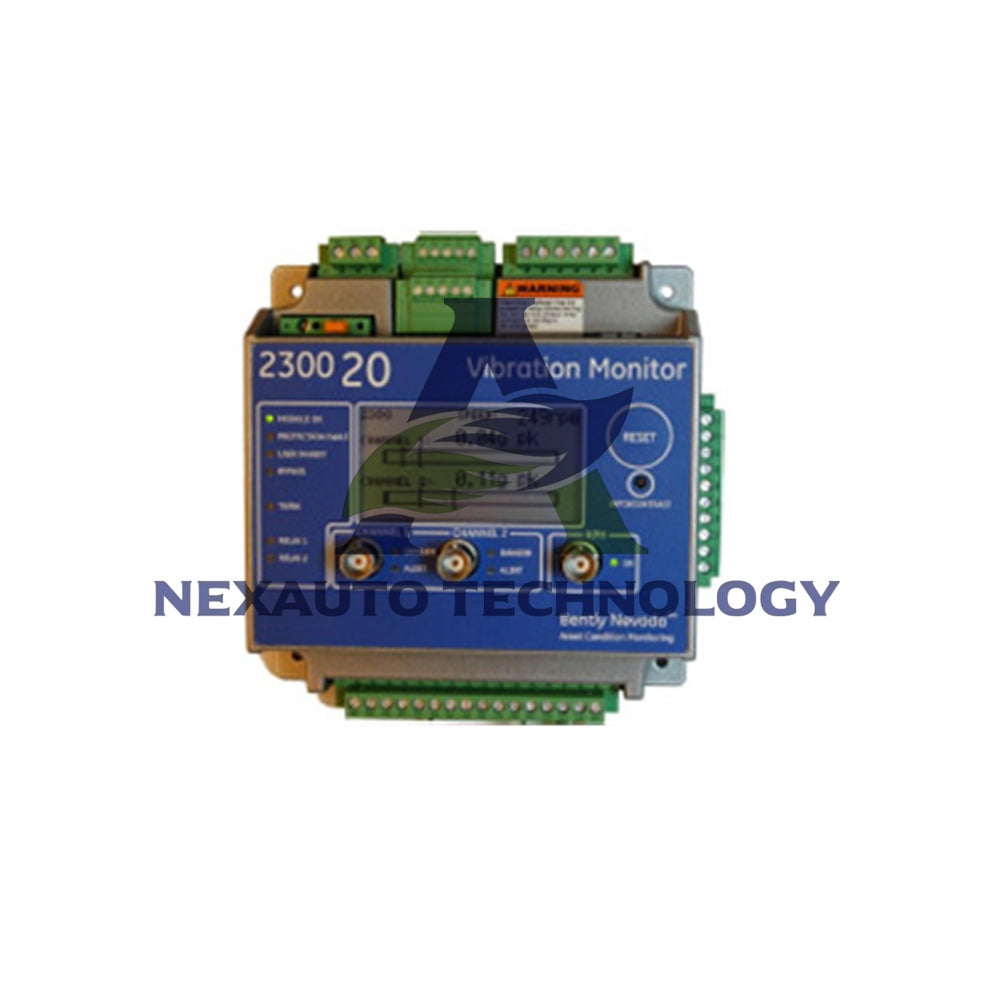

Dual Velomitor Monitoring Kit 2300/25_KIT-004-00 Bently Nevada

Bently Nevada 2300/25 Condition Monitoring System Kit - Configuration 004

The Bently Nevada 2300/25 Configuration 004 Kit delivers comprehensive velocity monitoring with two Velomitor sensors. This 2300/25 monitor provides precise, real-time data for dual-channel velocity measurement. We engineer this system for reliable operation in both hazardous and non-hazardous areas. You get a complete, housed solution for enterprise-grade machinery protection.

What the 2300/25 Configuration 004 Kit Includes

• 2300/25 Monitor – Core processing unit with configurable channels and 24-bit ADCs.
• Two 330500 Velomitor sensors for accurate velocity measurement on two machine points.
• Two 9571 cables (17 ft / 5.2 m) for sensor connection.
• One 6 ft (1.8 m) shielded Ethernet cable for network communication.
• Housing Kit: Choose 105M6193-01 (fiberglass, non-hazardous) or 105M6193-03 (stainless steel, hazardous area).
• Housing dimensions: 18.03 x 15.04 x 6.3 inches.
• Excludes Keyphasor sensor and 24 Vdc power supply.

Core Technical Specifications

• Manufacturer: Bently Nevada
• Model: 2300/25_KIT-004-00
• Power Input: 18~36 Vdc, consumes max 7.5 W.
• Sensor Excitation: Constant current sink 3.3 mA ±5% per channel.
• Open Circuit Voltage: -21 to -24 Vdc for transducer compatibility.
• Velocity Channel Configuration: Bandpass filter 0.2 Hz to 20 kHz, scale factor 5 to 1000 mV/in/s.
• Velocity Full Scale Range: 0 to 50 in/s peak.
• Channel Types: Handles ICP accelerometers, Velomitor sensors, proximity probes, and process variables.
• Bandpass Filter: Configurable 0.2 Hz to 20 kHz for all dynamic channels.
• Scale Factor Ranges: 5 to 1000 mV/g, mV/in/s, or mV/mil depending on transducer type.
• Accuracy: ±1% of full scale for process and proximity channels.
• ADC Resolution: Independent 24-bit ADCs on each input channel.
• Speed/Keyphasor Input: Supports multiple events per revolution, up to 20 kHz input frequency.
• RPM Range: 1 to 120,000 with proximity transducer; 200 to 120,000 with magnetic pickup.
• Proximity Interface Supply: -22.8 to –25.2 Vdc, 15 mA maximum rated current.
• Magnetic Pickup Input: Adapts to sensor 284947 output.
• Contact Inputs: Three capabilities for configuration lock, latched reset, and monitor bypass.
• Buffered Outputs: Three BNC connectors (two vibration, one speed).
• Relay Outputs: Two dry-contact SPDT relays. Non-hazardous: 6 A @ 250 Vac / 6 A @ 24 Vdc. Hazardous area ratings available.
• SPA Output: High AC 8 Vpp, Low AC 1.6 Vpp, DC GAP 0 to -20 Vdc. Frequency response 10 Hz to 3000 Hz ±5%.
• LED Indicators: OK, Protection fault, User inhibit, Bypass, Relay status, TX/RX, Speed/AUX status, Alert, Danger.
• LCD Display: Shows machine speed, velocity values, setpoints, and configuration.
• Ethernet Communication: 10Base-T/100Base-TX, RJ-45, IEEE802.3 compliant, cable up to 100 meters.
• Operating Temperature: -30°C to +65°C (-22°F to +149°F).
• Storage Temperature: -40°C to +85°C (-40°F to +185°F).
• Humidity: Up to 95%, non-condensing.
• Vibration Limit: 3 g.
• Real Time Clock Battery Life: Powered 38 years @ 50°C, unpowered 12 years @ 50°C.
• Data Storage: Stores at least 5 alarm captures during network disruption (requires System 1 v21.1+ and FW 3.2+).
• Physical Dimensions (Monitor): 127 mm x 127 mm x 76.2 mm (5 in x 5 in x 3 in).
• Weight: 1.03 kg (2.26 lbs).
• Mounting: Panel mount or DIN rail (adapter included).

Installation Guidelines

• Choose panel mount for the monitor or use the included DIN rail adapter.
• Select the appropriate housing: fiberglass for non-hazardous areas, stainless steel for hazardous locations.
• Mount both Velomitor sensors using the provided 17 ft (5.2 m) cables.
• Use the 6 ft shielded Ethernet cable to link the 2300/25 to your network.
• Connect an external 24 Vdc power supply (not included) to the DC input terminals.
• Optionally place a jumper between COM and chassis GND, or connect COM to earth ground separately.

Configuration & Connectivity

• Configure bandpass filters, scale factors, and full scale ranges via the onboard interface.
• Set upper and lower OK limits for process variable channels from -0.25 to -22 Vdc.
• Connect to System 1 software via Ethernet for remote monitoring and data analysis.
• Use the three contact inputs for configuration lock, latched alarm reset, and monitor bypass.
• Adjust threshold voltage resolution in 0.1 Vdc steps for speed inputs.
• View real-time velocity measurements and setpoints on the integrated LCD display.

Environmental & Durability Features

• Operates reliably in extreme temperatures from -30°C to +65°C.
• Withstands up to 95% humidity, non-condensing, for harsh industrial environments.
• Built to endure 3 g vibration without performance degradation.
• Long-life real-time clock battery ensures timestamp accuracy for 38 years powered.
• Epoxy-sealed relays provide 100,000 cycle life at 5 A for non-hazardous area use.
• Hazardous area housing option meets stringent safety requirements.

Frequently Asked Questions

• What power supply do I need for the 2300/25?
  You need an external 24 Vdc power supply (18-36 Vdc range, 7.5 W max). The kit does not include it.
• What is a Velomitor sensor?
  A Velomitor is a piezoelectric velocity sensor that provides direct velocity output without integration, ideal for medium to high-speed machinery.
• How do I choose the right housing?
  Select 105M6193-01 fiberglass for non-hazardous areas. Choose 105M6193-03 stainless steel for hazardous environments.
• Can I monitor speed and velocity simultaneously with this kit?
  Yes, the 2300/25 processes speed inputs up to 20 kHz alongside both velocity channels with independent 24-bit ADCs.
• What is the maximum sensor cable length?
  The kit includes 17 ft (5.2 m) cables. For longer runs, consult the 2300/25 manual for signal integrity guidelines.
