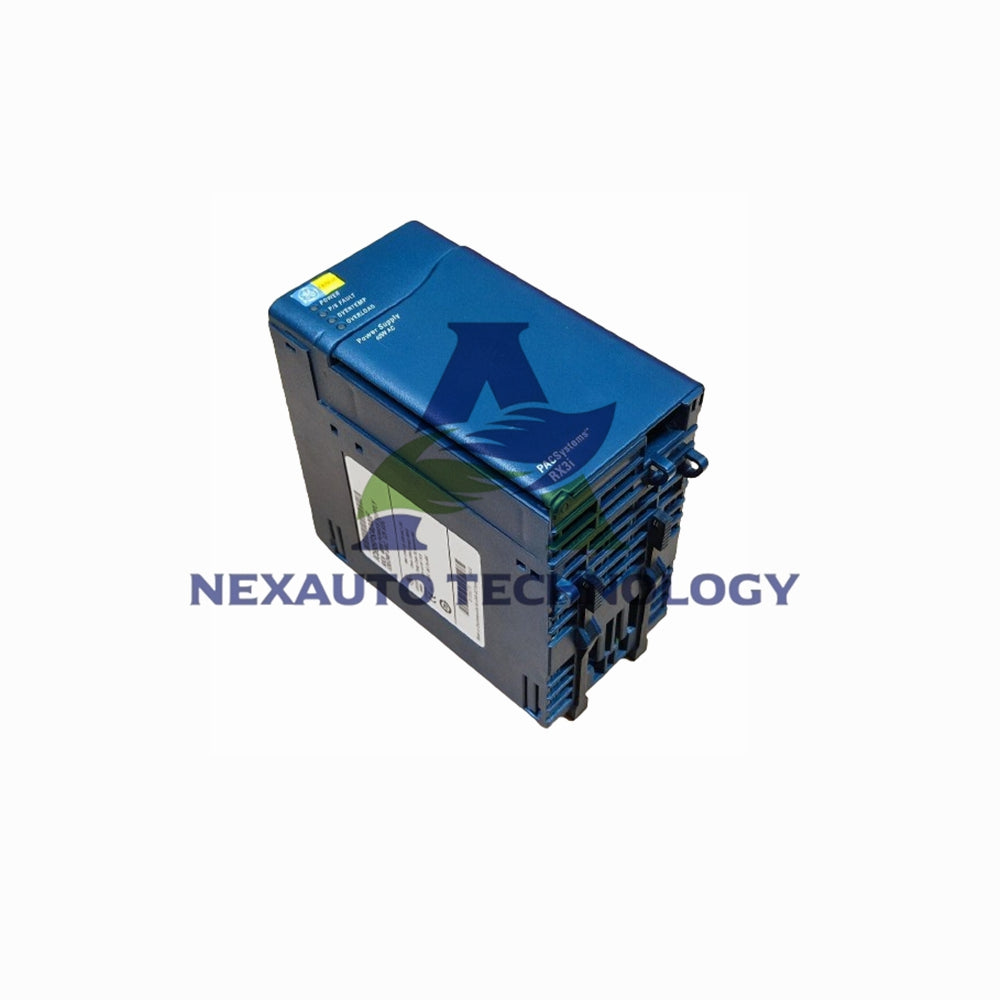

GE IC695PSA040K RX3i 40W Power Supply

GE Fanuc IC695PSA040K RX3i PacSystem Power Supply

The IC695PSA040K is a 40-watt power supply module for RX3i PacSystem controllers from GE Fanuc (now Emerson). It accepts universal AC or high-voltage DC inputs to power the backplane and installed modules in industrial automation applications.

Technical Specifications

• Part Number: IC695PSA040K
• Manufacturer: GE Fanuc / Emerson
• Series: RX3i PacSystem
• Product Type: Power Supply Module
• Output Power: 40 Watts maximum
• Input Voltage AC: 120/240 VAC nominal, 85-264 VAC range
• Input Voltage DC: 125 VDC nominal, 100-150 VDC range
• Input Frequency: 47-63 Hz
• Input Current: 1.5 A max at 120 VAC, 0.8 A max at 240 VAC
• Output Voltage: +3.3 VDC, +5 VDC, +12 VDC, -12 VDC
• Output Current: 3.3V/6A, 5V/3A, 12V/1A, -12V/0.5A
• Backplane Current Capacity: 40 Watts total shared across all outputs
• Hold-up Time: 20 ms minimum at full load
• Efficiency: >85% typical at full load
• Isolation: 1500 VAC input to output, 2500 VAC input to ground
• Inrush Current: <30 A peak at 264 VAC cold start
• Ripple & Noise: <50 mV peak-to-peak on 3.3V/5V, <100 mV on ±12V
• Overcurrent Protection: 105-150% of rated output, hiccup mode
• Overvoltage Protection: 115-135% of nominal output, latching shutdown
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 5% to 95% non-condensing
• Vibration Resistance: 5 g peak, 10 Hz to 500 Hz
• Shock Resistance: 30 g peak, 11 ms half-sine
• MTBF: >500,000 hours at 25°C (MIL-HDBK-217F)
• Dimensions: 142 mm H x 46 mm W x 126 mm D (5.6 in x 1.8 in x 5.0 in)
• Weight: 0.6 kg (1.3 lb)
• Mounting: RX3i backplane slot (leftmost position)
• LED Indicators: OK (green) - power supply output valid
• Certifications: UL 508, CSA C22.2 No. 142, CE, RoHS
• Country of Origin: United States
• Availability: In Stock

Input Specifications

• AC Input Range: 85-264 VAC continuous, no derating
• AC Input Frequency: 47-63 Hz
• DC Input Range: 100-150 VDC continuous
• AC Input Current: 1.5 A rms max at 120 VAC, 0.8 A at 240 VAC
• DC Input Current: 0.5 A max at 125 VDC
• Inrush Current Limiting: <30 A peak at 264 VAC
• Input Fuse: Internal, non-user replaceable, 3.15 A 250V time-delay

Output Specifications

• +3.3 VDC Output: 6.0 A maximum, 3.3 V ±2% regulation
• +5 VDC Output: 3.0 A maximum, 5 V ±2% regulation
• +12 VDC Output: 1.0 A maximum, 12 V ±3% regulation
• -12 VDC Output: 0.5 A maximum, -12 V ±5% regulation
• Total Power: 40 Watts maximum combined output
• Output Ripple: 50 mV p-p max on 3.3V/5V, 100 mV p-p on ±12V
• Load Regulation: ±1% from 10% to 100% load
• Line Regulation: ±0.5% over full input range
• Start-up Time: <2 seconds to valid output
• Hold-up Time: 20 ms minimum at nominal input and full load

Protection Features

• Overcurrent Protection: 105-150% of rated output, hiccup mode auto-recovery
• Overvoltage Protection: 115-135% of nominal output, latching shutdown
• Overtemperature Protection: Internal thermal shutdown with auto-recovery
• Short Circuit Protection: Continuous, hiccup mode on all outputs
• Reverse Polarity Protection: Yes, on DC input
• Input Transient Protection: IEEE C62.41 compliant, 2500V surge

Environmental Specifications

• Operating Temperature: 0°C to +60°C (derate linearly to 50% load at 60°C)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% RH, non-condensing
• Altitude: 0 to 2000 meters operating
• Vibration: 5 g peak, 10-500 Hz, 2 hours per axis (IEC 60068-2-6)
• Shock: 30 g peak, 11 ms half-sine, 3 shocks per axis (IEC 60068-2-27)
• Pollution Degree: 2 (IEC 60664-1)
• Protection Class: IP20 (fingersafe terminals)

Key Features

• Universal AC input: 120/240 VAC (85-264 VAC range)
• High-voltage DC input: 125 VDC (100-150 VDC range)
• 40 watts total output capacity for backplane power
• Four output voltages: +3.3V, +5V, +12V, -12V
• High efficiency >85% reduces heat generation
• 20 ms hold-up time for ride-through during power dips
• Comprehensive protection: OCP, OVP, OTP, short circuit
• Green OK LED for output valid indication
• 500,000+ hour MTBF for long-term reliability
• UL, CSA, CE certified for global use
• Mounts in leftmost slot of RX3i backplane

Compatibility

• RX3i PacSystem CPU backplanes
• RX3i expansion backplanes
• Compatible with all RX3i I/O modules
• Replaces IC695PSA040 and IC695PSA040D

Installation Guidelines

• Install in leftmost slot of RX3i backplane only
• Secure module with top/bottom retaining screws
• Torque screws to 0.4 Nm (3.5 in-lb)
• Wire AC input using 14-18 AWG copper conductors
• Torque terminal screws to 0.5 Nm (4.4 in-lb)
• Allow 50 mm clearance front/rear for airflow
• Do not exceed 40W total backplane power budget
• Verify OK LED illuminates after power-up

Package Contents

• 1x GE Fanuc IC695PSA040K Power Supply Module
• Removable terminal block (included)
• Product documentation
• Anti-static protective packaging
• Ships via FedEx, UPS, or DHL
