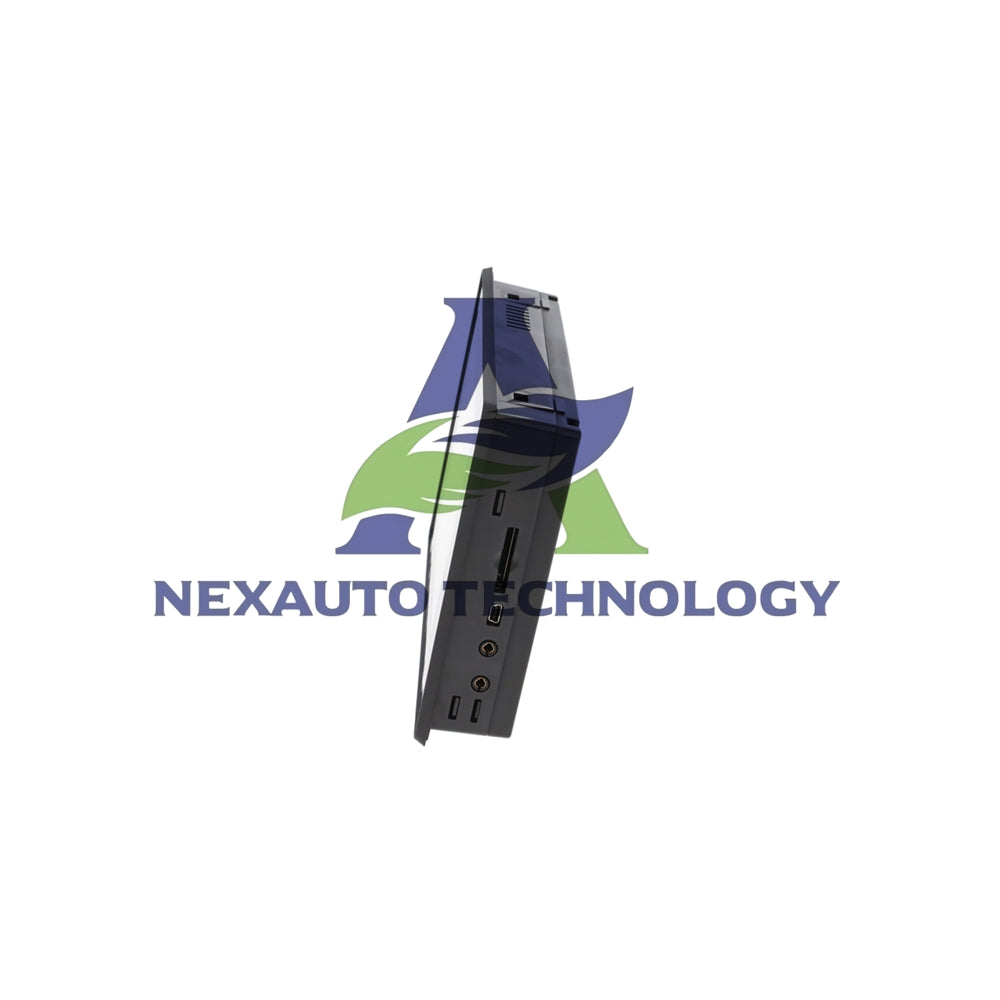

Quickpanel+ IC755CKS12CDMEP GE Fanuc Emerson

Product Overview

The IC755CKS12CDMEP is a GE Fanuc Quickpanel+ series operator terminal. This unit features a 12-inch touchscreen display and integrated RSTi-EP Modbus TCP for comprehensive industrial control applications.

Technical Specifications

• Manufacturer: GE Fanuc Emerson
• Part Number: IC755CKS12CDMEP
• Product Type: Quickpanel+ with RSTi-EP Modbus TCP
• Display Size: 12-inch TFT LCD
• Display Resolution: 800 x 600 pixels (SVGA)
• Touchscreen: Standard touch-enabled interface
• Processor: ARM Cortex A8 Freescale i.MX535 CPU
• Processor Speed: 1 GHz clock frequency
• SDRAM: 1 GB DDR3 system memory
• NVRAM: 512 MB non-volatile storage
• SRAM: 512 KB battery-backed memory
• Operating System: Windows EC7 with HTML5 browser
• Weight: 20.00 lbs (9.07 kg)

Processor & Memory

• CPU Architecture: ARM Cortex A8 core design
• Graphics: Integrated GPU for display processing
• Co-processor: Floating point operations unit
• Performance: 1 GHz processing capability
• System Memory: 1 GB DDR3 for application execution
• Storage Memory: 512 MB NVRAM for program storage
• Backup Memory: 512 KB SRAM with battery backup

Communication Interfaces

• Primary Protocol: RSTi-EP Modbus TCP integration
• Serial Ports: 2 total (RS-232 and RS-485)
• Serial Connector: 5-pin connector for both ports
• USB Ports: 3 total (1 x USB 2.0 mini Type-B, 2 x USB 2.0 Type-A)
• Ethernet Ports: Standard industrial Ethernet
• Expansion: SD card slot for external memory

Electrical Specifications

• Input Voltage: 12/24 VDC dual voltage capability
• Power Consumption: 30 Watts peak operation
• Power Supply: External 12-24VDC source required
• Current Rating: Appropriate for 30W maximum load
• Efficiency: Designed for industrial power systems

Functional Capabilities

• All-in-One Design: Combines HMI, PLC, and gateway functions
• Remote Programming: Multiple user account access support
• Multi-vendor Support: Interfaces with various controllers and I/O
• Web Access: HTML5 browser for internet/intranet connectivity
• Multimedia: Windows EC7 multimedia support included
• Control Gateway: Machine gateway functionality built-in

Programming Support

• IEC Languages: Full suite of programming languages
• Visual Programming: Function Block Diagram (FBD)
• Text Programming: Structured Text (ST) and Instruction List (IL)
• Ladder Logic: Relay Ladder programming support
• Sequential Control: Sequential Function Chart (SFC)
• Development: Remote programming capability

Display Features

• Screen Size: 12-inch diagonal viewing area
• Resolution: SVGA 800x600 clarity
• Touch Interface: Primary operator input method
• Visual Quality: Clear display for process visualization
• Interaction: Direct touch control for operations

System Integration

• Controller Interface: Serial and Ethernet connectivity options
• Protocol Support: Multi-vendor controller compatibility
• Network Access: Industrial network integration capable
• Data Exchange: Efficient communication with control systems
• Expansion: SD card support for additional storage

Key Advantages

• Integrated RSTi-EP Modbus TCP communication
• All-in-one HMI, PLC, and gateway solution
• High-performance ARM Cortex A8 processor
• Dual voltage input flexibility (12/24VDC)
• Comprehensive programming language support
• Windows EC7 with HTML5 browser capability
• Remote programming and multi-user access

Frequently Asked Questions

What is included in the all-in-one design?
The IC755CKS12CDMEP combines human-machine interface, PLC/process controller, and machine gateway functions in a single unit.

What programming languages are supported?
It supports all standard IEC languages including Function Block Diagram, Structured Text, Relay Ladder, Sequential Function Chart, and Instruction List.

Can I access the terminal remotely?
Yes, the terminal supports remote programming and can be accessed by multiple user accounts through network connections.

What power supply should I use?
The terminal accepts both 12VDC and 24VDC input. Use a regulated industrial power supply capable of delivering up to 30 watts.

Does it have web browsing capability?
Yes, the Windows EC7 operating system includes an HTML5 browser for accessing internet and intranet resources.
