Schneider Electric TSXCANCB50 - CANopen Cable

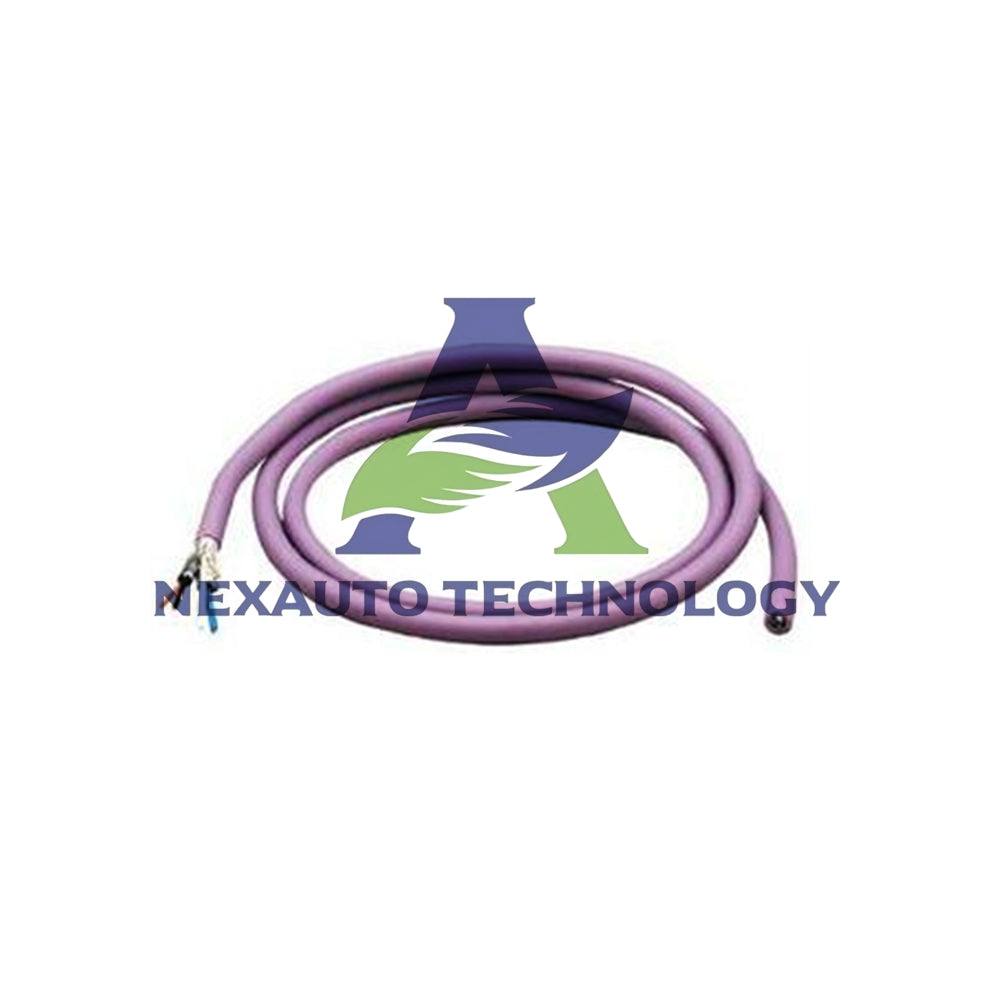

Schneider Twido TSXCANCB50 CANopen Standard Cable

The TSXCANCB50 is a 50-meter CANopen cable designed for industrial automation networks requiring reliable data transmission.

Technical Specifications

• Manufacturer: Schneider Electric / Twido
• Model Number: TSXCANCB50
• Product Type: CANopen standard communication cable
• Bus Compatibility: CANopen industrial fieldbus networks
• Cable Length: 50 meters (164.04 feet)
• Certifications: CE marked, UL listed
• Flame Protection: IEC 60332-2 compliant (vertical flame test)
• Ingress Protection: IP20 rating for indoor industrial use
• Product Weight: 7.89 lb (3.58 kg)
• Operating Temperature: -20°C to +80°C (-4°F to +176°F)
• Storage Temperature: -30°C to +85°C (-22°F to +185°F)
• Relative Humidity: 5% to 95% non-condensing

Electrical & Performance Characteristics

• Conductor Size: 0.75 mm² (18 AWG) per conductor
• Conductor Configuration: 4 conductors (2 twisted pairs)
• Shielding: Overall aluminum foil plus tinned copper braid shield
• Shield Coverage: ≥ 85% for effective EMI protection
• Characteristic Impedance: 120 Ω ±10% at 1 MHz
• Signal Attenuation: ≤ 0.2 dB/m at 1 MHz (10 dB total for 50m)
• Propagation Delay: ≤ 5 ns/m maximum (250 ns total for 50m)
• Cable Capacitance: ≤ 60 pF/m conductor-to-shield
• DC Loop Resistance: ≤ 25 Ω/km per conductor at 20°C
• Voltage Rating: 300V RMS maximum working voltage
• Cable Diameter: Approximately 8.3 mm (0.327 inches)

Physical & Mechanical Properties

• Insulation Material: PVC (Polyvinyl Chloride) insulation
• Jacket Material: Gray PVC outer jacket for industrial identification
• Conductor Identification: Color-coded: White, Blue, Red, Black
• Drain Wire: Tinned copper drain wire for shield termination
• Minimum Bend Radius: 50 mm (2.0 inches) during installation
• Maximum Pulling Tension: 60 N (13.5 lb) during installation
• Tensile Strength: Suitable for standard industrial installation
• Abrasion Resistance: Standard industrial jacket protection

Package Information

• Unit Package (1 PCE): Single 50-meter reel
• Package Dimensions: 8.858 × 13.78 × 13.78 in (225 × 350 × 350 mm)
• Package Weight: 11.03 lb (5.003 kg) (net weight: 3.58 kg)
• Master Carton (24 P12): 24 units per shipping carton
• Carton Dimensions: 40.945 × 31.496 × 47.244 in (1040 × 800 × 1200 mm)
• Carton Weight: 282.434 lb (128.11 kg)
• Reel Construction: Industrial plastic reel with protective flanges

Network Design & Installation

• Maximum Network Length: Suitable for CANopen networks up to 50 meters
• Supported Baud Rates: 10 kbit/s to 1 Mbit/s for 50m operation
• Termination Requirements: 120 Ω termination resistors at both bus ends
• Grounding Practice: Single-point shield grounding recommended
• Cable Separation: Maintain minimum 150 mm (6 inches) from power cables
• Connector Compatibility: Standard 9-pin D-sub or terminal blocks
• Environmental Limitation: Indoor installation only (IP20)

Certifications & Standards

• Flame Test Standard: IEC 60332-2 (vertical flame propagation)
• Safety Certification: UL listed for United States/Canadian markets
• EMC Performance: Shielded design meets industrial EMC requirements
• Environmental Compliance: RoHS compliant
• Quality Management: ISO 9001 manufacturing

Application Advantages

• Reliable Communication: Ensures stable data transmission for CANopen networks up to 50m
• Safety Compliance: Meets UL and IEC flame safety standards
• Installation Efficiency: IP20 rating suitable for standard indoor installations
• Cost-Effective: 50-meter length reduces connection points in medium-sized systems
• Signal Integrity: Proper shielding maintains signal quality

Shipping & Handling

• Shipping Methods: Available via FedEx, UPS, DHL
• Lead Time: Typically ships within 3-7 business days
• Storage Conditions: Store in dry environment, avoid direct sunlight
• Packaging Protection: Reel protected with end caps and plastic wrapping

Frequently Asked Questions

• What baud rates are supported for 50m? Full range from 10 kbit/s to 1 Mbit/s.
• Can this cable be used outdoors? No, IP20 is for indoor use only.
• Does it require special connectors? Standard CANopen connectors compatible with 0.75mm² conductors.
