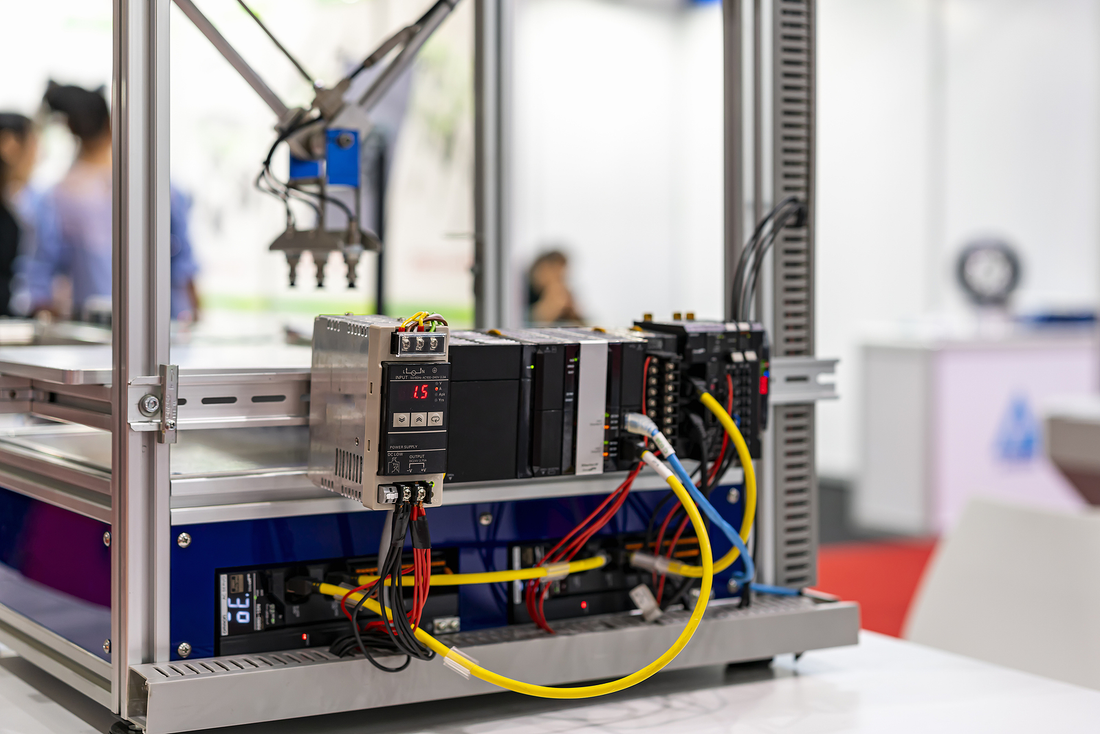

1. The Hidden Cost of Traditional PLC Debugging
Manual PLC debugging consumes nearly 60% of project timelines in typical automation initiatives. Engineers often chase intermittent faults or logic errors long after installation. However, modern simulation tools shift this effort earlier in the development cycle. A recent packaging line project demonstrated this shift clearly. The team completed on-site commissioning in three days instead of ten. They achieved this by identifying 40% of logic errors before hardware arrival.
2. Build Digital Twins to Validate Logic Before Hardware Arrives
Digital twin technology lets you test control logic against a virtual model of your machinery. For example, simulate a conveyor system with 50 I/O points using platforms like Siemens PLCSIM Advanced or Rockwell Emulate. You can detect timing conflicts—such as a 200 ms sensor delay—before any physical wiring begins. A material handling integrator used this approach to validate merge logic for 10,000 parcels per hour. They eliminated a 30-second backlog through simulation alone. Early simulation catches nearly 40% of logical errors. This prevents costly field rewiring and accelerates time-to-market significantly.
3. Master Forcing and Overriding for Isolated Component Testing
Online monitoring enables engineers to force inputs and override outputs temporarily. In a water treatment facility upgrade, technicians forced a level sensor to "high" to verify pump shutdown sequencing. This test confirmed a 1.5 second PID response time against a 2 second requirement. No actual tank filling occurred. A chemical plant later used forcing to simulate ten alarm conditions in just two hours. Previously, physical wiring changes required two full days for equivalent testing.
4. Create Focused Watch Windows for Critical Variables
Scanning every tag wastes valuable debugging time. Instead, build concentrated watch lists targeting key analogs and interlocks. A bottling plant monitored only fifteen critical tags during a sporadic stoppage investigation. They quickly isolated a faulty proximity sensor with a 50 ms signal dropout. The repair took minutes rather than hours. Filtering data reduces cognitive load and helps spot anomalies three times faster than scrolling raw ladder logic.
Real-World Applications With Quantifiable Results
Case Study 1: Automotive Assembly Line Optimization
A tier-one supplier needed to validate 50+ safety functions across a new welding line. They implemented hardware-in-the-loop (HIL) testing combining simulation with actual PLC hardware. This approach reduced physical crash tests by 30% and identified three critical interlock failures before production startup. The line achieved 98% uptime in its first month, exceeding targets by 8%.
Case Study 2: Food Processing Fluctuation Detection
A bakery experienced intermittent packaging misalignment traced to a 2% servo speed fluctuation. Engineers activated the PLC's built-in trend recorder, capturing actual speed versus setpoint over five minutes at 10 ms intervals. The data revealed a loose encoder connection causing a 20 rpm drift. Corrective action saved an estimated 15% in annual product waste, valued at €85,000.
Case Study 3: Distribution Hub Conveyor Integration
A logistics company needed to integrate twelve new sortation conveyors into an existing Siemens S7-1500 network within five days. Engineers performed full virtual commissioning using PLCSIM Advanced, simulating 200 digital inputs, 150 outputs, and eight encoder signals. They ran fifty simulated rush-hour scenarios with 10,000 parcels per hour. On-site wiring and testing took only 2.5 days. The system handled 12,500 parcels per hour on launch day, exceeding the target by 25% and saving approximately 60 engineering hours.
Case Study 4: Hydraulic Press Calibration Drift Detection
An automotive stamping plant ran parallel simulation alongside live production. When real pressure readings showed 4.2 bar versus a simulated expectation of 4.0 bar, the 0.2 bar deviation signaled early calibration drift. Technicians corrected the sensor during a scheduled break, avoiding an unplanned four-hour shutdown later. Production maintained 98% OEE that month.
Case Study 5: HVAC Control Regression Testing
For a large commercial building upgrade, engineers used Python scripts with OPC UA to automate testing of 30 air handling units. The script cycled through 100 test cases overnight and flagged two units where supply temperature deviated by 1.5°C. Fixing these before occupancy ensured 99.8% comfort satisfaction from day one. Manual testing would have required three engineers for one week.
5. Leverage Trend Recording to Diagnose Intermittent Faults
Intermittent glitches challenge even experienced programmers. Modern PLCs offer high-speed tracing down to 1 ms intervals. Use this data for root cause analysis, not just pass/fail checks. A recent metals plant used trend recording to capture a 50 ms power dip causing random drive faults. They traced it to an undersized power supply and replaced it during planned maintenance, eliminating unplanned downtime.
6. Insert Breakpoints for Complex Sequence Validation
Breakpoints halt execution at specific rungs, allowing step-by-step verification. During robotic palletizer programming, an engineer inserted a breakpoint before the "gripper close" command. They verified all eight zone-safe inputs were true before proceeding. This prevented a potential crash saving an estimated €15,000 in hardware damage. Combine breakpoints with temporary variable changes—reduce a counter preset from 50 to 5 to accelerate test cycles without modifying production code permanently.
7. Automate Regression Testing With Scripting Tools
Manual re-testing after every code change introduces inconsistency and waste. Scripting tools like Python with OPC UA automate input sequences and log outputs overnight. A pharmaceutical plant used this approach to validate a batch reactor control upgrade. The script ran 150 test scenarios and flagged two outliers where temperature control deviated by 0.3°C. Automation ensures consistency and frees senior engineers for complex design work.
8. Compare Online Values Against Simulation Baselines
Run simulation parallel to live operations and compare results continuously. A water treatment plant used this method to detect a 0.15 bar pressure discrepancy. Investigation revealed a partially closed isolation valve, corrected before it affected downstream processes. Studies in automotive assembly show parallel comparison reduces final validation time by 25% while improving detection of subtle degradation.
Frequently Asked Questions About PLC Debugging
1. Can simulation completely replace hardware testing?
No, but it covers 70-80% of logic validation effectively. Hardware-in-the-loop (HIL) testing bridges the gap by simulating the plant while testing actual PLC hardware. This combination identified 50+ safety function issues for one automotive supplier, reducing physical crash tests by 30%.
2. How does online monitoring affect PLC scan time?
Watching a few dozen tags adds negligible overhead—typically microseconds. However, trending 50 high-speed points at 1 ms intervals can increase scan time by 5-10%. Use intensive monitoring temporarily for diagnostics, then disable it for normal operations.
3. What is the safest method for forcing I/O in live plants?
Always implement dual-layer protection. Apply soft forces in the PLC while also using physical disconnects like locked motor breakers. A mining project used this approach when testing conveyor trips, preventing any accidental startup during validation.
4. Can analog signals like 4-20 mA be simulated accurately?
Yes. Modern tools inject precise analog values to test control loops thoroughly. Simulate a temperature ramp from 100°C to 250°C over two minutes to verify PID response without any physical heat source.
5. How should legacy PLCs with limited simulation capability be handled?
Use third-party I/O simulators or signal generators. For an older Modicon system, engineers employed a 0-10V signal generator for eight analog inputs and toggle switches for sixteen digital inputs. This enabled effective offline debugging of a mixing process.
6. What is the typical ROI from simulation investments?
Based on documented projects, payback occurs within 6-12 months. Savings come from reduced commissioning time, lower travel costs, and prevented equipment damage. The distribution hub case saved 60 engineering hours on a single project alone.
7. How do breakpoints help with safety system validation?
Breakpoints allow verification of all interlock conditions before critical actions execute. In palletizer programming, this prevented a crash by confirming eight zone-safe inputs were true before gripper closure. Step-by-step validation ensures safety functions operate as designed.
Conclusion: Proactive Validation as Competitive Advantage
Mastering these seven techniques transforms controls engineers from reactive troubleshooters to proactive designers. With Industry 4.0 generating vast data from PLCs, DCS, and control systems, efficient debugging using simulation and monitoring becomes essential. The result is faster time-to-market, lower project costs, and more robust factory automation. Engineers who adopt these methods consistently deliver systems that exceed performance targets while reducing stress and overtime.
