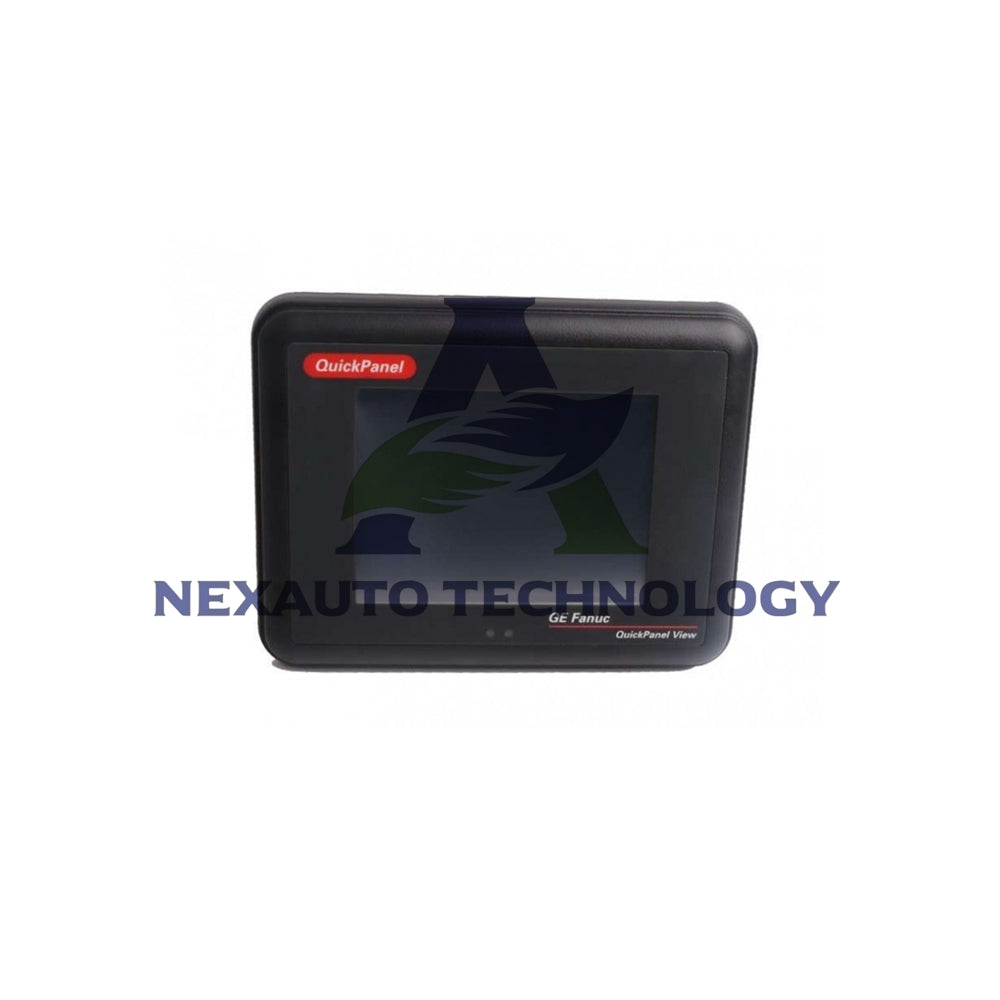

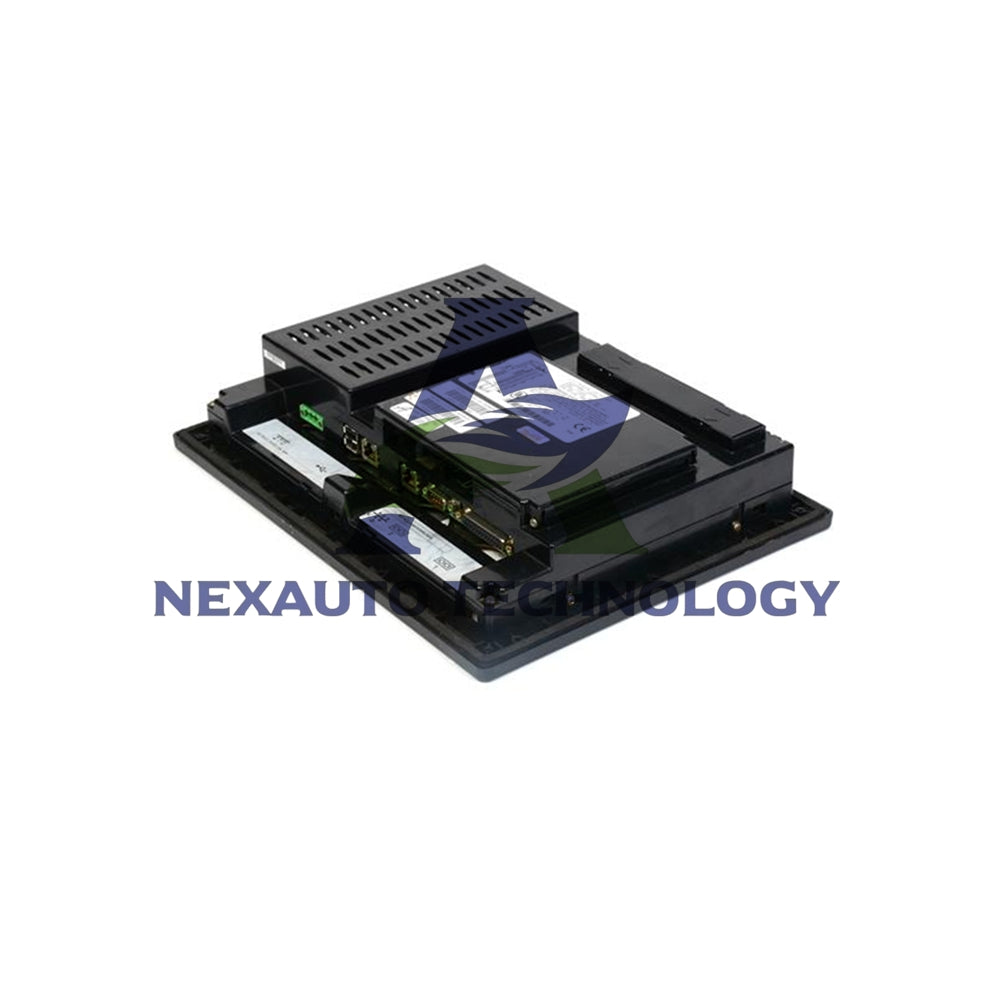

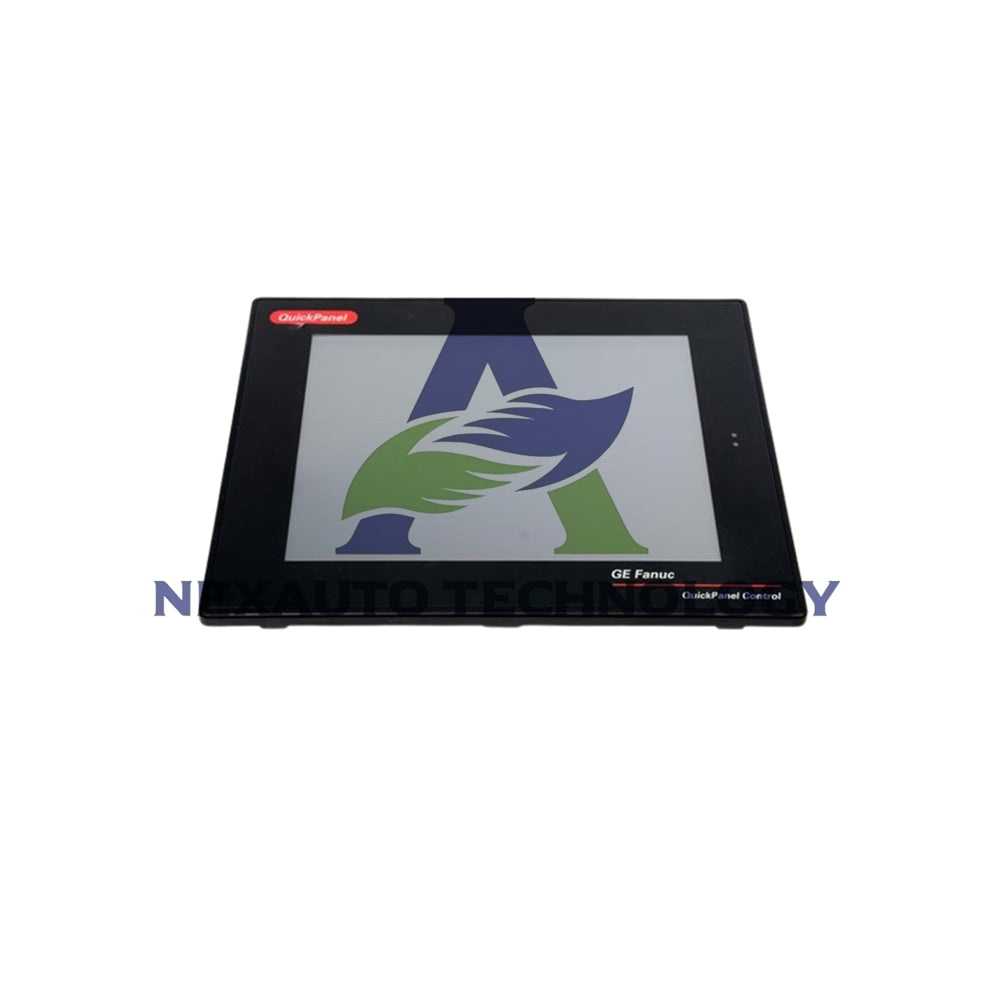

GE Fanuc IC754VBL06MTD QuickPanel View Control Terminal

IC754VBL06MTD GE Fanuc QuickPanel View/Control 6-Inch Monochrome HMI

The IC754VBL06MTD is a display computer from GE Fanuc's QuickPanel View/Control series, featuring a 6-inch monochrome touchscreen. This operator terminal runs on the embedded Windows Compact 7 operating system and is designed for reliable factory floor operations. It offers NEMA 4X protection when properly mounted, ensuring durability in industrial environments.

Core Specifications and Identification

• Manufacturer and Model: This is a GE Fanuc (Emerson / GE Intelligent Platforms) product from the QuickPanel View/Control series (QuickPanel View + Series).
• Part Number: The specific catalog number is IC754VBL06MTD.
• Product Type: Functions as a display computer / operator terminal.
• Key Feature: Achieves NEMA 4X qualification when mounted in a proper enclosure.

Display and Touch Interface

• Display Size: 5.75 to 6 inch diagonal display.
• Display Type: Supports Passive FSTN Monochrome graphics (also supports TFT color capability).
• Display Resolution: 320 x 240 pixels.
• Backlight: Cold Cathode Fluorescent (CCFL) backlight.
• Touch Technology: 12-bit resistive touchscreen; includes a stylus for input.

Processing and Software

• Processor Clock Speed: 300 MHz.
• Operating System: Microsoft Windows Compact 7 Embedded (32-bit, using Win32 API).
• Configuration Software: Uses Proficy View-Machine Edition for connectivity and configuration.
• Web Browser: Configured with Microsoft Pocket Internet Explorer with proxy server support.
• Data Protection: Features a backup utility that saves user changes (Windows Registry/Desktop) to flash memory.

Memory and Storage

• Flash Memory: 32 MB (stores running programs).
• SRAM: 512 KB battery-backed SRAM (retains user data during power loss).
• External Storage: Includes a Type 2 CompactFlash card port for expandable storage.

Communication and Connectivity

• Communication Ports:
  • RS-232 serial port
  • RS-485 serial port
  • Ethernet port
• Communication Cable: Connects using an HMI-CAB- series communication cable.

Power and Environmental Specifications

• Power Supply: 12 to 30 VDC input.
• Power Failure Safety: No danger from unplanned shutdowns; programs in flash and user data in battery-backed SRAM are protected.
• Enclosure Rating: Meets NEMA 4X standards when installed in a properly rated panel.
• Weight: Approximately 0.99 kg (2.19 lbs).

Packaging and Shipping

• Package Contents: Typically includes the HMI terminal, stylus, and related documentation.
• Shipping Methods: Available for international delivery via FedEx, UPS, and DHL services.

Frequently Asked Questions FAQ

• What is Windows Compact 7 Embedded? It is a componentized, real-time operating system from Microsoft designed for embedded devices, offering enhanced features, security, and connectivity over earlier Windows CE versions.
• How does the NEMA 4X rating benefit installation? NEMA 4X provides protection against water ingress, dust, corrosion, and external ice formation, making the unit suitable for washdown areas and harsh industrial environments when properly panel-mounted.
• What is the purpose of the CompactFlash port? The Type 2 CF port allows for expanding storage capacity for applications, data logging, recipes, or additional software components.
• How is data protected during a power failure? The operating system and application are stored in non-volatile flash memory. Critical user data and runtime variables are maintained in battery-backed SRAM, preventing loss during unexpected power outages.

The IC754VBL06MTD is designed as a versatile and rugged operator interface for demanding factory floor applications. Its modern embedded OS, robust data protection, and environmental rating make it a reliable choice for industrial control and monitoring. This GE Fanuc QuickPanel provides a balance of usability and durability for continuous operation.
