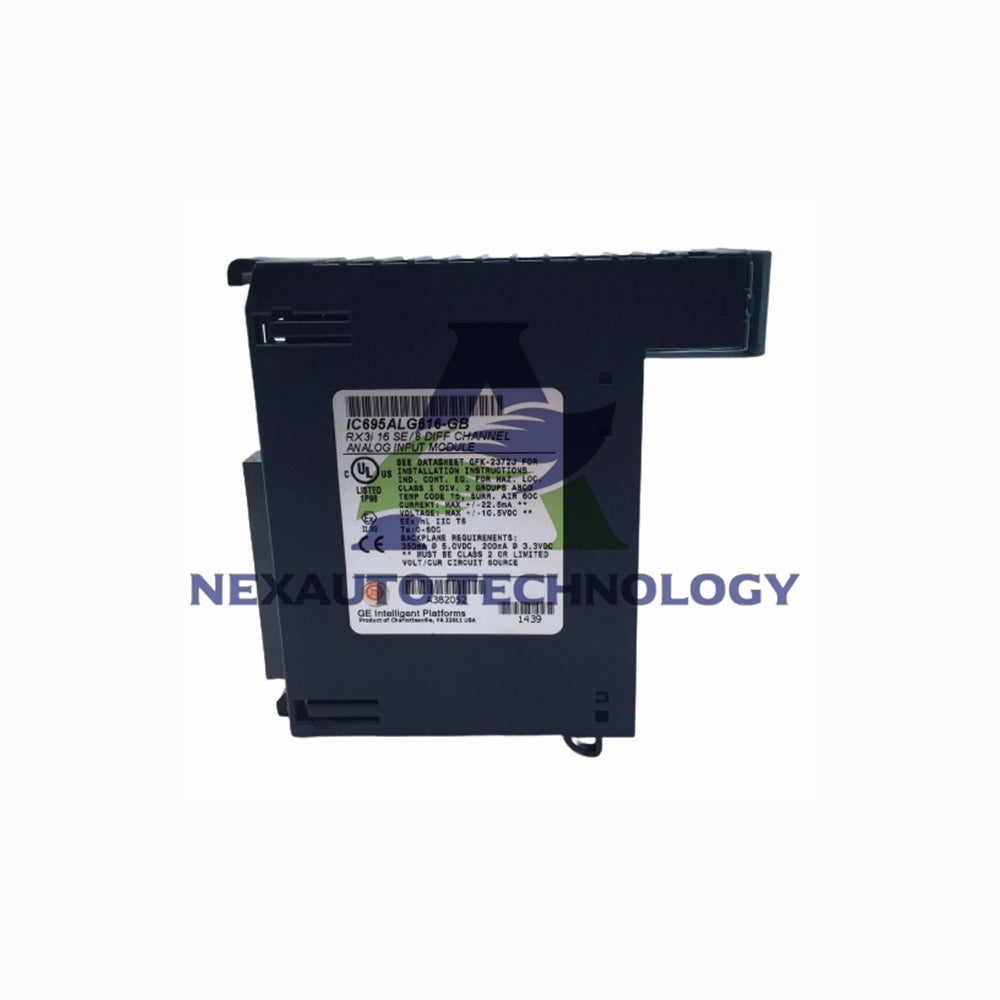

GE Fanuc - Analog Input Module IC695ALG616

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (19 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

IC695ALG616 Analog Input Module Overview

Key Specifications

16 single‑ended or 8 differential channels supporting current (0–20 mA, 4–20 mA, ±20 mA) and voltage (±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V)

24‑bit ADC with 0.001% full‑scale resolution

Configurable input filters: 8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 500 Hz

Sample rate up to 2,500 samples/sec per channel

Common‑mode rejection > 120 dB at 50/60 Hz

Input impedance > 100 kΩ (voltage), 249 Ω ± 1% (current)

Auto‑calibration on power‑up; open‑circuit detection < 1 s

Channel‑to‑channel isolation 250 VAC (transient withstand)

Operating: 32–140 °F; storage: –40–185 °F

Humidity: 5–95% non‑condensing

Overvoltage protection up to ±60 VDC; overcurrent ±28 mA

Power consumption: 3.3 V @ 450 mA, 5 V @ 600 mA; dissipation 3.8 W max

MTBF: >150,000 hours

Weight: 0.18 kg; dimensions: 120 × 26 × 100 mm

Shelf life: 1 year
