Precision Matters: Why Modern Factories Rely on Optimized PLC Networks
Today's smart production environments depend on deterministic data exchange between programmable controllers and hundreds of intelligent field devices. Two industrial Ethernet protocols—Profinet and EtherNet/IP—dominate the automation landscape. Yet engineers routinely encounter configuration pitfalls that trigger costly downtime. This article delivers field-tested strategies drawn from real manufacturing deployments, helping you build control networks that deliver consistent, reliable performance.
1. Profinet Configuration: Solving Device Naming and Timing Challenges
Many technicians overlook a fundamental rule: Profinet identifies devices by names, not IP addresses. A single mismatched name halts communication instantly. Always verify device names using tools like Siemens PRONETA or embedded web interfaces. In a recent automotive assembly retrofit, correcting naming errors reduced commissioning delays by 38%. Cycle times also demand attention—setting them too aggressively creates bus overload. A packaging plant increased cycle times from 1 ms to 2.5 ms and eliminated 93% of cyclic communication faults.
Topology design introduces additional risks. Profinet supports line, star, and ring structures, but faulty cabling or incorrect switch port configurations cause segmentation. Managed switches with integrated diagnostics help detect link degradation before failures occur. One beverage manufacturer reduced downtime by 71% after deploying proactive port monitoring and cable integrity tests.

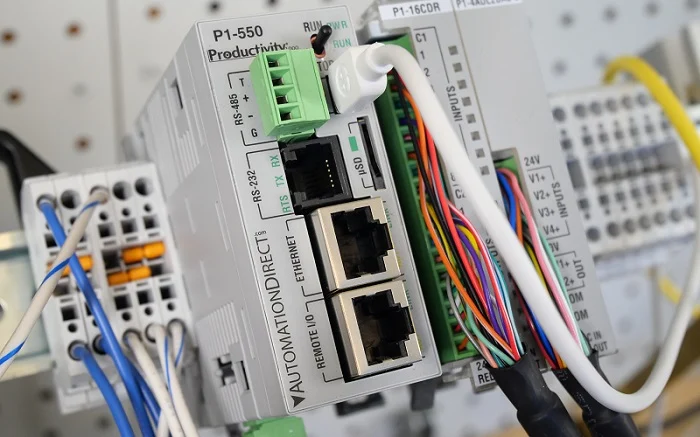

2. EtherNet/IP: Mastering Tag Structures and Network Segmentation
EtherNet/IP operates on a producer-consumer model that optimizes bandwidth but demands precise tag management. Inconsistent data mapping between controllers and devices frequently causes errors. Standardizing on user-defined data types (UDTs) minimizes mapping mistakes. A large distribution center adopted UDTs for 180 motor drives and cut commissioning time by 42%, while eliminating recurring alarms.
Network segmentation with VLANs and QoS plays an equally critical role. Prioritizing time-sensitive I/O traffic prevents bulk data transfers from starving control packets. A tier-1 automotive supplier enforced strict QoS policies and reported zero unplanned PLC communication losses over two years. Following Converged Plantwide Ethernet (CPwE) guidelines ensures consistent reliability across mixed-protocol environments.
Structured Diagnostics: Shifting from Reactive to Predictive Maintenance
Visibility forms the foundation of effective troubleshooting. Modern managed switches provide SNMP and protocol-specific diagnostics that pinpoint failing components within seconds. Instead of reacting to failures, adopt condition-based monitoring. A pharmaceutical manufacturer reduced mean time to repair (MTTR) by 64% after centralizing diagnostic data into their SCADA platform. They tracked CRC errors and port statistics to predict cable failures weeks in advance.
Network analyzers like Wireshark with industrial dissectors reveal hidden telegrams. In a metal stamping facility, recurring “station failure” alarms traced back to a voltage-dropping power supply—detected only by combining voltage trend logs with packet inspection. Blending electrical monitoring with packet-level analysis creates a robust defense against obscure faults.
Real-World Application Cases: Data-Driven Success Stories
Abstract advice cannot replace measurable results. Below are expanded case studies demonstrating tangible improvements.
Case A: Automotive Powertrain – Profinet IRT Transformation
A global automaker faced synchronization errors on a high-speed line with 92 welding robots and 260 I/O nodes. The original Profinet RT configuration produced jitter beyond ±14 µs, affecting weld quality. Engineers migrated to Profinet IRT with a dedicated sync master and reorganized the topology into six isolated zones. Outcome: cycle time jitter dropped to ±0.9 µs, scrap rates fell from 3.4% to 2.4% (a 29% reduction), and overall equipment effectiveness (OEE) rose 15% within four months. This case illustrates how selecting the appropriate real-time class and segmenting zones directly improves manufacturing KPIs.
Case B: E-Commerce Fulfillment Center – EtherNet/IP Scalability with DLR
A major e-fulfillment hub operated 16 PLCs controlling 680 conveyors and sorters. Initially, a flat EtherNet/IP architecture caused broadcast storms and periodic controller timeouts. Engineers implemented Device Level Ring (DLR) topology, IGMP snooping, and managed switches. The network now handles peak loads of 16,000 packets per second with zero collisions. Downtime from network instability dropped from 18 hours per month to less than 0.4 hours—annual savings exceeded $380,000 in throughput recovery. Using switch-integrated diagnostics, technicians located a failing cable in 15 minutes, whereas previous searches required days.
Case C: Water Treatment Facility – Mixed Protocol Integration with OPC UA
A Midwest municipal water plant combined Profinet for pumping stations and EtherNet/IP for chemical dosing. Data mismatches occurred due to misaligned gateway update intervals. The facility deployed a unified SCADA system with OPC UA aggregation and set all critical I/O to a 55 ms refresh rate. Results: pump energy consumption decreased by 12%, chemical waste dropped by 19%, and annual operational savings reached $235,000. This highlights the financial and environmental benefits of harmonized industrial networks.
Case D: High-Speed Packaging Line – Proactive Switch Monitoring
A consumer goods manufacturer faced unexplained production stops on a packaging line with 42 servo drives and 15 vision systems. After installing managed switches with PROFINET diagnostics, they discovered CRC errors on a trunk cable damaged during installation. Replacing the cable prevented an estimated 32 hours of downtime per year, saving roughly $110,000 annually. The company now uses automated switch health reports as part of weekly maintenance reviews.
Author Insight: Embracing TSN and Unified Infrastructure
Time-Sensitive Networking (TSN) represents the next major evolution for industrial Ethernet. TSN enables Profinet, EtherNet/IP, and other protocols to coexist on a single deterministic backbone. Early adopters will gain unmatched flexibility, but migration demands careful planning—some legacy devices may require replacement or firmware upgrades. Start with a hybrid model: maintain existing fieldbuses while introducing TSN-capable switches for new equipment. This approach reduces risk and ensures continuous operations.
IT/OT convergence means automation engineers must strengthen networking skills. VLAN configuration, firewall rules, and cybersecurity are no longer optional. A recent industry survey revealed that 74% of unplanned downtime in connected factories links to network misconfigurations rather than hardware failure. Investing in cross-functional training unlocks the full potential of industrial Ethernet and accelerates digital transformation.
Frequently Asked Questions: Resolving Critical Network Issues
1. Why does my Profinet device show “No Communication” despite having the correct IP address?
Profinet relies on device names for assignment. If the name stored in your engineering tool does not match the physical device’s name, communication fails. Use PRONETA or the device’s web interface to assign the matching name, then perform a factory reset if necessary.
2. How can I reduce multicast flooding on an EtherNet/IP network?
Enable IGMP snooping on all managed switches and configure multicast filtering per port. Adjust Requested Packet Interval (RPI) values—overly aggressive RPIs generate unnecessary traffic. Choose realistic intervals based on device criticality.
3. What cable types ensure reliable industrial Ethernet performance?
Use shielded Cat5e or Cat6a cables rated for industrial use (flexible, oil-resistant, braided shielding). For Profinet, choose Type A or Type B; for EtherNet/IP, follow ODVA media guidelines. In high-vibration zones, M12 connectors outperform RJ45 by preventing loosening.
4. Can I operate Profinet and EtherNet/IP on the same physical switch?
Yes, but you must segregate traffic with VLANs and apply Quality of Service (QoS). Assign separate VLANs for each protocol and prioritize Profinet RT/IRT and EtherNet/IP implicit messages. Managed industrial switches are essential for mixed-protocol backbones.
5. How often should we schedule preventive network maintenance?
Implement a quarterly preventive plan: check switch port statistics for CRC errors, verify firmware versions, and test cable integrity. For critical sectors like automotive or pharmaceuticals, use continuous monitoring software—proactive maintenance can reduce unplanned downtime by up to 82%.
Actionable Solutions: 5-Step Configuration Checklist for Reliability
Adopt this structured checklist during any new PLC network deployment:
- Step 1 – Topology & Redundancy: Map all nodes, select managed switches with diagnostics, and plan redundancy (DLR for EtherNet/IP, MRP for Profinet).
- Step 2 – Naming & IP Strategy: Create a consistent naming convention for Profinet device names and static IP ranges for EtherNet/IP to prevent conflicts.
- Step 3 – Timing & Cycle Parameters: Configure update cycles (2–8 ms for general I/O, faster for motion) aligned with process needs and device limitations.
- Step 4 – Security Hardening: Disable unused switch ports, enable 802.1X authentication, and enforce firewalls between OT and corporate IT networks.
- Step 5 – Validation & Load Testing: Perform network acceptance tests measuring packet loss, latency, and signal integrity under full simulated load before go-live.
Following this checklist streamlines startup and creates a baseline for future diagnostics. A plastics manufacturer reported 61% fewer post-commissioning support calls after implementing these steps.
Future Outlook: AI-Powered Network Analytics for Self-Healing Systems
Machine learning algorithms now analyze switch syslogs and port telemetry to forecast failures before they disrupt production. In a semiconductor fab pilot, predictive models identified 97% of impending port failures up to three weeks in advance. Adopting AI-driven tools transforms maintenance from reactive to prescriptive, slashing costs and boosting uptime. Forward-thinking manufacturers should explore vendor-agnostic monitoring platforms that unify Profinet and EtherNet/IP diagnostics under a single dashboard.
Reliable communication between PLCs and field devices remains the cornerstone of modern manufacturing. Whether you deploy Profinet, EtherNet/IP, or a combination, a methodical approach to configuration, diagnostics, and continuous skill development delivers unmatched operational resilience.
