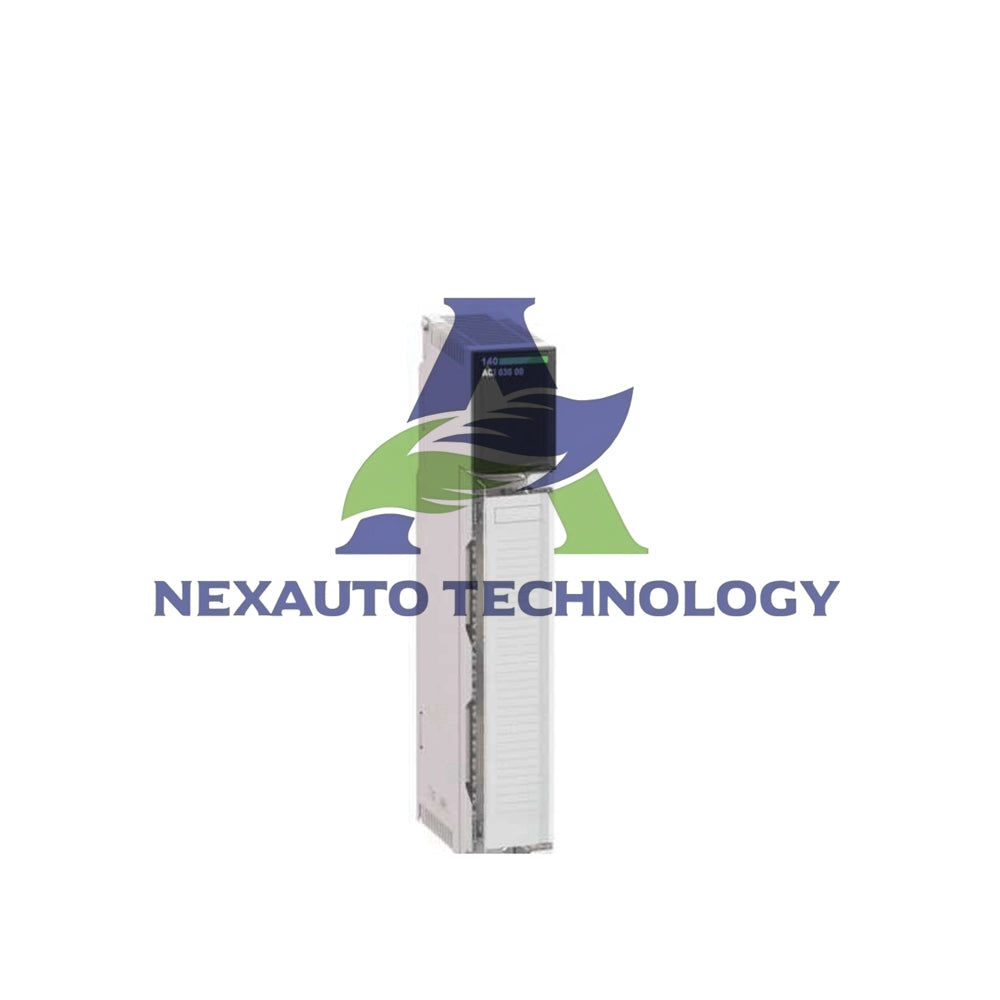

140ARI03010C Quantum RTD/Ni Temp Input Module Schneider

Schneider Electric 140ARI03010C Analog Input Module

The 140ARI03010C is a high-precision analog input module for Schneider Electric's Modicon Quantum platform. Designed specifically for temperature measurement, this module connects directly to RTD and Nickel resistance temperature sensors, providing accurate and reliable data for process control and monitoring.

Technical Specifications

• Brand & Model: Schneider Electric 140ARI03010C
• Product Type: Analog Input Module (Temperature Sensor Input)
• System Platform: Modicon Quantum Automation Platform
• Number of Inputs: 8 independent differential channels
• Sensor Compatibility: Pt 100/200/500/1000 and Ni 100/200/500/1000 RTDs
• Resolution: 13-bit for precise measurement
• Temperature Ranges: Supports multiple ranges (e.g., -200...+850°C for Pt, -60...+180°C for Ni)
• Power Dissipation: Low 1 W
• RoHS Compliant: Yes

Measurement Performance & Accuracy

• Absolute Accuracy Error: 0.1 °C
• Linearity Error: ±0.01% of full scale or ±0.5 °C
• Temperature Drift: ±0.5 °C at 25°C; ±0.9 °C over 0...60°C operating range
• Input Impedance: ≥ 10 MOhm to minimize sensor loading
• Update Time: 640 ms (2-wire/4-wire), 1200 ms (3-wire configuration)
• Fault Detection: Broken wire and over-scale detection

Isolation & Safety

• Channel-to-Bus Isolation: 1780 V AC / 2500 V DC for 60 seconds
• Channel-to-Channel Isolation: 300 Vrms AC
• ESD Protection: 4 kV (contact), 8 kV (air) per IEC 801-2
• EMC Immunity: 10 V/m (80-1000 MHz) per IEC 801-3
• Protective Coating: Conformal coating (Humiseal 1A33) for environmental protection

Status Indicators & Diagnostics

• 1 Green LED (Active): Indicates bus communication is present
• 1 Red LED (Ext Fault): Indicates an external/system fault
• 8 Green LEDs per Channel: Indicate the channel is active/turned on
• 8 Red LEDs per Channel: Indicate a fault on that specific channel (e.g., broken wire)
• Comprehensive diagnostics enable quick troubleshooting

Electrical & Physical Specifications

• Bus Current Requirement: 200 mA
• Module Format: Standard Quantum module size
• Addressing: Requires 9 input words in the PLC's I/O mapping
• Net Weight: 0.3 kg (0.7 lb)
• Dimensions: 50 x 165 x 310 mm (1.97" x 6.5" x 12.2")

Environmental Specifications

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Humidity: Up to 95% non-condensing
• Operating Altitude: Up to 5000 meters (16,404 ft)

Certifications & Standards

• Safety: UL 508, CSA C22.2 No 142
• Hazardous Location: FM Class 1 Division 2, cUL
• Regional: CE Marked

Packaging & Shipping

• Unit Package (PCE): 1 module per box.
• Package Dimensions: 31.0 cm L x 16.5 cm W x 5.0 cm H (12.2" x 6.5" x 2.0").
• Package Weight: 463.0 g (16.3 oz).
• Worldwide shipping via FedEx, UPS, and DHL available.

Frequently Asked Questions (FAQ)

• What sensors does this module support? It supports a wide range of RTD (Resistance Temperature Detector) sensors including Platinum (Pt100, Pt200, etc.) and Nickel (Ni100, Ni200, etc.) types.
• What is differential input? It measures the voltage difference between two input wires per channel, rejecting common-mode noise for more accurate readings in electrically noisy environments.
• How is wiring configured? It supports 2-wire, 3-wire, and 4-wire RTD connections. Update time and accuracy are best with 4-wire or 2-wire (640 ms).
• What do the many LEDs indicate? They provide per-channel status (green for on, red for fault) plus module-level communication and fault status for easy maintenance.
• What is the conformal coating for? The Humiseal coating protects the circuitry from humidity, dust, and corrosive atmospheres, essential for long-term reliability in industrial settings.
• Is it suitable for hazardous areas? Yes, its FM Class 1 Division 2 and cUL certifications allow its use in designated hazardous locations.
• How is it addressed in the PLC? It uses 9 consecutive input words (18 bytes) in the Quantum PLC's I/O table for data and status from its 8 channels.
