330103-15-23-05-02-CN Long Tip Probe Bently Nevada

Extra Long-Reach 8mm Probe for Deep Machine Casings

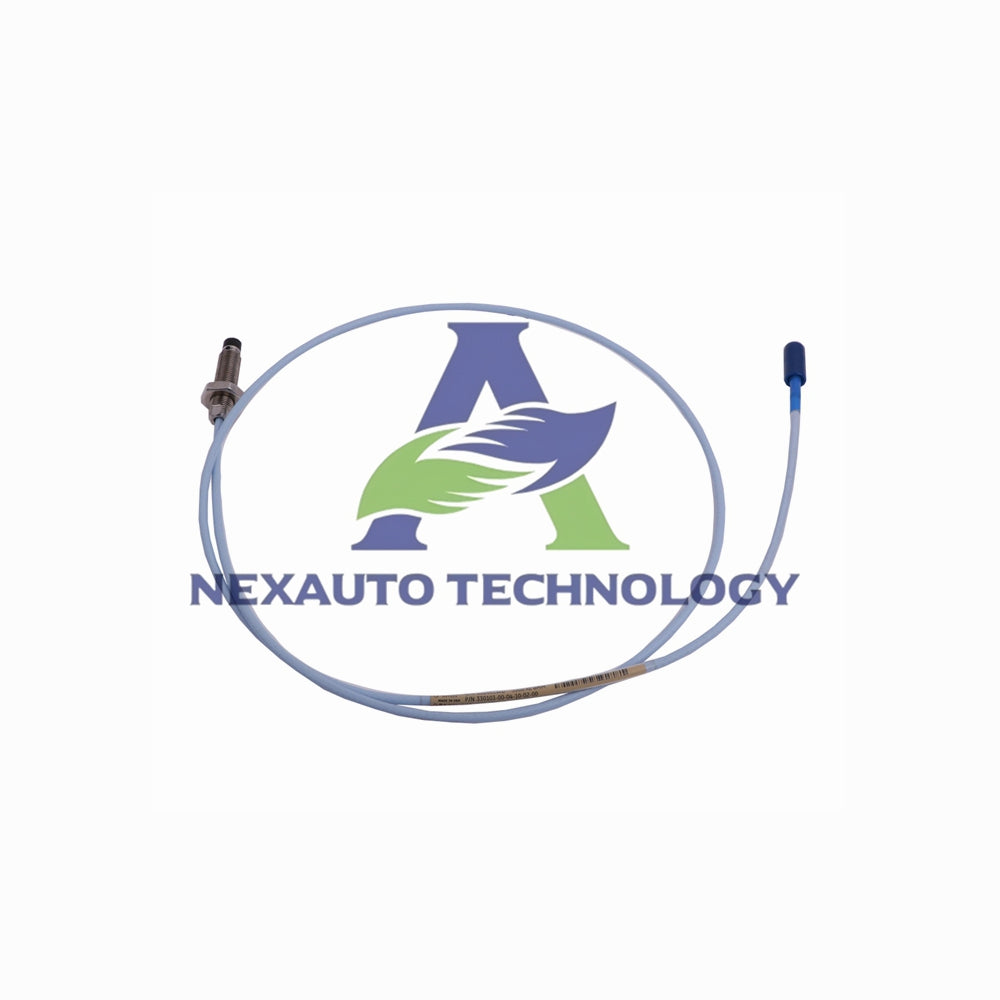

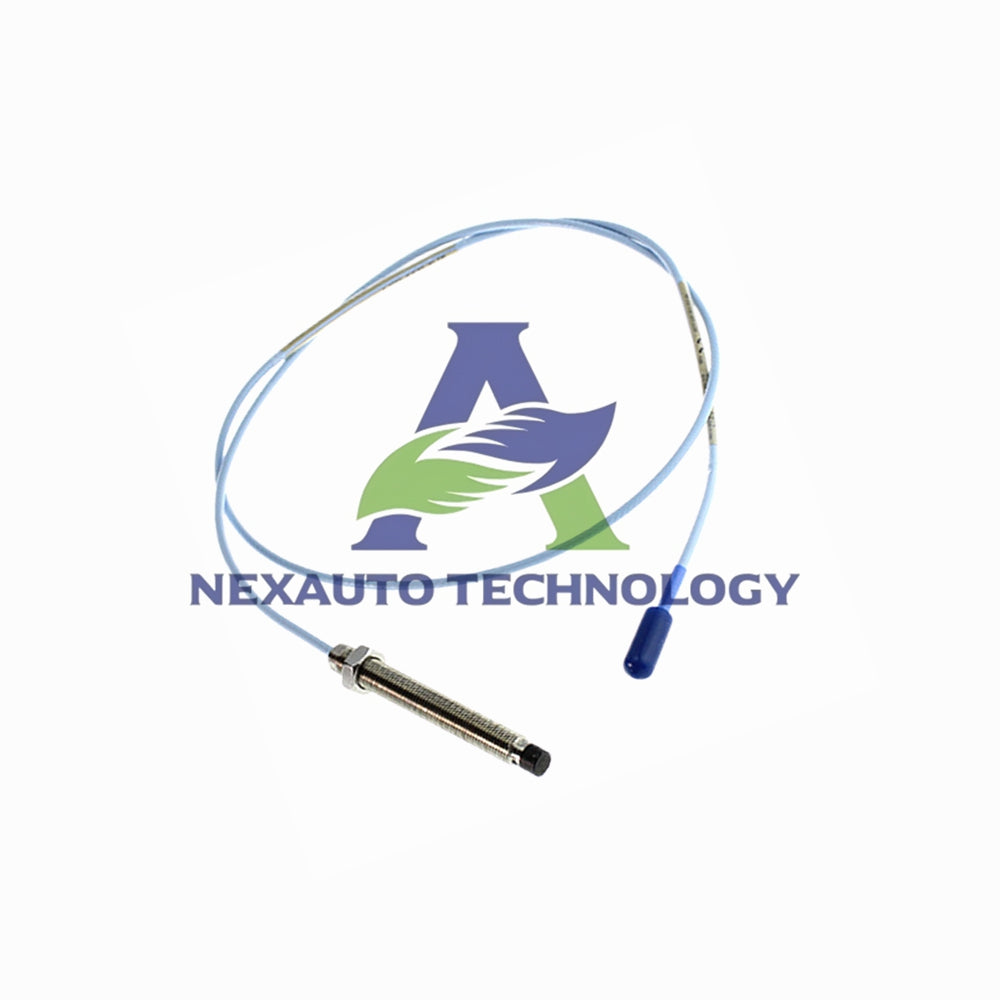

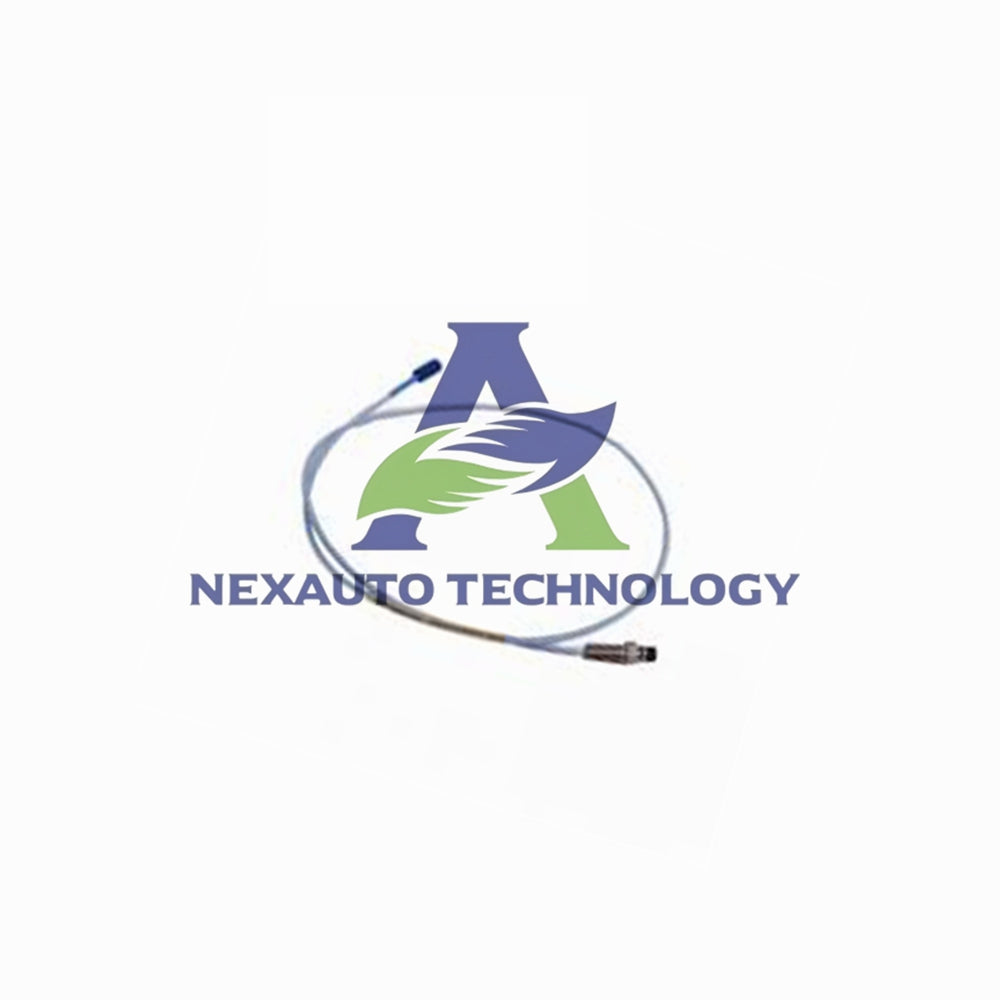

The Bently Nevada 330103-15-23-05-02-CN belongs to the trusted 3300 XL series. We design this extra long-reach 8mm probe for accurate displacement and vibration measurements through deep bearing housings and thick machine casings. The 150mm unthreaded tip reaches past obstacles before threads engage. It operates within a 2mm (80 mils) linear range, starting at 0.25 mm from the target. For radial vibration monitoring, we recommend a gap setting of -9 Vdc, which equals approximately 1.27 mm.

Key Technical Specifications

• Manufacturer: Bently Nevada. Model: 330103-15-23-05-02-CN.
• Product Type: 3300 XL 8 mm Proximity Probe with M10 x 1 thread, no armor.
• Dimensions: 150mm unthreaded tip, 230mm overall case length, and 0.5 meter (1.6 feet) total length.
• Connector: Miniature coaxial ClickLoc connector with standard cable.
• Material: Probe tip uses Polyphenylene sulfide (PPS). Probe case uses AISI 303 or 304 stainless steel.
• DC Resistance: Nominal probe resistance measures 7.45 ± 0.50 Ω for 0.5m length.
• Weight: Probe weighs 323 g/m (11.4 oz/ft).
• Approvals: Agency approval option CN means country specific certification for local regulatory compliance.

Environmental and Operating Ranges

• Temperature (Standard): Operates and stores from -52°C to +177°C (-62°F to +350°F).
• Temperature (Extended): Probe tip reaches -52°C to +218°C (-62°F to +425°F). Cable and connector handle up to +260°C.
• Humidity: Average Scale Factor changes less than 3% after 56 days in 93% humidity.
• Pressure Seal: Uses Viton® O-ring to seal differential pressure between tip and case.
• Deep Reach Design: The 150mm smooth section passes through deep housings to reach internal shaft targets.

Installation and Mounting Guide

• Thread Engagement: Maximum thread engagement length is 15 mm for M10x1 case thread.
• Torque (Forward Mount): Recommended torque is 11.2 N•m (100 in•lbf). Maximum rated torque is 33.9 N•m.
• Torque (First Three Threads): Use recommended torque of 7.5 N•m (66 in•lbf). Do not exceed 22.6 N•m.
• Field Wiring: Use 16-24 AWG wire. Maximum extension cable length is 305 meters (1,000 feet).
• Temperature Note: Avoid exposing probe below -34°C (-30°F) to protect pressure seal.
• Installation Tip: Ensure mounting hole depth accommodates the 150mm tip before threads engage.

Package Includes

• One Bently Nevada 330103-15-23-05-02-CN 3300 XL 8 mm Probe.
• Factory-attached ClickLoc connector and 0.5m standard cable.
• Mounting instructions and product documentation.
• Shipping: We ship via FedEx, UPS, or DHL for fast global delivery.

Frequently Asked Questions

When to use 150mm tip length?

Use this probe for deep turbine bearing housings, large compressors, or any machine where the target is far from mounting surface.

What does country specific certification mean?

The CN approval option meets local regulatory requirements for specific regions. Contact us for your country's certification details.

Compatible with 3300 XL systems?

Yes. This 330103-15-23-05-02-CN works with all Bently Nevada 3300 XL proximitors and monitors.

What gap setting for vibration?

Set initial gap to -9 Vdc (approximately 1.27mm). This centers probe within linear range.

Can I use this in hazardous areas?

The CN certification may include hazardous area approvals depending on country. Check your specific certification requirements.
