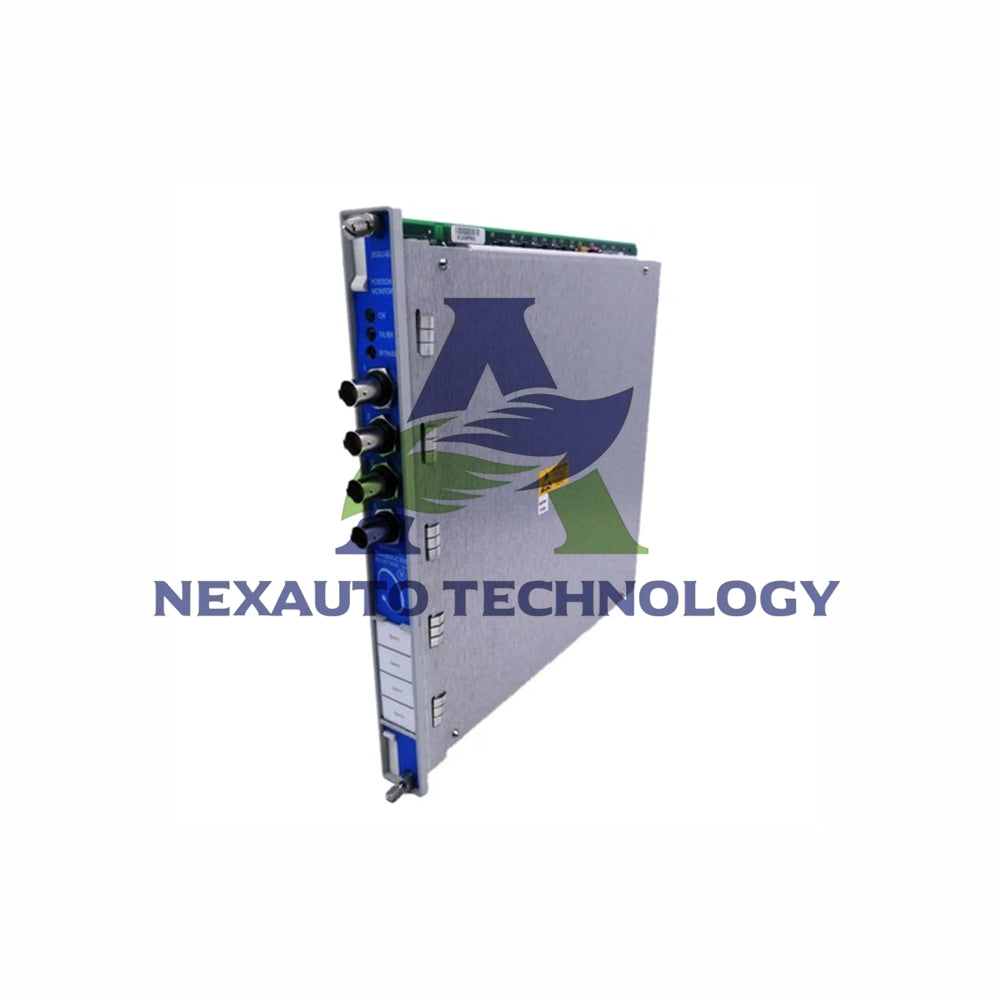

3500/94M-02-00-01 Bently Nevada VGA Display

Bently Nevada 3500/94M-02-00-01 19" Rack Mount VGA Display

• Manufacturer & Model: Bently Nevada 3500/94M-02-00-01 VGA display for 3500 series monitoring systems.
• Display Size & Mounting: 10" display with 19" rack mount.
• Agency Approval: CSA/NRTL/C (Class I, Division 2). KVM Extender: None.
• Condition: New & original. 12 month warranty. Made in U.S.A.

Key Specifications

• Power consumption: 4.6 watts maximum at 24 Vdc.
• Operating temperature: -20°C to 65°C (-22°F to 149°F).
• Storage temperature: -40°C to 85°C (-40°F to 185°F).
• Humidity: 95% non-condensing.
• Touch interface: GFG resistive touch screen via RS232 port.

Physical Dimensions

• Monitor module: 241.3 x 24.4 x 241.8 mm, 0.73 kg.
• I/O module: 241.3 x 24.4 x 99.1 mm, 0.34 kg.
• 10" Advantech display: 389 x 249 x 48 mm, 4.0 kg.
• 19" rack mount: Standard 19" rack width, 3U height typical.
• Rack space: 1 full-height front slot for monitor, 1 rear slot for I/O.

Display Specifications

• Screen size: 10" diagonal LCD with LED backlight.
• Industrial hardened: Yes, for continuous operation.
• Mounting style: 19" rack mount (option 02).
• Power input: 24 Vdc (10-28 Vdc range).
• Inrush current: 3.5 A at 24 V for less than 500 µs.
• Operating current: Less than 500 mA.

Certifications & Compliance

• CSA/NRTL/C: Class I, Division 2 certified for North America.
• Display certifications: CE, UL, CUL, ATEX, IECEx.
• Ingress protection: IP54 designed for dust and water spray.
• EMC standards: EN 61000-6-2, EN 61000-6-4.
• Electrical safety: CSA C22.2 61010-1, UL EN 61010-1.
• RoHS: Compliant with 2011/65/EU.

System Requirements

• Required module: 3500/22 Transient Data Interface (TDI).
• Firmware: 3500/94M 4.06 Rev. C or newer.
• TDI firmware: Rev 1.71 or newer.
• Software: Rack Config Rev 5.6, Op Display Rev 2.21, Data Acquisition Rev 1.22.

Package Contents

• Monitor module: 3500/94M VGA display module.
• I/O module: Rear slot interface module.
• 10" Advantech display: ANA-D3510-100-A1 with touch screen.
• 19" rack mount kit: Mounting brackets and hardware.
• Power supply: 24 Vdc power supply for display.

Shipping Information

• Total shipping weight: Approximately 5.5 kg (12 lb).
• Packaging: Factory sealed boxes.
• Carriers: FedEx, UPS, DHL (2-5 business days).

Frequently Asked Questions

• Q: What is the difference between 3500/94M-02-00-01 and -03-00-00?
  A: The -02 model has 19" rack mount and CSA/NRTL/C approval. The -03 model has panel mount with no hazardous location approval. Both use the same 10" display.
• Q: Does the CSA approval cover the entire system?
  A: Yes, the CSA/NRTL/C approval applies to the complete 3500/94M-02-00-01 assembly. The display also carries ATEX/IECEx for international use.
• Q: What rack space does this require?
  A: The monitor module needs 1 full-height front slot. The I/O module needs 1 full-height rear slot. The 10" display occupies 3U of 19" rack space.
• Q: Can I use this display with a KVM extender?
  A: This model has KVM option 00 (none). If you need KVM, order a different suffix or purchase the KVM extender separately.
• Q: Is the touch screen rated for hazardous areas?
  A: Yes, the GFG resistive touch screen is certified for Class I, Division 2. It works with gloved hands in industrial environments.
