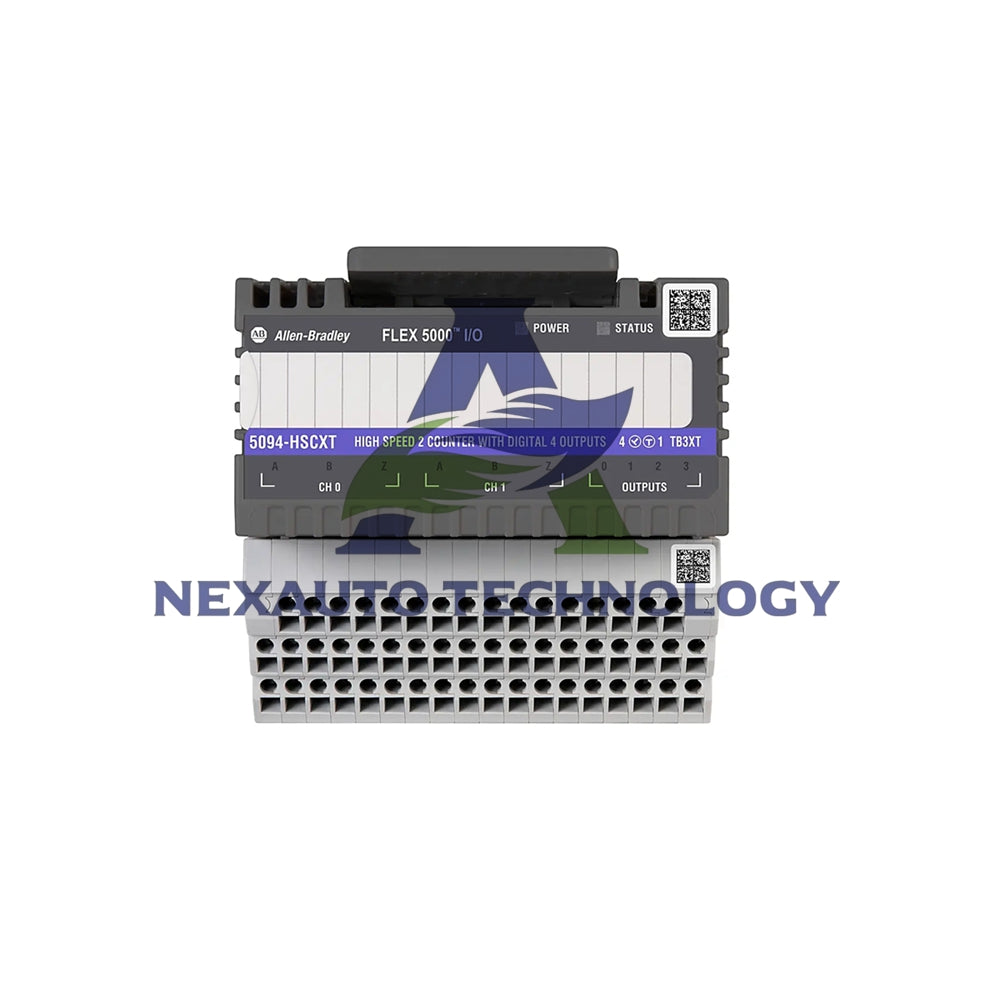

Allen-Bradley 5094-HSCXT High-Speed Counter Module

Key Technical Specifications

Input Voltage Range: 18 to 32 Volts DC

Nominal Voltage: 24 Volts DC

On-State Current: 3 milliamps minimum

Voltage Drop: Less than 0.3 Volts DC

Off-State Voltage: 1.5 Volts DC maximum

Backplane Power: 15 Volts DC at 67 milliamps

Counting Performance

Maximum Count Frequency: 500 kilohertz

Quadrature Inputs: 2 differential channels (ABZ)

Output Channels: 4 sourcing outputs

Input Filter: Programmable from 1 to 100 microseconds

Position Measurement: 32-bit resolution

Safety Ratings

Safety Category: Cat. 4 / PL e (EN ISO 13849-1)

Safety Level: SIL 3 (IEC 61508, IEC 62061)

Reaction Time: 6 milliseconds at 2ms RPI

Test Outputs: 8 channels at 0.2 amps each

Diagnostics: Open load detection per channel

Physical Characteristics

Dimensions: 87mm H x 94mm W x 54mm D

Weight: 143 grams (0.32 pounds)

Enclosure: Open style (IP20 equivalent)

Corrosion Resistance: ISA S71.04 G3 classification

Temperature Code: T4 (ATEX, IECEx)

Industrial Applications

High-speed packaging line synchronization

Precision rotary encoder measurement

Conveyor belt speed monitoring

Cut-to-length material processing

Web tension control systems

Wiring Information

Input Type: 24V DC sourcing

Sensor Power: 18-32V DC at 3 amps maximum

Terminal Type: Removable spring clamp

Wire Size: 0.34 to 2.5 mm²

Isolation: 250V continuous

Shipping & Support

Available from stock

Global shipping via FedEx UPS DHL

24/7 technical support

12-month warranty

Logix Designer compatible
