8310N2 Triconex PSU | 240W Power Supply Unit

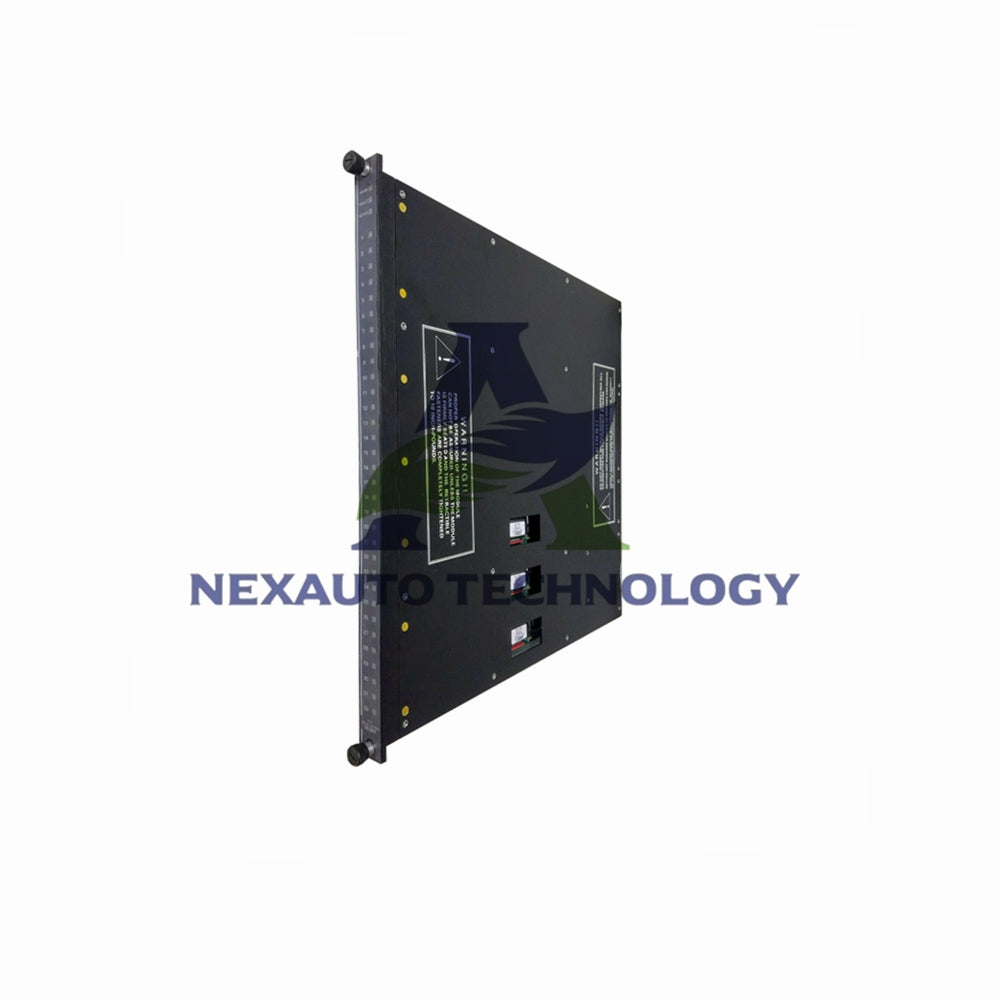

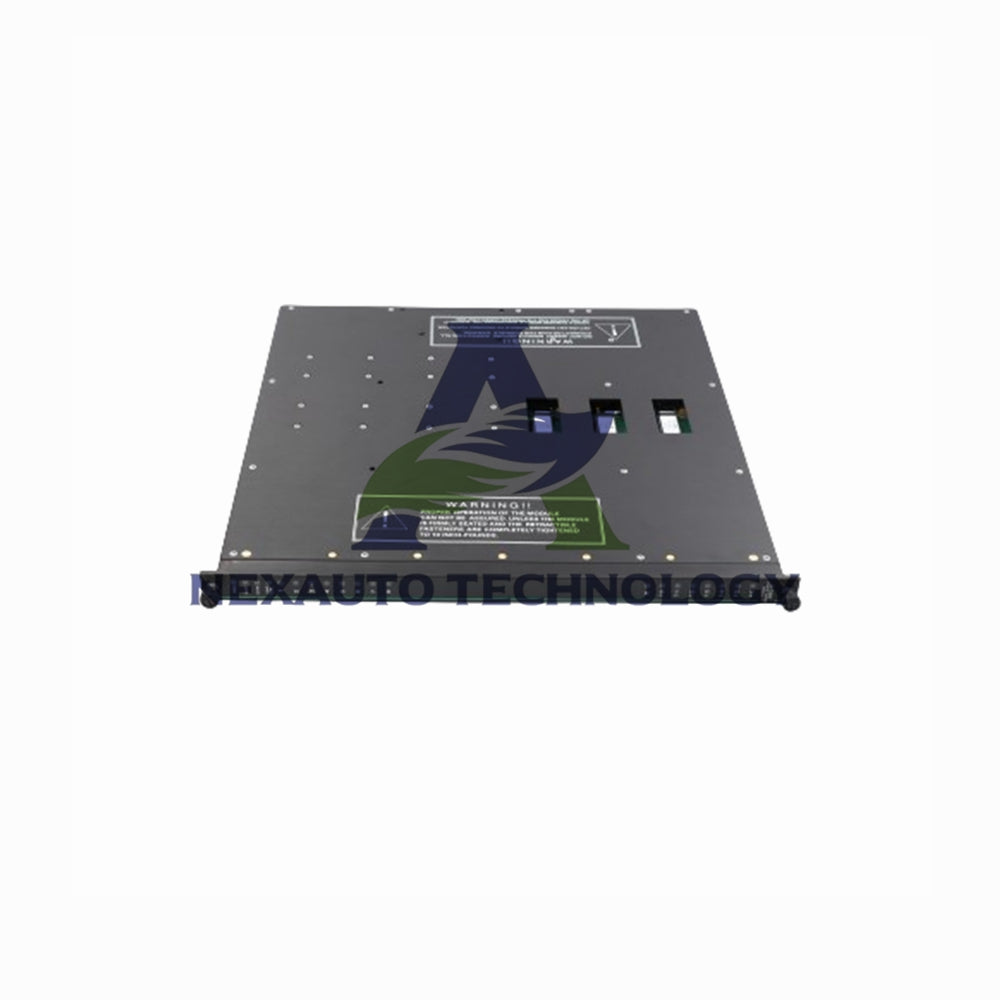

Triconex 8310N2 Power Supply Module

The Triconex 8310N2 provides high-efficiency power distribution for critical control systems. This advanced power supply module delivers reliable 240-watt output with comprehensive protection features. Engineered for 24/7 operation, it ensures uninterrupted system performance through intelligent power management and redundancy capabilities.

Primary Power Features

• 240-watt continuous output power with peak capacity
• Universal input voltage range for global deployment
• N+1 redundant operation with load sharing
• Active power factor correction (0.98 typical)
• Hot-swap maintenance capability without system shutdown
• Comprehensive thermal management with smart cooling

Electrical Specifications

• Manufacturer: Triconex
• Model Number: 8310N2
• Module Type: Power Supply Unit
• Input Voltage: 90-264 VAC, 127-300 VDC
• Input Frequency: 47-63 Hz auto-ranging
• Output Power: 240 watts maximum continuous

Environmental Specifications

• Operating Temperature: -25°C to +70°C with derating
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 5% to 95% non-condensing
• Altitude Rating: Up to 2000 meters without derating
• Cooling System: Dual ball-bearing fans with speed control
• Acoustic Noise: <45 dBA at 1 meter
• MTBF Rating: >500,000 hours per MIL-HDBK-217

Application Details

• What is the total power output capacity?
  Delivers 240 watts continuous power with multiple voltage rails.
• What input voltages are supported?
  Accepts 90-264V AC or 127-300V DC input worldwide.
• How does redundancy work?
  Supports N+1 parallel operation with automatic load sharing.
• What safety certifications does it have?
  Certified to UL/EN/IEC 60950-1, CE, RoHS compliant.
