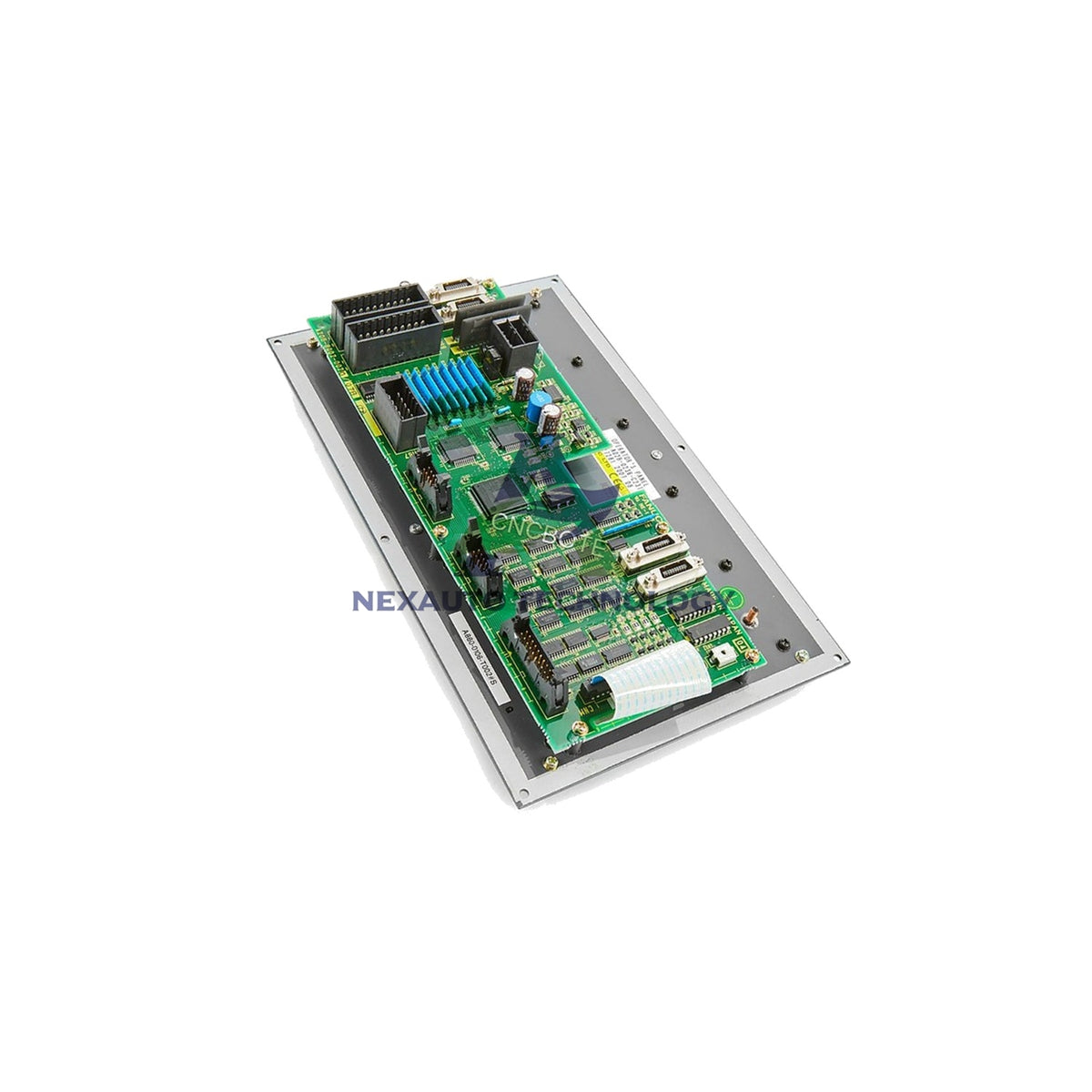

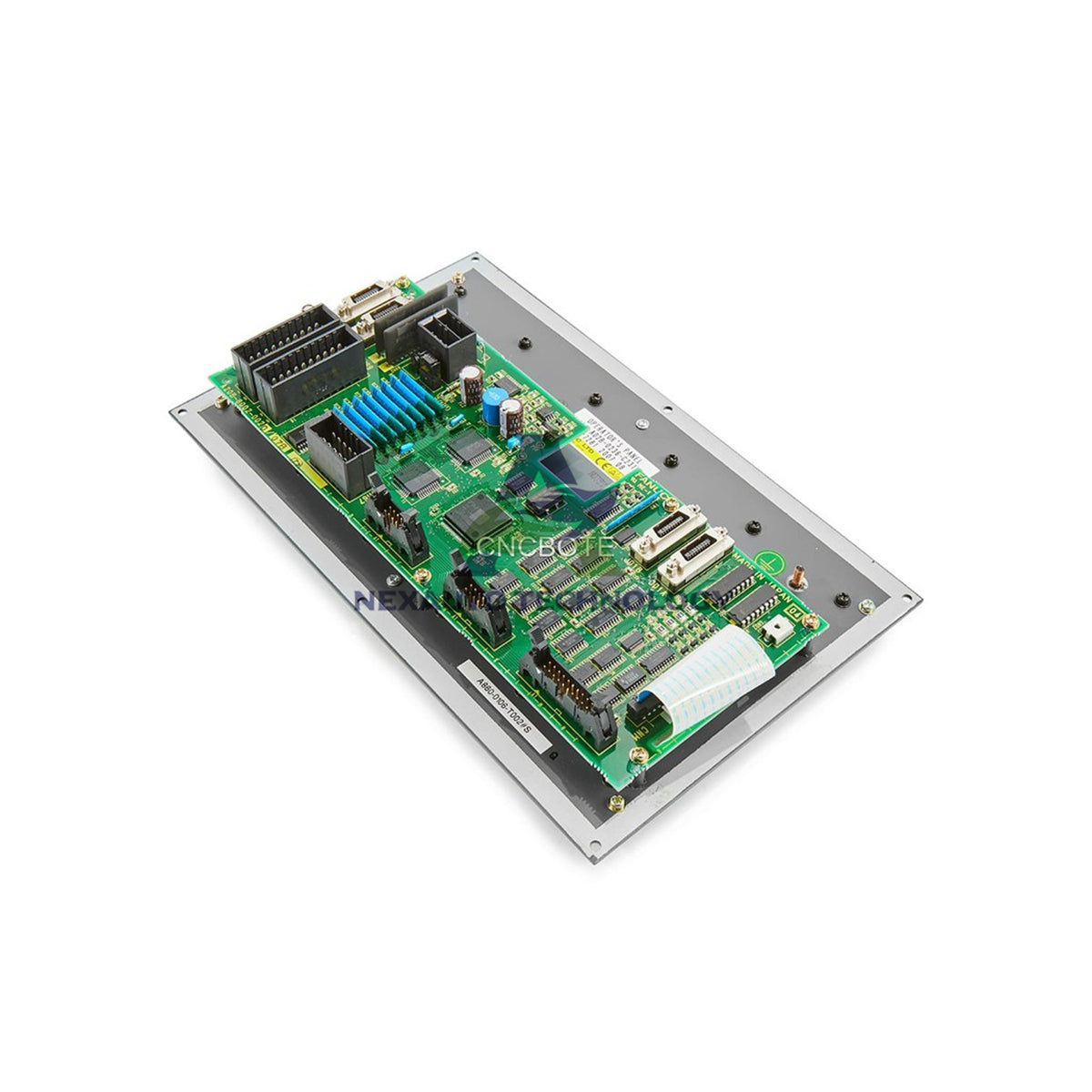

A02B-0047-C311 FANUC HMI - System 3/5/6 CNC

A02B-0047-C311 FANUC Automation Box Option Unit / HMI for System 3/5/6 CNC

Technical Specifications

• Brand: FANUC
• Model: A02B-0047-C311
• Series: FANUC System 3/5/6 CNC
• Category: Automation box option unit / HMI
• Function: Operator panel and human-machine interface for early FANUC CNC
• Communication: Not applicable; this unit interfaces with the CNC main unit via internal signal cables
• Supply Voltage: Not published by the manufacturer for this order code
• Power Consumption: Not published by the manufacturer for this order code
• Operating Ambient Temperature: 0 to 55 °C (family-level reference; not confirmed for this specific order code)
• Storage/Transport Ambient Temperature: −20 to 60 °C (family-level reference; not confirmed for this specific order code)
• Relative Humidity: 75%RH or less, no condensation
• Dimensions (H×W×D): Not published by the manufacturer for this order code
• Weight: Not published by the manufacturer for this order code
• Lifecycle: Legacy early FANUC CNC generation; superseded by i-series / 30i-B generation; no official EOS date verified (Last verified: 2026-09)

Installation Guide

• Confirm your CNC model belongs to the FANUC System 3/5/6 family before ordering this unit.
• Power down the CNC main unit and isolate all external power sources before installation.
• Label each internal signal cable carefully to avoid misconnection during removal.
• Mount the A02B-0047-C311 in the original panel cutout and secure all fasteners evenly.
• Reconnect internal signal cables to the CNC main unit according to your machine documentation.
• Inspect all connections for tightness, then restore power and verify display and key functions.
• Run a short cycle test to confirm stable communication between the HMI and CNC main unit.

Package List

• 1 × FANUC A02B-0047-C311 automation box option unit / HMI
• 1 × Protective packaging for safe transport
• Shipping methods: FedEx, UPS, or DHL

FAQ

• Is this A02B-0047-C311 brand new and original?
  Yes, we supply this item as brand new and original.
• Do you have stock for this FANUC HMI?
  Yes, we keep this item in stock for immediate order processing.
• How soon do you ship after payment?
  We ship within 5 days after order confirmation.
• Which shipping methods do you use?
  We commonly ship by DHL, FedEx, and UPS.
• Can I return this item if it does not fit?
  Yes, we support returns within 30 days.
• What is the operating temperature range for this unit?
  The family-level reference is 0 to 55 °C, but this is not confirmed for this order code.
• Does this unit need a separate communication protocol?
  No, it connects to the CNC main unit through internal signal cables.
• Why are voltage and power consumption not listed?
  The manufacturer does not publish those specifications for this order code.
• Is this A02B-0047-C311 still in production?
  No, it is a legacy item from an early FANUC CNC generation.
