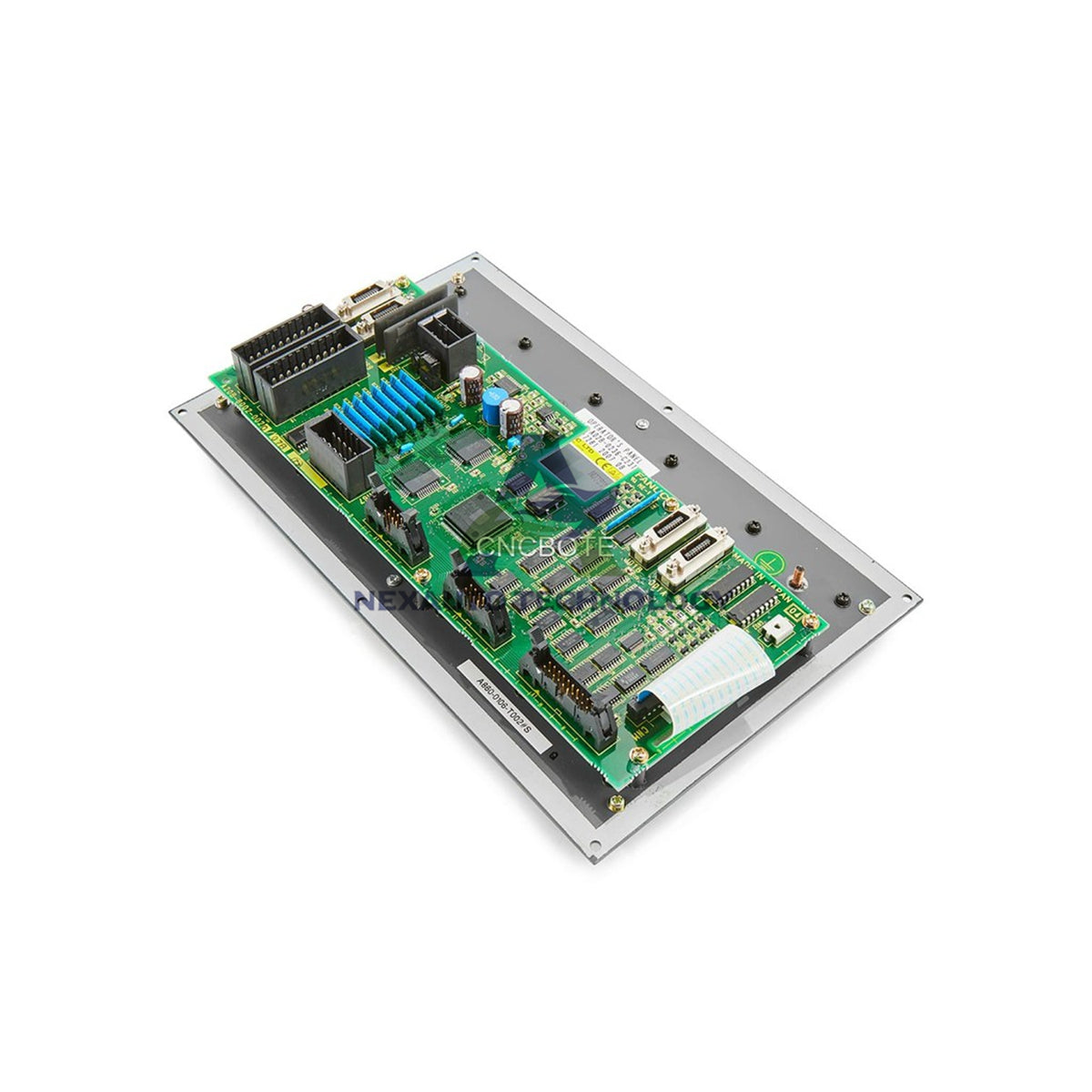

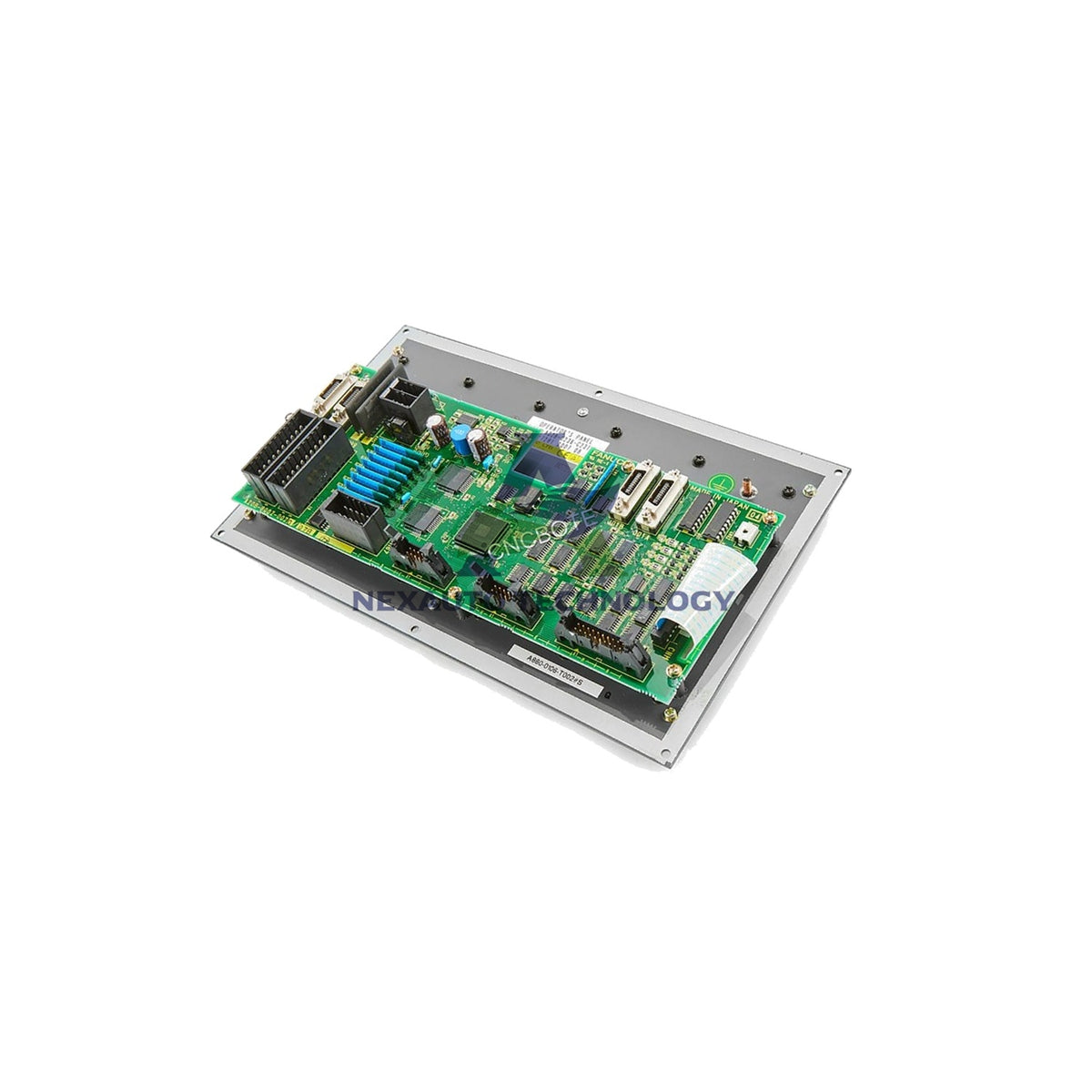

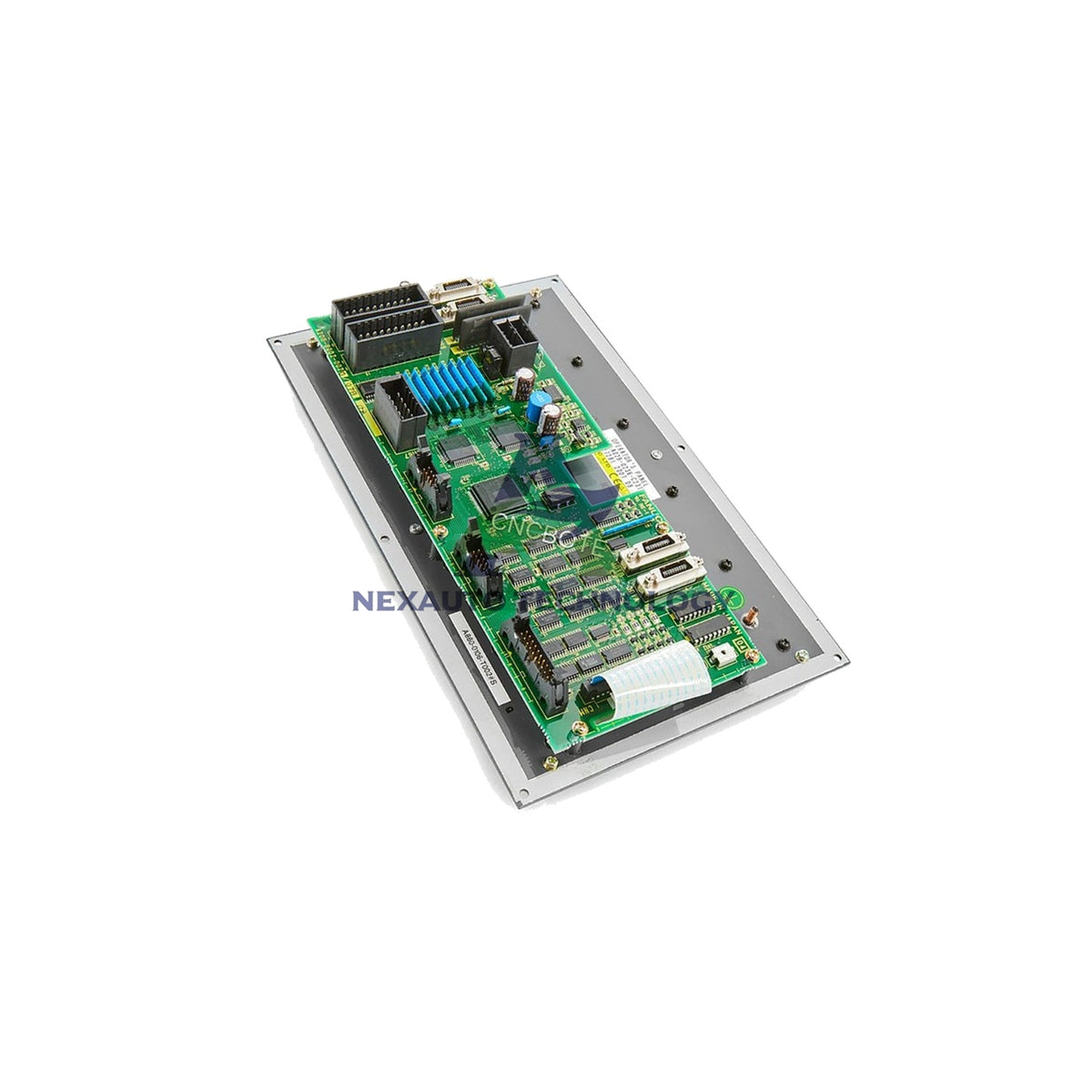

A02B-0050-0032 FANUC CNC Numeric Display Monitor

A02B-0050-0032 FANUC Numeric Display Monitor Unit for Early CNC Operator Interfaces

Technical Specifications

• Brand: FANUC
• Model: A02B-0050-0032
• Category: Numeric Display Monitor Unit
• Series: FANUC CNC accessory (order code family A02B-0050)
• Function: Numeric display / monitor unit for early FANUC CNC operator interface (supplier-reported)
• Electrical: Passive component; powered by the host system; no separate supply voltage
• Communication: Interfaces to the CNC main unit via internal signal cables; no external fieldbus or network interface
• Operating Ambient Temperature: 0 to 55 °C (family-level reference, per B-61393E p.112 for Series 0/00/0-Mate)
• Storage/Transport Temperature: −20 to 60 °C (family-level reference, per B-61393E p.112)
• Relative Humidity: 75%RH or less, no condensation
• Dimensions (H×W×D): No numerical table published for this digital display unit
• Weight: ~2.00 kg (supplier-reported; family-level reference for Series 0 CRT/MDI units)
• Lifecycle Status: Legacy — early FANUC CNC generation, superseded by the i-series / 30i-B generation; no official EOS date verified

Key Features

• Numeric display unit built for early FANUC CNC operator panels
• Operates as a passive component and receives power from the host CNC
• Links to the CNC main unit through internal signal cables only
• Handles ambient temperatures from 0 to 55 °C during operation
• Weighs approximately 2.00 kg, consistent with Series 0 CRT/MDI units
• Tolerates storage and transport temperatures from −20 to 60 °C

Installation Guide

• Power down the CNC system and disconnect the main electrical supply first
• Remove the old display unit from the operator panel mounting frame
• Seat the A02B-0050-0032 monitor unit into the panel opening
• Fasten the unit with the mounting hardware specified by the cabinet design
• Connect the internal signal cables to the CNC main unit
• Check that the ambient temperature stays within 0 to 55 °C before restart
• Restore power and confirm numeric display output on screen

Package Contents

• 1 × Numeric display monitor unit
• Protective packaging for safe transit

Shipping & Delivery

• We ship via FedEx, UPS, and DHL to worldwide destinations
• Orders leave our warehouse within 5 business days after payment clears
• Tracking numbers go to your email once the carrier picks up the parcel

Frequently Asked Questions

• Q: Does the A02B-0050-0032 monitor need its own power supply?
  A: No. This passive component draws power directly from the host CNC system.
• Q: How does this display unit communicate with the CNC?
  A: It connects to the CNC main unit through internal signal cables, not an external network.
• Q: What operating temperature range does this display support?
  A: The family reference lists 0 to 55 °C, though FANUC does not confirm it for every order code.
• Q: How much does the A02B-0050-0032 unit weigh?
  A: Suppliers report approximately 2.00 kg, matching the Series 0 CRT/MDI family level.
• Q: What humidity level does this monitor tolerate during operation?
  A: The unit operates at 75%RH or less, with no condensation permitted.
• Q: Is this monitor unit still in active production?
  A: It is a legacy part for early FANUC generations, superseded by i-series and 30i-B units.
• Q: Do you keep this unit in stock and how fast do you ship?
  A: We stock new original units and ship within 5 days using DHL, FedEx, or UPS.
• Q: Can I return this monitor unit if it does not meet my needs?
  A: Yes. We accept returns within 30 days of delivery under our standard policy.
