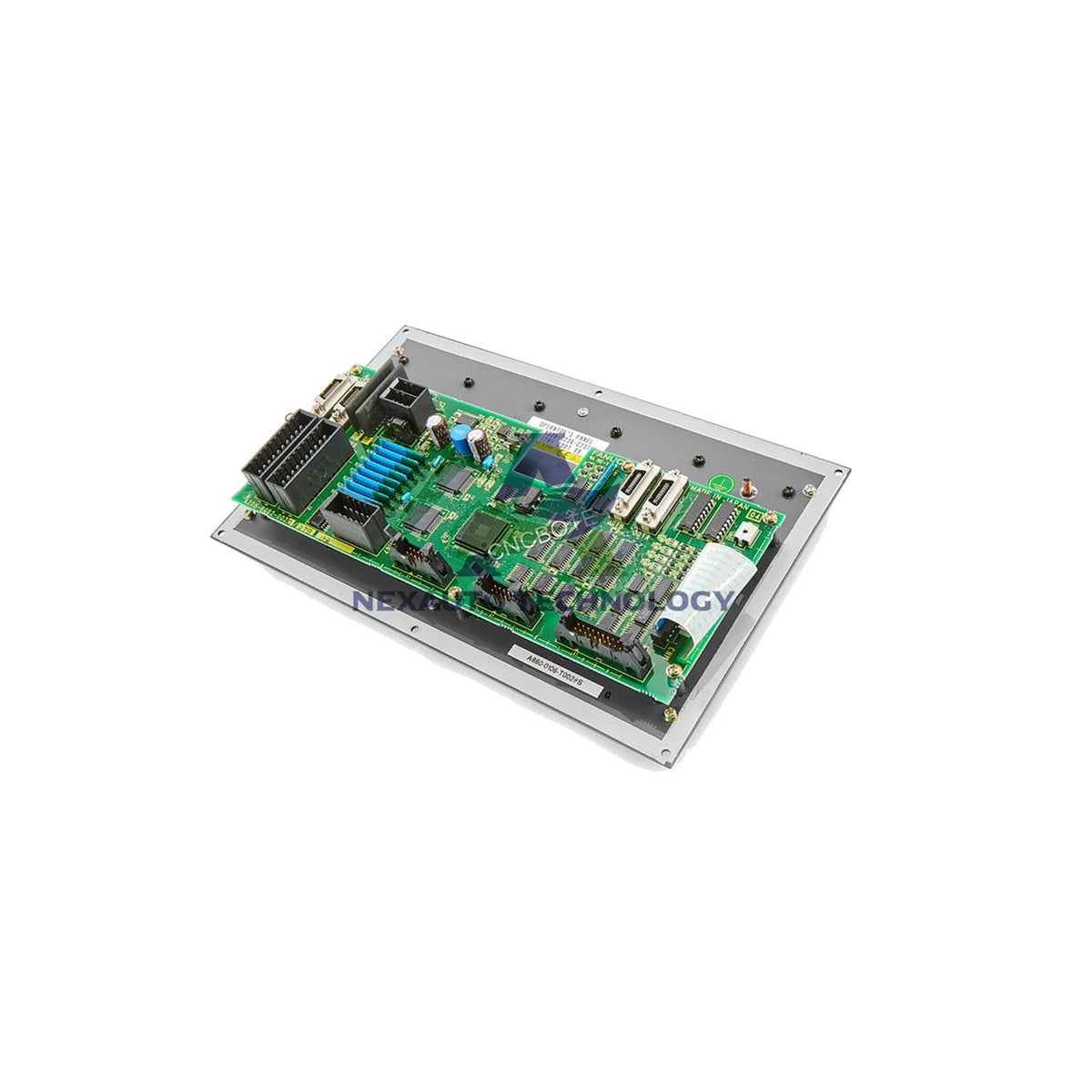

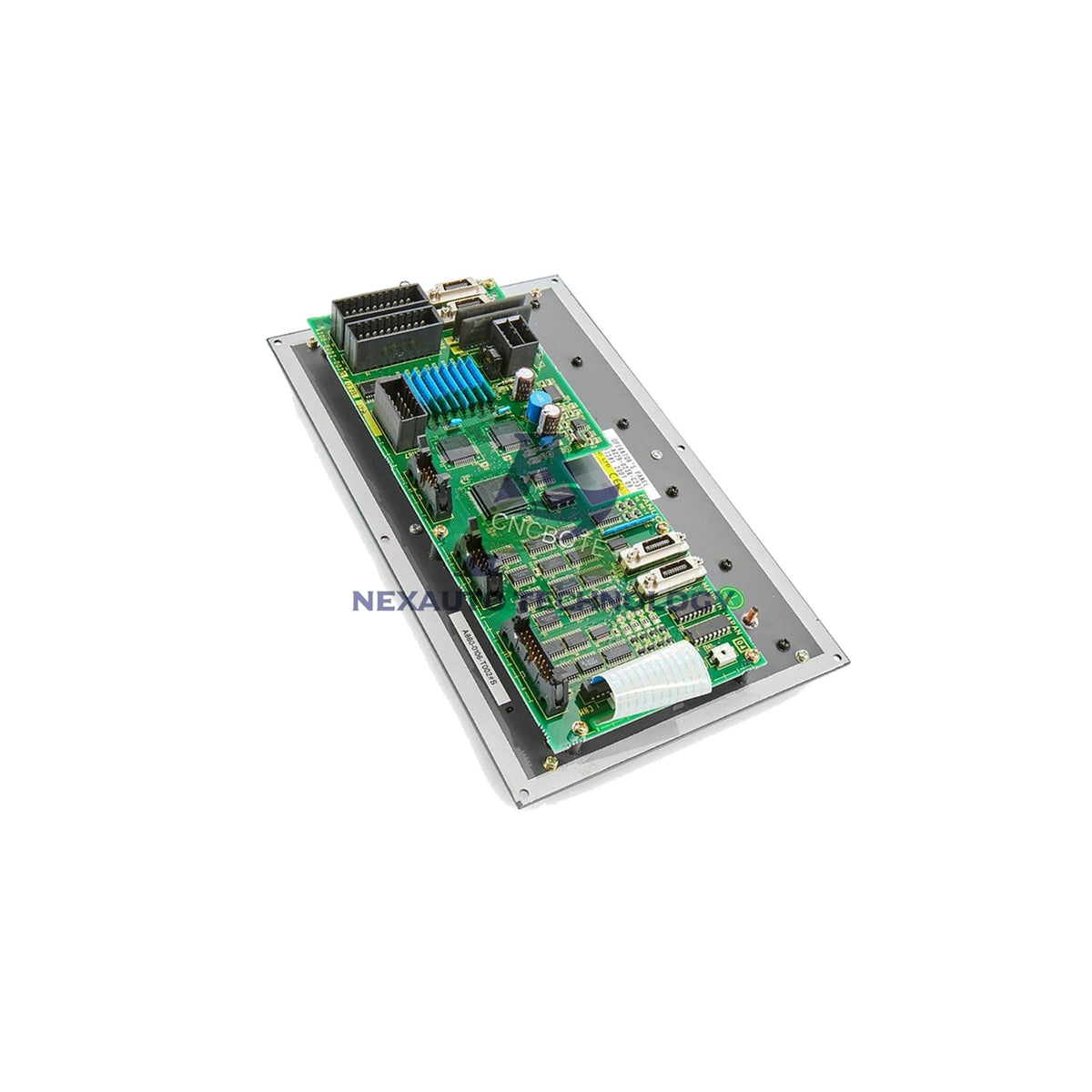

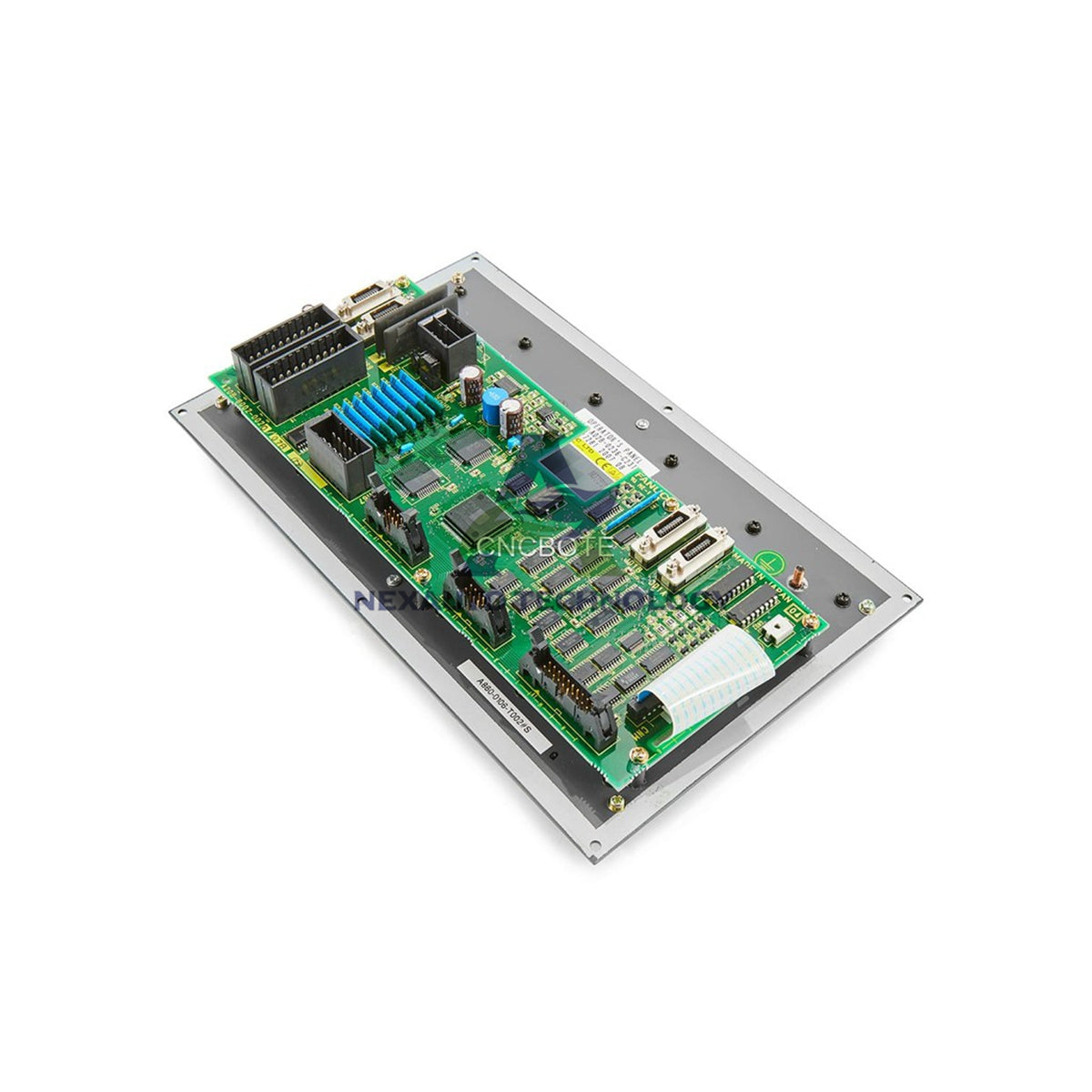

A02B-0050-C032 FANUC 6T CRT/MDI Operator Panel

A02B-0050-C032 FANUC System 6T 9-Inch CRT/MDI Operator Interface Unit

Technical Specifications

• Brand: FANUC
• Model: A02B-0050-C032
• Series: FANUC System 6 CNC (6T compatibility)
• Category: CRT/MDI operator interface unit
• Display: 9-inch monochrome CRT
• Input: MDI keyboard unit
• Supply voltage: Not published for this order code (early CRT/MDI unit)
• Power consumption: Not published for this order code (early CRT/MDI unit)
• Operating temperature: 0 to 55 °C (family-level reference per B-61393E p.112, Series 0/00/0-Mate)
• Storage temperature: −20 to 60 °C (family-level reference per B-61393E p.112)
• Relative humidity: 75%RH or less, no condensation
• Weight: ~4.50 kg (supplier-reported, family-level per DO Supply C041)
• Dimensions: No numerical table published for this 9-inch CRT/MDI unit

Communication and Interface

• The unit works as an operator panel and carries no fieldbus or serial communication specs of its own.
• Internal CRT/MDI signal cables link the panel to the FANUC System 6T CNC main unit.
• All data exchange passes through the CNC main unit rather than the panel itself.
• This architecture matches the original FANUC System 6 design intent.

Environmental and Durability Notes

• The 0 to 55 °C operating range comes from FANUC family documentation, not this exact order code.
• The −20 to 60 °C storage range follows the same family-level reference.
• Keep relative humidity at or below 75%RH and avoid condensation on the CRT surface.
• Confirm these figures against official FANUC documentation before you install the unit.

Installation Guide

• Power down the FANUC System 6T CNC and lock out the main supply before you start.
• Remove the old CRT/MDI panel and label each internal signal cable for reference.
• Mount the A02B-0050-C032 into the operator station and secure all fasteners.
• Reconnect the CRT/MDI signal cables to the CNC main unit in the original order.
• Restore power and check display output and keyboard response before production resumes.

Packing List

• 1 × FANUC A02B-0050-C032 9-inch CRT/MDI operator interface unit
• 1 × MDI keyboard unit (integrated with the panel)
• Protective foam and anti-static packaging
• Shipping carton with handling labels

Shipping

• We ship orders within 5 days after payment confirmation.
• We use FedEx, UPS, and DHL for international delivery.
• We provide tracking details once the carrier picks up the parcel.

FAQ

• Q: Is the A02B-0050-C032 brand new and original?
  A: Yes, we supply this unit as brand new original stock.
• Q: Do you have the A02B-0050-C032 in stock now?
  A: Yes, we hold this item in stock and ship within 5 days.
• Q: Which couriers do you use?
  A: We ship with common carriers such as DHL, FedEx, and UPS.
• Q: What is your return policy?
  A: We accept returns within 30 days of delivery.
• Q: What operating temperature does this panel support?
  A: Family documentation lists 0 to 55 °C, so verify this against FANUC official specs.
• Q: Does the panel need its own communication settings?
  A: No, it links to the CNC main unit through internal CRT/MDI signal cables.
• Q: Can I use this unit with a FANUC System 6T control?
  A: Distributor listings show 6T compatibility, but confirm against official FANUC documentation first.
• Q: Why is there no published supply voltage for this order code?
  A: Early CRT/MDI units lack a published spec for this code, so check the machine manual.
