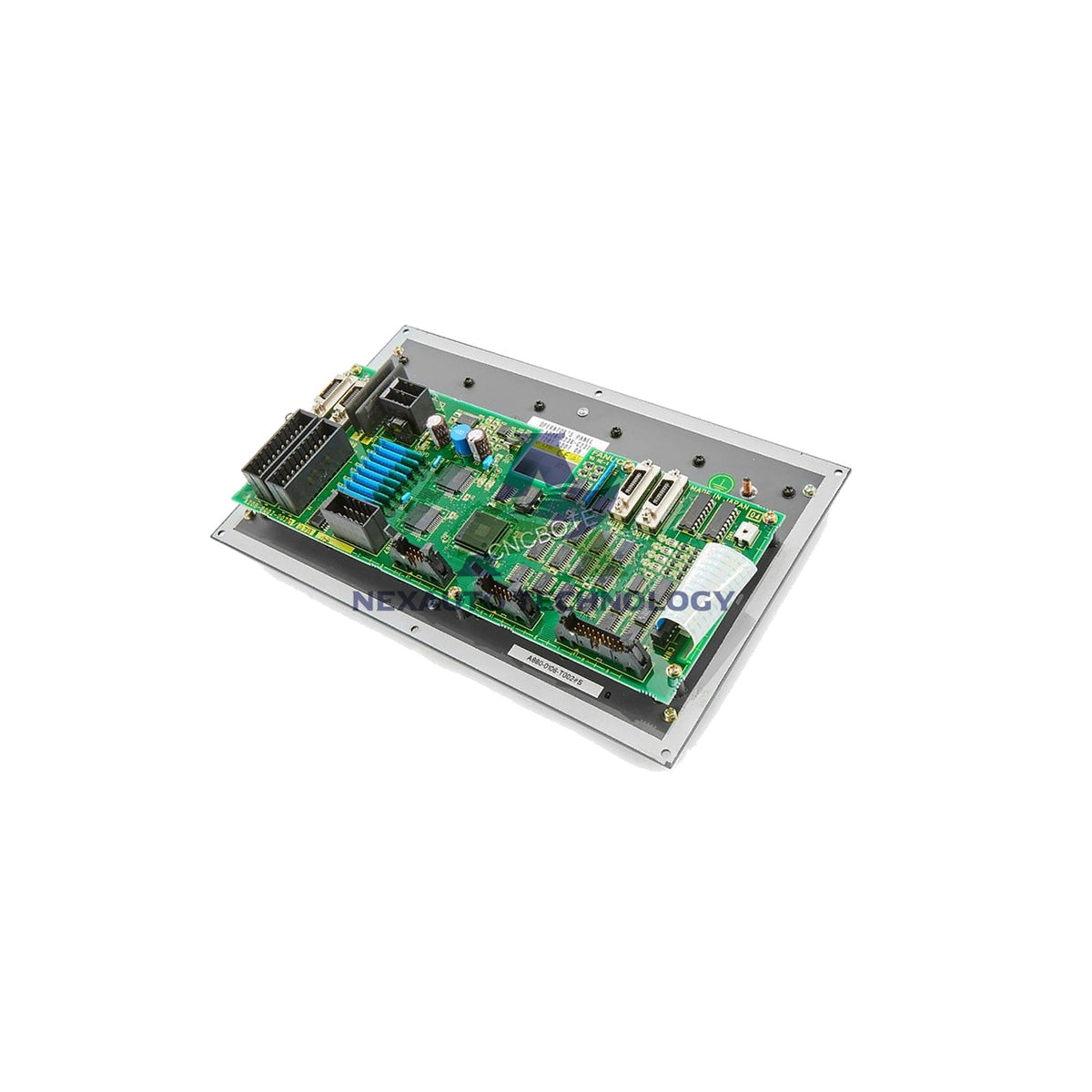

A02B-0050-C553 FANUC CNC Accessory MDI/CRT MPG Option Unit

A02B-0050-C553 FANUC MDI/CRT Option Unit with Manual Pulse Generator Interface

Technical Specifications

• Brand: FANUC
• Model: A02B-0050-C553
• Series: FANUC CNC accessory (order code family A02B-0050)
• Function: MDI/CRT option unit with manual pulse generator interface
• MPG interface: Supports A860-0201-T001 pulse generator (supplier-reported)
• Communication: Not applicable; the unit links to the CNC main unit through internal signal cables
• Electrical: Not applicable; the host system powers this passive component
• Supply voltage: Not applicable
• Operating temperature: 0 to 55 °C (family-level reference; not confirmed for this order code; per GFZ-63523EN/03 p.233)
• Storage temperature: -20 to 60 °C (family-level reference; not confirmed for this order code; per GFZ-63523EN/03 p.233)
• Relative humidity: 75%RH or less, no condensation (family-level reference; cross-generation manual not confirmed for this order code, per GFZ-63523EN/03)
• Dimensions (H×W×D): 29 × 69 × 115 mm (supplier-reported; typical FANUC MPG form factor)
• Weight: ~0.3 kg (manual-cited; FANUC A-45344 portable MPG spec, excl. cable; ~0.85 kg with coiled cable)
• Lifecycle: Legacy (early FANUC CNC generation; superseded by i-series / 30i-B generation; no official EOS date verified)

Installation Guide

• Mount the unit in the CNC panel opening and secure it with the original fasteners.
• Route the internal signal cables from the unit to the CNC main unit.
• Connect the A860-0201-T001 pulse generator to the MPG interface port.
• Confirm the ambient temperature stays within 0 to 55 °C during operation.
• Keep humidity at 75%RH or less and avoid condensation on the unit.
• Power the host system and verify MDI/CRT communication before production use.

Package Contents

• 1 × FANUC A02B-0050-C553 MDI/CRT option unit
• 1 × set of internal signal cables
• 1 × mounting hardware kit
• 1 × protective packaging

Shipping

• We ship worldwide by FedEx, UPS, and DHL.
• We dispatch in-stock items within 5 days.
• You receive a tracking number once the carrier collects the parcel.

FAQ

• Q: Is the A02B-0050-C553 new and original?
  A: Yes. We supply it as a brand-new original FANUC part.
• Q: Do you have stock?
  A: Yes. We hold stock for this item and ship within 5 days.
• Q: Which pulse generator does this unit support?
  A: Suppliers report support for the A860-0201-T001 manual pulse generator.
• Q: What is the operating temperature range?
  A: The family reference is 0 to 55 °C, taken from GFZ-63523EN/03 p.233.
• Q: What are the dimensions and weight?
  A: The unit measures about 29 × 69 × 115 mm and weighs roughly 0.3 kg.
• Q: Can I return the product?
  A: Yes. We accept returns within 30 days of delivery.
• Q: Which couriers do you use?
  A: We ship by FedEx, UPS, and DHL.
