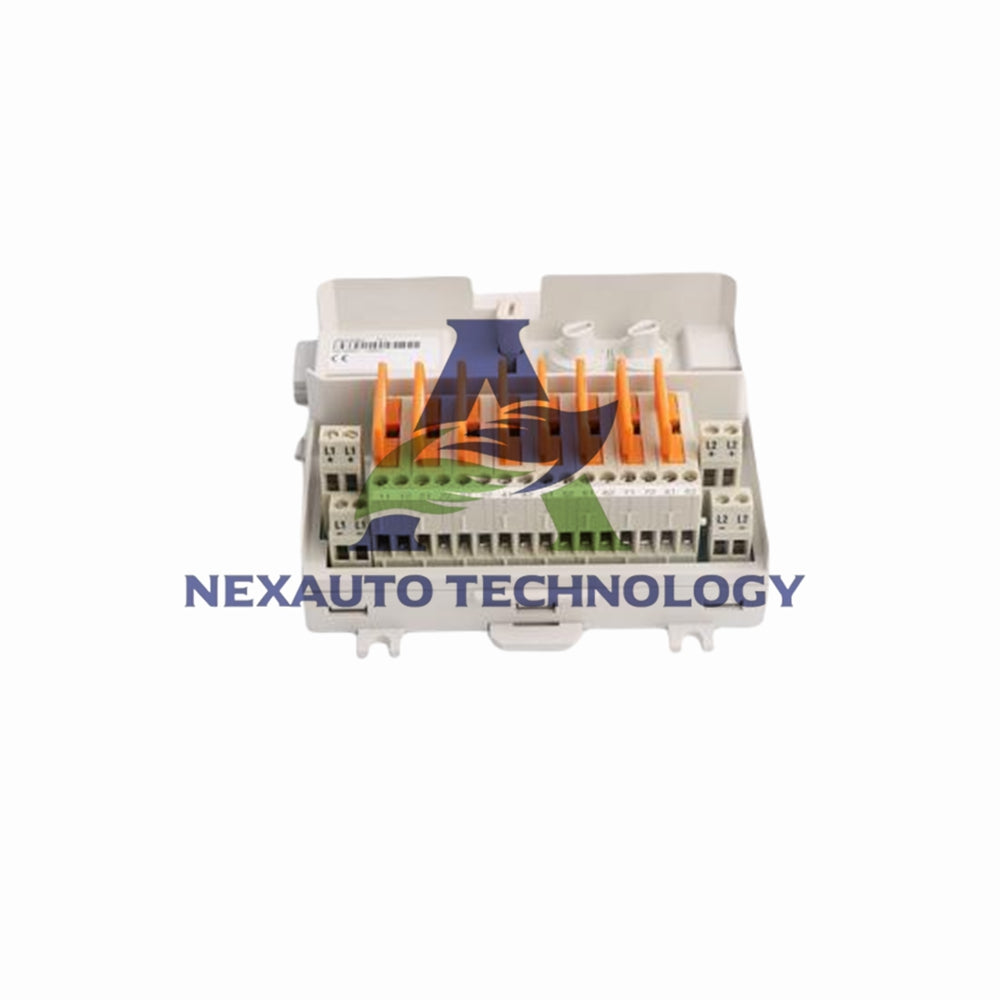

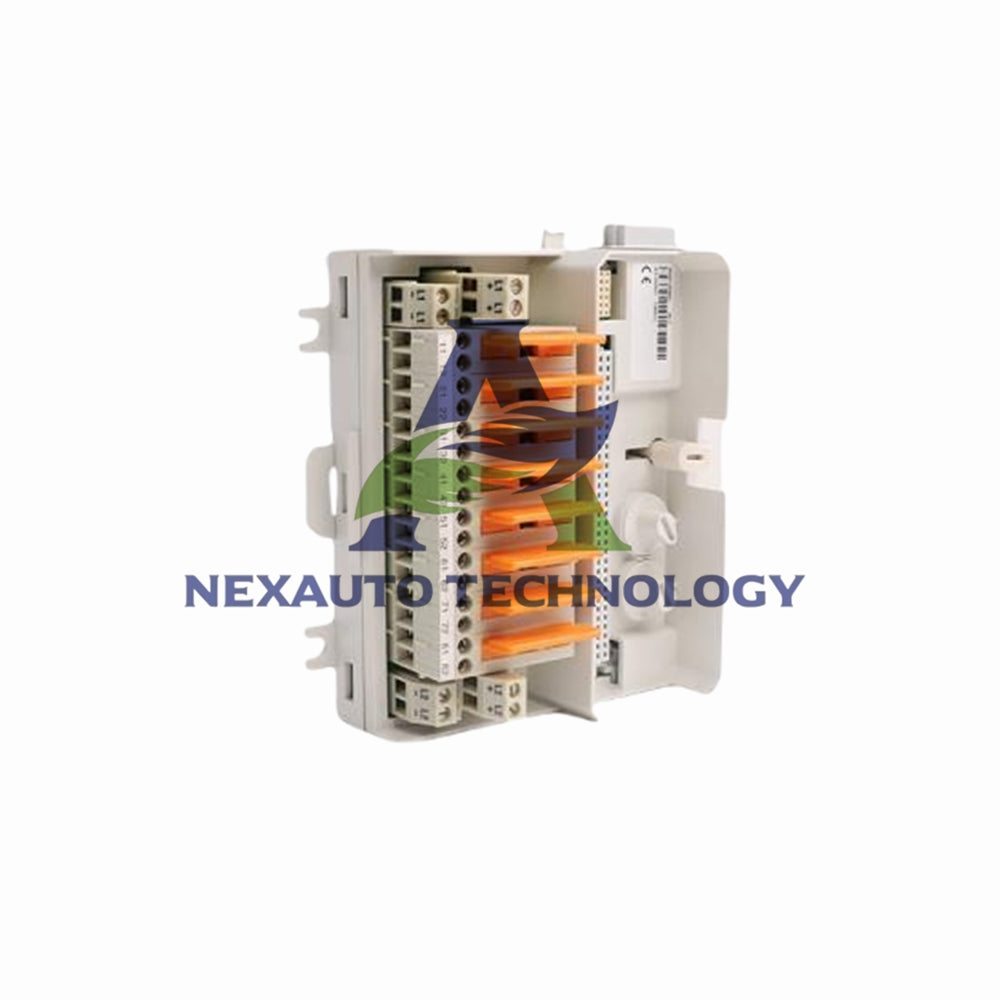

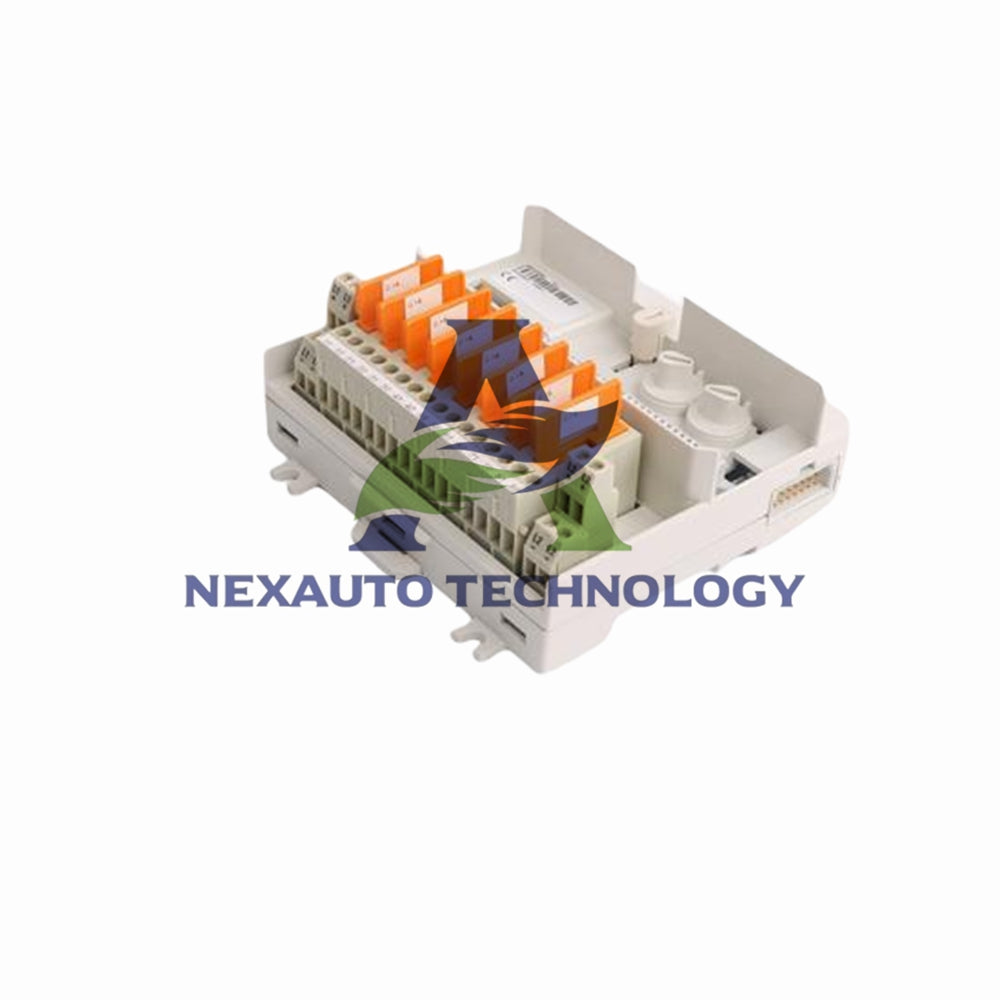

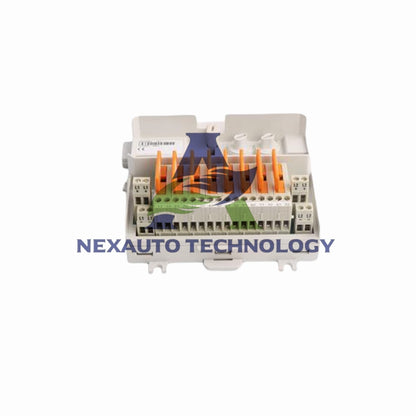

ABB 3BSE013236R1 Extended Module TU835V1

Article Number: 3BSE013236R1

Type: Extended

Connection: Terminal block

Channels: 8

Voltage: 50 V

Mounting: Both directions

Mounting Detail: 55 ºC (131 °F)

Compatible I/O Modules: AI810, AI815, AI845

Process Connections: 16 (up to 8 I/O channels with 2 terminals per channel)

Process Power Connections: 4 Process power, 4 Process power (0V)

Single/Redundant I/O: Single

Max Current per I/O Channel: 2 A

Max Current for Process Connections: 8 A

Acceptable Wire Sizes:

• Solid: 0.2 - 4 mm²
• Stranded: 0.2 - 2.5 mm², 24 - 12 AWG

Recommended Torque: 0.5 - 0.6 Nm

Stripping Length: 7 mm

Dielectric Test Voltage: 500 V a.c.

CE Mark: Yes

Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201

Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2

Marine Certification: ABS, BV, DNV-GL, LR

Temperature (Operating): 0 to +55 °C (+32 to +131 °F), approvals for +5 to +55 °C

Temperature (Storage): -40 to +70 °C (-40 to +158 °F)

Pollution Degree: Degree 2, IEC 60664-1

Corrosion Protection: ISA-S71.04: G3

Relative Humidity: 5 to 95 %, non-condensing

Max Ambient Temperature: 55 °C (131 °F)

Protection Class: IP20 according to IEC 60529

Mechanical Operating Conditions: IEC/EN 61131-2

EMC: EN 61000-6-4, EN 61000-6-2

Overvoltage Categories: IEC/EN 60664-1, EN 50178

Equipment Class: Class I according to IEC 61140; (earth protected)

RoHS Compliance: EN 50581:2012

WEEE Compliance: DIRECTIVE/2012/19/EU

Width: 126 mm (5 in.) including connector, 120.5 mm (4.74 in.) edge to edge installed

Depth: 64 mm (2.52 in.) including terminals

Height: 110 mm (4.3 in.)

Weight: 0.26 kg (0.57 lbs)
