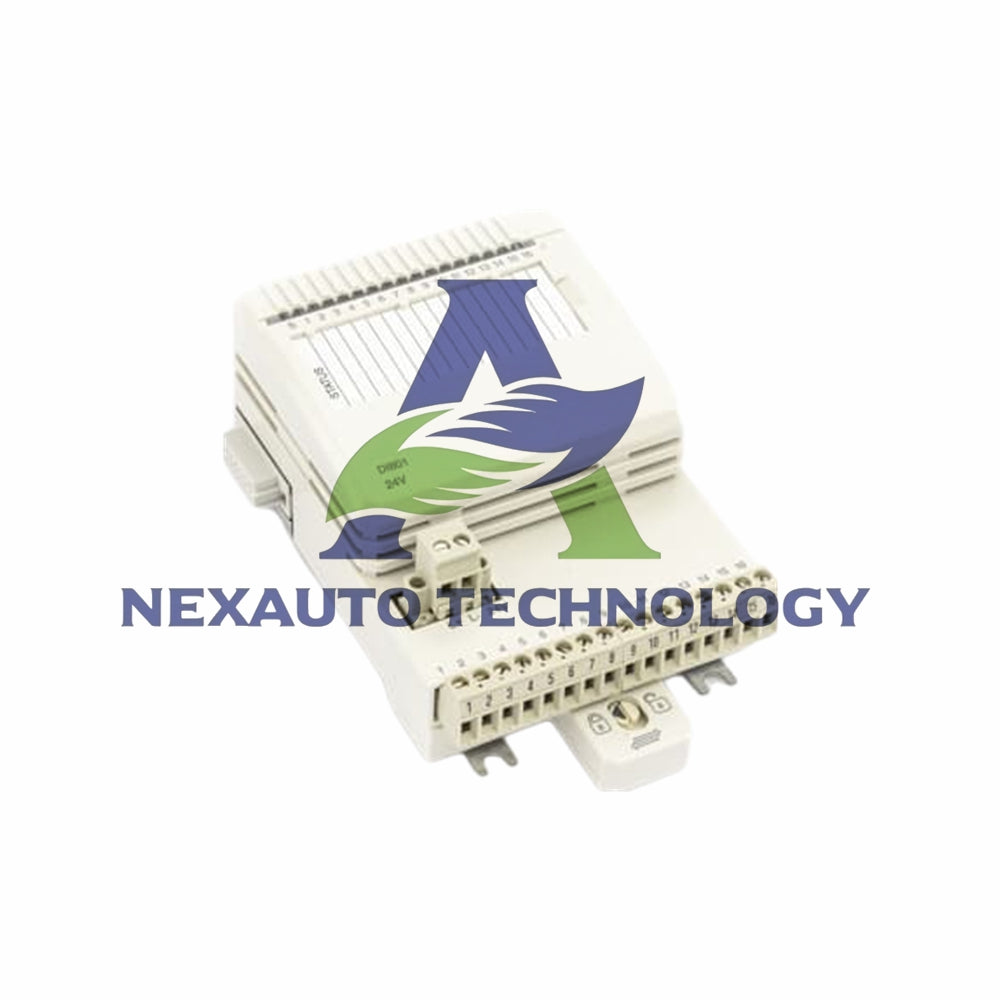

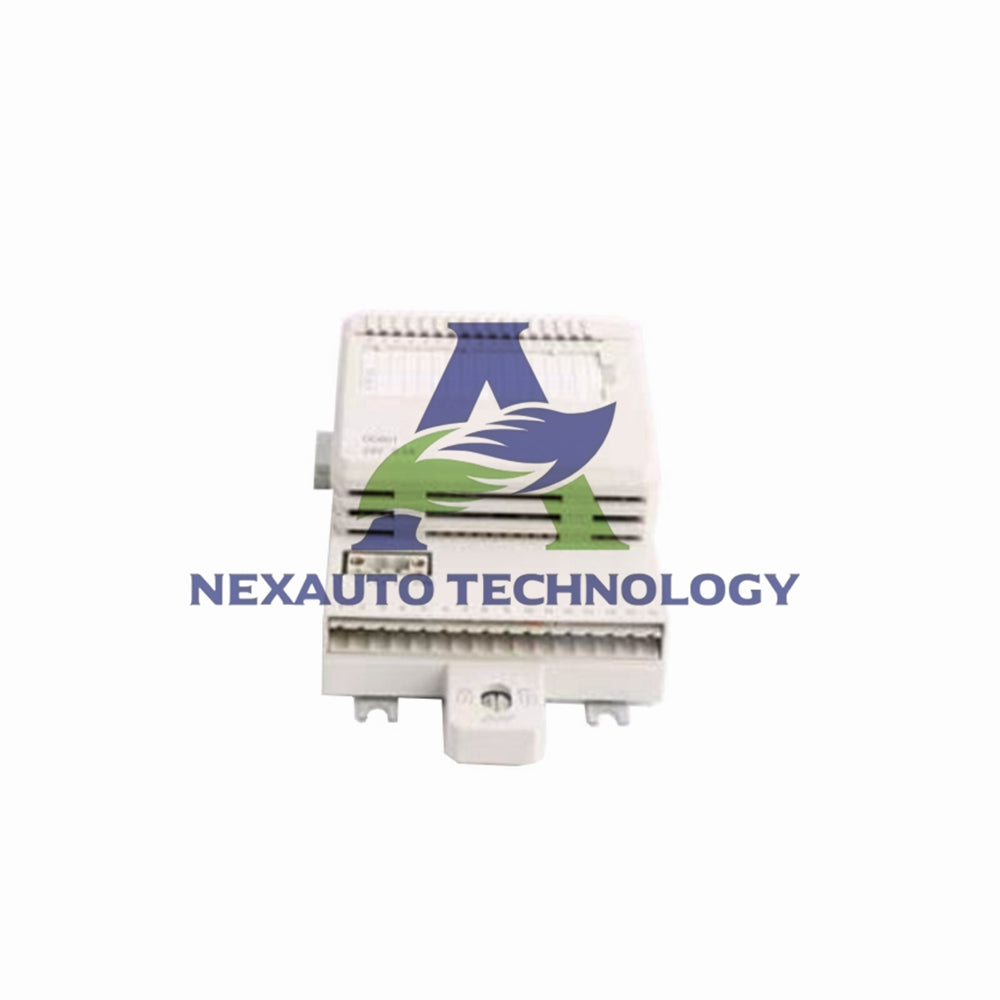

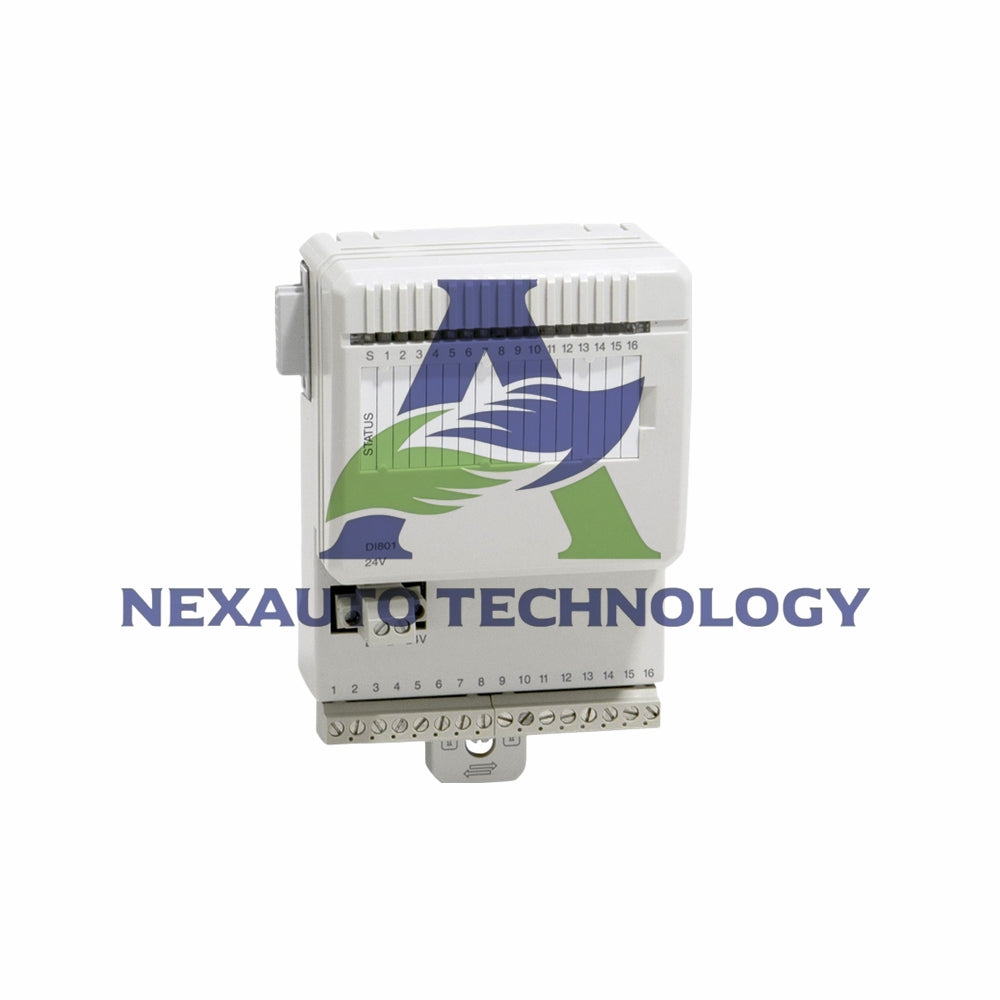

ABB DI801 Digital Input Module | S800 I/O 16-Channel

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (21 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

ABB DI801 Digital Input Module

The ABB DI801 serves as a 16-channel digital input module for S800 I/O systems. This module handles 24V DC signals with reliable performance. The DI801 provides robust industrial input capabilities for automation applications.

Product Overview

  • Article Number: 3BSE020508R1
  • Module Type: 16-Channel Digital Input
  • Signal Specification: 24V DC Current Sinking
  • Mechanical Platform: S800L I/O System

Electrical Specifications

  • Input Voltage Range: 18 to 30 V DC
  • Input Current: 6 mA at 24V
  • Input Impedance: 3.5 kΩ
  • Logic "1" Signal: 15 to 30 V
  • Logic "0" Signal: -30 to +5 V

Channel Configuration

  • Total Channels: 16 Digital Inputs
  • Isolation Groups: 1 group of 16 channels
  • Voltage Supervision: Available on channel 16
  • Filter Times: Selectable 2, 4, 8, 16 ms

Physical Dimensions

  • Width: 86.1 mm (3.4")
  • Depth: 58.5 mm (2.3")
  • Height: 110 mm (4.33")
  • Weight: 0.24 kg (0.53 lbs)

Wiring and Connections

  • Supported Wire Size: 0.05-2.5 mm² (30-12 AWG)
  • Maximum Cable Length: 600 meters
  • Connection Type: Detachable connectors
  • Recommended Torque: 0.5-0.6 Nm

Environmental Specifications

  • Operating Temperature: 0 to +55 °C
  • Storage Temperature: -40 to +70 °C
  • Relative Humidity: 5 to 95% non-condensing
  • Protection Rating: IP20 according to IEC 60529

Diagnostics and Indicators

  • Status LED: Module run/fault indication
  • Channel LEDs: Individual input status (1-16)
  • Supervision: Process voltage monitoring
  • Error Indication: Module and channel error alerts

Certifications and Compliance

  • RoHS Compliance: DIRECTIVE/2011/65/EN
  • Safety Standards: EN 61010-1, UL 61010-1
  • Hazardous Locations: C1 Div 2, ATEX Zone 2
  • Marine Certifications: ABS, BV, DNV, LR

Shipping Information

  • Includes DI801 digital input module
  • Secure industrial packaging
  • Worldwide shipping via FedEx, UPS, DHL
  • Fast order processing available

Frequently Asked Questions

  • How many channels does the DI801 have? 16 digital input channels.
  • What is the input voltage range? 18 to 30 V DC.
  • Can it monitor process voltage? Yes, through channel 16 supervision.
  • What are the filter time options? 2, 4, 8, and 16 milliseconds.
