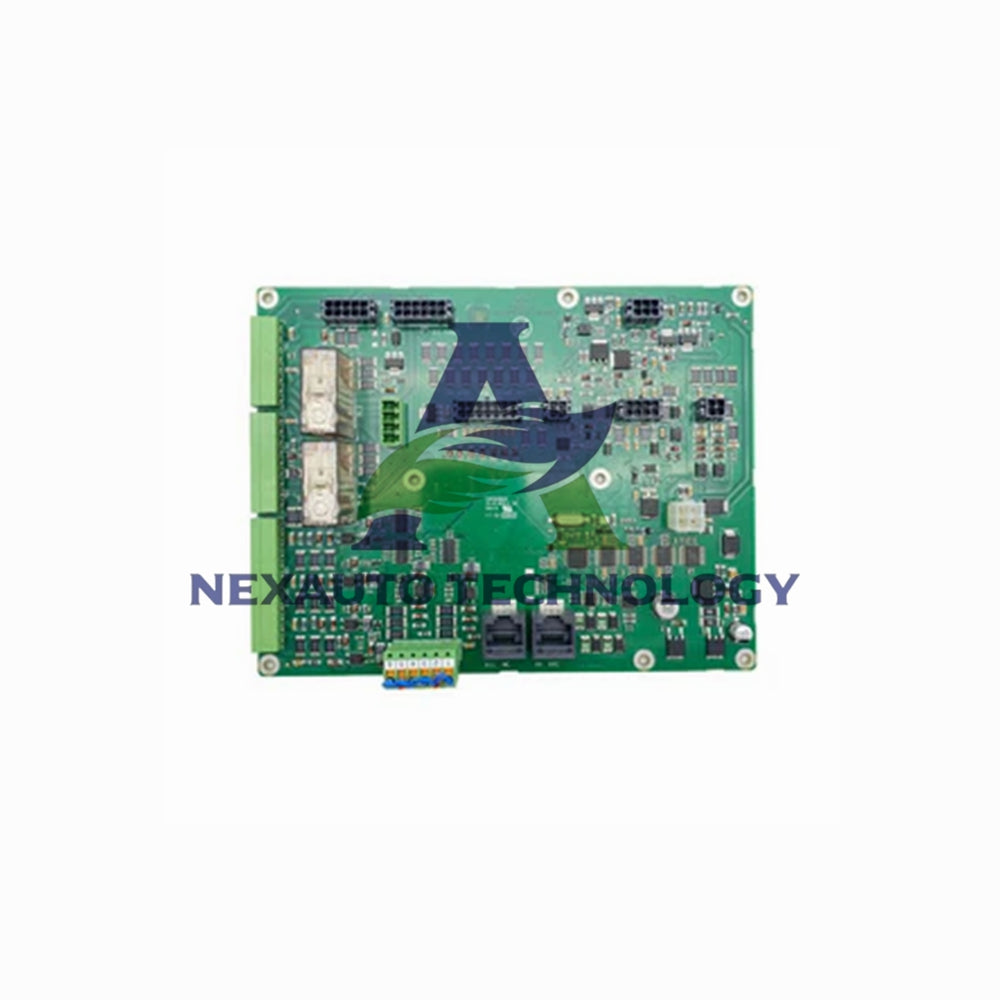

  • 3HAC058424-001-1

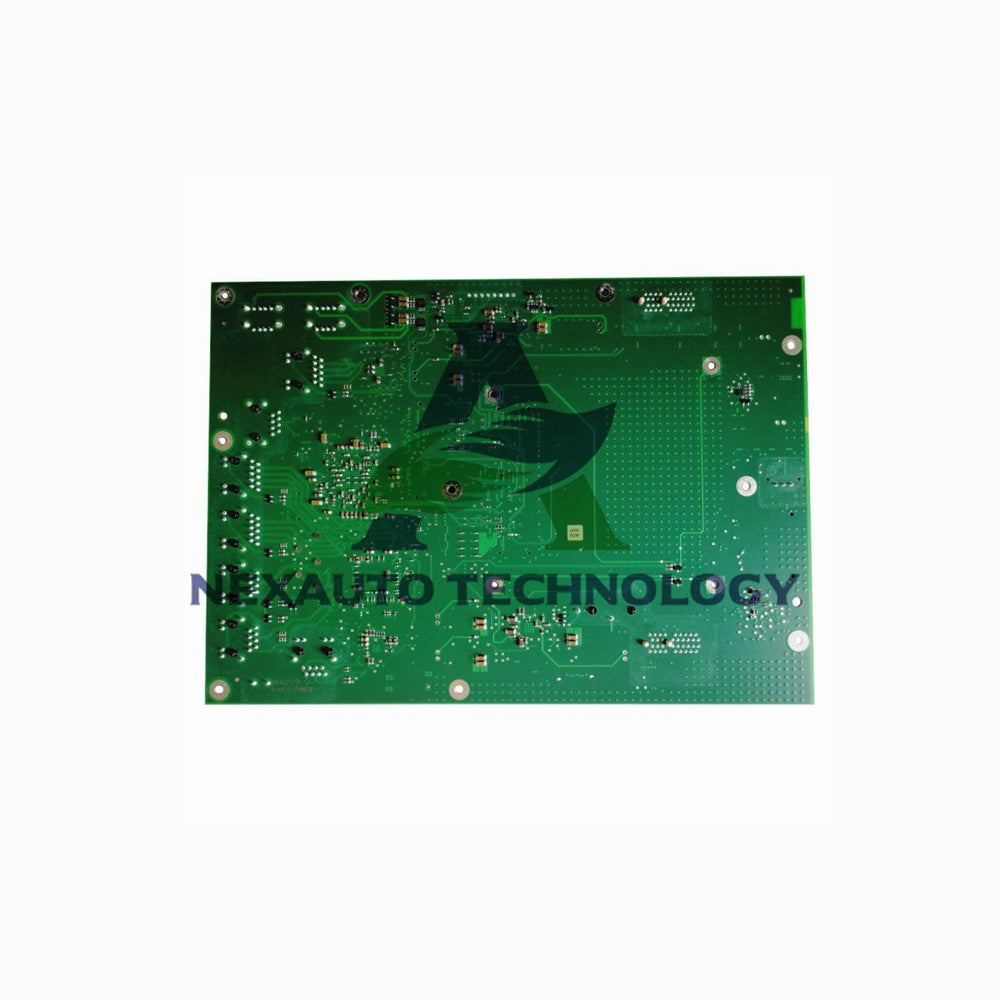

  • 3HAC058424-001-2
  • 3HAC058424-001-3
1 3

ABB DSQC400E 3HAC058424-001 Robot Safety Panel

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (33 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

ABB DSQC400E 3HAC058424-001 Robot Safety Panel

The ABB DSQC400E 3HAC058424-001 provides critical safety control for industrial robot systems. This safety panel ensures reliable emergency protection and system monitoring.

Product Overview

  • Product ID: 3HAC058424-001
  • Model Name: DSQC400E Safety Panel
  • Product Type: Robot Safety Control Board
  • Condition: Used - Fully Tested
  • Brand: ABB Original Equipment

Technical Specifications

  • Safety Category 3 according to EN954-1
  • Emergency stop circuit monitoring
  • Safety door monitoring functionality
  • Operating voltage: 24V DC nominal
  • Input voltage range: 18-30V DC
  • Power consumption: <15W typical

Safety Functions

  • Dual channel emergency stop
  • Safety gate monitoring
  • Enable device control
  • Operating mode selection
  • Safety rated outputs
  • Fault detection and diagnosis

Communication & Interfaces

  • DeviceNet safety protocol support
  • Digital input channels: 8 safety inputs
  • Digital output channels: 4 safety outputs
  • Status indicator LEDs
  • Diagnostic communication port

Environmental Specifications

  • Operating temperature: 0°C to 55°C
  • Storage temperature: -25°C to 70°C
  • Humidity: 5% to 95% non-condensing
  • Protection rating: IP20 enclosure
  • Vibration resistance: 5-2000 Hz range

Physical Properties

  • Compact modular design
  • Standard mounting dimensions
  • Standard industrial connectors
  • LED status indicators
  • Robust metal housing

Compatibility

  • ABB IRB robot series compatibility
  • RobotWare 5.0 and higher
  • IRC5 controller systems
  • Various robot models support
  • Easy system integration

Application Areas

  • Industrial robot safety systems
  • Automated production lines
  • Robotic work cell safety
  • Manufacturing automation
  • Safety circuit monitoring

Installation & Service

  • Professional installation required
  • Qualified technician setup
  • Comprehensive testing included
  • Safety function verification
  • Documentation provided

FAQ

  • Safety category? Category 3 according to EN954-1
  • Power supply? 24V DC operating voltage
  • Condition? Used - fully tested and operational
  • Compatibility? ABB IRB robot series
  • Safety functions? Emergency stop, safety gates, enable devices
  • Communication? DeviceNet safety protocol
