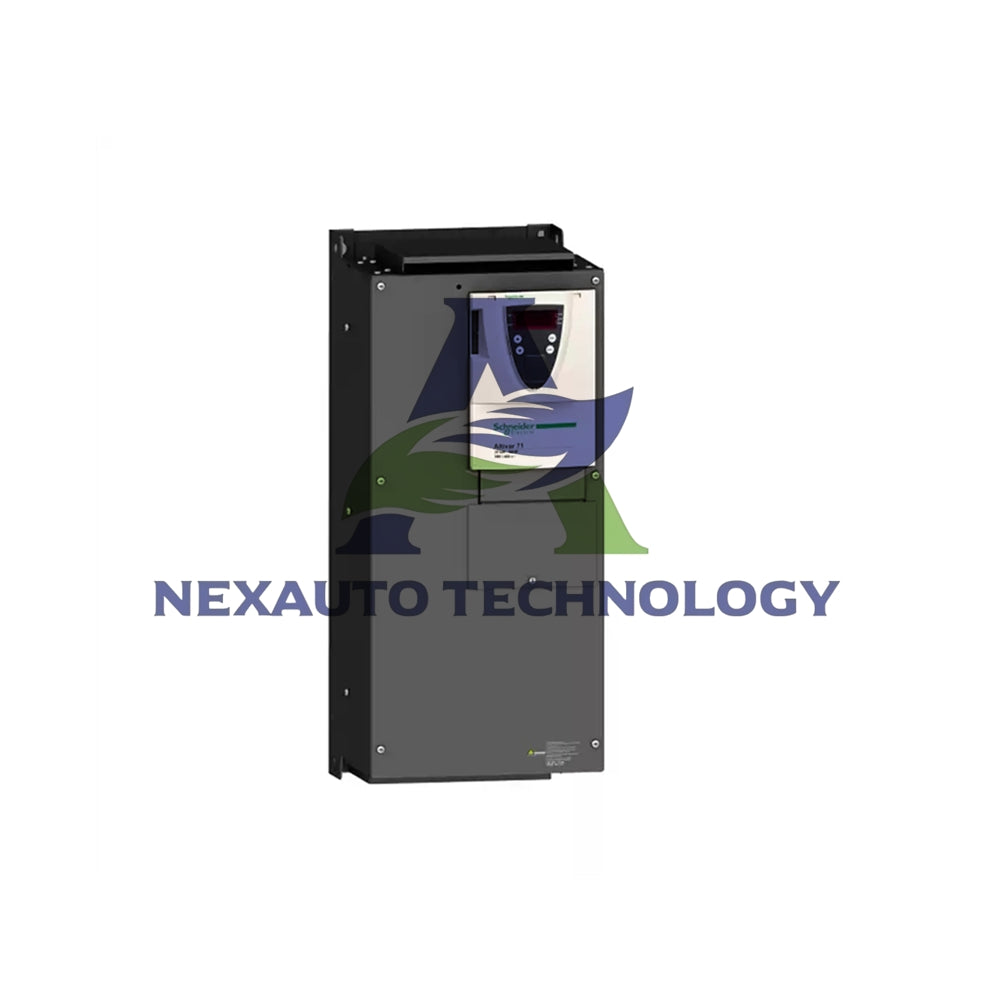

ATV61HC11N4 Altivar 61 Drive | Schneider Electric

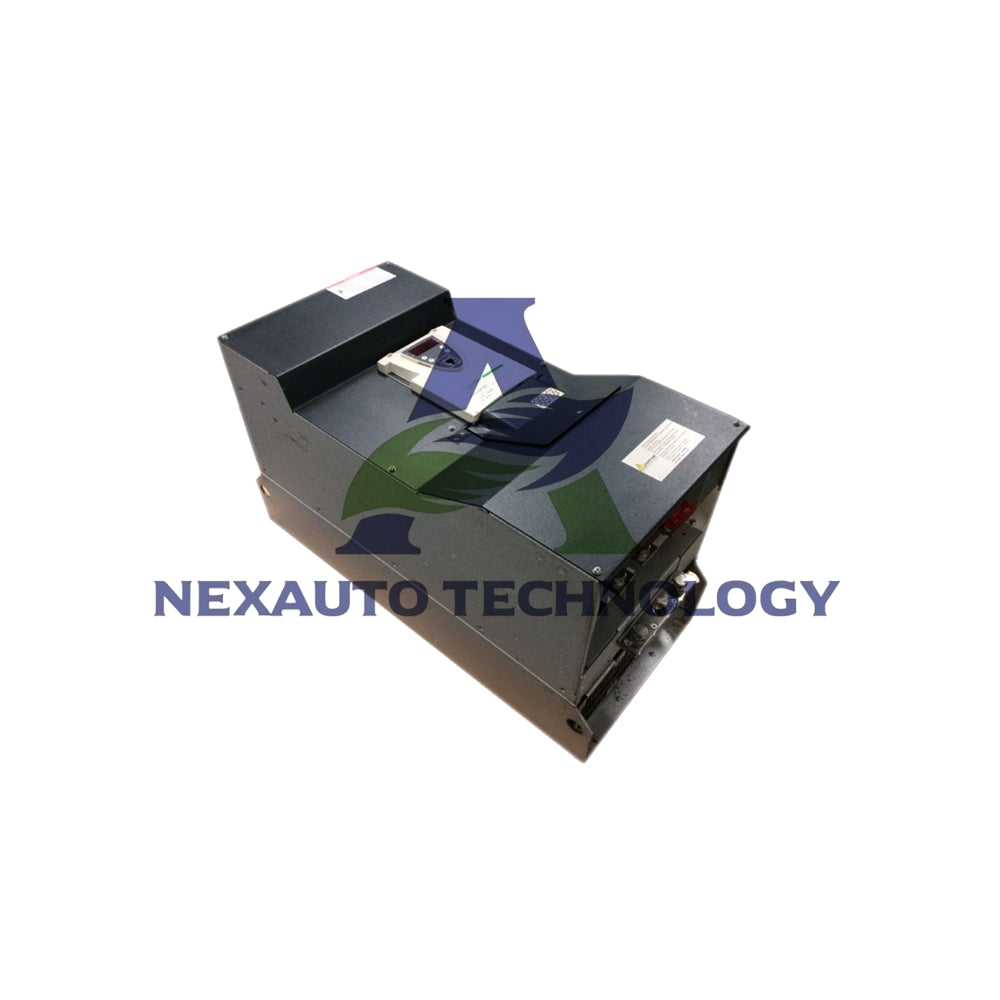

Schneider Electric ATV61HC11N4 Technical Specifications

Product Identification

• Brand & Model: Schneider Electric ATV61HC11N4
• Product Type: Variable Speed Drive, Altivar 61 Series
• Power Rating: 110 kW (150 HP) 3-phase
• Supply Voltage: 380-480V AC 3-phase
• Protection Ratings: IP00 to IP54 (varies by area)

Electrical Specifications

• Motor Power: 110 kW (150 HP) 3-phase
• Line Current: 202 A at 380V / 168 A at 480V
• Continuous Output Current: 215 A at 2.5 kHz
• Apparent Power: 133 kVA at 380V
• Output Frequency: 0.1-500 Hz
• Nominal Switching Frequency: 2.5 kHz
• Switching Frequency Range: 2-8 kHz adjustable
• EMC Filter: Level 3 integrated

Control & Communication

• Communication Protocols: Modbus, CANopen
• Transmission Rates: Modbus: 4.8-38.4 kbps; CANopen: 20-1000 kbps
• Interfaces: 2 × RJ45 (Modbus), Male SUB-D 9 (CANopen)
• Option Cards: Profibus DP, Ethernet/IP, DeviceNet, Modbus TCP, etc.
• Control Modes: V/F (2/5-point), Flux Vector, Energy Saving, Synchronous Vector
• Analog Inputs: 2 (AI1: +/-10V differential, AI2: 0-10V/0-20mA)
• Analog Output: 1 (AO1: 0-10V/0-20mA)
• Discrete Inputs: 7 programmable
• Relay Outputs: 2 configurable

Mechanical & Physical

• Dimensions: 320 × 920 × 377 mm (W × H × D)
• Weight: 84 kg (185.2 lb)
• Mounting: With heat sink, vertical ±10°
• Electrical Connections: Power: 2×100 mm²; Control: 2.5 mm²
• Assembly Style: With heat sink
• Noise Level: 60.5 dB

Environmental & Certifications

• Operating Temperature: -10°C to +45°C (no derating), 45-60°C with derating
• Operating Altitude: ≤1000m without derating, 1000-3000m with 1%/100m derating
• Relative Humidity: 5-95% non-condensing
• Certifications: CE, CSA, UL, GOST, NOM, DNV, C-Tick
• Standards: EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3-3
• Application: Pumping and ventilation machinery

Ordering & Packaging

• Category: US1CP4C22138
• Discount Schedule: CP4C
• GTIN: 3389118080614
• Package Type: PCE, 1 unit
• Package Dimensions: 122.5 × 41.0 × 53.0 cm
• Package Weight: 115 kg (253.5 lb)
