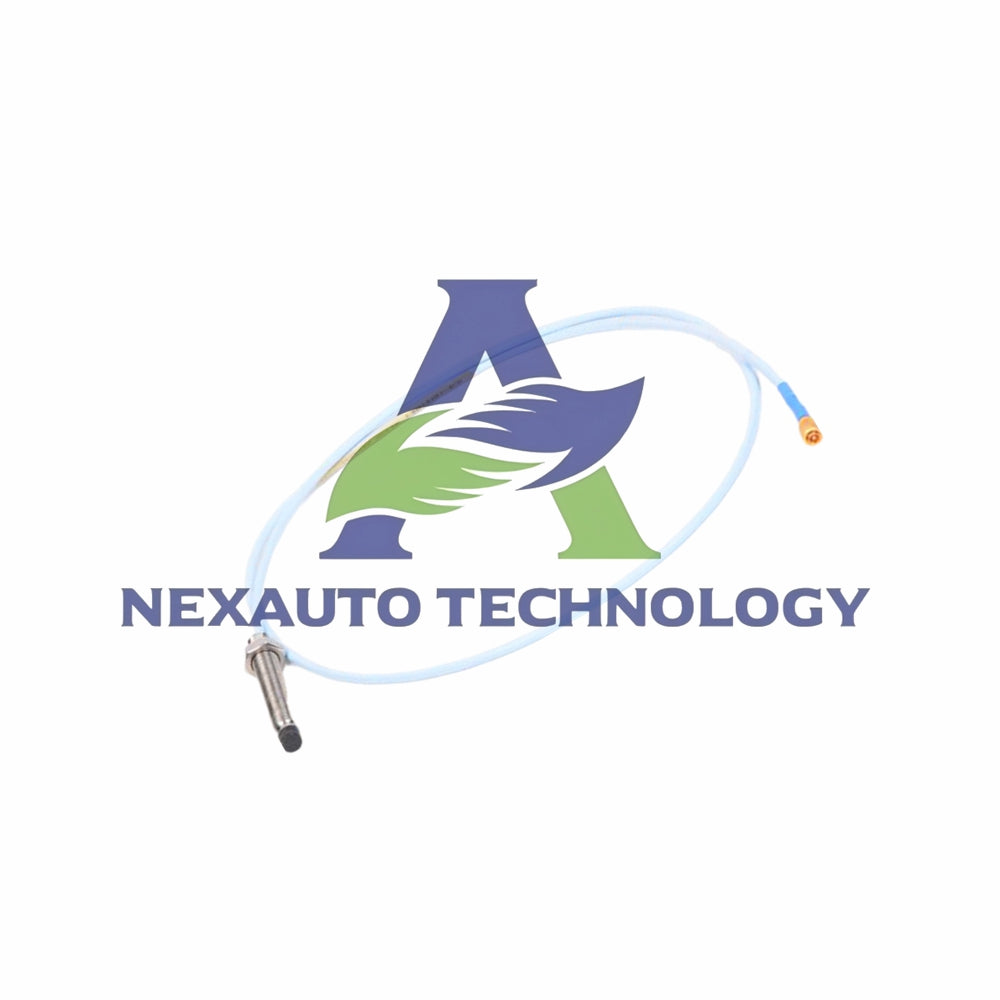

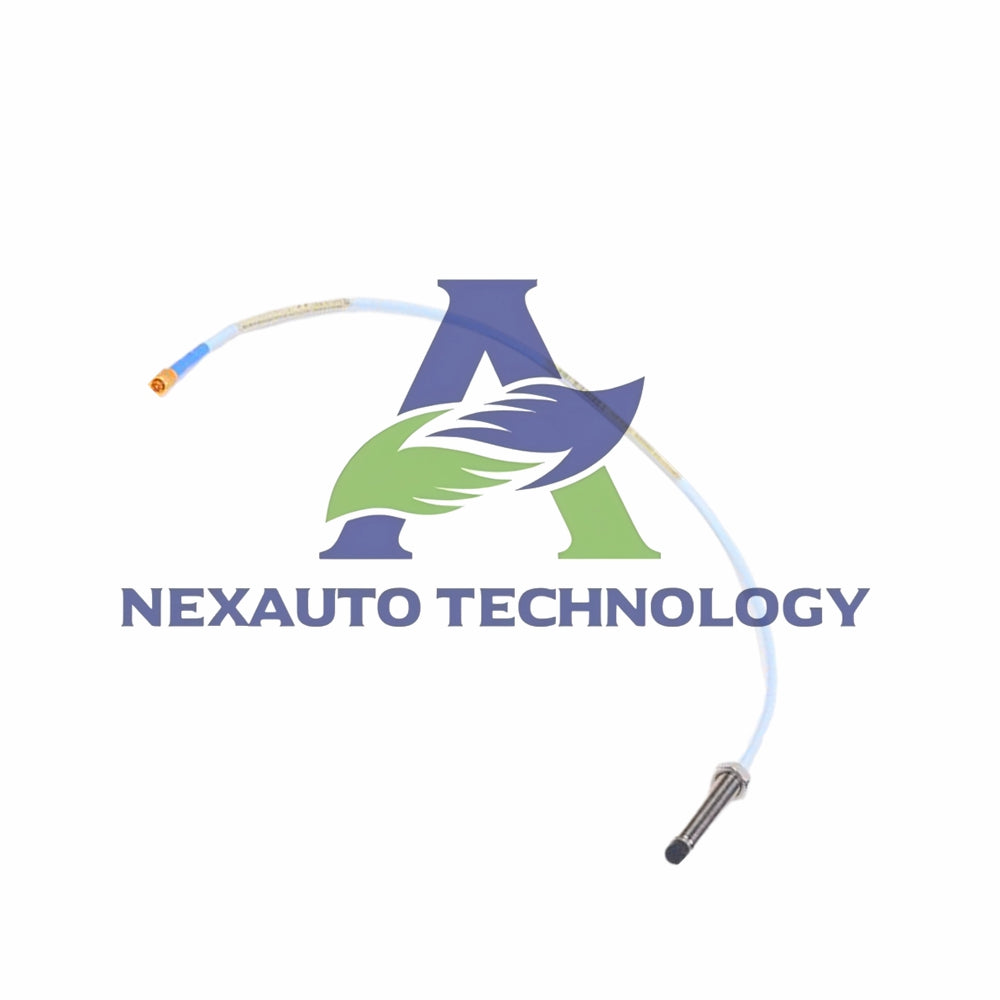

Bently Nevada 146055-05-02-05 Reverse Mount Probe

Bently Nevada 146055-05-02-05 | Ceramic Capped Reverse Mount Probe

Manufacturer: Bently Nevada | Part Number: 146055-05-02-05 | Type: 3300 Ceramic Capped Reverse Mount Probe | Thread: 3/8-24 UNF | Made in: U.S.A.

Model Number Breakdown

• 146055: 3300 Ceramic Capped Reverse Mount Probe, 3/8-24 UNF thread
• 05: Total cable length = 0.5 meter (1.6 feet)
• 02: Miniature ClickLoc coaxial connector, standard cable
• 05: Agency approval = Multiple Approvals (CSA/ATEX/IECEx)

Key Specifications

• Cable Length: 0.5 meter (1.6 feet)
• Thread Size: 3/8-24 UNF
• Maximum Thread Engagement: 0.563 inch
• RPROBE at 0.5m: 7.45 ± 0.50 Ohms
• Linear Range: 1.52 mm (60 mils) from 0.25mm to 1.78mm
• Voltage Range: -4 to -16 Vdc over linear range
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±6.5%

Reverse Mount Design

• Reverse Mount: Probe mounts from inside the machine casing outward
• Typical Application: Thrust position measurement, limited access areas
• Case Length: Fixed design (no case length option - threads to tip)
• Tip Material: Alumina ceramic (Al2O3) for wear resistance
• Case Material: AISI 304 stainless steel
• Cable Type: 75 Ω coaxial, FEP insulated standard cable

Agency Approval - Multiple Approvals (05)

• CSA: Certified for North American hazardous locations
• ATEX: Approved for European explosive atmospheres
• IECEx: International certification for worldwide use
• Application: Refineries, chemical plants, gas pipelines, offshore platforms

Temperature Ratings

• Operating & Storage: -51°C to +177°C (-60°F to +351°F)
• Temperature Class T1: -55°C to +232°C (EPL Ga/Gc)
• Temperature Class T2: -55°C to +177°C
• Temperature Class T3: -55°C to +120°C
• Temperature Class T4: -55°C to +80°C
• Temperature Class T5: -55°C to +40°C

Pressure Rating

• Standard Pressure: 34 Bar (500 psi) nitrogen seal
• Higher Pressure: Modifications available for higher pressure applications
• Custom Testing: Contact design department for pressure seal testing

System Notes

• Specifications apply to 3300 XL systems with -24 Vdc supply and AISI 4140 steel target
• System accuracy and interchangeability do not apply with other target materials
• Performance measured at +18°C to +27°C (+64°F to +80°F)

Package Contents

• 146055-05-02-05 ceramic capped reverse mount probe with 0.5m cable
• ClickLoc connector (standard cable)
• Calibration certificate
• Installation instructions

Shipping Information

• Weight: Approximately 0.3 kg (0.66 lb)
• Packaging: Protective box
• Carriers: FedEx, UPS, DHL (2-5 business days)

Frequently Asked Questions

• Q: What is a reverse mount probe and when to use it?
  A: Reverse mount probes install from inside the machine casing outward. Use for thrust position measurement, limited access areas, or when standard mounting from outside is not possible due to space constraints.
• Q: What approvals does option 05 include?
  A: Multiple Approvals include CSA (North America), ATEX (Europe), and IECEx (international) for global hazardous location use.
• Q: Why no case length option on this probe?
  A: Reverse mount probes have fixed case length (threads run to tip). The 146055 series is designed for reverse mounting where adjustable case length is not needed.
• Q: Can I use this probe with standard 3300 XL proximitors?
  A: Yes. This is a 3300 series ceramic reverse mount probe compatible with 3300 XL proximitors (model 330180-90-00).
• Q: What is the advantage of ceramic tip for reverse mount?
  A: Alumina ceramic tip provides exceptional wear resistance. In reverse mount applications, the probe tip may face abrasive conditions - ceramic withstands wear better than standard PPS tips.
