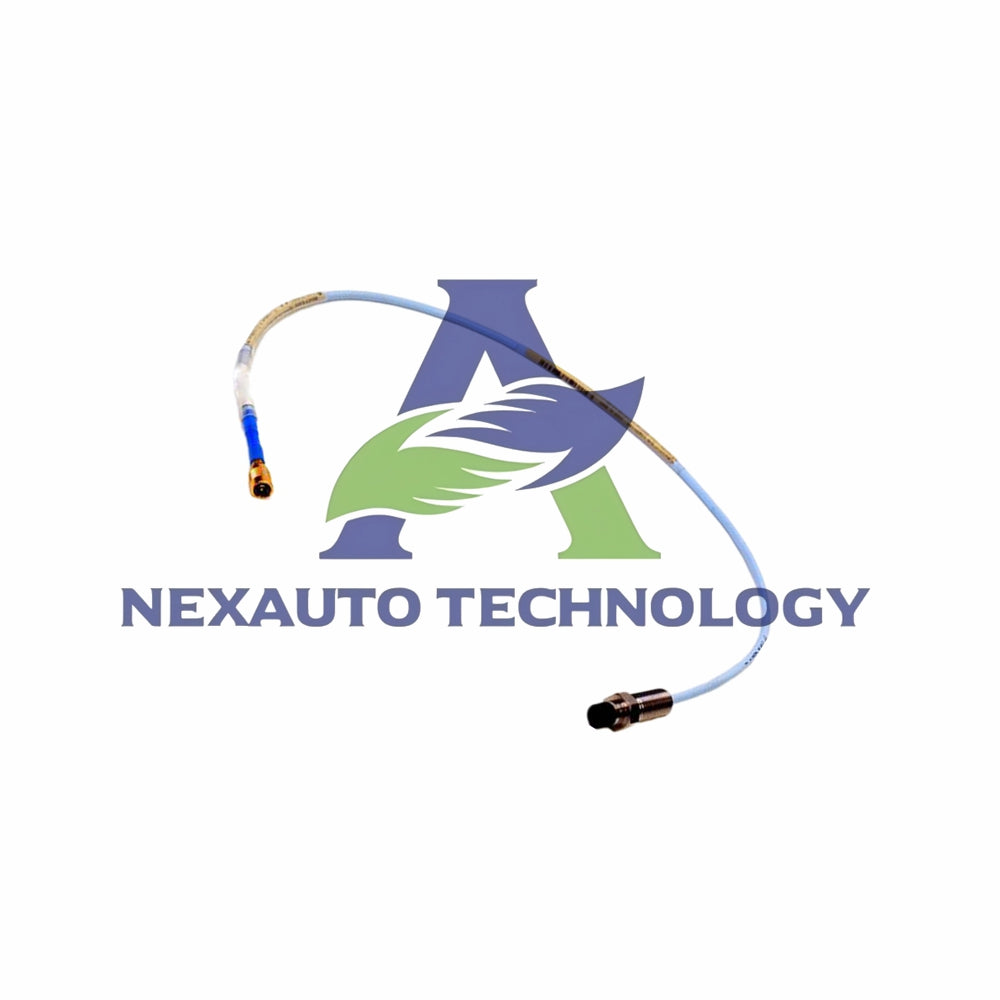

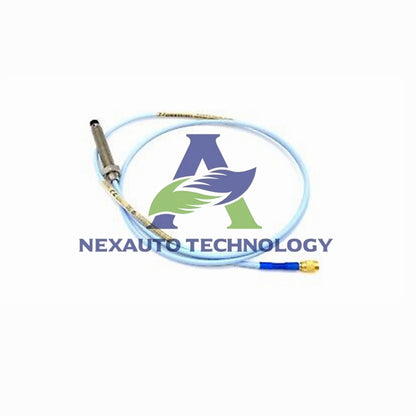

Bently Nevada 146055-50-02-00 5 Meter Probe

Bently Nevada 146055-50-02-00 | Ceramic Capped Reverse Mount Probe

Manufacturer: Bently Nevada | Part Number: 146055-50-02-00 | Type: 3300 Ceramic Capped Reverse Mount Probe | Thread: 3/8-24 UNF | Made in: U.S.A.

Model Number Breakdown

• 146055: 3300 Ceramic Capped Reverse Mount Probe, 3/8-24 UNF thread
• 50: Total cable length = 5.0 meters (16.4 feet)
• 02: Miniature ClickLoc coaxial connector, standard cable
• 00: Agency approval = Not required

Key Specifications

• Cable Length: 5.0 meters (16.4 feet)
• Length Tolerance: +20%, -0%
• Thread Size: 3/8-24 UNF
• Maximum Thread Engagement: 0.563 inch
• RPROBE at 5.0m: 8.73 ± 0.70 Ohms
• Linear Range: 1.52 mm (60 mils) from 0.25mm to 1.78mm
• Voltage Range: -4 to -16 Vdc over linear range
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±6.5%

Critical Compatibility Note

• 5m probes are designed for use with the 5m Proximitor Sensor only.
• Do not use with 9m Proximitor Sensor or add extension cables
• System length must match proximitor calibration exactly

Reverse Mount Design

• Reverse Mount: Probe mounts from inside the machine casing outward
• Typical Application: Thrust position measurement, limited access areas
• Case Length: Fixed design (threads run to tip)
• Tip Material: Alumina ceramic (Al2O3) for wear resistance
• Case Material: AISI 304 stainless steel
• Cable Type: 75 Ω coaxial, FEP insulated standard cable

Temperature Ratings

• Operating & Storage: -51°C to +177°C (-60°F to +351°F)
• Temperature Class T1: -55°C to +232°C (EPL Ga/Gc)
• Temperature Class T2: -55°C to +177°C
• Temperature Class T3: -55°C to +120°C
• Temperature Class T4: -55°C to +80°C
• Temperature Class T5: -55°C to +40°C

Pressure Rating

• Standard Pressure: 34 Bar (500 psi) nitrogen seal
• Higher Pressure: Modifications available
• Custom Testing: Contact design department for pressure seal testing

Agency Approval - None (00)

• Approval option 00: No hazardous location certifications
• Safe area use only: Not certified for explosive atmospheres
• Application: Non-hazardous industrial environments

System Notes

• Specifications apply to 3300 XL systems with -24 Vdc supply and AISI 4140 steel target
• System accuracy and interchangeability do not apply with other target materials
• Performance measured at +18°C to +27°C (+64°F to +80°F)

Package Contents

• 146055-50-02-00 ceramic capped reverse mount probe with 5.0m cable
• ClickLoc connector (standard cable)
• Calibration certificate
• Installation instructions

Shipping Information

• Weight: Approximately 0.6 kg (1.32 lb)
• Packaging: Protective box
• Carriers: FedEx, UPS, DHL (2-5 business days)

Frequently Asked Questions

• Q: Why must 5m probe be used with 5m Proximitor only?
  A: The 5m probe has specific resistance (8.73 Ohms) calibrated for 5m Proximitor Sensor. Using with 9m proximitor or adding extension cables will cause measurement errors.
• Q: What does +20%, -0% length tolerance mean?
  A: The cable may be up to 20% longer than 5.0m but never shorter. Actual length could be 5.0m to 6.0m. This accommodates manufacturing variation.
• Q: What is a reverse mount probe?
  A: Reverse mount probes install from inside the machine casing outward. Use for thrust position measurement or when standard outside mounting is not possible.
• Q: What is the resistance at 5.0 meters?
  A: RPROBE is 8.73 ± 0.70 Ohms. Compare to 0.5m probe (7.45 Ohms) and 9.0m probe (9.87 Ohms).
• Q: Can I use this probe in hazardous locations?
  A: No. Option 00 means no hazardous location certifications. For hazardous areas, choose option 05 (multiple approvals) instead.
