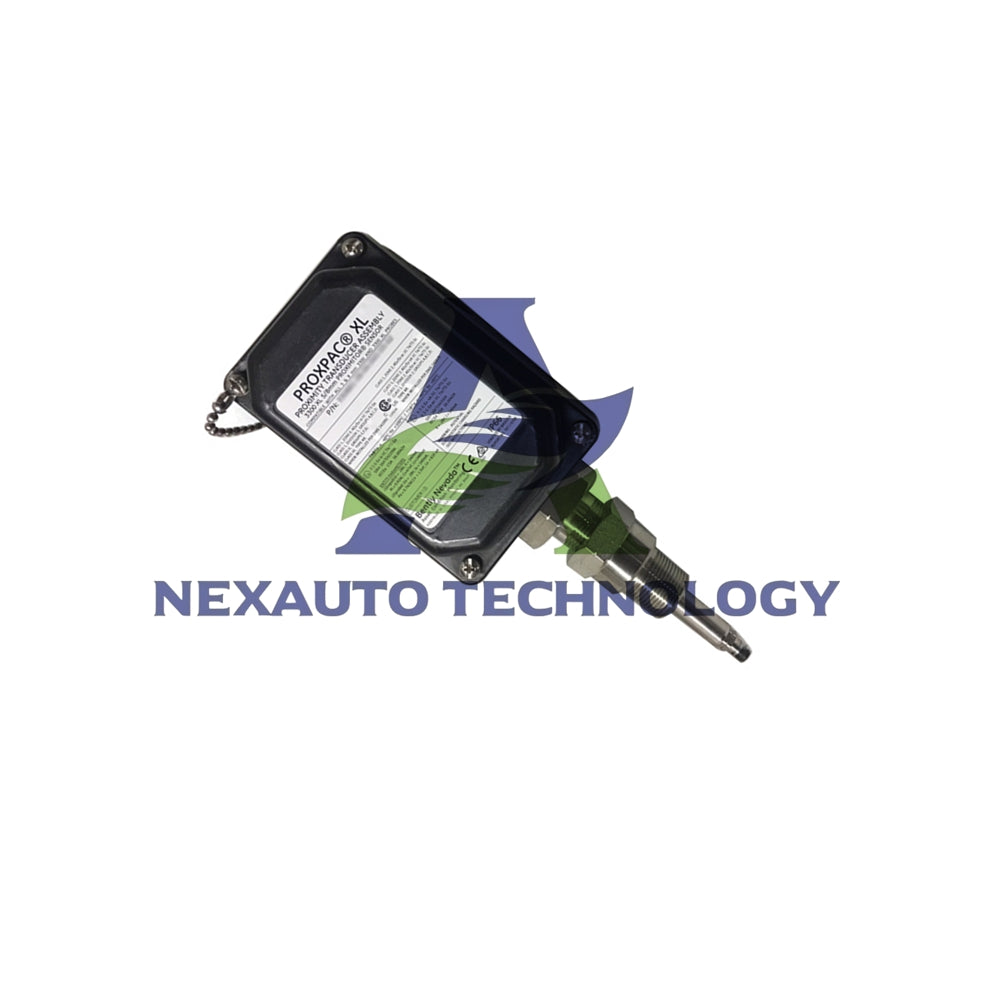

Bently Nevada Probe Housing 31000-28-05-70-066-00-02

Bently Nevada 31000-28-05-70-066-00-02 | Probe Housing with Standoff Adapter

Manufacturer: Bently Nevada | Part Number: 31000-28-05-70-066-00-02 | Type: 31000 Proximity Probe Housing with 3300 XL Probe | Made in: U.S.A.

Model Number Breakdown

• 31000: Proximity Probe Housing series
• 28: 3300 XL 8mm probe with multiple approvals
• 05: Probe cable length = 0.5 meter (20 inches)
• 70: Standoff adapter = 7.0 inches (178 mm)
• 066: Probe penetration = 6.6 inches (168 mm)
• 00: Without fittings
• 02: Mounting thread = 3/4-14 NPT

Standoff Adapter Design

• 7.0 inch standoff: Extends housing away from mounting surface
• Application: Recessed mounting ports, clearance for obstructions, thermal isolation
• Total reach: Standoff (7.0in) + Penetration (6.6in) = 13.6 inches from mounting surface to probe tip
• Mounting thread: 3/4-14 NPT required with standoff adapter
• No fittings: Option 00 - order separately if needed

Key Specifications

• Standoff Length: 7.0 inches (178 mm)
• Probe Penetration: 6.6 inches (168 mm)
• Total Tip Reach: 13.6 inches (345 mm) from mounting surface
• Mounting Thread: 3/4-14 NPT
• Probe Cable Length: 0.5 meter (20 inches)
• Probe Type: 3300 XL 8mm with multiple approvals
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg (2.6 lb)
• Recommended Torque: 29.4 N·m (260 in·lb) for retaining nut

When to Use Standoff Adapter

• Recessed ports: Mounting surface is set back from machine wall
• Obstruction clearance: Avoid interference with nearby components
• Thermal isolation: Move housing away from hot surfaces
• Access improvement: Provide space for installation tools
• Cable routing: Create space for cable bends and connectors

Protection Ratings

• Type 4X: CSA certified for watertight and corrosion resistance
• IP66: Verified by SC115582-1(e)106 - dust tight and powerful water jets
• Electrostatic Dissipation: CENELEC EN50014 rated for hazardous areas

Included Probe Details

• Probe Model: 3300 XL 8mm with multiple approvals
• Probe Cable Length: 0.5 meter (20 inches)
• Probe Approvals: Multiple (CSA/ATEX/IECEx)
• Probe Type: Eddy current proximity probe
• Pre-installed: Probe fitted in housing at factory

Materials

• Housing: Glass-reinforced PPS thermoplastic with conductive fibers
• Sleeve & Retaining Chain: AISI 304 stainless steel
• Standoff Adapter: Included as part of assembly
• Outer Sleeve & Exterior Screws: AISI 303 stainless steel
• O-Ring: Neoprene for environmental sealing
• Probe Seal: Viton O-ring internal to probe case

Mechanical Strength

• Load Capacity: Supports 912 N (205 lb) at 38mm from unsupported end
• Impact Resistance (BASEEFA): Two separate 4 Joule impacts at -39°C and +115°C
• Impact Resistance (CSA): 7 Joule (5.2 ft·lb) at ambient room temperature

Pressure Seal Note

• Housing seals against hose-directed water per NEMA 4X and IP66
• Not designed to resist internal or external pressure
• Probe uses Viton O-ring internal seal
• Sleeve to housing uses Neoprene O-ring
• Probes not pressure tested prior to shipment
• Contact custom design department for pressure seal testing

Installation Notes

• Requires 3/4-14 NPT mounting port
• Standoff adapter adds 7.0 inches to overall assembly length
• Total tip reach: 13.6 inches from mounting surface
• Probe pre-installed - ready to mount
• No fittings included - order separately if needed
• Ensure sufficient space for standoff length

Package Contents

• 31000-28-05-70-066-00-02 housing assembly with pre-installed 3300 XL probe
• 7.0 inch standoff adapter installed
• 0.5 meter probe cable attached
• Retaining chain and mounting hardware
• Neoprene O-ring installed
• Calibration certificate for probe
• Installation instructions
• Note: Fittings not included (option 00)

Shipping Information

• Weight: 1.6 kg (3.5 lb) packaged
• Packaging: Factory sealed box
• Carriers: FedEx, UPS, DHL (2-5 business days)

Frequently Asked Questions

• Q: What is a standoff adapter and when do I need it?
  A: A standoff adapter extends the housing away from the mounting surface. Use it for recessed mounting ports, to clear obstructions, for thermal isolation from hot surfaces, or to improve tool access during installation.
• Q: What is the total tip reach with this standoff?
  A: Standoff (7.0in) + Probe Penetration (6.6in) = 13.6 inches from mounting surface to probe tip. This reaches through very thick walls or deep recessed ports.
• Q: Is the probe already installed in this housing?
  A: Yes. Option 28 means the 3300 XL 8mm probe is included and factory installed. The probe has multiple approvals (CSA/ATEX/IECEx) for hazardous locations.
• Q: What is the probe cable length?
  A: The probe has a 0.5 meter (20 inch) cable. This short cable is ideal when the proximitor mounts near the housing. Extension cables can be added to reach 5m or 9m total system length.
• Q: Can this housing withstand internal pressure?
  A: No. The plastic housing is certified for NEMA 4X and IP66 (external water protection) but is not designed to resist internal or external pressure. For pressurized applications, contact Bently Nevada about custom designs.
