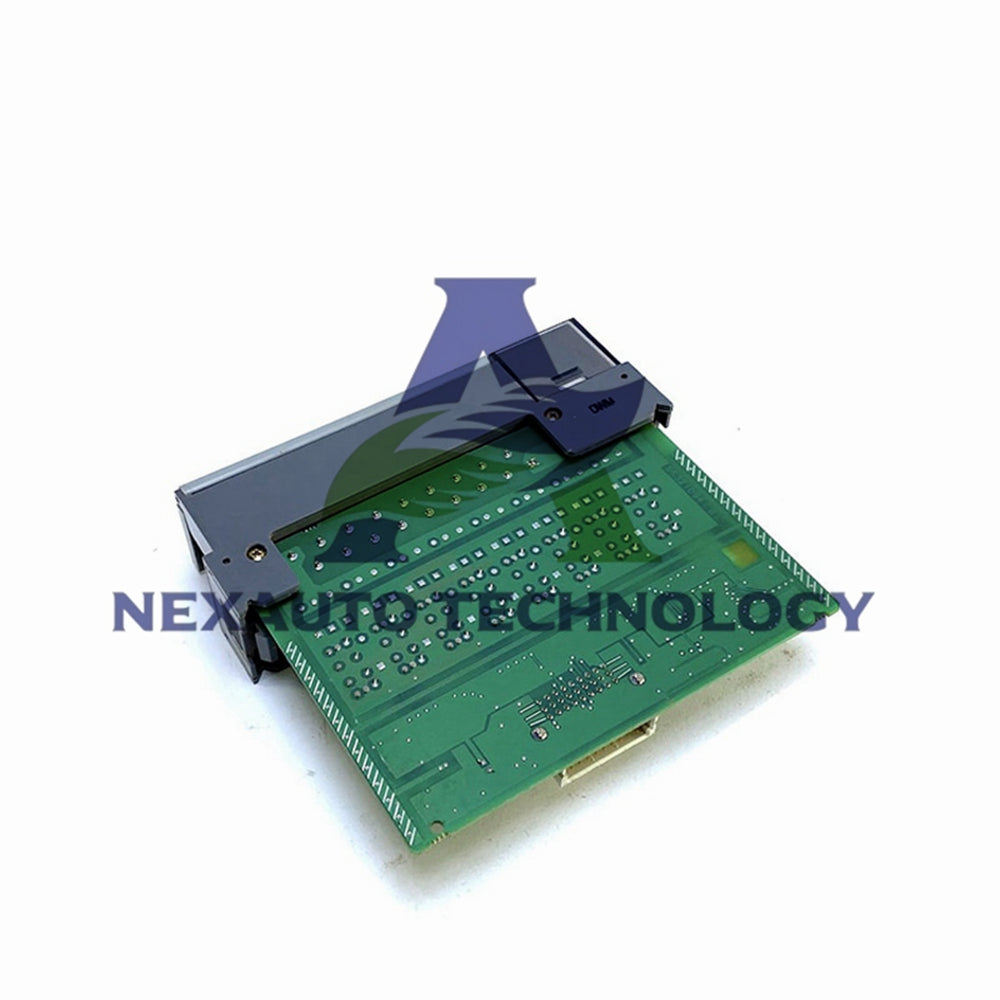

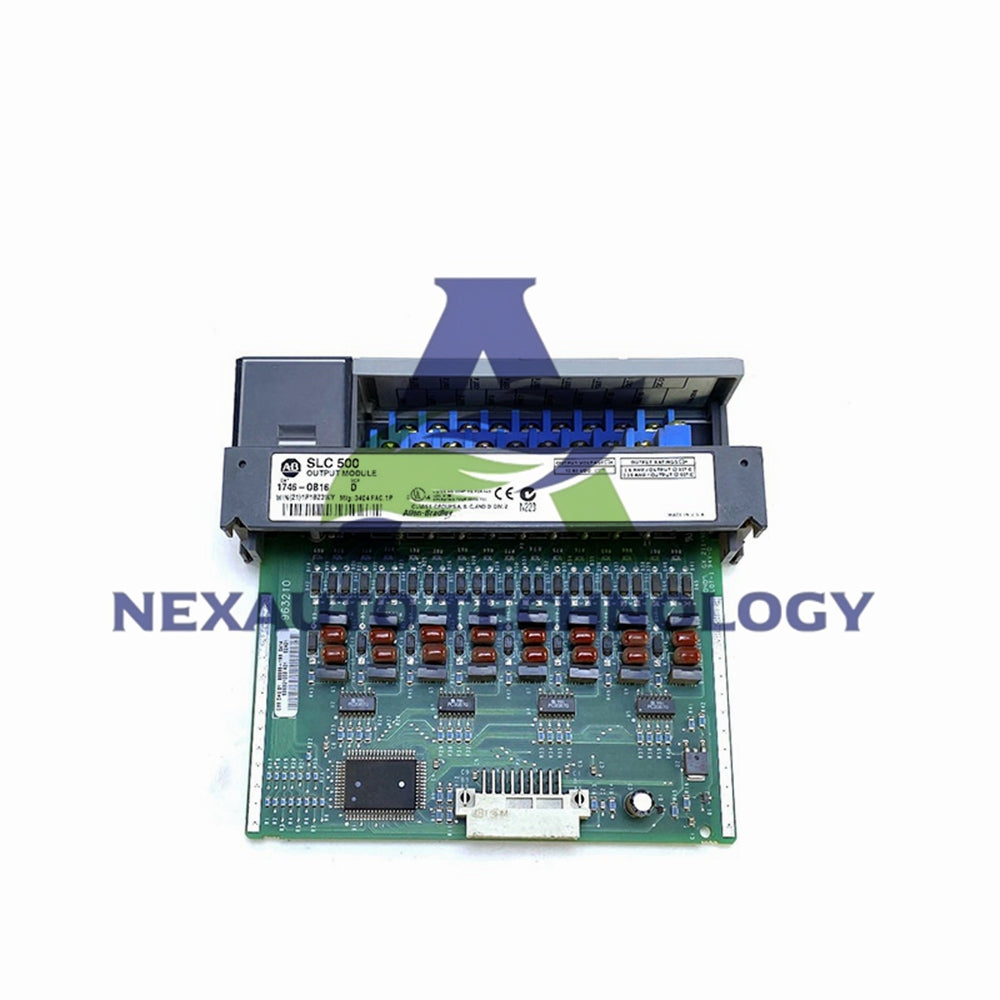

DC Output Module Allen-Bradley | 1746-OB16E

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (14 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

Allen-Bradley 1746-OB16E 16-Channel DC Output Module

Key Specifications
Output Type 16-channel sourcing DC
Voltage Range 10-30V DC
Current Capacity 1A/point @30°C (0.5A @60°C)
Module Current 9A total @30°C
Switching Speed 1ms ON/OFF response
Backplane Power 135mA @5VDC
Inrush Current 2A for 2ms (per point)
Heat Dissipation 7.6W (module total)

Features & Benefits

  • Electronically fused outputs for protection
  • Removable terminal block (RTB) for easy maintenance
  • NEMA ICS 2-230 noise immunity rating
  • 30G shock resistance for harsh environments
  • Compact single-slot design
  • Weight:0.3kg

Typical Applications

  • Industrial solenoid control
  • DC motor starters
  • Relay and contactor activation
  • PLC-controlled lighting systems
  • Material handling equipment

Environmental Ratings

  • Operating temperature: 0-60°C (32-140°F)
  • Storage temperature: -40-85°C (-40-185°F)
  • 5-95% non-condensing humidity
  • 2.5G vibration resistance (10-200Hz)
