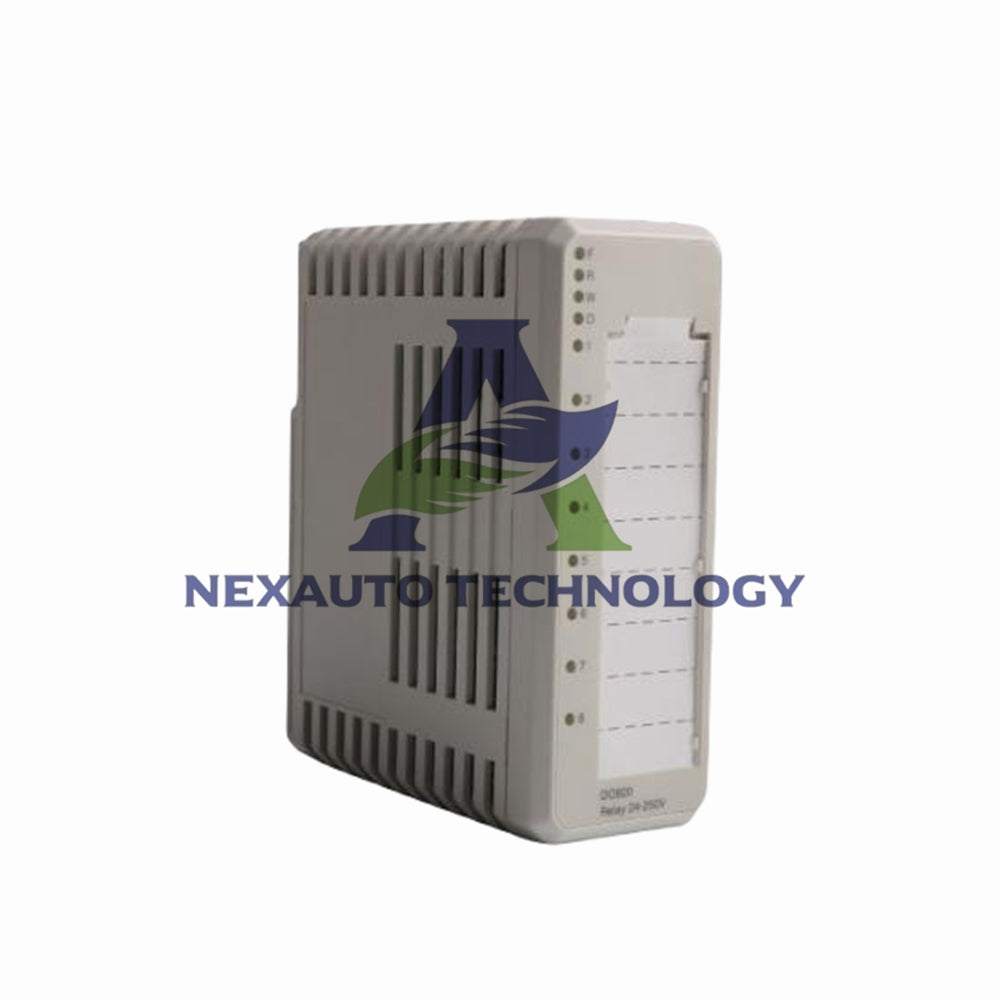

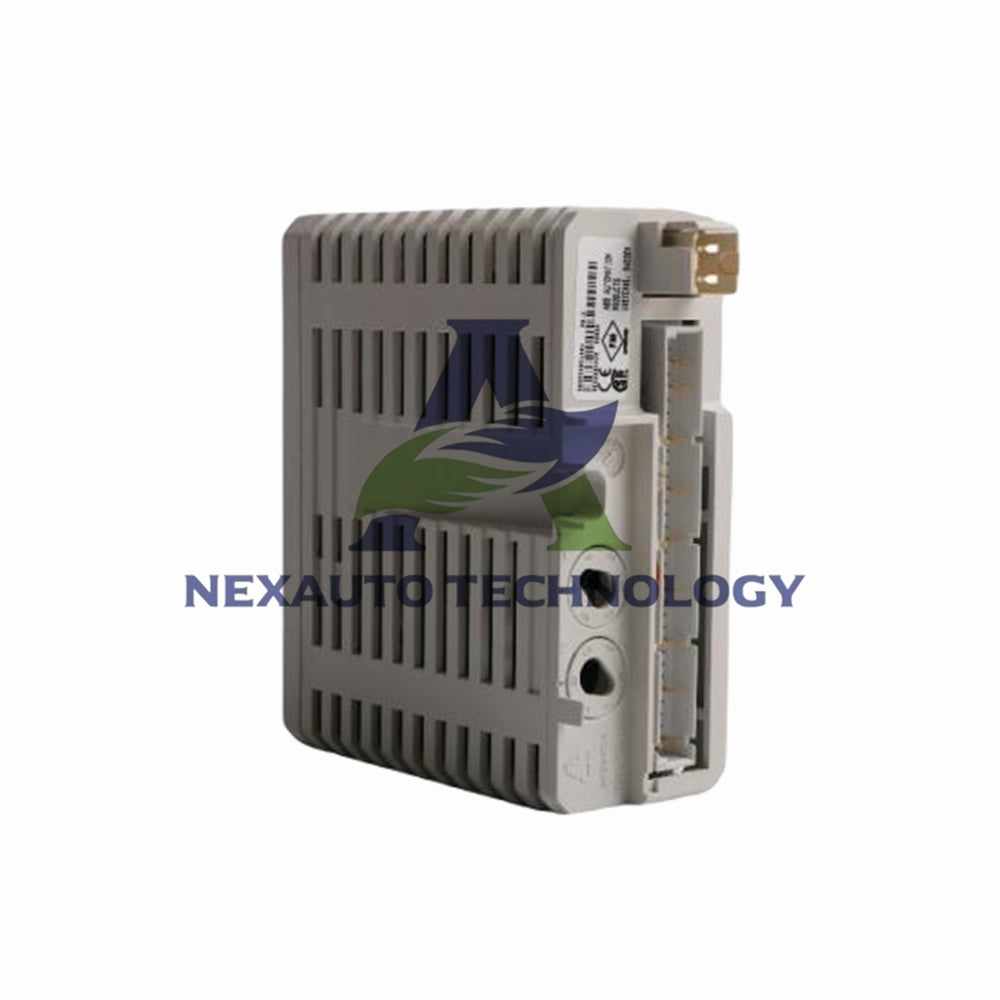

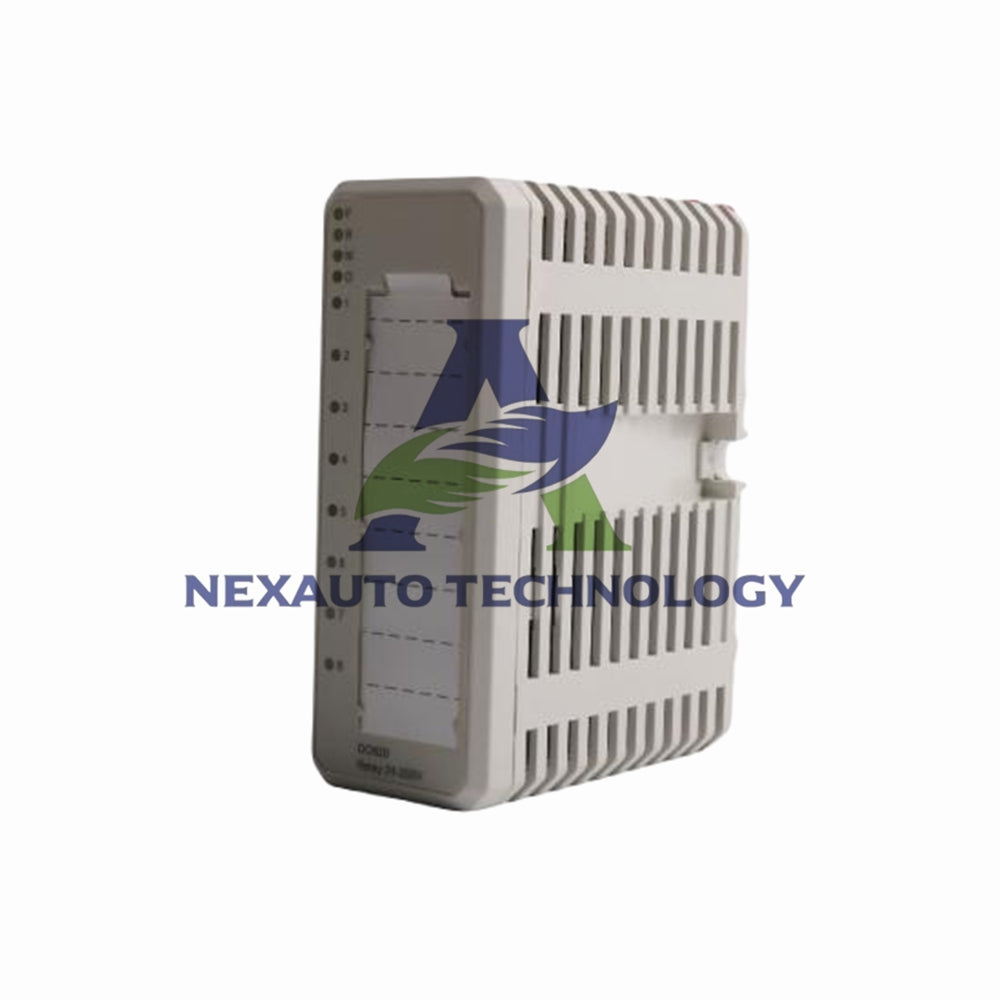

DO820 | 3BSE008514R1 ABB Digital Output Module

Article Number: DO820 / 3BSE008514R1

Type: Digital Output

Signal Specification: 230 V a.c. / d.c. (5 - 250 V a.c./d.c.), 3 A

Number of Channels: 8

Signal Type: Relay (NO)

HART: No

SOE: No

Redundancy: No

High Integrity: No

Intrinsic Safety: No

Mechanics: S800

Isolation: Individually isolated, channel-to-channel and to circuit common

Current Limiting: Can be current limited by the MTU

Maximum Field Cable Length: 600 meters (656 yards)

Event Recording Accuracy: -0 ms / +1.3 ms

Rated Insulation Voltage: 250 V

Dielectric Test Voltage: 2000 V a.c.

Power Dissipation: Typ. 2.9 W

Current Consumption +5 V Modulebus: 60 mA

Current Consumption +24 V Modulebus: 140 mA

Current Consumption +24 V External: 0

Front LED’s: F(ault), R(un), W(arning), O(SP), Channel 1-8 Status

Supervision: 24/12 V Relay power converter monitor

Status Indication of Supervision: Module Error, Module Warning, Channel Error

CE Mark: Yes

Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201

Hazardous Location: -

Marine Certification: ABS, BV, DNV, LR

Temperature (Operating): 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C

Temperature (Storage): -40 to +70 °C (-40 to +158 °F)

Pollution Degree: Degree 2, IEC 60664-1

Corrosion Protection: ISA-S71.04: G3

Relative Humidity: 5 to 95 %, non-condensing

Max Ambient Temperature: 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)

Protection Class: IP20 according to IEC 60529

Mechanical Operating Conditions: IEC/EN 61131-2

EMC: EN 61000-6-4, EN 61000-6-2

Overvoltage Categories: IEC/EN 60664-1, EN 50178

Equipment Class: Class I according to IEC 61140; (earth protected)

RoHS Compliance: DIRECTIVE/2011/65/EN (EN 50581:2012)

WEEE Compliance: DIRECTIVE/2012/19/EU

Use with MTU: TU811, TU813, TU831, TU836, TU837, TU851

Keying Code: AD

Width: 45 mm (1.77”)

Depth: 102 mm (4.01”), 111 mm (4.37”) including connector

Height: 119 mm (4.7”)

Weight: 0.23 kg (0.5 lbs.)
