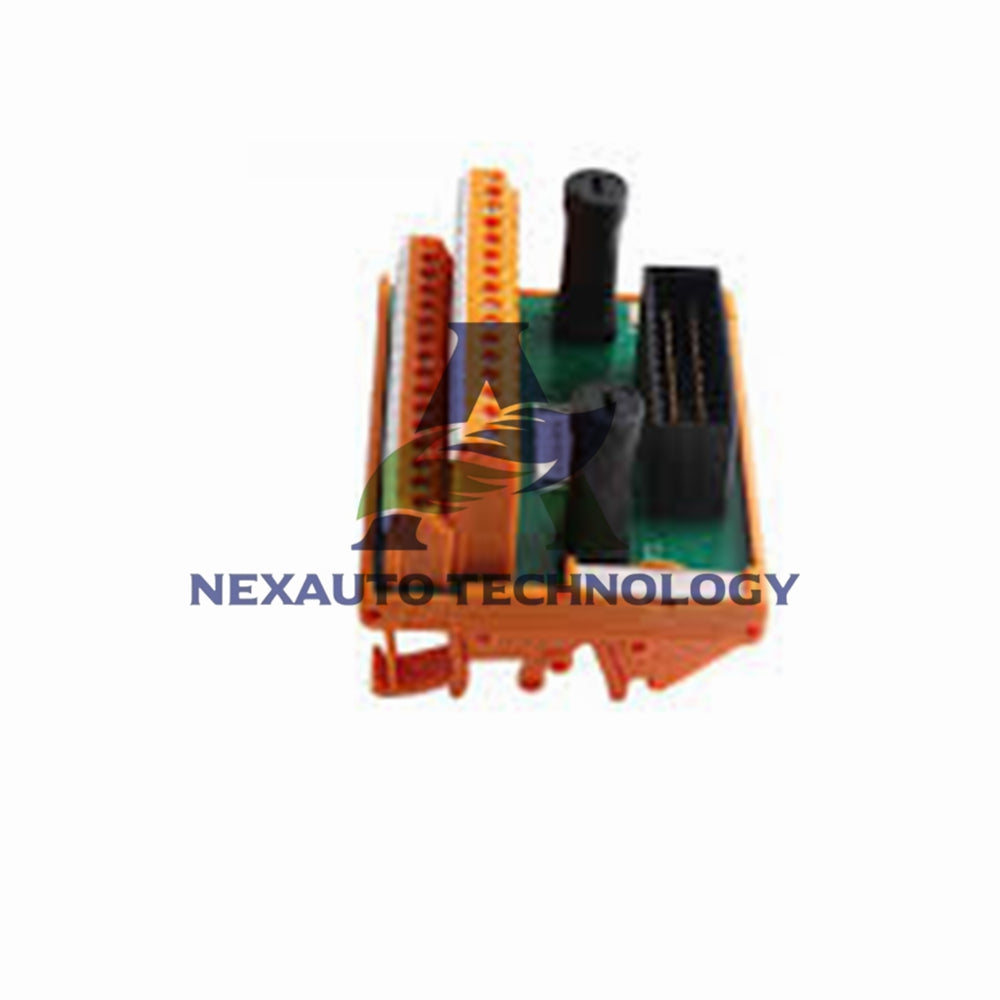

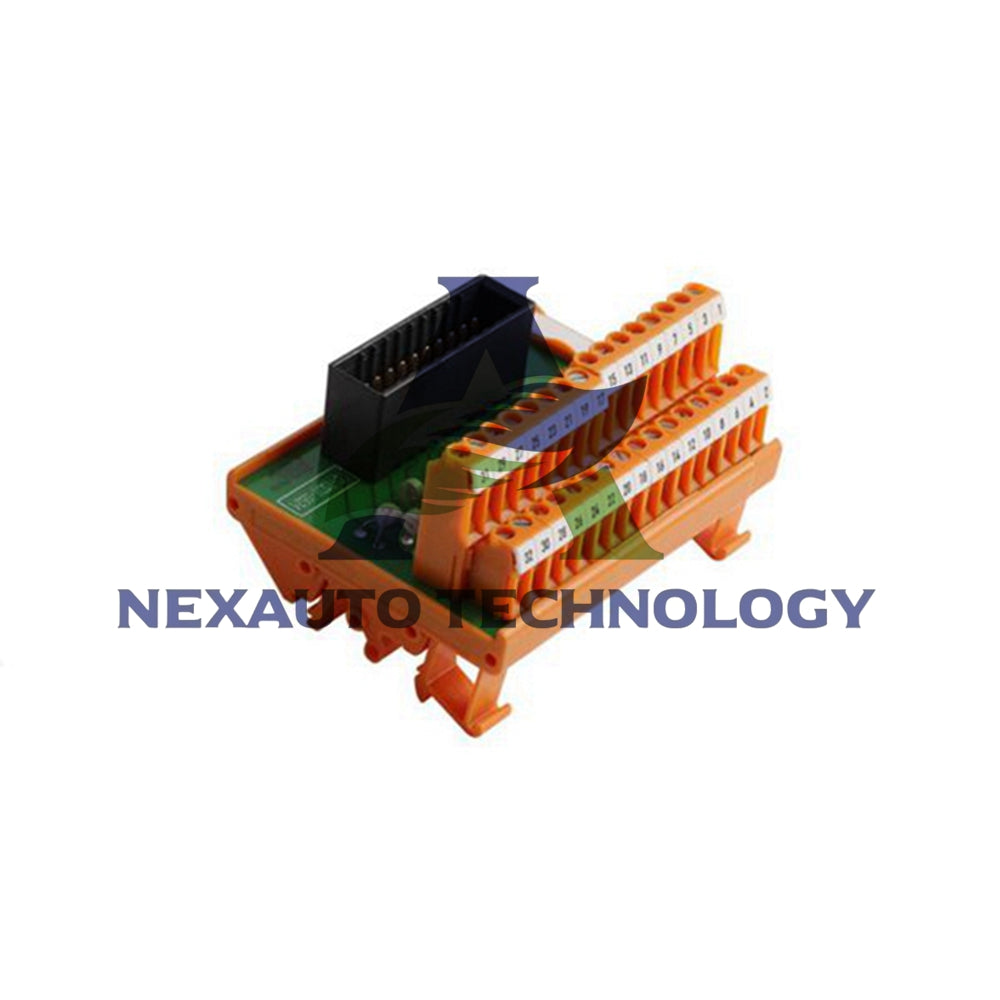

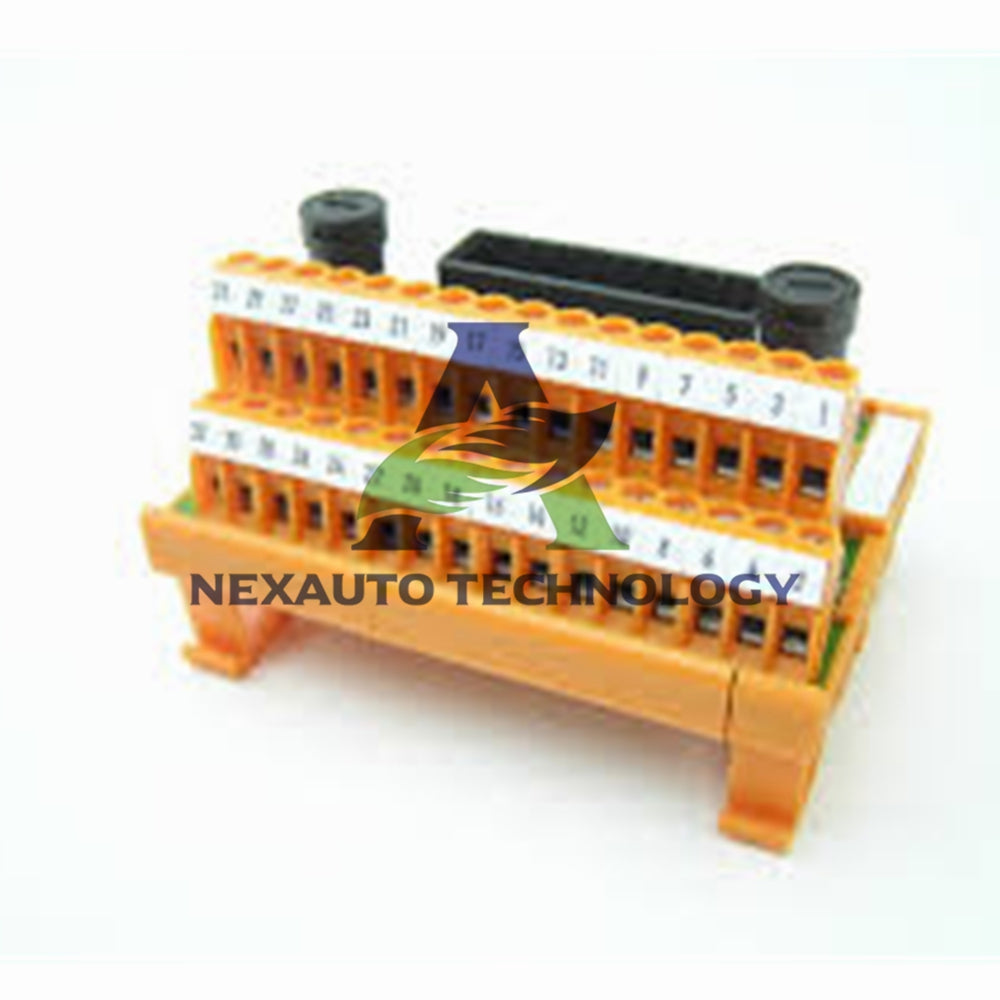

FC-TSAO-0220M FTA Module | Honeywell 4-20mA Output

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (15 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7
  • Vendor:

    Honeywell

  • Type:

    FTA Module

  • Tags Fta module

About the Product

Honeywell TSAO-0220m Safe Analog Output Field Termination Assembly

The FS-TSAO-0220m and FC-TSAO-0220m modules provide reliable interface capabilities for safe analog output signals. These field termination assemblies ensure secure connection between control systems and field devices requiring 0(4)-20mA analog outputs.

Key Features

  • Two safe analog output channels for critical control
  • 0(4)-20mA current output signal capability
  • Universal DIN rail mounting for easy installation
  • Screw terminals for secure field wiring connections
  • Compatible with SAO-0220m output modules
  • Safety-related and non-safety-related application support

Technical Specifications

  • Models: FS-TSAO-0220m, FC-TSAO-0220m
  • Weight:0.3kg
  • Channels: 2 independent analog outputs
  • Signal Type: 0(4)-20mA current output
  • Maximum Voltage: 40V DC protection rating
  • Maximum Current: 25mA per channel capacity
  • Overvoltage Category: 3 (IEC 1010)
  • Safety Rating: Safe analog output capability

TSAOH-0220m Variant Specifications

  • Model: FC-TSAOH-0220m with common 0V
  • Channels: 2 outputs with shared common
  • Dimensions: 64 × 109 × 66 mm larger footprint
  • Rail Length: 65 mm required space
  • Certifications: CE, TUV, UL, CSA approved

System Integration

  • Interfaces with SICC-0001/Lx system cables
  • Connects to SAO-0220m analog output modules
  • Two-channel analog output connectivity
  • Field wiring to control system interface
  • Safety and standard application support

Wiring & Installation

  • Mounting: DIN EN rails TS32/TS35
  • Module Dimensions: 50 × 70 × 48 mm compact size
  • Rail Length: 51 mm required space
  • Terminals: Screw type with 2.5 mm² capacity
  • Strip Length: 7 mm recommended
  • Torque: 0.5 Nm tightening specification

Electrical Safety

  • 40V DC maximum voltage rating
  • Overvoltage category 3 compliance
  • Safe analog output functionality
  • 25mA maximum current per channel
  • Industrial safety standards adherence

Applications

  • Safety instrumented system analog outputs
  • Process control valve positioning
  • Analog actuator control signals
  • Critical control loop outputs
  • Industrial safety system interfaces

Certifications & Compliance

  • CE, TUV, UL, CSA, FM safety certified
  • IEC 1010 standard compliance
  • Safety system compatibility
  • Global market approvals
  • Industrial quality standards
