GE DS200FGPAG1A Gate Pulse Amplifier Board - Mark V Series

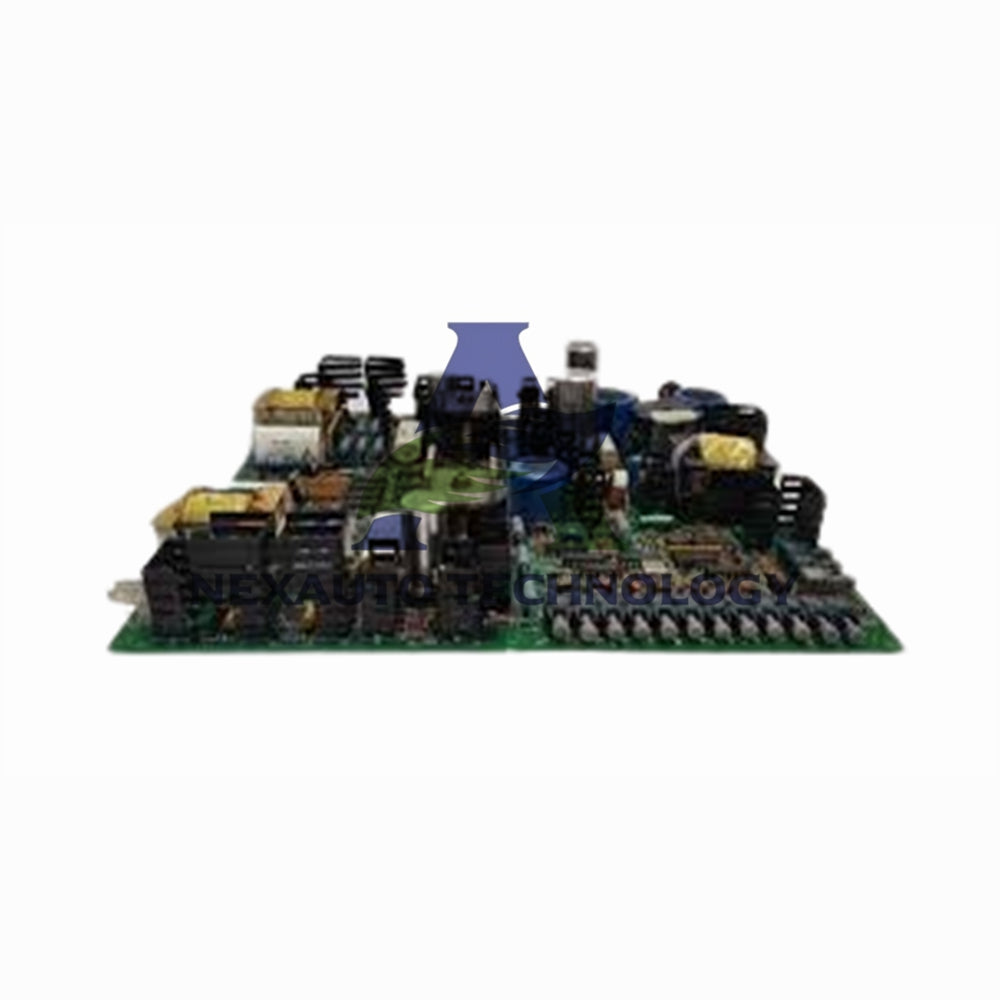

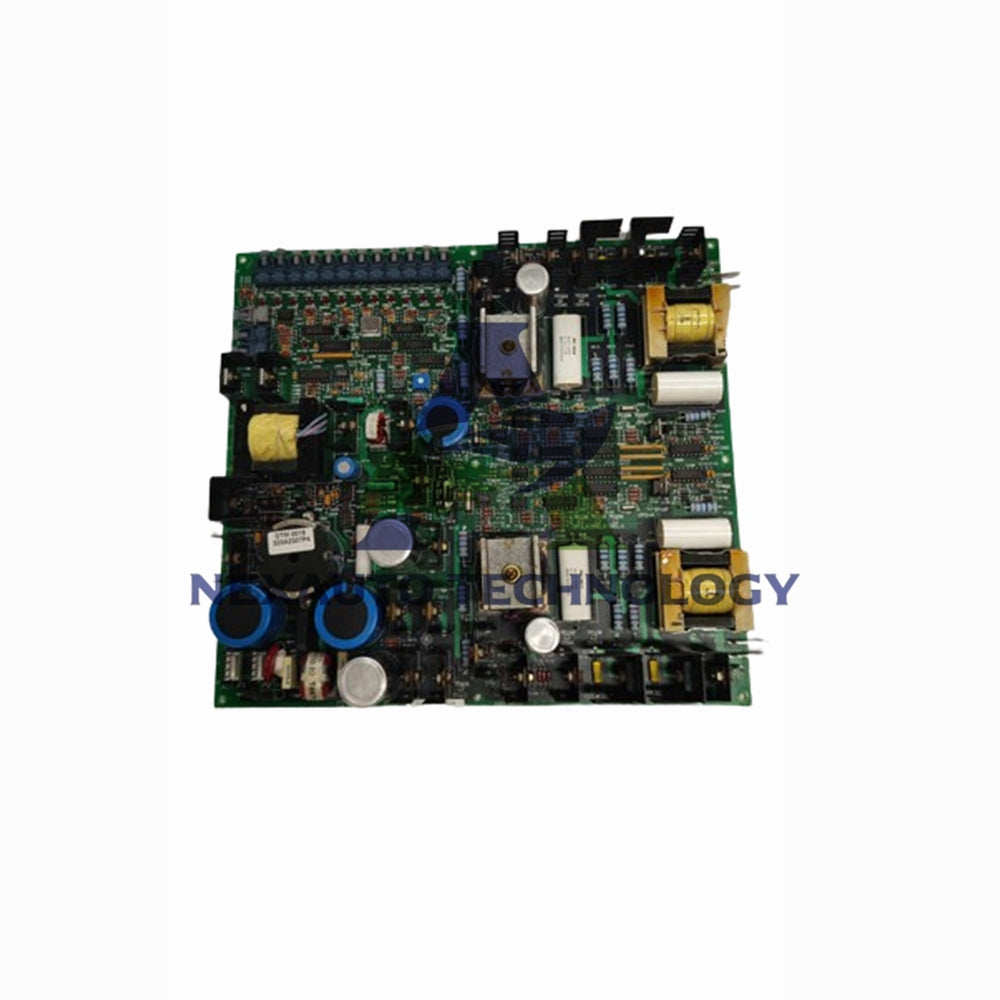

GE DS200FGPAG1A Gate Pulse Amplifier Board

The DS200FGPAG1A serves critical functions in GE Mark V turbine control systems. This gate pulse amplifier board handles SCR monitoring and gate driver operations. It ensures reliable performance in demanding industrial environments.

Technical Specifications

• Manufacturer: General Electric Industrial Systems
• Part Number: DS200FGPAG1A
• Series: Mark V Turbine Control
• Compatible Revisions: DS200FGPAG1AMD, DS200FGPAG1AKD, DS200FGPAG1AHD, DS200FGPAG1AFC
• Test Points: 30 total monitoring points
• Gate Driver Circuits: Two independent circuits
• Input Voltage: 120 VRMs operational
• Maximum Voltage: 350 VA capacity
• Weight:1.5kg
• Fiber-Optic Ports: 15 total connections
• Manual Reference: GEI-100223 documentation
• Converter Supply: 2080 or 3300 VAC

Key Functions

• SCR status monitoring and reporting
• Gate driver circuit operation
• Switching power supply regulation
• Three FPGA control processors
• Phase power delivery management
• Cell voltage data collection
• AC to DC voltage conversion

Communication Features

• One fiber-optic transmitter port
• Fourteen fiber-optic receiver ports
• Duplex network compatibility
• Simplex network support
• Electrical interference immunity
• Extended distance capability
• Repeater expansion possible

Application Systems

• GE Mark V turbine control
• Load Commutated Inverter systems
• Industrial power generation
• SCR bridge control applications
• Three-phase power systems

Installation & Handling

• Proper static electricity protection required
• Store in protective container until installation
• Maintain proper fiber-optic bend radius
• Configure signal power based on cable length
• Qualified technician installation recommended

Frequently Asked Questions

• What systems use this board? GE Mark V turbine control systems.
• How many test points are available? 30 test points total.
• What voltage input does it require? 120 VRMs operational voltage.
• How many fiber-optic ports? 15 total fiber-optic connections.
• Is it backwards compatible? No, not backwards compatible.
• What are the main functions? SCR monitoring, gate driving, power supply.

Shipping & Support

• Immediate shipment available
• Static-protective packaging included
• Global delivery options
• Technical support provided
• Manual documentation available
