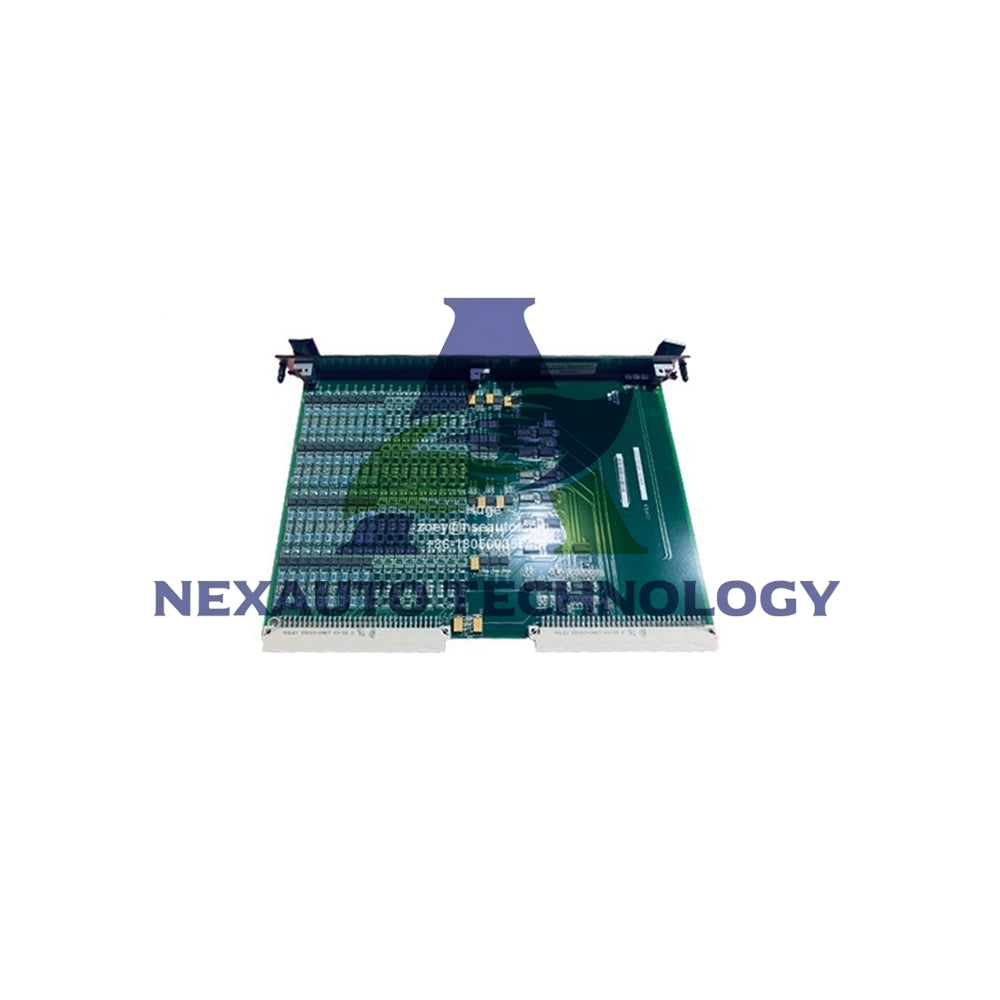

GE IS200ESELH2AAA Exciter Selector Module EX2100

GE IS200ESELH2AAA Exciter Selector Board – EX2100 Series

General Electric IS200ESELH2AAA functions as an Exciter Selector Board (ESEL) within the EX2100 excitation system. This board receives six logic-level gate pulse signals from the EMIO master I/O board. Engineers trust IS200ESELH2AAA for precise pulse distribution and excitation timing control.

Core Technical Specifications

• Brand: General Electric (GE)
• Model: IS200ESELH2AAA
• Series: EX2100 Excitation Control
• Functional Acronym: ESEL
• Product Type: Exciter Selector Board
• Number of Bridge Drivers: 1
• ESEL Boards for Redundant Controls: 2
• Gate Pulse Inputs: 6 logic-level signals from EMIO
• Status Indicators: 3 green LEDs (Power, Active, Gating)
• Backplane Connectors: P1 and P2 VME interface
• PCB Coating: Conformal coating
• Functional Revision: 1A, 2A
• Artwork Revision: A
• Country of Origin: United States (USA)

Gate Pulse Distribution Architecture

• Receives six logic-level gate pulse signals from EMIO board. These signals dictate excitation timing and sequencing.
• Drives up to six cables to corresponding EGPA boards. EGPA amplifiers boost signals for IGBT gate control.
• ESEL and EGPA coordination ensures pulse strength adequacy. Amplified signals maintain precise excitation control.
• Communication between boards acts as failsafe mechanism. Quickly addresses pulse timing or strength issues.
• Precise pulse distribution prevents voltage instability. Eliminates reactive power imbalances and over-excitation.

Redundant and Simplex Configurations

• Simplex systems require one IS200ESELH2AAA board. Sufficient for single-controller excitation applications.
• Redundant controls require two ESEL boards. One driven by M1 controller, the other by M2 controller.
• C controller selects active ESEL board. Transmits control signals to corresponding EGPA boards.
• Seamless switchover between redundant boards. Maintains excitation control during controller failover.
• H2 series grouping tag identifies conformal coating. Three bridge drivers total in board assembly.

Status Monitoring and Diagnostics

• Three green LEDs on front panel provide operational status. Located at top of faceplate for easy viewing.
• Power LED illuminates when board receives supply voltage. Confirms basic power availability.
• Active LED indicates board enabled by Control C signal. Verifies controller selection and enable state.
• Gating LED shows board in active gating mode. Driven by gate inputs from EMIO board.
• No jumpers or test points simplify board design. Eliminates manual adjustments and field calibration.

Backplane Integration

• P1 and P2 connectors interface with VME backplane. Secure mounting within EX2100 control rack.
• Individual pin signals not referenced for routine troubleshooting. Board-level replacement is standard maintenance procedure.
• Conformal coating protects against moisture and contamination. Extends service life in power generation environments.
• IS200 series tag confirms domestic USA manufacture. No special assembly version required.
• Three A-rated revisions indicate mature product. Field-proven reliability across global installations.

Excitation Performance Optimization

• Controls DC supply to generator rotor for magnetic field production. Directly impacts stator voltage induction.
• Precise pulse timing maintains voltage stability. Prevents fluctuations and reactive power imbalances.
• Optimizes excitation system within designed parameters. Ensures consistent and reliable power output.
• Facilitates seamless mechanical-to-electrical power conversion. Maintains grid-compliant power quality.
• Delays or errors in pulse transmission eliminated. Direct path from EMIO to EGPA through ESEL.

Offline Replacement Procedure

• De-energize exciter completely before beginning replacement. Verify EPDM and EPSM power indicators are off.
• Confirm all three board LEDs are extinguished. Ensure zero power state before handling.
• Loosen captive screws at top and bottom of faceplate. Screws remain attached; do not remove.
• Raise ejector tabs to unseat board from backplane. Use both hands to gently pull board from rack.
• Slide replacement board into correct rack slot. Press firmly with thumbs on top and bottom simultaneously.
• Start and alternately tighten top and bottom screws. Even tightening ensures square seating.

Packaging and Delivery

• Each IS200ESELH2AAA ships in anti-static shielded packaging. ESD foam protects all connectors and components.
• Package includes one GE ESEL printed circuit board. No cables, mounting hardware, or software included.
• Direct drop-in replacement for existing ESEL modules. Identical form factor and backplane pinout.
• We ship via FedEx, UPS, or DHL. Tracking information provided within 24 hours of dispatch.
• International export packaging available. Double-boxed with moisture barrier for air freight.

Contact Information

• Email inquiries: sales@nex-auto.com
• WhatsApp support: +86 153 9242 9628
• Response time: Same business day for all technical and commercial questions.

Frequently Asked Questions

Q: What is the difference between IS200ESELH2AAA and IS200ESELH2?
A: IS200ESELH2AAA includes three A-rated functional revisions. It is the mature, field-proven version of the parent ESELH2 board.

Q: How many ESEL boards do I need for redundant EX2100?
A: Redundant configurations require two IS200ESELH2AAA boards. One connects to M1 controller, the other to M2 controller.

Q: What do the three green LEDs indicate?
A: Power (supply voltage present), Active (board enabled by Control C), and Gating (gate inputs received from EMIO).

Q: Can I replace this board while the system is running?
A: No. You must completely de-energize the exciter and verify all power indicators and board LEDs are off.

Q: What boards interface with the ESEL?
A: ESEL receives gate pulses from EMIO and drives up to six EGPA gate pulse amplifier boards in the power conversion cabinet.

Q: What is the typical lead time for IS200ESELH2AAA?
A: In-stock orders ship within 48 hours. Volume orders typically ship within 5 business days.
