GE IS200WETAH1A Mark VIe Turbine Interface Board

GE IS200WETAH1A Mark VIe Interface Board

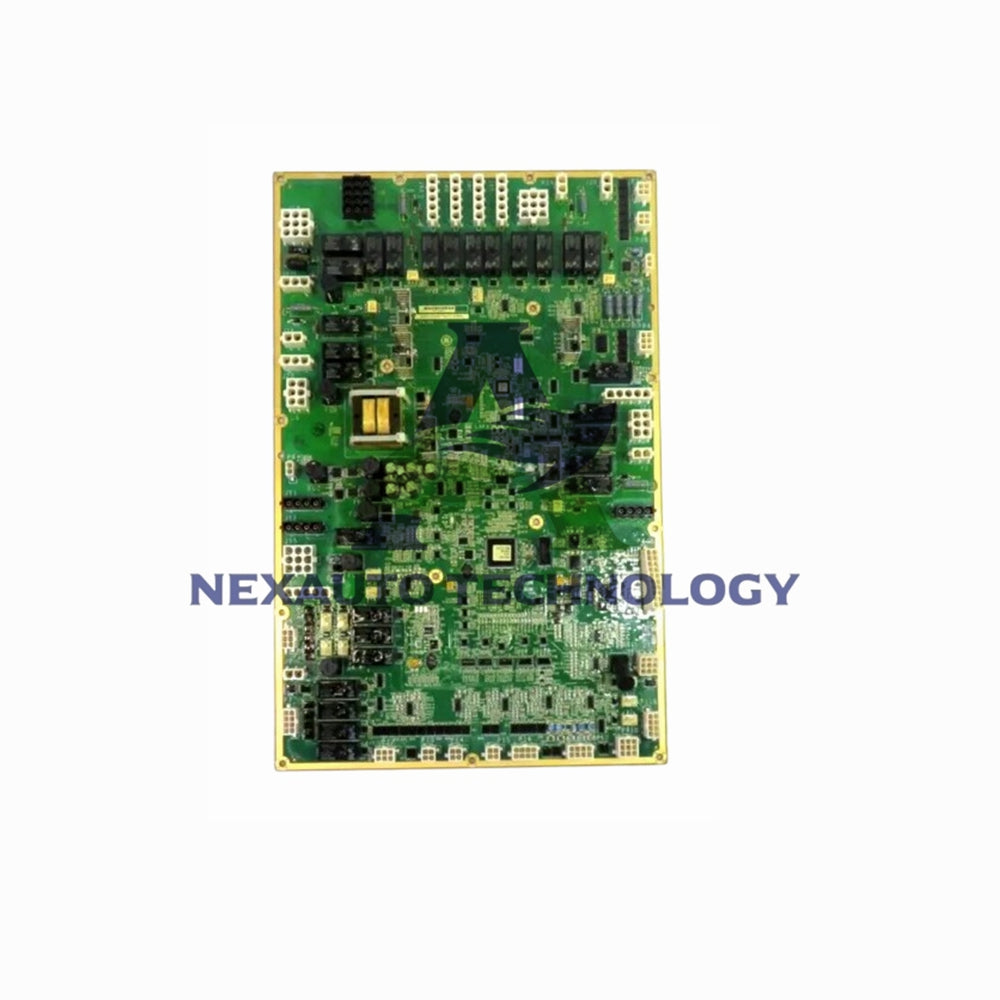

The IS200WETAH1A (also referenced as IS200WETAH1AAA) is a critical circuit board from GE's Mark VIe turbine control system. This board is engineered primarily for wind energy applications, providing essential interface and control functions within the broader management system.

Technical Overview

• Brand & Model: General Electric (GE) IS200WETAH1A / IS200WETAH1AAA
• System Platform: Part of the GE Mark VIe Turbine Control System
• Primary Application: Wind Turbine Management and Control
• Secondary Applications: Also used in gas & oil, hydro, thermal, and nuclear facilities
• Key Feature: Integrates with programmable software tools for maintenance and diagnostics

Board Design & Physical Layout

• Construction: Standard printed circuit board (PCB) with an exposed copper strip and factory-drilled holes on all edges
• Auxiliary Board: Includes an attached auxiliary board labeled IS210BPPBH2C
• Mounting: Designed for secure installation within Mark VIe system racks

Major Components & Count

• Fuses: 7 protective fuses mounted on the surface
• Transformers: 4 transformers for voltage conversion/isolation
• Test Points (TP): 25 test points for diagnostics and servicing
• Terminal Strips: 6 strips for external wiring connections
• Voltage Regulators: Over 100 voltage regulators arranged in parallel lines along three board edges
• Connectors: More than 45 plugs and connectors, including a vertical male pin connector

Component Types & Functions

• Passive Components: Coil inductors, capacitors, and resistors
• Active Components: Integrated circuits (ICs) and diodes
• Control Elements: Relay components and jumper switches for configuration
• Connector Types: Plug connectors ranging from 2-position to 20-position
• Special Connectors: P4 and P5 connectors implemented as conductive dots/traces; multi-part connectors (e.g., P29A/B/C)
• Voltage Regulation: Regulators maintain constant output voltage via feedback loops, adapting to load and input changes

System Integration & Role

• Serves as a key interface board within the Mark VIe control architecture
• Facilitates communication and signal conditioning between the turbine and the main controller
• The integrated Mark VIe system provides advanced diagnostics, limit checking, and maintenance capabilities
• Works in conjunction with the auxiliary board (IS210BPPBH2C) for expanded functionality

Typical Applications

• Primary: Control and monitoring of wind turbine generators
• Other Energy Sectors: Gas turbine control, hydroelectric plant control, thermal power management
• Industrial automation requiring robust, programmable turbine control

Packaging & Shipping

• The IS200WETAH1A board is shipped as a single unit.
• Handled with ESD-safe packaging to prevent electrostatic damage.
• Worldwide express shipping via FedEx, UPS, and DHL available.

Frequently Asked Questions (FAQ)

• What is the Mark VIe system? It is GE's advanced turbine control and management platform used across multiple energy industries.
• What is the main purpose of this board? It acts as a critical interface and signal conditioning module within the turbine control system, especially for wind energy applications.
• What does the auxiliary board do? The attached IS210BPPBH2C board provides additional functionality; it is listed and described separately.
• Why are there so many voltage regulators? They ensure stable, clean power delivery to various sections of the board, which is critical for reliable operation in electrically noisy industrial environments.
• Are the fuses user-replaceable? Typically, yes, but replacement should be performed by qualified personnel following proper procedures.
• How do I know if my board is faulty? Use the built-in diagnostic tools of the Mark VIe system and check the 25 test points (TP) for signal integrity.
• Can this board be used outside of wind turbines? Yes, while common in wind, the Mark VIe system and its boards are also deployed in gas, hydro, and thermal power applications.
