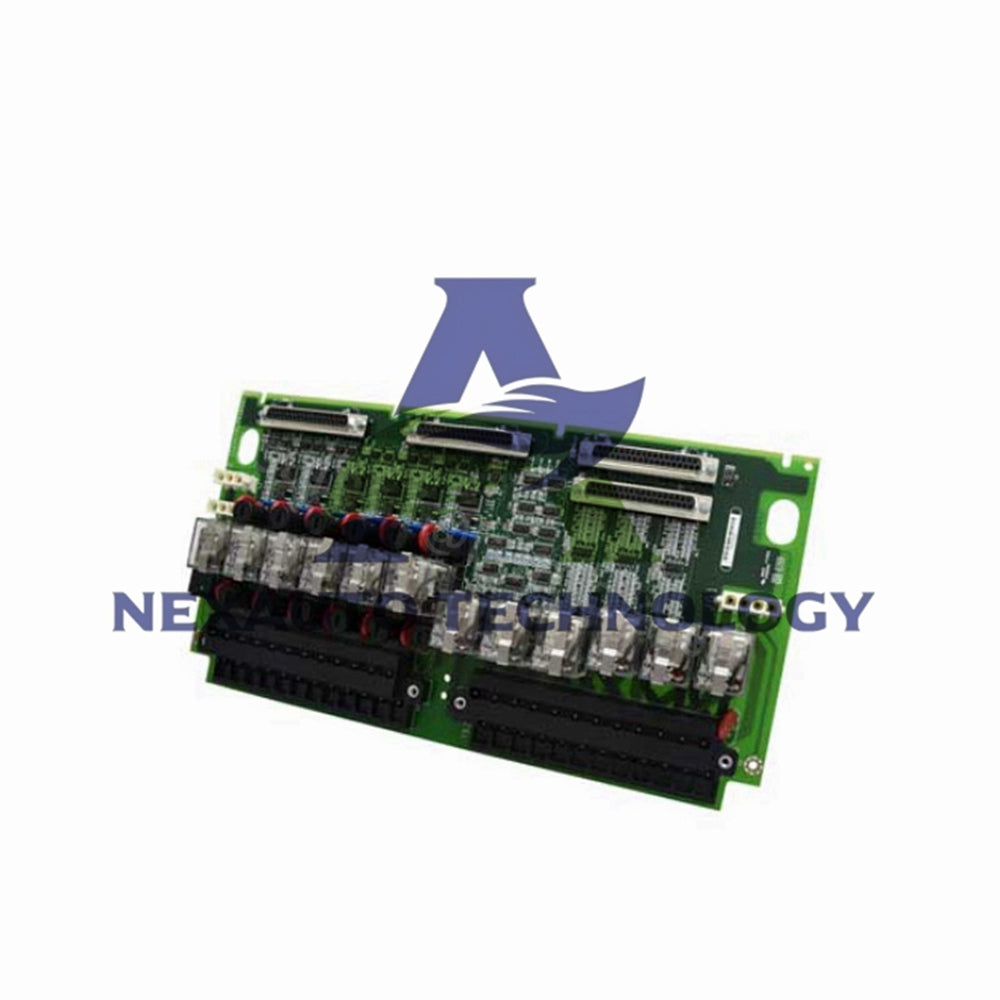

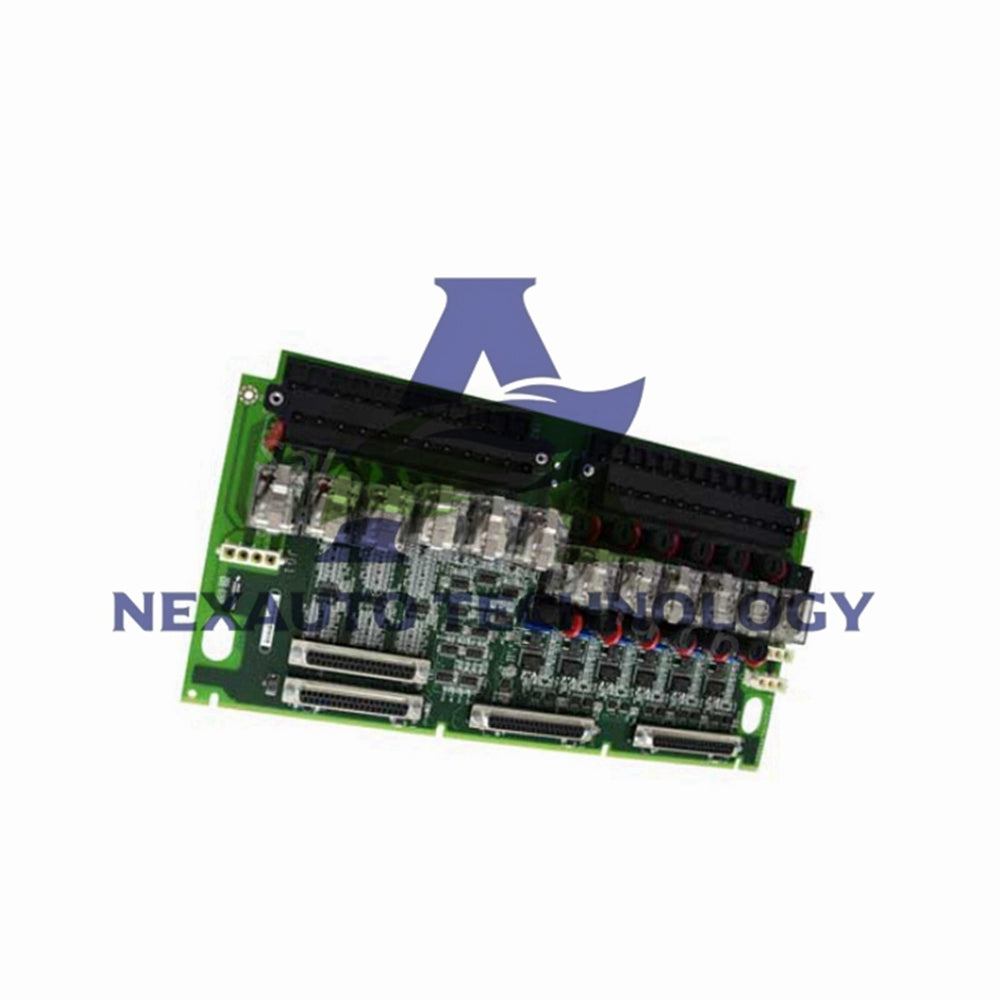

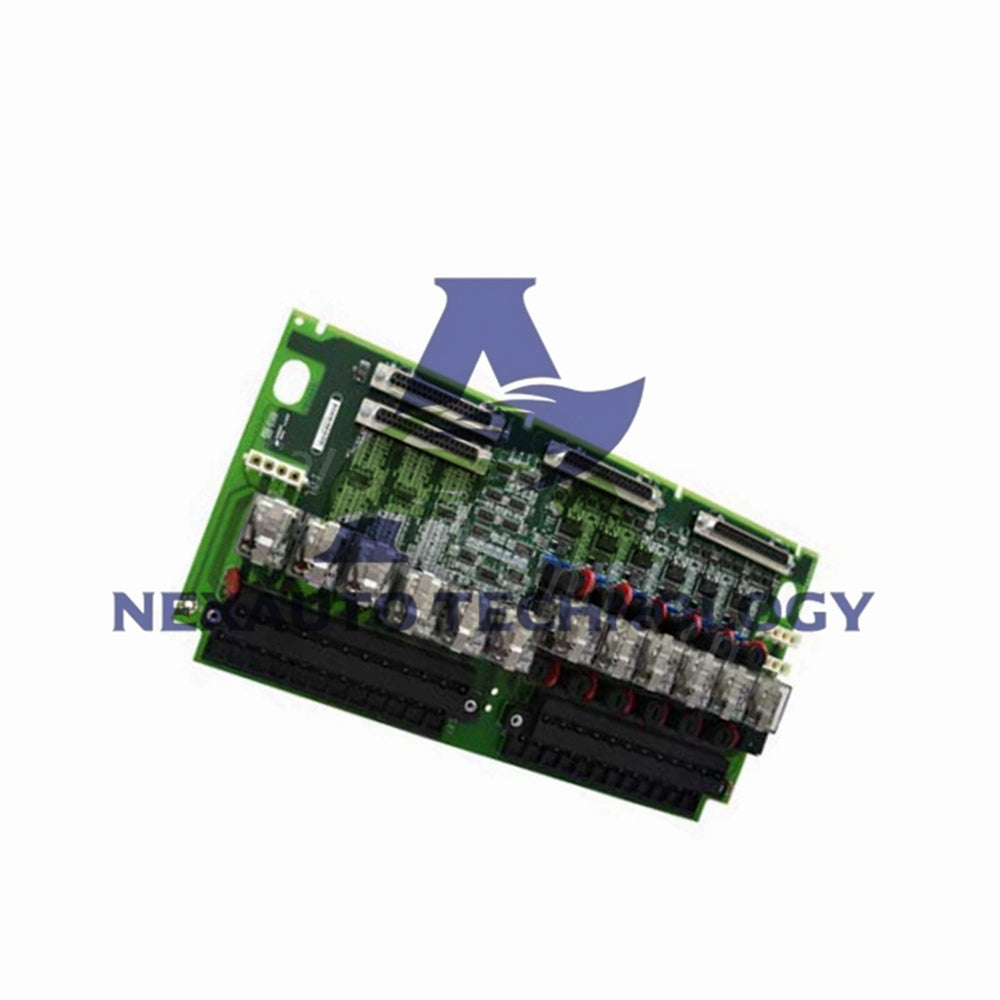

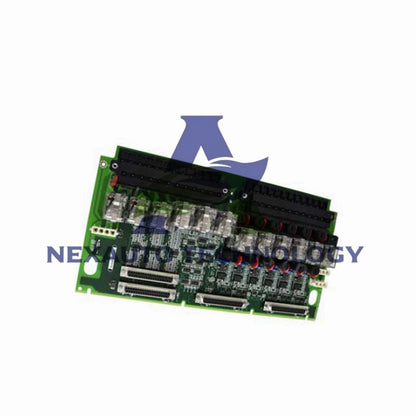

General Electric TRLY Relay Output Board IS200TRLYH1BED

Configurable Relay Control for Industrial Systems

General Electric designed the IS200TRLYH1BED for flexible control applications. This Relay Output Board operates within Mark VIe control systems. It provides versatile relay outputs with multiple configuration options for industrial automation.

Core Technical Specifications

• Manufacturer & Model: General Electric IS200TRLYH1BED
• Product Type: Relay Output Board
• Series: Mark VIe Control System
• Relay Channels: 12 plug-in magnetic relays
• Dimensions: 17.8 × 33.02 cm (7.0 × 13.0 inches)
• Operating Temperature: 30°C to 65°C
• Manufacturing Origin: United States

Relay Configuration Options

• Relays 1-6: Configurable as dry contacts or solenoid drivers
• Relays 7-11: Dry contact outputs only
• Relay 12: 7A rated relay for higher current applications
• Jumper-configurable for various output requirements
• Form-C contact configuration for reliable switching
• Flexible adaptation to specific application needs

Power Source Specifications

• DC Voltages: 125V DC or 24V DC nominal operation
• AC Voltages: 115/230V AC 50/60Hz compatibility
• Individual jumper-selectable fuses for each circuit
• Optional 24V DC source for specific applications
• Standard 125V DC or 115/230V AC power options
• Flexible power supply selection based on requirements

Electrical Performance Ratings

• 125V DC Operation: 0.6A maximum load current
• 24V DC Operation: 3.0A maximum load current
• 115/230V AC Operation: 3.0A maximum load current
• Response Time: 25ms maximum on/off switching
• Inrush Current: 10A maximum surge handling
• Onboard suppression for electrical disturbance protection

Protection & Safety Features

• Individual fuses for each relay circuit protection
• Onboard suppression components for voltage spikes
• Electrical noise mitigation for stable operation
• Safeguards connected relays from disturbances
• Enhanced reliability in challenging environments
• Built-in safety mechanisms for system protection

Application Flexibility

• Dry contact outputs for general switching applications
• Solenoid driver capability for actuator and valve control
• Higher current relay for demanding load requirements
• Multiple voltage support for various field devices
• Customizable configuration for specific needs
• Adaptable to diverse industrial control tasks

Installation & Integration

• Designed for seamless integration into Mark VIe systems
• Standard mounting and connection interfaces
• Easy configuration through jumper settings
• Compatible with existing control system infrastructure
• Simplified wiring and setup procedures
• Comprehensive documentation for installation guidance

Reliability & Performance

• Plug-in magnetic relays for reliable operation
• Swift 25ms response time for timely control
• Robust construction for industrial environments
• Voltage spike protection for extended lifespan
• Consistent performance under varying load conditions
• Designed for continuous operation in automation systems

Product Availability

• Current Status: In stock for immediate shipment
• New and original General Electric component
• Complete with all necessary hardware
• Includes jumpers and configuration accessories
• Ready for system integration and commissioning
• Manufactured to industrial quality standards

Shipping & Delivery

• Fast shipping via FedEx, UPS, and DHL services
• Orders typically ship within 24 business hours
• International shipping available worldwide
• Complete tracking information provided
• Professional packaging ensures component protection

Configuration Guidance

• Set jumpers based on desired relay functionality
• Select appropriate power source for application needs
• Configure relays as dry contacts or solenoid drivers
• Install individual fuses for circuit protection
• Verify proper voltage ratings for connected devices
• Test all relay operations before system commissioning

Frequently Asked Questions (FAQ)

How many relay channels does this board provide?

• The IS200TRLYH1BED provides 12 configurable plug-in magnetic relay channels.

What are the configuration options for relays 1-6?

• Relays 1-6 can be jumper-configured as dry contacts or solenoid drivers with multiple voltage options.

What power voltages are supported?

• Supports 125V DC, 24V DC, and 115/230V AC power sources for flexible application.

What is the maximum load current rating?

• Maximum load current varies: 0.6A at 125V DC, 3.0A at 24V DC, and 3.0A at 115/230V AC.

What protection features are included?

• Includes individual fuses, onboard suppression, and voltage spike protection for reliable operation.

What is the relay response time?

• Maximum response time is 25ms for both on and off switching operations.
