Honeywell Digital Output Module - FC-SDOL-0424

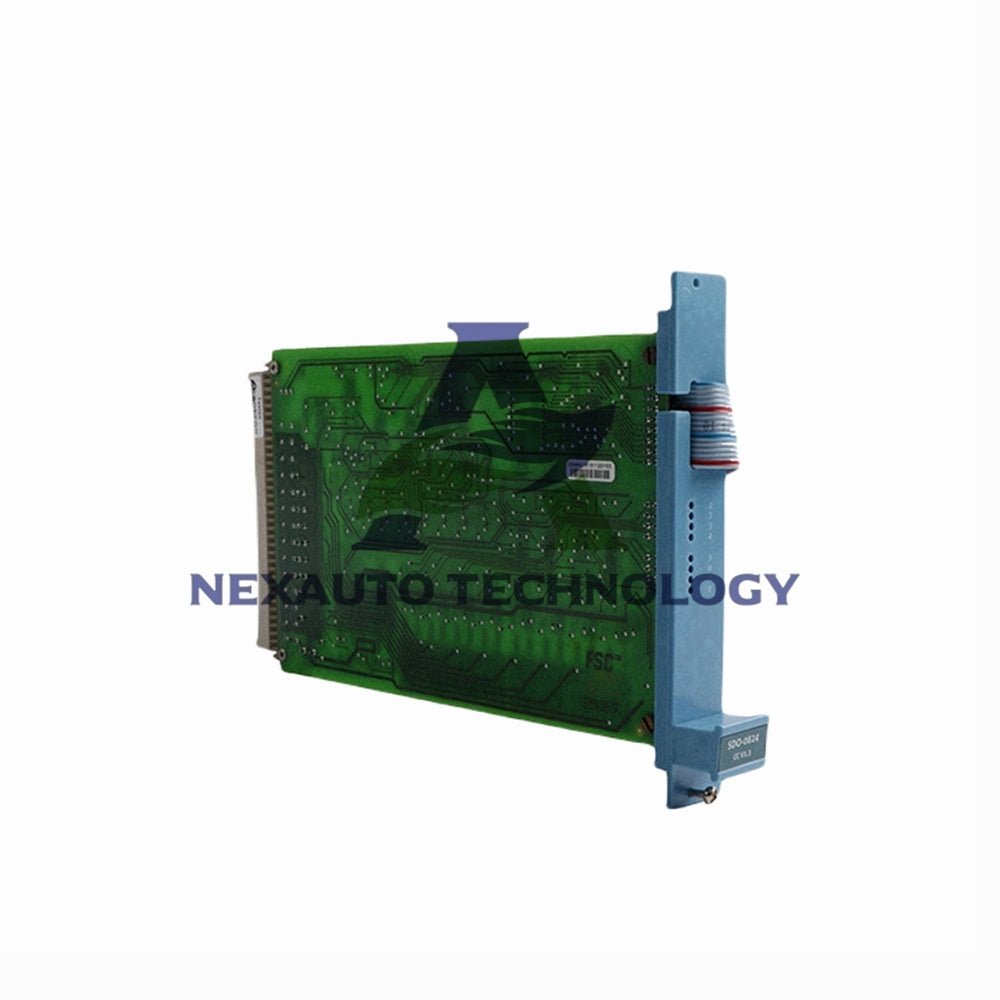

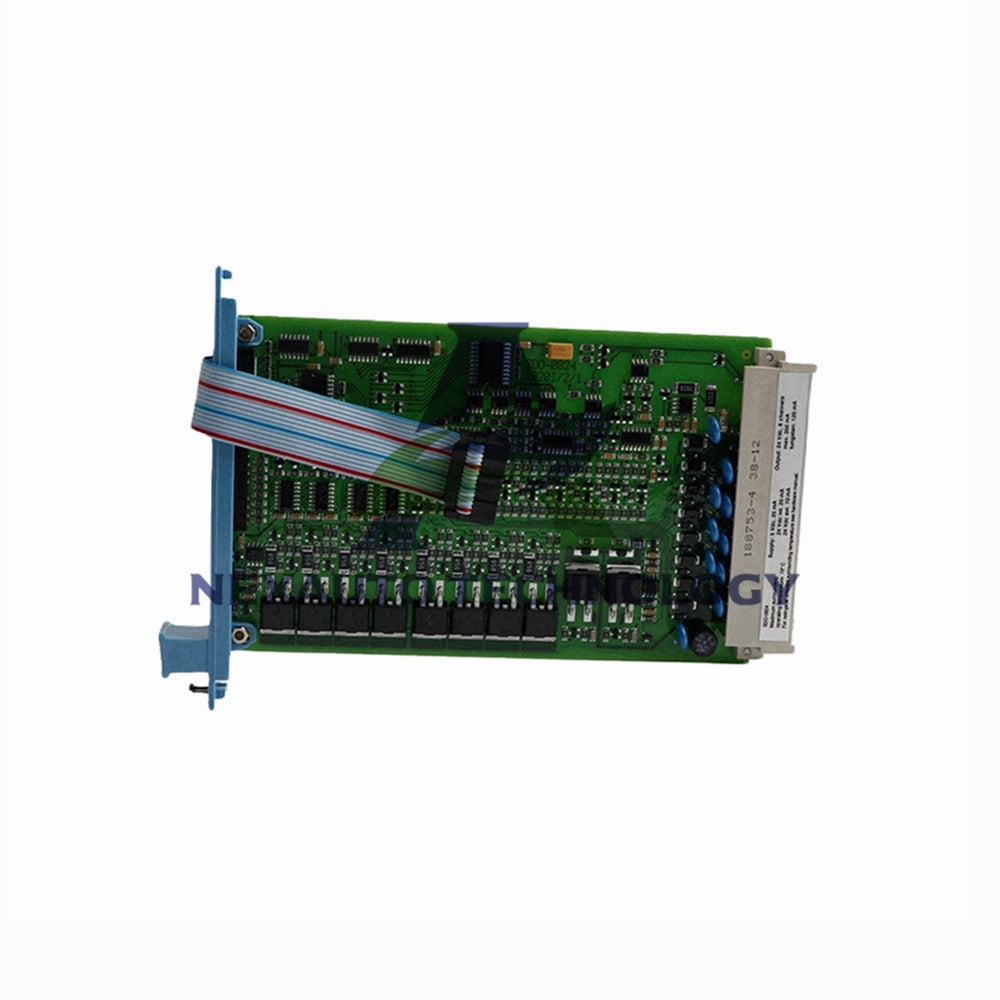

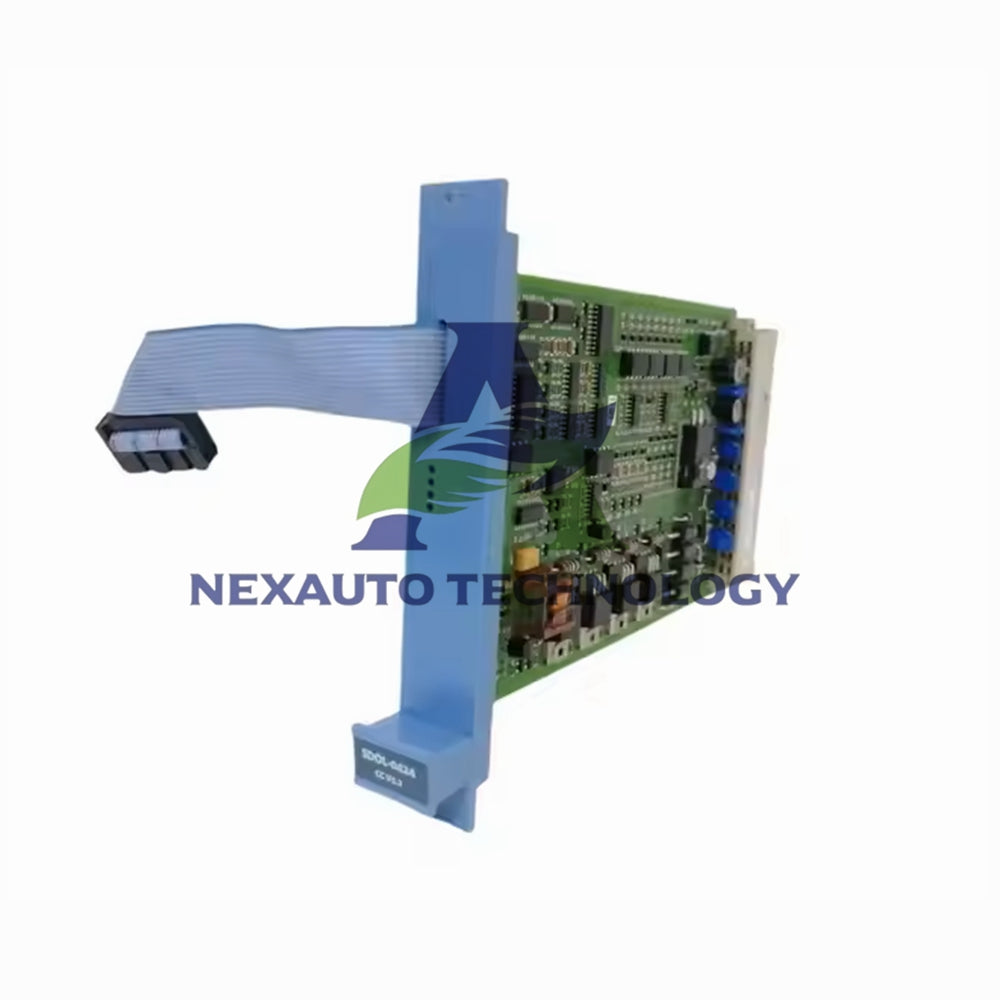

Honeywell FC-SDOL-0424 Digital Output Module

Key Technical Specifications

Output Channels: 4 digital outputs

Output Type: Solid state switching

Output Current: 2A per channel

Voltage Rating: 24V DC operating

Load Type: Resistive and inductive loads

Switching Frequency: 100Hz maximum

Isolation: 1500V AC channel to bus

Weight:2kg

Electrical Characteristics

Operating Voltage: 24V DC ±20%

Power Consumption: 1.5W typical

Output Voltage Drop: 1.5V maximum

Leakage Current: 0.5mA maximum

Surge Current: 5A for 100ms

Short Circuit Protection: Yes

Overload Protection: Electronic current limiting

Performance Data

Response Time: 1ms on / 2ms off

Output Delay: 0.5ms typical

Load Compatibility: DC loads only

Max Cable Length: 100 meters

Dielectric Strength: 1500V AC for 1 minute

Insulation Resistance: 100MOhm at 500V DC

Environmental Specifications

Operating Temperature: -25°C to +70°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% non-condensing

Vibration Resistance: 2g @ 10-500Hz

Shock Resistance: 15g for 11ms

Protection Class: IP20

Pollution Degree: 2

Connection Details

Terminal Type: Spring clamp

Wire Size: 0.2 to 2.5mm²

Package Contents

One FC-SDOL-0424 output module

Installation manual

Technical documentation

Shipping & Support

In stock for immediate delivery

Worldwide shipping via FedEx, UPS, DHL

12-month manufacturer warranty

24/7 technical support available
