About the Product

FANWR-24R 24V DC Industrial Cooling Fan Unit

The FS-FANWR-24R delivers reliable cooling with dual-fan design and advanced monitoring features. This industrial-grade fan unit ensures optimal thermal management for critical applications.

Product Overview

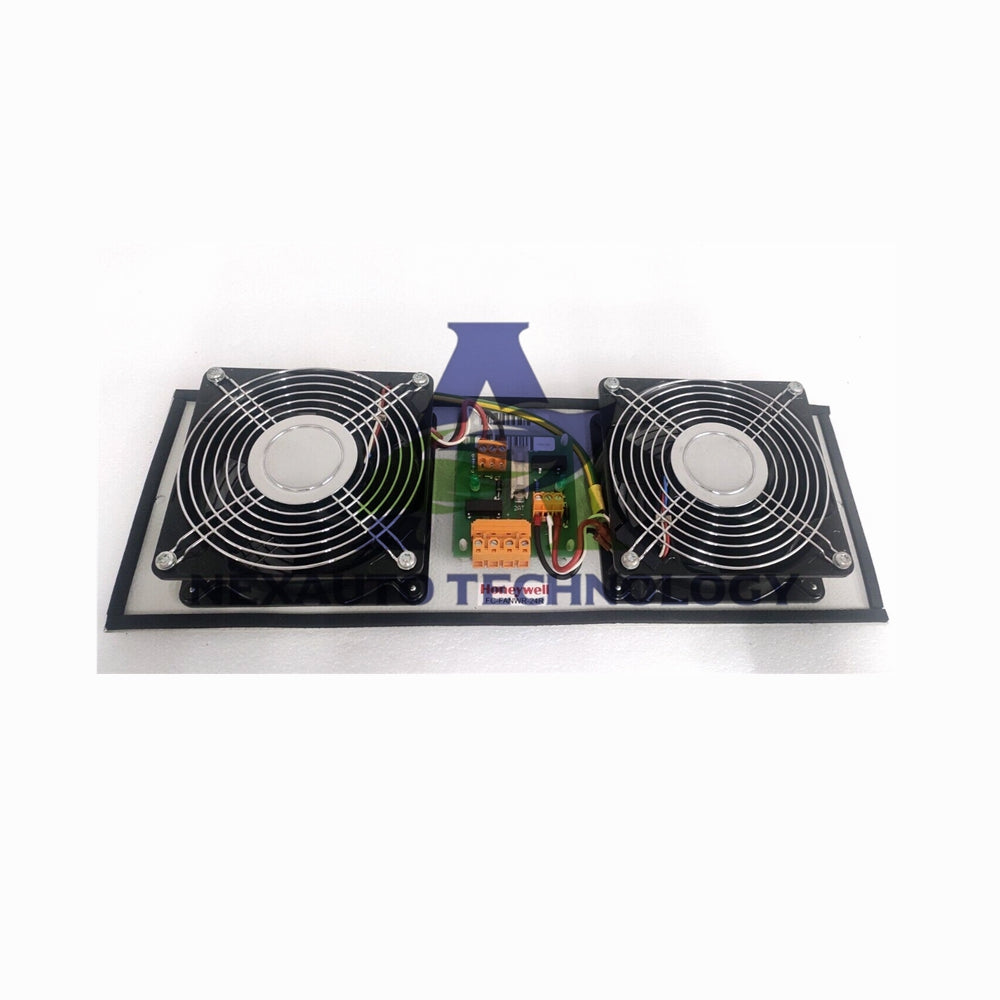

  • Complete cooling system with two fans and control PCB
  • Easy installation with 4-pole connector for power and monitoring
  • Safety finger guards protect both fan sides from accidental contact
  • Clear airflow direction indicators for proper system integration

Technical Specifications

  • Model: FS-FANWR-24R
  • Voltage: 24V DC (12-29V DC range)
  • Power Consumption: 9.5W maximum
  • Air Flow: 360 m³/hr (211.8 CFM) total capacity
  • Noise Level: 52 dB during operation
  • Fan Speed: 3,200 RPM nominal operation
  • Temperature Range: -30°C to +75°C operating
  • IP Rating: IP20 protection level

Component Details

  • Fans: Papst 4184N/17X with ball bearing construction
  • Finger Guards: Papst LZ30 safety models
  • PCB: 07209 control board with status monitoring
  • Connector: 4-pole terminal for quick installation

Performance Features

  • Green LED indicators show normal fan operation above 1,500 RPM
  • Readback contact closes when both fans exceed minimum speed
  • No reverse polarity protection - ensure correct wiring
  • Life expectancy: 85,000 hours at 40°C ambient temperature

Physical Dimensions

  • Size: 391 × 142 × 51 mm (L × W × D)
  • Weight: 1.7 kg complete unit
  • Compact design for space-constrained installations

Electrical Ratings

  • Readback Contact Voltage: 300V DC / 240V AC maximum
  • Readback Contact Current: 0.5A maximum switching
  • Contact Power Rating: 10W maximum capacity
  • 7mm wire stripping length for proper connections

Certifications & Support

  • CE, UL, and FM approved for industrial use
  • Global shipping via FedEx, UPS, and DHL carriers
  • Professional packaging ensures secure delivery
