Basic Specifications

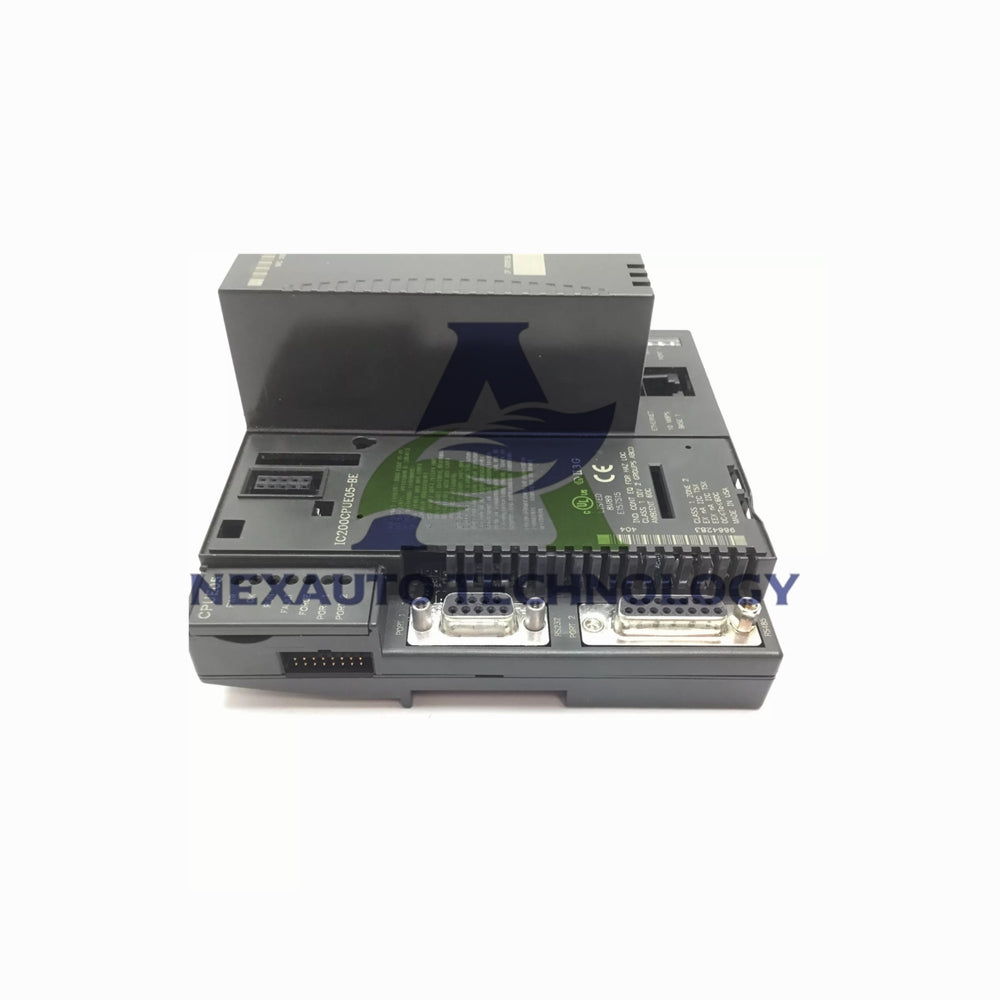

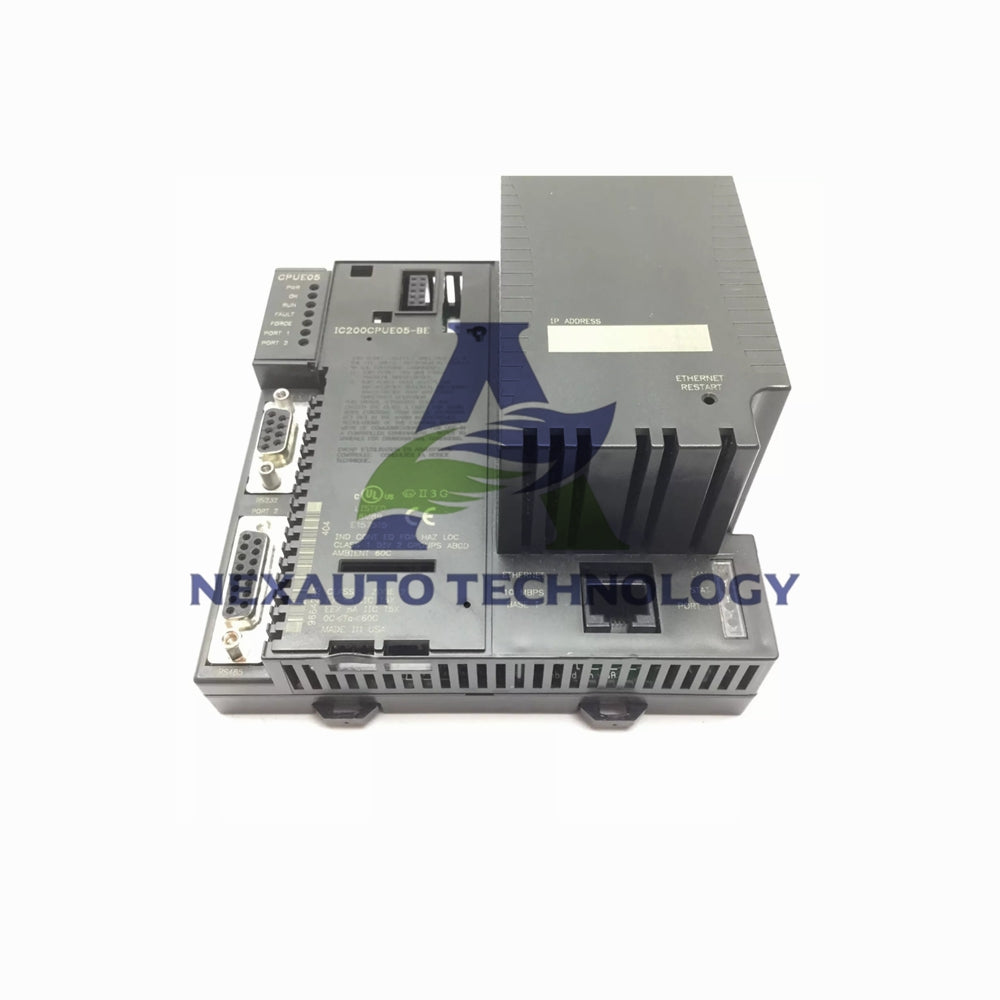

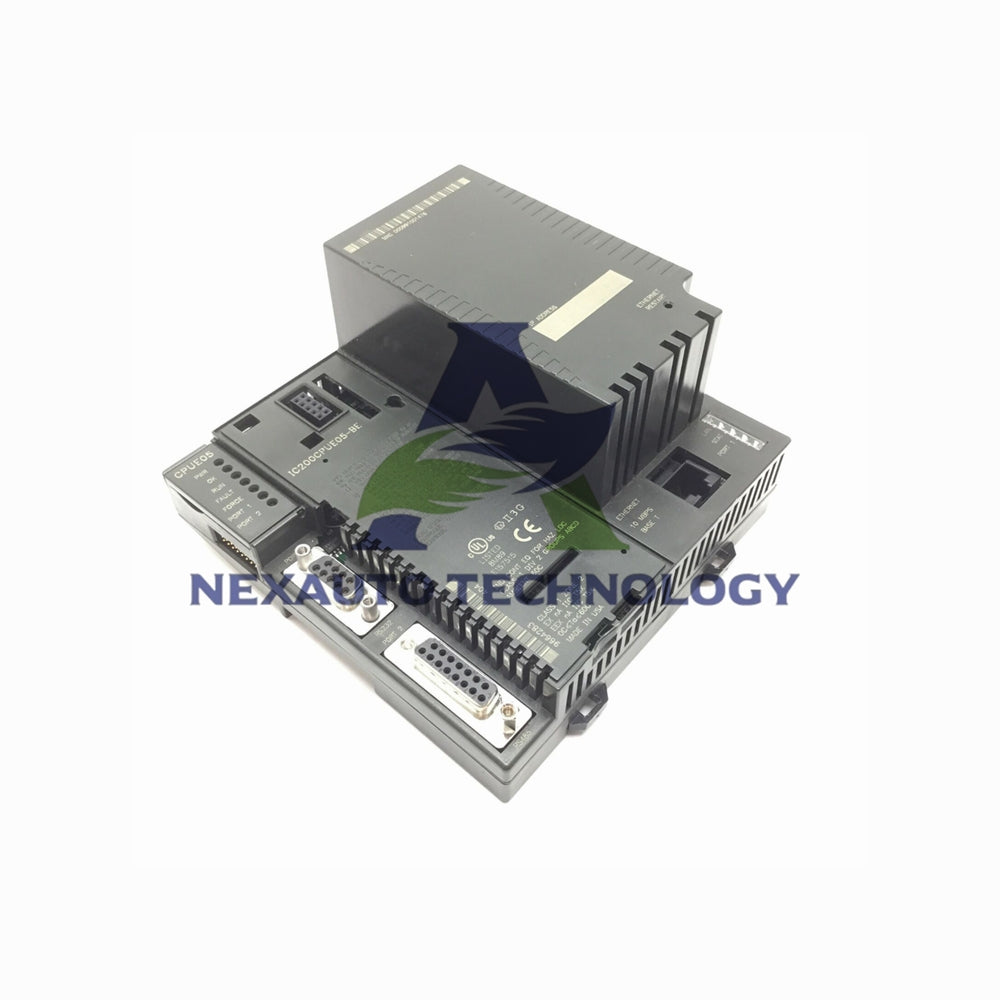

Model Number: IC200CPUE05

Dimensions:

• Width: 4.95” (126mm) along DIN rail
• Length: 5.04” (128mm)
• Depth: 2.72” (69.1mm)

Weight: 0.266 kg

Power and Performance

Power Supply Current Consumption:

• 5V DC without serial port converter: 220 mA
• 3.3V DC without serial port converter: 570 mA
• 5V DC with serial port converter: 320 mA

Program Storage: System flash, battery-backed RAM

Floating Point Support: Yes

Boolean Execution Speed: 0.8 ms/K (typical)

Timing and Accuracy

Real-Time Clock Accuracy: 100 ppm (0.01%) or ±9 sec/day

Time of Day Clock Accuracy:

• 23 ppm (0.0023%) or ±2 sec/day @ 30°C
• 100 ppm (0.01%) or ±9 sec/day @ full temperature range

Embedded Communications

Communications Interfaces: RS-232, RS-485, Ethernet

Configurable Memory: Up to 128K bytes maximum

Ethernet Specifications:

• Data Rate: 10 Mbps (half- or full-duplex)
• Port Type: RJ-45, UTP
• SRTP Server Connections: Up to 8
• EGD Configuration-Based Exchanges: Up to 32
• EGD Exchange Limits: 100 data ranges per exchange, 1400 bytes of data per exchange
• EGD Selective Consumption: Supported
• Remote Station Manager: Over UDP
