IC670CHS002 GE Fanuc - Terminal Block

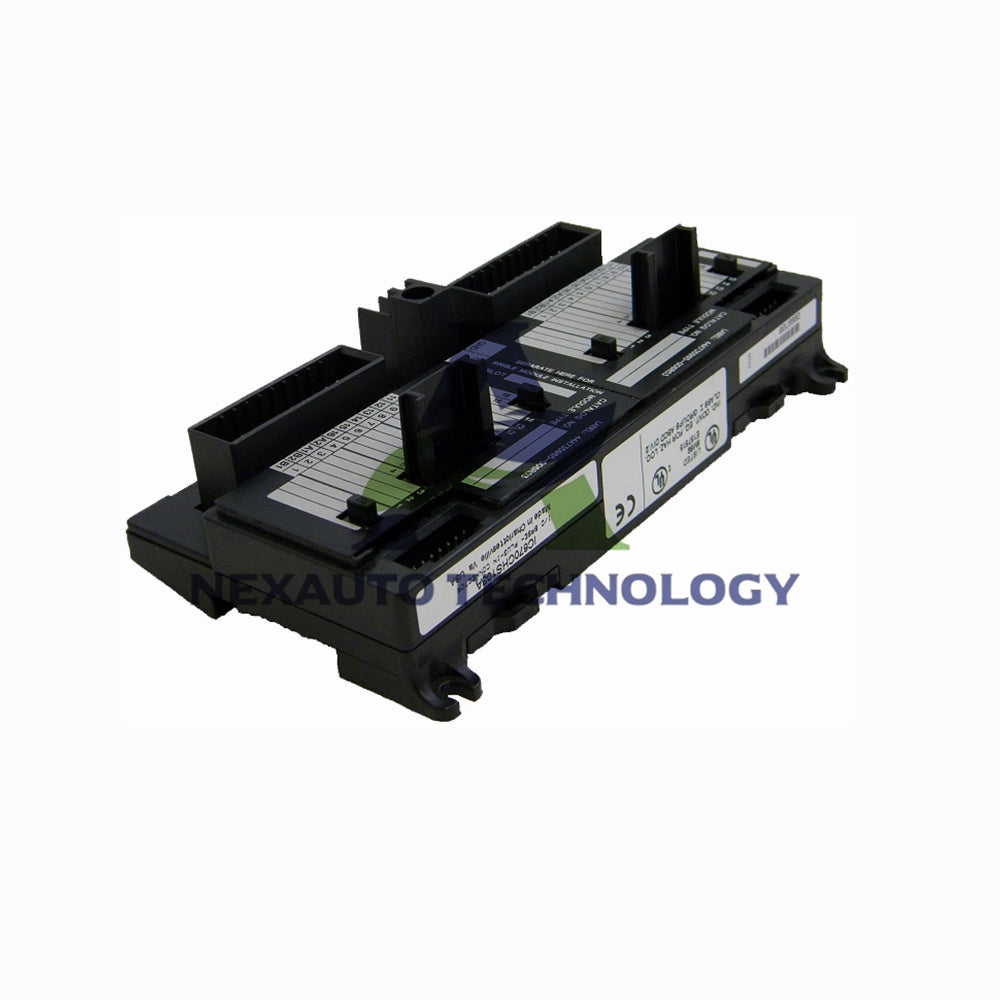

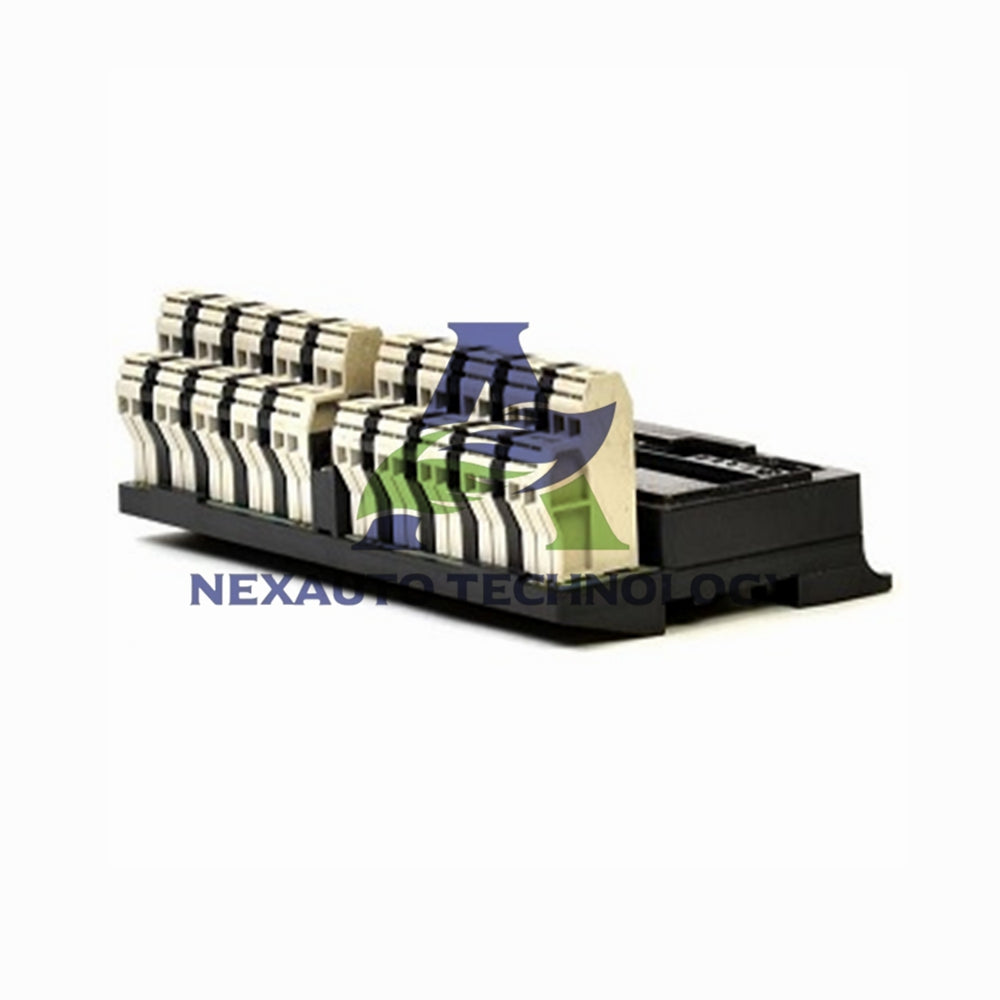

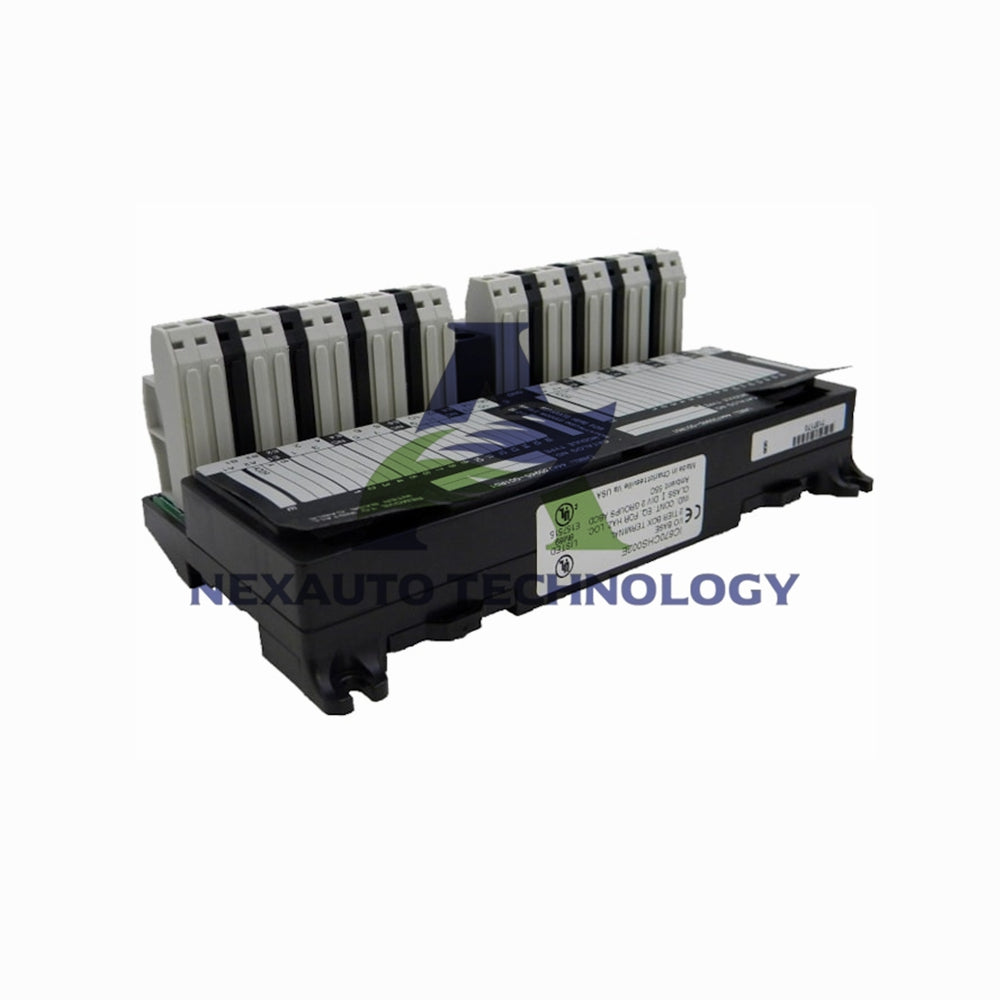

GE Fanuc Field Control IC670CHS002 I/O Base Box Style Terminal Block

Technical Parameters

• Model: IC670CHS002
• Number of Terminals: 37
• Wire Connection: One AWG #14 (2.1 mm²) or two AWG #18 (0.86 mm²) to AWG #22 (0.35 mm²) wires per terminal
• Terminal Torque: 4.5 in-lb (recommended)
• Maximum Current per Terminal: 10 Amperes
• Hot Swap Support: Yes, can insert/remove modules with power on
• Number of Modules Supported: 2 modules
• Compatible Modules: GE Fanuc Field Control modules with suffix J or higher
• Mounting Orientation: Horizontal, DIN rail or panel mount

Installation Guide

• Mount the IC670CHS002 horizontally on a DIN rail or panel surface.
• Secure modules firmly by tightening screws to 4.5 in-lb torque to prevent loosening from vibration.
• Ensure module alignment with factory-installed key slots to avoid incorrect fitting.
• Supports hot swapping: modules can be added or removed without powering down the system.
• For multi-block setups, connect terminal blocks in correct data flow order using supplied cables.
