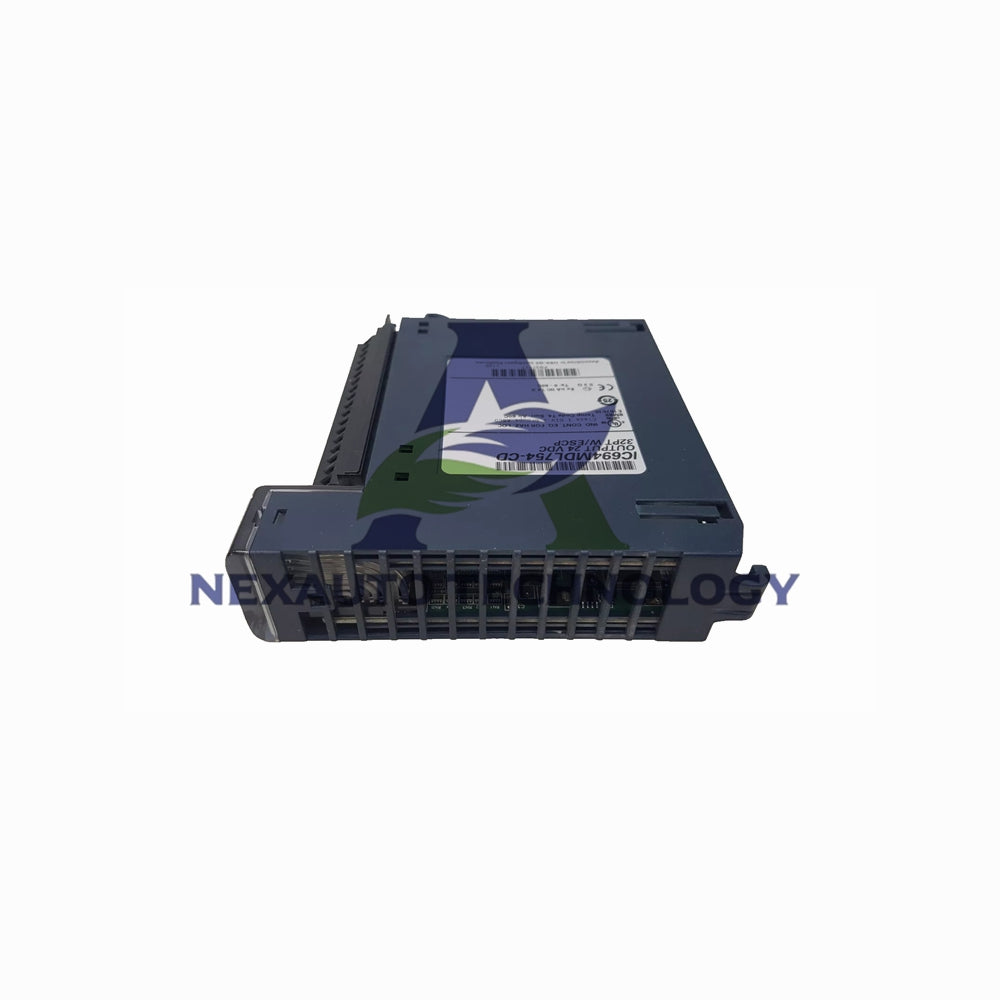

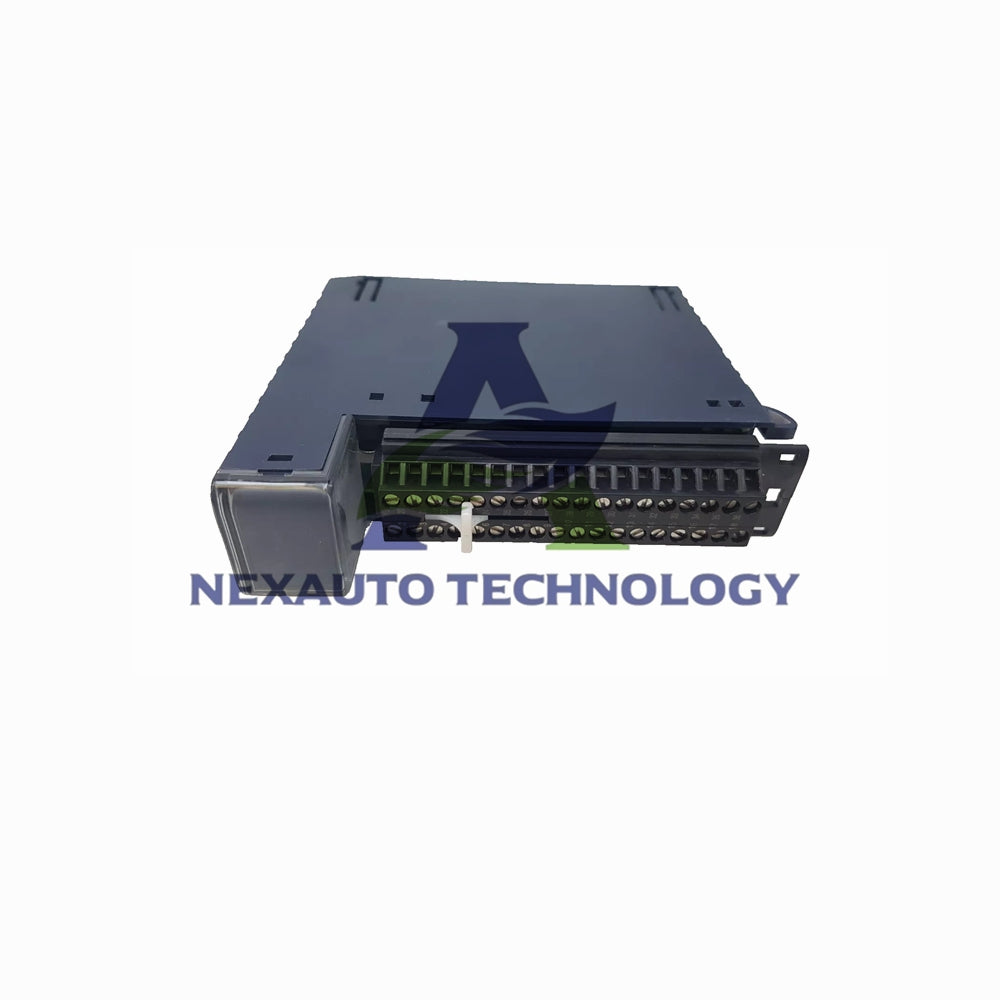

IC694MDL754 GE Fanuc High Density Discrete Output Module

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (94 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

Technical Specifications

Parameter Details
🏷️ Brand GE Fanuc
🔢 Model Number IC694MDL754
🔗 Series PACSystem RX3i
🔌 Number of Channels 32 discrete output points, grouped in two sets of 16 channels
⚡ Voltage Range 10.2 - 30.0 VDC
🔋 Current Capacity per Channel 0.75 Amps
🔋 Max Backplane Draw 300 mA
🛡️ Isolation Ratings - Group to Group: 250 VAC continuous; 1500 VAC for 1 minute
- Field to Backplane: 250 VAC continuous; 1500 VAC for 1 minute
🔌 Output Signal Range 10.2 - 30.0 VDC
⚡ Inrush Current Rating 3.0 Amps
🔧 Wiring Options Box-style (IC694TBB032) or Spring-style (IC694TBS032)
💧 Leakage Current (Off-state) ≤0.1 mA
⏱️ Response Time (Max) 0.5 milliseconds
🔋 Operating Voltage 12/24 Volts DC
💡 LED Indicators 32 status LEDs (one per output)
🛡️ Protection Features Short-circuit, overcurrent, and overtemperature protection
